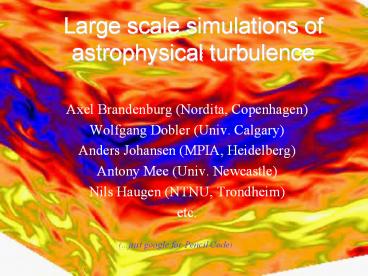

Large scale simulations of astrophysical turbulence

1
Large scale simulations of astrophysical
turbulence

• Axel Brandenburg (Nordita, Copenhagen)
• Wolfgang Dobler (Univ. Calgary)
• Anders Johansen (MPIA, Heidelberg)
• Antony Mee (Univ. Newcastle)
• Nils Haugen (NTNU, Trondheim)
• etc.

(...just google for Pencil Code)
2
Overview

• History as many versions as there are people??
• Example of a cost effective MPI code
• Ideal for linux clusters
• Pencil formulation (advantages, headaches)
• (Radiation as a 3-step process)
• How to manage the contributions of 20 people
• Development issues, cvs maintainence
• Numerical issues
• High-order schemes, tests
• Peculiarities on big linux clusters
• Online data processing/visualization

3
Pencil Code

• Started in Sept. 2001 with Wolfgang Dobler
• High order (6th order in space, 3rd order in
  time)
• Cache memory efficient
• MPI, can run PacxMPI (across countries!)
• Maintained/developed by many people (CVS!)
• Automatic validation (over night or any time)
• Max resolution so far 10243 , 256 procs

4
Range of applications

• Isotropic turbulence
• MHD (Haugen), passive scalar (Käpylä), cosmic
  rays (Snod, Mee)
• Stratified layers
• Convection, radiative transport (T. Heinemann)
• Shearing box
• MRI (Haugen), planetesimals, dust (A. Johansen),
  interstellar (A. Mee)
• Sphere embedded in box
• Fully convective stars (W. Dobler), geodynamo (D.
  McMillan)
• Other applications and future plans
• Homochirality (models of origins of life, with T.
  Multamäki)
• Spherical coordinates

5
Pencil formulation

• In CRAY days worked with full chunks
  f(nx,ny,nz,nvar)
• Now, on SGI, nearly 100 cache misses
• Instead work with f(nx,nvar), i.e. one nx-pencil
• No cache misses, negligible work space, just 2N
• Can keep all components of derivative tensors
• Communication before sub-timestep
• Then evaluate all derivatives, e.g. call
  curl(f,iA,B)
• Vector potential Af(,,,iAxiAz), BB(nx,3)

6
A few headaches

• All operations must be combined
• Curl(curl), max5(smooth(divu)) must be in one go
• out-of-pencil exceptions possible
• rms and max values for monitoring
• call max_name(b2,i_bmax,lsqrt.true.)
• call sum_name(b2,i_brms,lsqrt.true.)
• Similar routines for toroidal average, etc
• Online analysis (spectra, slices, vectors)

7
CVS maintained

• pserver (password protected, port 2301)
• non-public (ci/co, 21 people)
• public (check-out only, 127 registered users)
• Set of 15 test problems in the auto-test
• Nightly auto-test (different machines, web)
• Before check-in run auto-test yourself
• Mpi and nompi dummy module for single processor
  machine (or use lammpi on laptops)

8
Switch modules

• magnetic or nomagnetic (e.g. just hydro)
• hydro or nohydro (e.g. kinematic dynamo)
• density or nodensity (burgulence)
• entropy or noentropy (e.g. isothermal)
• radiation or noradiation (solar convection,
  discs)
• dustvelocity or nodustvelocity (planetesimals)
• Coagulation, reaction equations
• Homochirality (reaction-diffusion-advection
  equations)

9
Features, problems

• Namelist (can freely introduce new params)
• Upgrades forgotten on no-modules (auto-test)
• SGI namelist problem (see pencil FAQs)

10
Pencil Code check-ins
11
High-order schemes

• Alternative to spectral or compact schemes
• Efficiently parallelized, no transpose necessary
• No restriction on boundary conditions
• Curvilinear coordinates possible (except for
  singularities)
• 6th order central differences in space
• Non-conservative scheme
• Allows use of logarithmic density and entropy
• Copes well with strong stratification and
  temperature contrasts

12
(i) High-order spatial schemes
Main advantage low phase errors
13
Wavenumber characteristics
14
Higher order less viscosity
15
Less viscosity also in shocks
16
(ii) High-order temporal schemes
Main advantage low amplitude errors
2N-RK3 scheme (Williamson 1980)
2nd order
3rd order
1st order
17
Shock tube test
18
Hydromagnetic turbulence and subgrid scale models?

• Want to shorten diffusive subrange
• Waste of resources
• Want to prolong inertial range
• Smagorinsky (LES), hyperviscosity,
• Focus of essential physics (ie inertial range)
• Reasons to be worried about hyperviscosity
• Shallower spectra
• Wrong amplitudes of resulting large scale fields

19
Simulations at 5123
Biskamp Müller (2000)
Normal diffusivity
With hyperdiffusivity
20
The bottleneck is a physical effect
compensated spectrum
Porter, Pouquet, Woodward (1998) using PPM,
10243 meshpoints
Kaneda et al. (2003) on the Earth simulator,
40963 meshpoints (dashed Pencil-Code with 10243 )
21
Bottleneck effect 1D vs 3D spectra
Compensated spectra (1D vs 3D)
22
Relation to laboratory 1D spectra
23
Hyperviscous, Smagorinsky, normal
height of bottleneck increased
Haugen Brandenburg (PRE, astro-ph/0402301)
onset of bottleneck at same position
Inertial range unaffected by artificial diffusion
24
256 processor run at 10243
25
Structure function exponents
agrees with She-Leveque
third moment
26
Helical dynamo saturation with hyperdiffusivity
for ordinary hyperdiffusion
ratio 125 instead of 5
27
Slow-down explained by magnetic helicity
conservation
molecular value!!
28
MHD equations
Magn. Vector potential
Induction Equation
Momentum and Continuity eqns
29
Vector potential

• BcurlA, advantage divB0
• JcurlBcurl(curlA) curl2A
• Not a disadvantage consider Alfven waves

B-formulation
A-formulation
2nd der once is better than 1st der twice!
30
Comparison of A and B methods
31
Wallclock time versus processor
nearly linear Scaling 100 Mb/s
shows limitations 1 - 10 Gb/s no limitation
32
Sensitivity to layout onLinux clusters
Gigabit uplink
100 Mbit link only

• yprox x zproc
• 4 x 32 ? 1 (speed)
• 8 x 16 ? 3 times slower
• 16 x 8 ? 17 times slower

24 procs per hub
33
Why this sensitivity to layout?
0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5
6 7 8 9 0 1 2 3 4






All processors need to communicate with
processors outside to group of 24
34
Use exactly 4 columns
Only 2 x 4 8 processors need to communicate
outside the group of 24 ? optimal use of speed
ratio between 100 Mb ethernet switch and 1 Gb
uplink
0 1 2 3
4 5 6 7
8 9 10 11
12 13 14 15
16 17 18 19
20 21 22 23
0 1 2 3
4 5 6 7
8 9 10 11
12 13 14 15






35
Fragmentation over many switches
36
Pre-processed data for animations
37
Ma3 supersonic turbulence
38
Animation of B vectors
39
Animation of energy spectra
Very long run at 5123 resolution
40
MRI turbulenceMRI magnetorotational instability
2563 w/o hypervisc. t 600 20 orbits
5123 w/o hypervisc. Dt 60 2 orbits
41
Fully convective star
42
Geodynamo simulation
43
Homochirality competition of left/right
Reaction-diffusion equation
44
Conclusions

• Subgrid scale modeling can be unsafe (some
  problems)
• shallower spectra, longer time scales, different
  saturation amplitudes (in helical dynamos)
• High order schemes
• Low phase and amplitude errors
• Need less viscosity
• 100 MB link close to bandwidth limit
• Comparable to and now faster than Origin
• 2x faster with GB switch
• 100 MB switches with GB uplink /- optimal

45
Transfer equation parallelization
Processors
Analytic Solution
46
The Transfer Equation Parallelization
Processors
47
The Transfer Equation Parallelization
Processors
48
Current implementation

• Plasma composed of H and He
• Only hydrogen ionization
• Only H- opacity, calculated analytically
• No need for look-up tables
• Ray directions determined by grid geometry
• No interpolation is needed

49
Convection with radiation
