Title: Remediation schemes to mitigate the impacts of abandoned mines


1

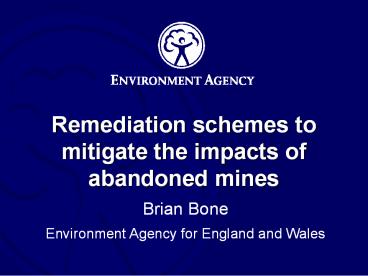

Remediation schemes to mitigate the impacts of
abandoned mines
  • Brian Bone
  • Environment Agency for England and Wales

2
Presentation aims content
  • To illustrate the approach to remediation in
    England Wales through 3 case studies
  • Remediation drivers
  • Remedial strategy case studies
  • active treatment of minewater
  • passive treatment of minewater
  • stabilisation of tailings
  • Conclusions

3
Key drivers for remediation of abandoned mines
  • EU Dangerous Substances Directive - requires
    consented discharges for all sites abandoned
    after 1981 where the minewater contains listed
    substances
  • EU Groundwater Directive - requires consented
    discharges from mine waste where leachate
    contains listed substances
  • UK Contaminated Land Regulations - requires
    remedial action where a significant pollutant
    linkage is identified

4
Future drivers
  • EU Water Framework Directive - consolidates a
    number of directives, including the dangerous
    Substances and Groundwater Directives.
    Environmental objectives will need to be set for
    ALL water bodies in terms of chemical and
    ecological quality.
  • Future EU Mining Wastes Directive - will require
    exchange of technical information on best
    available techniques with a view to developing
    methods to identify and remedy closed waste
    facilities

5
Remedial strategies
  • Single or combination of options to prevent
    pollution and/or treat, selected from
  • active treatment
  • passive treatment
  • prevention control of discharge
  • Each approach is highlighted by a case study

6
Active treatment
  • Advantages
  • Track record available expertise
  • Process control
  • Consistent effluent quality
  • Disadvantages
  • Cost (op cap)
  • Sludge disposal
  • Energy consumption

7
Wheal Jane Incident
  • Tin/zinc mine in Cornwall
  • closed early 1990s after 100s-1000s years mining
  • in 1 year minewater rapidly recovered following
    closure
  • temporary pump and treat scheme set up in Nov
    1991
  • Jan 1992 sudden release of 50,000m3 of water and
    sediment containing large quantities of Fe, As,
    Cu, Cd and Zn into the Fal estuary

8
Wheal Jane
9
Drivers objectives for remediation
  • EU Dangerous Substances Directive - applies to
    mines abandoned after 1981
  • Minimise the polluting effects of minewater
    discharges from Wheal Jane
  • Monitor changes in water quality and the effects
    on the aquatic environment
  • Determine the most cost-effective long-term
    remediation strategy for Wheal Jane

10
Impact of Treatment - Wheal Jane
11
Active treatment system
  • Designed to treat 350 l/s (average 200 l/s)
  • Lime-dosing with sludge recirculation
  • Pre-settlement sludge density design of 20 w/w
    solids
  • Metals removal to satisfy discharge consent to
    local stream
  • Three key stages

12
Stage 2
Stage 1
13
Active treatment system - summary
  • State-of-the-art active treatment plant
    commissioned in 2000, cost 20M to build and
    operate for 10 years
  • High density sludge system is very successful,
    solid content of 50 w/w achieved in tailings dam
  • Tertiary filters presses not needed - saving
    1.7M
  • 1st 22 months of operation gt12 Mcu.m of water
    treated and gt3200te of metals removed (overall
    removal efficiency 99.2)

14
Passive treatment
  • Advantages
  • Low maintenance
  • Aesthetically pleasing
  • Sustainable?
  • Disadvantages
  • Large land take
  • Lack of process control
  • Relatively new (track record)
  • Cost (capital)?

15
Objectives of Wheal Jane pilot passive treatment
  • Examine the feasibility of passive treatment as a
    long-term solution for Wheal Jane minewater
  • develop an understanding of the key geochemical
    and microbiological processes
  • model the system to aid design of a permanent
    system for Wheal Jane and elsewhere

16
(No Transcript)
17
Wheal Jane passive treatment site
18
Aerobic cells
19
Wheal Jane passive treatment plant anaerobic cell
Anaerobic cell
20
Rock filters
21
Passive system - conclusions
  • The conclusion that Wheal Jane drainage could not
    be treated with passive technology was tested.
  • Further multidisciplinary studies have been
    carried out to understand the processes involved
    in passive treatment systems
  • The studies indicate that a passive system could
    be redesigned to treat Wheal Jane drainage
  • Proposal to establish an international research
    centre at Wheal Jane passive site

22
Prevention and control of discharges
  • Encapsulation of mining waste
  • Advantages
  • Track record of civil engineering approaches
  • Low maintenance
  • Disadvantages
  • Surface area limits
  • Durability

23
Greenside Mine, Cumbria
24
(No Transcript)
25
(No Transcript)
26
Remediation Scheme (1)
  • Objective - to prevent mobilisation of
    contaminated tailings from a collapsed dam
  • Control infiltration
  • run-off into dam
  • groundwater flow into dam
  • infiltration through surface
  • Reduce gradient
  • regrade slope
  • retaining walls

27
(No Transcript)
28
(No Transcript)
29
(No Transcript)
30
(No Transcript)
31
(No Transcript)
32
Remediation Scheme (2)
  • Stabilise retaining structures
  • walls
  • underpin revetments
  • Stabilise soil
  • geosynthetic pre-seeded matting

33
(No Transcript)
34
(No Transcript)
35
August 2003
36
Summary
  • Case studies from two sites were presented,
    included active and passive treatment of acid
    minewater and a civil engineering approach to
    deal with tailings
  • Minewater treatment cases highlight the need for
    good planning, including treatability studies to
    understand key chemical and biological processes
  • Current and future legislation pose significant
    challenges to cost-effective remediation in
    meeting chemical and ecological objectives and
    disposal of treatment wastes
