Title: Module 1.9: Data Transmission


1

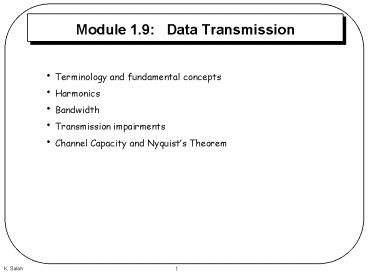

Module 1.9 Data Transmission
  • Terminology and fundamental concepts
  • Harmonics
  • Bandwidth
  • Transmission impairments
  • Channel Capacity and Nyquists Theorem

2
Terminology
  • Medium
  • Guided medium
  • e.g. twisted pair, optical fiber
  • Unguided medium
  • e.g. air, water, vacuum
  • Simplex
  • One direction
  • e.g. Television
  • Half duplex
  • Either direction, but only one way at a time
  • e.g. police radio
  • Full duplex
  • Both directions at the same time
  • e.g. telephone

3
Fundamental Concepts
  • Time domain concepts
  • Continuous signal (Analog)
  • Various in a smooth way over time
  • e.g. sound, video
  • Discrete signal (Digital)
  • Maintains a constant level then changes to
    another constant level
  • e.g., text, integers
  • Periodic signal
  • Pattern repeated over time
  • Aperiodic signal
  • Pattern not repeated over time

4
Sine Wave (Harmonic) Components
  • Peak Amplitude (A)
  • maximum strength of signal
  • volts
  • Frequency (f)
  • Rate of change of signal
  • Hertz (Hz) or cycles per second
  • Period time for one repetition (T)
  • T 1/f
  • Phase (?)
  • Relative position in time

5
Bandwidth
  • Bandwidth (in analog communications)
  • The total capacity of communications channel
    measured in hertz(Hz).
  • It is the difference between the highest and
    lowest frequencies capable of being carried over
    a channel.
  • Any transmission system has a limited band of
    frequencies
  • This limits the data rate that can be carried
  • Bandwidth (in digital communications and
    networking)
  • The theoretical capacity of communications
    channel expressed in bits per second (bps), which
    is called data rate.

6
Analog and Digital Data Transmission
  • Signals
  • Electric or electromagnetic or light
    representations of data. Means of propagating
    Data.
  • Analog Signal
  • Represent data with continuously varying sine
    wave.
  • Continuously variable. Various media, e.g. wire,
    fiber optic, space
  • Speech bandwidth 100Hz to 7kHz, Telephone
    bandwidth 300Hz to 3400Hz, Video bandwidth 4MHz
  • Digital Signal
  • Represent data with sequence of voltage pulses
  • Use two DC components and vary it over time.
    Component of zero frequency.

7
Digital Signal
  • In RS-232, voltage that varies between -15 and -5
    volts is interpreted as a binary 0, and voltage
    that varies between 5 and 15 volts is
    interpreted as a binary 1. Voltage that varies
    between -5 and 5 volts is ignored that is, no
    interpretation is made.

8
Analog Signal
  • A single frequency with fixed A and ? has 0
    bandwidth. It carries no information. However,
    when it is combined with other frequencies or its
    components become variable, the bandwidth gets
    changed.

Amplitude Change
Frequency Change
9
Analog Signal
Phase Change
10
Modem Modulation Techniques
  • Usually use digital signals for digital data and
    analog signals for analog data
  • Can use analog signal to carry digital data
  • Modem
  • Digital signals have a wide spectrum and thus are
    subject to strong attenuation and delay
    distortion. DC is good for short distances.
  • Analog signals are used instead with different
    modulation of components.

11
Analog vs. Digital Transmission
  • Transmission
  • Communication of data by propagation and
    processing of signals
  • Analog Transmission
  • Analog signal transmitted without regard to
    content
  • May be analog or digital data
  • Attenuated over distance
  • Use amplifiers to boost signal
  • Also amplifies noise
  • Digital Transmission
  • Concerned with content
  • Integrity endangered by noise, attenuation etc.
  • Repeaters used
  • Repeater
  • receives signal
  • extracts bit pattern
  • retransmits
  • Attenuation is overcome
  • Noise is not amplified

12
Transmission Impairments
  • Signal received may differ from signal
    transmitted
  • Analog - degradation of signal quality
  • Digital - bit errors
  • Caused by
  • Attenuation and attenuation distortion
  • Delay distortion
  • Noise

13
Attenuation
  • Attenuation
  • Signal strength falls off with distance
  • Depends on medium
  • Received signal strength
  • must be enough to be detected
  • must be sufficiently higher than noise to be
    received without error
  • Attenuation is an increasing function of
    frequency
  • Unlike FM, low frequency (AM) travels very far

14
Delay Distortion
  • Delay Distortion
  • Only in guided media
  • Propagation velocity varies with frequency
  • Called also Intersymbol Interference. Due to
    delay distortions, some of the signal components
    of one bit position will spill over into other
    bit positions.

15
Noise
  • Additional signals inserted between transmitter
    and receiver
  • Thermal
  • Due to thermal agitation of electrons
  • Uniformly distributed
  • White noise
  • Crosstalk
  • A signal from one line is picked up by another
  • Impulse
  • Irregular pulses or spikes
  • Short duration
  • High amplitude
  • e.g. External electromagnetic interference such
    as lightning or cut in cable or fault in
    communication equipment.

16
Channel Capacity
  • Data rate Capacity
  • In bits per second
  • Rate at which data can be communicated
  • Nyquists Theorem
  • In 1920, Henry Nyquist discovered that sampling
    rate must be at least twice the highest
    frequency, in order to construct the original
    signal.
  • Called also Sampling Rate theorem.
  • See nice animation at http//www.cs.brown.edu/expl
    oratories/freeSoftware/repository/edu/brown/cs/exp
    loratories/applets/nyquist/nyquist_limit_java_brow
    ser.html
  • Also, maximum data rate (how much data you can
    represent in one signal) of any signal of
    frequency w is
  • MDR (noiseless) 2 w log2 M
  • M is the values used per signaling state
  • Shannons formula (only thermal noise)
  • MDR w log2 (1 SNR)
