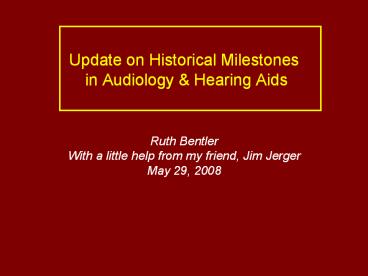

Update on Historical Milestones in Audiology

1
Update on Historical Milestones in Audiology
Hearing Aids

• Ruth Bentler
• With a little help from my friend, Jim Jerger
• May 29, 2008

2
(No Transcript)
3
(No Transcript)
4
1922

• First commercial audiometer
• Western Electric 1-A
• Harvey Fletcher

5
1922

• The audiogram form as we know it today.

Edmund Prince Fowler
6
1939

• First book on clinical audiometry
• Cordia C Bunch

7
1946

• Speech
• audiometry
• Raymond Carhart

8
1960

• Bekesy
• audiometry
• James Jerger

9
1962

• First infant screening program
• Marian Downs

10
1970

• Impedance audiometry
• James Jerger

Madsen ZO61
Madsen ZO70
11
1971
The Auditory Brain Stem Response
(ABR) Donald Jewett
12
1974

• Pediatric
• applications
• ABR
• Kurt Hecox Robert Galambos

13
Some Audiological Pioneers
14
Some Hearing Aid Milestones
15
First published accounts

• Pre-electric (prior to 1900)
• Deaf aids
• Deaf instruments
• Speaking tubes (or trumpets)
• Hearing tubes (or trumpets)
• Manufacturers
• Frederick Charles Rein Co (1800-1963)
• T. Hawksley Ltd of London (1869)
• George P. Pilling Sons (1814)
• etc

16
(No Transcript)
17
(No Transcript)
18
(No Transcript)
19
(No Transcript)
20
(No Transcript)
21
First Electric

• 1900
• Big
• Poor frequency
• response

22
(No Transcript)
23
First programmable

• 1988 (also beginning of multi-memories,
  multi-channels, remotes, etc)
• Bentler (1992) American Journal of Audiology

24
First digital

• 1995
• Oticon/Widex
• (Harnack-Knebel Bentler, 1998, Ear Hearing)

25
First (and only) disposable

• 1998
• Songbird
• Poor design
• Analog OR Digital

26
First signal processor to correct hearing

• Still waiting.

27
New (useful) technologies

• Open fittings (plus RITE)
• Directional Microphones
• Digital Noise Reduction
• Feedback management
• Data logging
• Data learning

28
Open Fitting (or Open Fitting?)

• Starkey Aspect XtraTM
• Sonic Innovations ionTM
• GN Resound (were sending our competitors back
  to the drawing board) AirTM, PulseTM
• MicroTech SenecaTM
• Oticons Corda tubing option for
• Synchro
• Tego, Tego Pro
• Bernafon SwissEarTM
• Unitron ModaTM
• Widex Inteo elan TM

29
(No Transcript)
30
(No Transcript)
31
(No Transcript)
32
(No Transcript)
33
(No Transcript)
34
How is it that we now do better?

• Feedback cancellation
• Broader bandwidth
• New market

35
Directional Microphones
36
Quick Tutorial

• Ways to build directivity into a hearing aid
  case
• Single mic with two ports
• Two omni mics
• Combination of omni directional mics
• Three mics
• Mic array

37
(No Transcript)
38
Directional Microphone
39
Reading a Polar Plot
40
OmniDirectional Microphone
Polar plot for omnidirectional mic in free field
Level of signal
Angle of signal source
41
Polar Response Pattern
Free field characteristics of different types of
microphones (Knowles TB 21)
Omnidirectional Cardioid Hypercardioid
Supercardioid
42
(No Transcript)
43
(No Transcript)
44
(No Transcript)
45
(No Transcript)
46
(No Transcript)
47
(No Transcript)
48
(No Transcript)
49
(No Transcript)
50
(No Transcript)
51
(No Transcript)
52
(No Transcript)
53
(No Transcript)
54
(No Transcript)
55
(No Transcript)
56
(No Transcript)
57
(No Transcript)
58
(No Transcript)
59
Directional Microphones
60
Analog NR (1980-90s)

• Early spectral approaches
• Switch
• ASP (means low frequency compression)
• Adaptive filtering
• Frequency dependant input compression
• Adaptive compressionTM
• Zeta Noise BlockerTM

61
Todays versions

• Most are modulation-based with some algorithm for
  where and how much gain reduction should occur
• At least one other (Oticon) first introduced a
  strategy called synchronous morphology to
  determine when noise reduction will occur
• Several are now implementing Wiener filters as
  well
• Many also use some mic noise reduction,
  expansion, wind noise reduction, and even
  directional mics as part of the strategy they
  promote.

62
New (not-so-useful?) features

• Talking hearing aids
• Talk to person wearing aid
• Talk to each other
• In many languages!
• Complex remote controls
• Sometimes necessary, eg Bluetooth
• Not useful for young and old

63

• Questions?
