FE 423 - Watershed Analysis Lecture 1a - Overview

1

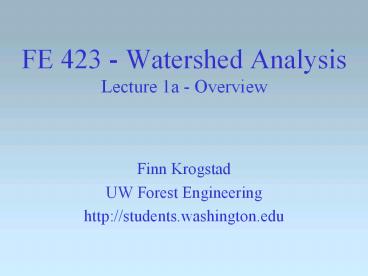

FE 423 - Watershed AnalysisLecture 1a - Overview

• Finn Krogstad
• UW Forest Engineering
• http//students.washington.edu

2
OVERVIEW

• why -
• what -
• when -
• where -
• how -
• who -

3
EARLY MANAGEMENT

• Management was done with little consideration of
  environmental impacts

4
Early Regulations

• Case-by-case evaluation of roads, harvests, and
  locations
• Still dominates forest management today

5
Watershed Analysis

• APPROACH - basin specific
• where are the hazards
• what are they sensitive to
• will they reach the stream
• are there sensitive reaches
• are vulnerable fish there
• do inputs exceed background

6
Watershed Analysis

• PROBLEMS
• Massive expert time
• Site-by-site investigation
• Stop being watershed specific
• Site, not landscape plans
• Is plan A worse than plan B?

7
Goal Comparing Landscape Options
8
OVERVIEW

• why - spatial approach
• what -
• when -
• where -
• how -
• who -

9
WATERSHEDS

• Spatial Heterogeneity
• Water Flows Downhill

10
EACH POINT HAS UNIQUE

• Vegetation
• Soil
• Slope
• Aspect
• Upslope Area
• Distance to Stream
• Management

11
DOWNHILL IMPACTS

• Saturating Hillslopes
• Erosion Runoff Filtering
• Stream Flow Volumes
• Stream Width Depth
• Sediment Supply
• Fish Habitat

12
WE NEED
1a. Data for each point in the watershed 1b.
Calculate processes at each point 2a. Sum outputs
from upslope area 2b. Sum delivery costs to
stream
13
Spreadsheets - The Most Powerful Scientific Tool
Ever Developed
1. Bring in data 2. Run calculations 3. Display
results Originally was Programming for
Accountants
14
GRID the Spreadsheet for Landscapes
1. Bring in spatial data (soils, vegetation,
topography, ) 2. Run equations 3. Display
results ArcView not just pretty pictures
15
Watershed Analysis in GRID

• data for each point
• calculation at each point
• along path to the stream
• accumulating upstream inputs
• accumulating different inputs
• compare management plans

16
OVERVIEW

• why - spatial approach
• what - downhill in GIS
• when -
• where -
• how -
• who -

17
SCHEDULE
18
OVERVIEW

• why - spatial approach
• what - downhill in GIS
• when - schedule
• where -
• how -
• who -

19
SYLLABUS
OSB
20
OVERVIEW

• why - spatial approach
• what - downhill in GIS
• when - schedule
• where - OSB 111
• how -
• who -

21
SYLLABUS

• Instructors Finn Krogstad, Peter Schiess
• GradingFE423 three exams (33 each)FE523
  three exams and a project (25 each)
• Lectures Tuesday Thursday, 930-1120, in OSB
  111 (except first day in AND 302)
• ExamsEach exam will include an in-class and a
  take-home part. The in-class part is open book,
  open note, pencil-and-paper discussion of
  grid-based solution of watershed problems. The
  take-home part which will require solution of
  problems.
• Practice ProblemsEach lecture will include a
  set of problems to provide hands-on experience in
  the grid-based approach to solving watershed
  problems. These problems are not handed in, but
  the exams will look much like these problems, and
  will assume that students have completed all
  problems.

22
READINGS

• Hard copy of the online help Cell Based Modeling
  with GRID
• People without ArcView experience Getting to
  know ArcView GIS
• Another view of Spatial Analyst Extending
  Arcview GIS
• Some Hydrology and Geomorphology Water in
  Environmental Planning, Watershed Analysis
  Manual (WFPB) Geomorphology (Chorley, et al)

23
OVERVIEW

• why - spatial approach
• what - downhill in GIS
• when - schedule
• where - OSB 111
• how - syllabus
• who -

24
Why Watershed Analysis in GRID?

• PROBLEMS
• not a survey class an approach, not facts
• learning GIS requires work
• existing software more accurate black boxes
• ADVANTAGES
• quantitative approach actually say something
• insight into process applicable to many issues
• GIS skills applicable to other types of problems

25
Should you take this course?

• Spatial Hydrology
• Landscape Scale
• More GIS

26
Discussion Problemsfor Thursday, try and be
ready to discuss the following

• Make a spreadsheet that will estimate the peak
  flow Q5.157A.9Pa1.35F-.21 for a five year
  storm in Region XII, using a table of road
  crossings with their respective contributing area
  A, percent forest cover F, and annual rainfall
  Pa.
