The Pennsylvania State University

1

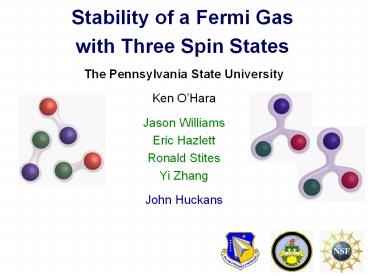

Stability of a Fermi Gas with Three Spin States

• The Pennsylvania State University
• Ken OHara
• Jason Williams
• Eric Hazlett
• Ronald Stites
• Yi Zhang
• John Huckans

2
Three-Component Fermi Gases

• Many-body physics in a 3-State Fermi Gas
• Mechanical stability with resonant interactions
  an open question
• Novel many-body phases
• Competition between different Cooper pairs
• Competition between Cooper pairing and 3-body
  bound states
• Analog to Color Superconductivity and Baryon
  Formation in QCD
• Polarized 3-state Fermi gases Imbalanced Fermi
  surfaces
• Novel Cooper pairing mechanisms
• Analogous to mass imbalance of quarks

3
QCD Phase Diagram
C. Sa de Melo, Physics Today, Oct. 2008
4
Simulating the QCD Phase Diagram

• Color Superconducting-to-Baryon Phase
  Transition
• 3-state Fermi gas in an optical lattice
• Rapp, Honerkamp, Zaránd Hofstetter,
• PRL 98, 160405 (2007)
• A Color Superconductor in a 1D Harmonic Trap
• Liu, Hu, Drummond, PRA 77, 013622 (2008)

Rapp, Hofstetter Zaránd, PRB 77, 144520 (2008)
5
Universal Three-Body Physics

• The Efimov Effect in a Fermi system
• Three independent scattering lengths
• More complex than Efimovs original scenario
• New phenomena (e.g. exchange reactions)
• Importance to many-body phenomena
• Two-body and three-body physics completely
  described
• Three-body recombination rate determines
  stability of the gas

6
Three-State 6Li Fermi Gas
Hyperfine States of 6Li
7
Inelastic Collisions

• No Spin-Exchange Collisions
• Energetically forbidden
• (in a bias field)
• Minimal Dipolar Relaxation
• Suppressed at high B-field
• Electron spin-flip process irrelevant in
  electron-spin-polarized gas
• Three-Body Recombination
• Allowed in a 3-state mixture
• (Exclusion principle suppression for 2-state
  mixture)

8
Making and Probing 3-State Mixtures
Radio-frequency magnetic fields drive transitions
Spectroscopically resolved absorption imaging
9
The Resonant QM 3-Body Problem
(1970) Efimov An infinite number of bound 3-body
states for
.



Inner wall B.C. determined by short-range
interactions
Vitaly Efimov circa 1970
Infinitely many 3-body bound states
(universal scaling)
A single 3-body parameter
10
QM 3-Body Problem for Large a
(1970 1971) Efimov Identical Bosons in
Universal Regime
Observable for a lt 0 Enhanced 3-body
recombination rate at
E. Braaten, et al. PRL 103, 073202
Note Only two free parameters Log-periodic
scaling
Diagram from E. Braaten H.-W. Hammer, Ann.
Phys. 322, 120 (2007)
11
Universal Regions in 6Li
12
The Threshold Regime and the Unitarity Limit

• Universal predictions only valid at threshold
• Collision Energy must be small
• Smallest characteristic energy scale
• Comparison to theory requires low temperature
• and low density (for fermions)
• Recombination rate unitarity limited in a thermal
  gas

13
Making Fermi Gases Cold

• Evaporative Cooling in an Optical Trap
• Optical Trap Formed from two 1064 nm, 80 Watt
  laser beams
• Create incoherent 3-state mixture
• Optical pumping into F1/2 ground state
• Apply two RF fields in presence of field gradient

14
Making Fermi Gases Ultracold
Adiabatically Release Gas into a Larger Volume
Trap
15
Low Field Loss Features
T. B. Ottenstein et al., PRL 101, 203202 (2008).
J. H. Huckans et al., PRL102, 165302 (2009).
Resonances in the 3-Body Recombination Rate!
16
Measuring 3-Body Rate Constants
Loss of atoms due to recombination
Evolution assuming a thermal gas at temperature
T
Anti-evaporation and recombination heating
17
Recombination Rate in Low-Field Region
18
Recombination Rate in Low-Field Region
P. Naidon and M. Ueda, PRL 103, 073203 (2008).
E. Braaten et al., PRL 103, 073202 (2009).
S. Floerchinger, R. Schmidt, and C. Wetterich,
Phys. Rev. A 79, 053633 (2009)
19
Recombination Rate in Low-Field Region
P. Naidon and M. Ueda, PRL 103, 073203 (2008).
E. Braaten et al., PRL 103, 073202 (2009).
S. Floerchinger, R. Schmidt, and C. Wetterich,
Phys. Rev. A 79, 053633 (2009)
Better agreement if h tunes with magnetic field
A. Wenz et al., arXiv0906.4378 (2009).
20
Efimov Trimer in Low-Field Region
21
3-Body Recombination in High Field Region
22
3-Body Recombination in High Field Region
23
Determining the Efimov Parameters
using calculations from E. Braaten et al., PRL
103, 073202 (2009).
24
Determining the Efimov Parameters
using calculations from E. Braaten et al., PRL
103, 073202 (2009).
25
Determining the Efimov Parameters
using calculations from E. Braaten et al., PRL
103, 073202 (2009).
26
Efimov Trimers in High-Field Region
also predicts 3-body loss resonances at 125(3)
and 499(2) G
27
3-Body Observables in High Field Region
from E. Braaten, H.-W. Hammer, D. Kang and L.
Platter, arXiv (2009).
28
Prospects for Color Superfluidity

• Color Superfluidity in a Lattice (increased
  density of states)
• TC 0.2 TF (in a lattice with d 2 mm, V0 3
  ER )
• Atom density 1011 /cc
• Atom lifetime 200 ms (K3 5 x 10-22 cm6/s)
• Timescale for Cooper pair formation

29
Summary

• Observed variation of three-body recombination
  rate by 8 orders of magnitude
• Experimental evidence for ground and excited
  state Efimov trimers in a three-component Fermi
  gas
• Observation of Efimov resonance near three
  overlapping Feshbach resonances
• Determined three-body parameters in the high
  field regime which is well described by
  universality
• The value of k is nearly identical for the
  high-field and low-field regions despite crossing
  non-universal region
• Three-body recombination rate is large but does
  not necessarily prohibit future studies of
  many-body physics

30
Fermi Gas Group at Penn State
Ken OHara John Huckans Ron Stites
Eric Hazlett Jason Williams Yi Zhang



31
Future Prospects

• Efimov Physics in Ultracold Atoms
• Direct observation of Efimov Trimers
• Efimov Physics (or lack thereof) in lower
  dimensions
• Many-body phenomena with 3-Component Fermi Gases

32
