Title: PCM


1

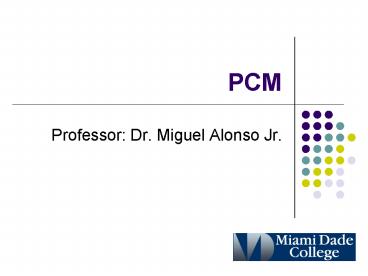

PCM
  • Professor Dr. Miguel Alonso Jr.

2
Outline
  • Sample and Hold, and Sampling Frequency
  • Quantization
  • Dynamic Range and SNR Calculations
  • Amplitude Companding
  • D to A and A to D

3
Introduction
  • Concerned with the transfer of information in
    digital form
  • Advantages
  • Noise Performance
  • Ability to process signal at the source and
    destination DSP
  • PCM is the most common technique used today in
    Digital Communications for representing an analog
    signal by a digital word.
  • PCM is a technique for converting analog signals
    into a digital representation

4
(No Transcript)
5
Sample and Hold, and Sampling Frequency
  • The first step is to sample and hold the analog
    input
  • PAM
  • Natural, not good for sampling
  • Flat-top PAM
  • Sampling frequency must meet the Nyquist Criteria
    because of Aliasing
  • Fs 2Fmax

6
Quantization
  • Once the signal has been sampled, the binary
    conversion process can begin
  • In PCM systems, the sampled signal is segmented
    into different voltage levels, with each level
    corresponding to a different binary number.
  • This process is called quantization
  • Converted to the closest binary value provided in
    the digitizing system
  • At each sampling interval, the analog amplitude
    is quantized into the closest available
    quantization level

7
  • Resolution
  • q Vmax / 2n
  • Quantization error or Noise results when the
    analog signal being sampled lies in between two
    quantization levels
  • Example
  • 3 volt 40Hz Sine wave sampled in a 4-bit PCM
    system
  • Fs ?
  • Q?, Fclock ?

8
Dynamic Range and SNR calculations
  • Dynamic range for a PCM system is defined as the
    ration of the maximum input or output voltage
    level to the smallest voltage level that can be
    quantized and/or reproduced by the converters
  • Vfs/q
  • DR Vmax/Vmin 2n
  • DRdB 20log10 Vmax/Vmin
  • DRdB 20log10 2n

9
  • SNRdB for a PCM system
  • SNRdB 1.76 6.02n
  • Signal to quantization noise
  • SNRq(dB) 10log 3(2n)2
  • Example A digitizing system specifies 55dB of
    dynamic range. How many bits are required to
    satisfy the DR spec? What is the SNRdB ? What is
    SNRq(dB) ?
