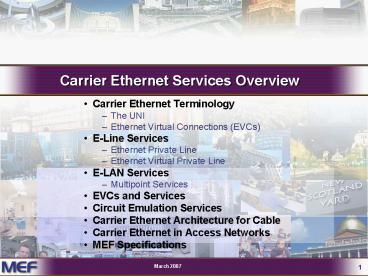

Carrier Ethernet Services Overview

1
Carrier Ethernet Services Overview

• Carrier Ethernet Terminology
• The UNI
• Ethernet Virtual Connections (EVCs)
• E-Line Services
• Ethernet Private Line
• Ethernet Virtual Private Line
• E-LAN Services
• Multipoint Services
• EVCs and Services
• Circuit Emulation Services
• Carrier Ethernet Architecture for Cable
• Carrier Ethernet in Access Networks
• MEF Specifications

March 2007
2
Purpose

• Carrier Ethernet Services Overview
• This presentation defines the MEF Ethernet
  Services that represent the principal attribute
  of a Carrier Ethernet Network
• This presentation is intended to give a simple
  overview as a grounding for all other MEF
  documents

3
MEF Carrier Ethernet Terminology

• The User Network Interface (UNI)
• The UNI is the physical interface or port that
  is the demarcation between the customer and the
  service provider/Cable Operator/Carrier/MSO
• The UNI is always provided by the Service
  Provider
• The UNI in a Carrier Ethernet Network is a
  physical Ethernet Interface at operating speeds
  10Mbs, 100Mbps, 1Gbps or 10Gbps

Carrier Ethernet Network
UNI
CE
CE Customer Equipment, UNI User Network
Interface. MEF certified Carrier
Ethernet products
4
MEF Carrier Ethernet Terminology

• Ethernet Virtual Connection (EVC)
• Connects two or more subscriber sites (UNIs)
• An association of two or more UNIs
• Prevents data transfer between sites that are not
  part of the same EVC
• Three types of EVC
• Point-to-Point
• Multipoint-to-Multipoint

5
Carrier Ethernet Two Service Types Using EVCs
E-Line Service type

• E-Line Service used to create
• Ethernet Private Lines
• Virtual Private Lines
• Ethernet Internet Access
• E-LAN Service used to create
• Multipoint L2 VPNs
• Transparent LAN Service
• Foundation for IPTV and Multicast networks etc.

Point-to-Point EVC
UNI
UNI
CE
CE
Carrier Ethernet Network
E-LAN Service type
CE
UNI
Carrier Ethernet Network
UNI
Multipoint-to-Multipoint EVC
CE
UNI User Network Interface, CE Customer
Equipment
MEF certified Carrier Ethernet products
6
EVCs and Services

• In a Carrier Ethernet network, data is
  transported across Point-to-Point and
  Multipoint-to-Multipoint EVCs according to the
  attributes and definitions of the E-Line and
  E-LAN services

Point-to-Point EVC
UNI
UNI
Carrier Ethernet Network
7
Services Using E-Line Service Type

• Ethernet Private Line (EPL)
• Replaces a TDM Private line
• Dedicated UNIs for Point-to-Point connections
• Single Ethernet Virtual Connection (EVC) per UNI

Storage Service Provider
UNI
CE
Carrier Ethernet Network
UNI
ISP POP
CE
Internet
UNI
UNI
Point-to-Point EVC
CE
8
Services Using E-Line Service Type

• Ethernet Virtual Private Line (EVPL)
• Replaces Frame Relay or ATM services
• Supports Service Multiplexed UNI (i.e. multiple
  EVCs per UNI)
• Allows single physical connection (UNI) to
  customer premise equipment for multiple virtual
  connections

Service Multiplexed Ethernet UNI
CE
UNI
Carrier Ethernet Network
CE
UNI
UNI
CE
Multipoint-to-Multipoint EVC
9
Services Using E-LAN Service Type

• Ethernet Private LAN and Ethernet Virtual Private
  LAN Services
• Supports dedicated or service-multiplexed UNIs
• Supports transparent LAN services and multipoint
  VPNs

Service Multiplexed Ethernet UNI
UNI
UNI
CE
Carrier Ethernet Network
UNI
CE
UNI
CE
Point-to-Multipoint EVC
10
Carrier Ethernet in Access Networks
Bringing vastly extended scalability for business
and residential users
HD TV TVoD, VoD
Gaming, Business Backup, ERP
Voice gateway
Voice/Video Telephony
Video Source
Video Source
Global/National Carrier Ethernet
COPPER, FIBER, COAX and WIRELESS
Business Broadband
Metro Carrier Ethernet
Broadband mobile data/video
Carrier Ethernet Access
E-Line and E-LAN service
Residential Triple-Play
Small/Medium Business
FTTx and DSLAM , Cable Modem
11
Circuit Emulation Services over Carrier Ethernet

• Enables TDM Services to be transported across
  Carrier Ethernet network, re-creating the TDM
  circuit at the far end
• Runs on a standard Ethernet Line Service (E-Line)

Carrier Ethernet Network
TDM Circuits (e.g. T1/E1 Lines)
TDM Circuits (e.g. T1/E1 Lines)
Circuit Emulated TDM Traffic
12
Carrier Ethernet Architecture for Cable Operators
Head End
Hub
Commercial Business Services over Fiber
E-Line
High Speed Internet
E-LAN
SDB/SO CTL
D2A
ATV
EQAM
Off Air
Video Server
E-Line E-LAN
CMTS
A2D
Ad Insertion
SMB served over Cable
STB Ctrl
VOD CTL
HD TV TVoD, VoD
10GbE Optical Metro Ring Network
Hub
Video Source
Voice/Video Telephony
Gaming, Business Backup, ERP
Hub
Voice gateway

• Dedicated Fiber end-points
• DOCSIS end-points
• MEF E-Line
• EPL (Ethernet Private Line)
• EVPL (Ethernet Virtual Private Line)
• MEF E-LAN
• Converged Services (Video, VoIP, HSI, VPNs)

MEF 9 and MEF 14 certified Carrier Ethernet
products
13
Related MEF Services Specifications
MEF 6
Metro Ethernet Services Definitions Phase I
MEF 6
Ethernet Services Definitions Phase I
Purpose
Defines the Ethernet Services (EPL, EVPL,
E-Line, ELAN, etc)
Ethernet Services Attributes Phase 2
MEF 6
Ethernet Services Definitions Phase I
MEF 10.1
Purpose
Defines the service attributes and parameters
required to offer the services defined in MEF 6.
Updated from Original MEF 10 in October 2006
Audience
Appropriate for equipment vendors, service
providers, and business customers, since it
provides the fundamentals required to build
devices and services that deliver Carrier
Ethernet. For Enterprise users it gives the
background to Service Level Specifications for
Carrier Ethernet Services being offered by their
Service Providers and helps to plan Ethernet
Services as part of their overall network.
14
More at

• www.MetroEthernetForum.org/presentations.htm
