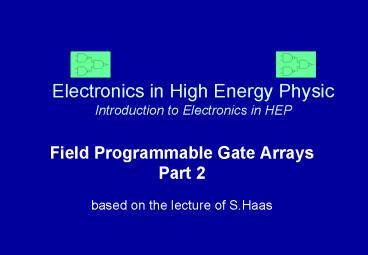

Electronics in High Energy Physic Introduction to Electronics in HEP

1
Electronics in High Energy PhysicIntroduction
to Electronics in HEP

• Field Programmable Gate ArraysPart 2
• based on the lecture of S.Haas

2
Outline

• Part 2
• VHDL
• Introduction
• Examples
• Design Flow
• Entry Methods
• Simulation
• Synthesis
• Place Route
• IP Cores
• CERN Tools Support

• Part 1
• Programmable Logic
• CPLD
• FPGA
• Architecture
• Examples
• Features
• Vendors and Devices
• coffee break

3
Introduction to VHDL
4
VHDL Language

• Hardware Description Language (HDL)
• High-level language for to model, simulate, and
  synthesize digital circuits and systems.
• History
• 1980 US Department of Defense Very High Speed
  Integrated Circuit program (VHSIC)
• 1987 Institute of Electrical and Electronics
  Engineers ratifies IEEE Standard 1076 (VHDL87)
• 1993 VHDL language was revised and updated
• Verilog is the other major HDL
• Syntax similar to C language
• At CERN VHDL is mostly used for FPGA design
• Many tools accept both Verilog and VHDL

5
Terminology

• Behavioral modeling
• Describes the functionality of a component/system
• For the purpose of simulation and synthesis
• Structural modeling
• A component is described by the interconnection
  of lower level components/primitives
• For the purpose of synthesis and simulation
• Synthesis
• Translating the HDL code into a circuit, which is
  then optimized
• Register Transfer Level (RTL)
• Type of behavioral model used for instance for
  synthesis

6
Digital Circuits and VHDL Primitives

• Most digital systems can be described based on a
  few basic circuit elements
• Combinational Logic Gates
• NOT, OR, AND
• Flip Flop
• Latch
• Tri-state Buffer
• Each circuit primitive can be described in VHDL
  and used as the basis for describing more complex
  circuits.

7
Digital Circuit Primitives

• Combinational Logic Gates NOT, OR, AND
• Flip Flop/Latch
• Tri-state Buffer
• Logic gates can be modeled using concurrent
  signal assignments
• Z lt not A
• Y lt A or B
• X lt C and D
• W lt E nor F
• U lt B nand D
• V lt C xor F
• It is possible to design circuits from logic
  gates in this way
• For design entry it is preferable to use other
  VHDL structures that allow circuit descriptions
  at a higher level of abstraction

8
Combinatorial Logic Decoder

• Example 2-to-4 decoder

Z(3)
entity decoder is port ( A in
std_logic_vector(1 downto 0) Z out
std_logic_vector(3 downto 0) ) end entity
decoder architecture when_else of decoder
is begin Z lt "0001" when A "00" else
"0010" when A "01" else "0100" when A
"10" else "1000" when A "11" else
"XXXX" end architecture when_else
A(1)
Z(2)
Interface
Z(1)
A(0)
Z(0)
Functionality
9
4-to-1 Multiplexer
entity mux is port ( a, b, c, d in
std_logic s in std_logic_vector(1 downto
0) y out std_logic) end entity
mux architecture mux1 of mux is begin
process (a, b, c, d, s) begin case s is
when "00 gt y lt a when "01" gt y lt
b when "10" gt y lt c when "11" gt y
lt d end case end process end
architecture mux1
10
Sequential Logic D-Flip Flop
architecture rtl of D_FF is begin process
(Clock, Reset) is begin if Reset 1
then Q lt 0 if rising_edge(Clock)
then Q lt D end if end process end
architecture rtl
Flip-flop
D
Q
D
Q
Clock
R
Reset
11
Binary Counter
entity counter is generic (n integer 4)
port ( clk in std_logic reset in
std_logic count out std_logic_vector(n-1
downto 0) ) end entity counter
use ieee.numeric_std.all architecture binary
of counter is begin process (clk, reset)
variable cnt unsigned(n-1 downto 0) begin
if reset '1' then -- async reset cnt
(others gt '0') elsif rising_edge(clk) then
cnt cnt 1 end if count lt
std_logic_vector(cnt) end process end
architecture binary

• This example is not explicit on the primitives
  that are to be used to construct the circuit.
• The operator is used to indicate the
  increment operation.

12
State Machine

• If a trigger signal is received, will stretch it
  to 2 cycles and wait for accept signal

entity trigger is port ( clk, reset
in std_logic trigger, accept in
std_logic active out
std_logic) end entity trigger architecture rtl
of trigger is type state_type is (s0, s1, s2)
signal cur_state, next_state
state_type begin registers process (clk,
reset) begin if (reset'1') then
cur_state lt s0 elsif rising_edge(clk) then
cur_state lt next_state end if end
process
trigger
accept
reset
13
State Machine (cont.)

• process (cur_state, trigger, accept) is
• begin
• case cur_state is
• when s0 gt
• active lt '0'
• if (trigger '1') then
• next_state lt s1
• else
• next_state lt s0
• end if
• when s1 gt
• active lt '1'
• next_state lt s2
• when s2 gt
• active lt '1'
• if (accept '1') then
• next_state lt s0
• else
• next_state lt s2

S0
S1
trigger
S2
accept
14
FPGA Design Flow
Design Specification
Design Entry/RTL Coding Behavioral or Structural
Description of Design

• RTL Simulation
• Functional Simulation
• Verify Logic Model Data Flow
• (No Timing Delays)

LE

• Synthesis
• Translate Design into Device Specific Primitives
• Optimization to Meet Required Area Performance
  Constraints

MEM
I/O

• Place Route
• Map Primitives to Specific Locations inside
• Target Technology with Reference to Area
• Performance Constraints
• Specify Routing Resources to Be Used

15
FPGA Design Flow
Timing Analysis - Verify Performance
Specifications Were Met - Static Timing Analysis
tclk
Gate Level Simulation - Timing Simulation -
Verify Design Will Work in Target Technology
Program Test - Program Test Device on Board
16
Design Entry Methods
17
Text-based emacs VHDL-mode

• Special mode for editing VHDL source files in
  emacs
• Features
• Syntax colouring
• Automatic completions
• Automatic indentation
• Templates for all VHDL constructs
• Launching external VHDL compiler

18
Design Entry Visual Elite HDL

• HDL design and verification environment
• Features
• Enables graphical and text-based design entry
  methods
• Design verification using built-in or external
  simulator
• Generation of synthesizable VHDL or Verilog code
  appropriate for the selected synthesis tool
• Design unit types
• Block Diagram
• HDL Code
• State Diagram
• Flowchart
• Truth Table

19
Block Diagram

• Hierarchical design methods
• top-down
• bottom-up
• Contents of a block can be any type of design
  unit
• Top-level block diagram
• Partitioning of the design
• Connections between the underlying HDL design
  units

20
State Diagram

• Bubble diagram
• States
• Conditions
• Transitions
• Outputs
• Useful for developing control modules

21
Truth Table

• Normally used to describe combinatorial logic
• Can also be used for sequential circuits (e.g.
  state machines)

22
Design Cycle Simulation

• Functional simulation
• simulate independent of FPGA type
• may postpone selection
• no timing
• Timing simulation
• simulate after place and routing
• detailed timing

23
Simulation Results

• Example of simulation waveforms. Test vectors
  are normally defined in a VHDL unit (testbench)

24
RTL Synthesis

• Input is RTL code
• Compilation translation
• Generates technology independent netlist
• RTL schematic (HDL code analysis)
• Technology mapping
• Mapping to technology specific structures
• Look-up tables (LUT)
• Registers
• RAM/ROM
• DSP blocks
• Other device specific components/features
• Logic optimization
• Implementation analysis (technology view)

25
Technology Mapping Example
6-bit binary counter Altera Stratix device
26
Design Cycle Place and Route

• FPGA fitter
• Tools supplied by the FPGA vendor
• Specific for each FPGA device architecture
• Functions
• Place-and-route
• Constraints editor
• Backannotated netlist for timing simulation
• Configuration bitstream

27
Example Altera Quartus II

• Fully integrated design tool
• Multiple design entry methods
• Text-based VHDL, Verilog, AHDL
• Built-in schematics editor
• Logic synthesis
• Place route
• Simulation
• Timing power analysis
• Create netlist for timing simulation
• Device programming
• Xilinx ISE has similar features

28
IP Cores System On a Programmable Chip (SoPC)
29
Macros IP Cores

• Macros
• Generic pre-made design blocks
• e.g. PLL, FIFOs, DDR I/O, Multiply-accumulate,
  etc.
• Accelerate design entry and verification
• Pre-optimized for FPGA vendor architecture
• Provided at no cost by the FPGA vendor to
  optimize performance
• Instantiate block in the design
• Makes HDL code technology dependent
• IP cores
• More complex blocks PCI-X interface, CPU, etc.
• Some are provided by the FPGA vendor
• IP cores from third party suppliers cost money
• Evaluation before buying usually possible

30
Macro Example
31
System On a Programmable Chip

• Many ready-made blocks for free
• RAM/FIFO
• UART
• Can buy ready-made parts, just like IC's IP
  Cores
• PCI interface
• Processors (8051-style up to RISC/ARM processors)
• FPGA's with extra dedicated hardware built-in
• Gigabit serialiser
• high-end processor with RAM
• Handle different I/O standards
• LVDS, LVPECL, LVCMOS, LVTTL, PCI, PCI-X
• Programmable slew-rate, termination resistors

32
Example Altera NIOS-II CPU
33
Tools and Support for FPGA Design at CERN
34
Tools available at CERN

• Design entry
• FPGA vendor tools
• Visual HDL
• Cadence ConceptHDL
• Simulation
• Cadence NCsim
• Synthesis
• Synplify (Synplify)
• Leonardo (Mentor)
• FPGA fitter built-in
• FPGA vendor tools
• Altera, Xilinx, Actel, Lattice

35
Tools available at CERN (cont.)

• IP cores
• PCI PCI-X Master/Target for Altera
• Altera NIOS-II Processor soft core
• DDR SDRAM controller
• DSP cores for Altera
• FFT, NCO, FIR
• 10/100/1000 Ethernet MAC
• If you need an IP core contact IT-PS or the DUG

• Tools for implementing DSP systems in FPGAs
• Xilinx system generator for DSP
• Altera DSP builder evaluation kit
• Altera NIOS-II evaluation kit
• Programming cables for FPGAs are available for
  short-term loan
• Tool usage
• Windows PC tools can be installed from
• \\dsy-srv4\caeprogs
• CAE Sun cluster
• login to dsy-srv

36
CERN Support for FPGA Development

• IT/PS Tool Support
• Send e-mail to Dig-Electronics-Cae.Support_at_cern.c
  h
• Direct contact Serge Brobecker, John Evans
• http//cern.ch/product-support/electronicscae.html

• Other resources
• Mailing list for electronics designers at CERN
• cern-electronics_at_cern.ch
• Digital CAE User's Group (DUG)
• http//wwwinfo.cern.ch/ce/dc/DUG/DUG_home.html
• Technical Training
• Visual HDL course
• Introduction to VHDL using the ncvhdl simulator
  from Cadence
• http//cern.ch/humanresources/Training/tech/electr
  onics/te_elec.asp

37
Bibliography

• Acknowledgements
• E. van der Bij (CERN), J. Christiansen (CERN)
• Further reading
• FPGA vendor sites
• http//www.altera.com
• http//www.xilinx.com
• P. Alfke (Xilinx), Field Programmable Gate
  Arrays in 2004, Proceedings of LECC2004.
• M. Zwolinski, Digital System Design with VHDL -
  2nd Ed., Prentice-Hall, 2000, (Chap. 4 6)
