Title: Linac Test Area Instrumentation


1

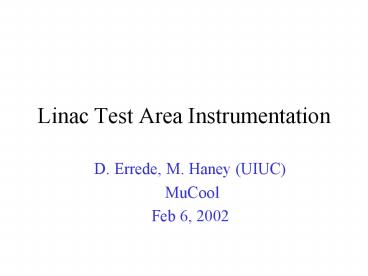

Linac Test Area Instrumentation
  • D. Errede, M. Haney (UIUC)
  • MuCool
  • Feb 6, 2002

2
Problem What are the signals to be readout from
the LTA?
  • Beam Line (Carol Johnstone)
  • Beam Properties Measurements (CJ)
  • Cryogenics (Barry Norris)
  • A. H2
  • B. He
  • Experiment
  • A. Absorbers (Mary Anne Cummings, Edgar Black)
  • B. RF Cavities (Al Moretti)
  • C. Solenoid (Al Moretti)

3
Beam Line Elements
signals
  • 750 KeV Chopper 1
  • dipole magnets currents 5
  • quad magnet currents 13
  • stripping foil 1
  • collimater positions - 2 units 8
  • ion chamber 1 (in front of beam dump)

4
Beam Properties Measurements
signals
  • Tune Parameters ? data set
  • Beam Position Monitors 20-40
  • Toroid Beam Current Monitor 1 (slow response)
  • Fast Beam Current Monitor 1 (fast response)
  • Beam Loss Monitors 5-10

5
Cryogenics
signals
  • Helium
  • inlet temp (carbon) 1
  • outlet temp (carbon) 1
  • inlet temp (platinum) 1
  • outlet temp (platinum) 1
  • inlet pressure 1
  • outlet pressure 1
  • He level 2
  • N2 level 1
  • solenoid coil temperature (platinum) 4

6
Cryogenics
Hydrogen
  • inlet temp(carb) 1
  • outlet temp(carb) 1
  • inlet temp (plat) 1
  • outlet temp (plat) 1
  • temperature other 6
  • inlet pressure 1
  • outlet pressure 1
  • pump delta press 1
  • H2 supply press 1
  • H2 vent press 1
  • H2 vent pipe press 1
  • cryo vacuum press 2
  • pump status (run/not) 1
  • pump voltage 1
  • pump current 1
  • pump speed 1
  • heater voltage 1
  • heater current 1
  • heater power 1
  • beam permit 1
  • hazardous gas 10
  • O2 deficiency hazard 8

7
Experiment - Absorber
signals
  • temperature 12
  • pressure transducers see under cryo
  • photogrammetry (??) 2
  • laser occlusion sensor (??) 4
  • piezo vibration sensors 2
  • strain gauges 2
  • bolometry ??
  • O2 sensors 3per each of 5 flanges 15
  • H2 sensors on exhaust line 10
  • CCD camera 2 images
  • MICE channels ??

8
Experiment - RF, Solenoid
signals
  • solenoid current 1
  • rad level on chipmunks 10?
  • Cavity forward power 1
  • cavity reflected power 1
  • cavity RF level (E-field?) 2
  • cavity vacuum level 2
  • timing channels 10?

9
Picture of cryo/absorber assembly
10
Time schedule
  • Present to Dec 2002 Civil Construction
  • Dec 2002 - Beneficial occupancy get into
    building and start installing things.
  • 6 mos. (June 2003) to install experimental
    apparatus cryo system safety systems liq H2
    filling system instrumentation
  • xxxx in Lab G
  • Beginnings Absorber inside Lab G magnet.
  • To be determined Does magnet move _at_ t0 or not?
    Open question.
  • Absorber either inside magnet or something
    similarly constraining.
  • Choice Fill w. somehting else besides liq H2.
  • 2nd absorber Japanese absorber queued but not in
    immediately.
  • 3 6 mos. for filling and experimenting (2
    absorbers)
  • deinstallation and installation schedule
    inefficiency due to cryo/Tevatron
  • (we are running parasitically wrt cryo systems)
  • Milestones 03 liq H2 filling systems
  • complete RF (805 MHz) in situ
  • FY04 Complete rest of RF, 201 MHz cavity
  • Testing RF at 201 MHz w/Absorber
  • Sept 04 Completed solenoid for 201 MHz cavity
  • FY05 Beam Installation (Sept 05)
  • Dec 2005 Full shakedown, RF Solenoid
    Absorber (201 MHz scenario)
