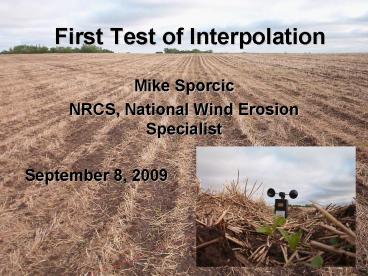

First Test of Interpolation

1
First Test of Interpolation

• Mike Sporcic
• NRCS, National Wind Erosion Specialist

September 8, 2009
2
First Test Interpolation Purpose

• Use existing tested runs to show how changing
  location can influence soil loss.
• Show that there are no more sharp changes due to
  wind station changes
• Show that ANY location change WILL cause a
  different soil loss estimate
• Test the three ways to locate the point of the
  run, Center of the County, Direct enter Lat-Long,
  and Use Map Viewer.

3
Test Runs for Skip Row Cotton, TX Panhandle
8-11-09

• The following runs were made using a standard
  template from CMZ 19 for Skip Row Cotton in the
  panhandle of TX
• 8 Counties starting with Randall in the N and
  proceeding S to Midland.
• All runs use Amarillo AmA FSL soil
• These runs are based on the centroid location of
  the county

4
Cotton-Convention Tillage (CT)

• All yields are set and calibrated to 325 lb/ac
  Lint
• Rotation Summary
• 2-15 Chisel, sweep shovel
• 3-15 Bedder, hipper, disk hiller
• 5-20 Planter, DD opnr, Cotton, stripper skip 1
  row
• 6-20 Cultivator, row 3 in ridge
• 7-20 Cultivator, row 3 in ridge
• 10-20 Harvest, cotton Cotton, stripper skip 1
  row
• 12-1 Shredder, flail or rotary
• 12-15 Chisel, st. pt

5
Fall Shred to Bedding Up, TX Dryland Cotton
6
Texas, Dryland Cotton CT Soil Loss
compare6/15/09W/O InterpolationThese are run
without the Big Spring Windgen station.All use
the same soil Amarillo FSL.
30 t/ac
Randall Co. Cligen Canyon Windgen
Amarillo Swisher Co. Cligen Tulia Windgen
Amarillo Hale Co. Cligen Plainview Windgen
Lubbock Lubbock Co. Cligen Lubbock Windgen
Lubbock Lynn Co. Cligen Tahoka Windgen
Lubbock Dawson Co. Cligen Lamesa Windgen
Midland Martin Co. Cligen Midland Windgen
Midland Midland Co. Cligen Midland WindgenMidlan
d
26 t/ac
18 t/ac
17 t/ac
20 t/ac
4 t/ac
11 t/ac
Green dots show Windgen Stations
7 t/ac
7
Now with Interpolation(Center of the Counties,
with map selection)Texas, Dryland Cotton CT
Soil Loss compare8-11-09All use the same soil
Amarillo FSL.
27 t/ac
Randall Co. Cligen Canyon Windgen Int Swisher
Co. Cligen Tulia Windgen Int Hale Co. Cligen
Plainview Windgen Int Lubbock Co. Cligen
Lubbock Windgen Int Lynn Co. Cligen
Tahoka Windgen Int Dawson Co. Cligen
Snyder Windgen Int Martin Co. Cligen
Midland Windgen Int Midland Co. Cligen
Midland WindgenInt
29 t/ac
20 t/ac
17 t/ac
23 t/ac
35 t/ac
38 t/ac
Green dots show Windgen Stations
5.6 t/ac
8
(No Transcript)
9
Red River Valley, MN Sugarbeet-Soybean-S Wheat
Rot, 40 ac, LFS soil, no barriers
Est. 22 Surface Cover of SW
10
Red River Valley, MNN to S CheckCenter of
Co.Sugarbeet-Soybean-S Wheat Rot, 40 ac, LFS
soil, no barriers
Roseau Co. CligenWannaska Windgen int
3.3 t/ac
Marshall Co. Cligen Argyle Windgen int
Pennington Co. CligenRed Lake Falls Windgen int
13.0 t/ac
8.2 t/ac
Red Lake Co. CligenRed Lake Falls Windgen int
10.8 t/ac
Polk Co. CligenRed Lake Falls Windgen int
11.1 t/ac
Norman Co. CligenFargo AP Windgen int
5.6 t/ac
Clay Co. CligenFargo AP Windgen int
12.4 t/ac
11
Red River Valley, MN,Marshall Co. four
locationsSugarbeet-Soybean-S Wheat Rot, 40 ac,
LFS soil, no barriers
10.1 t/ac
13.8 t/ac
13.8 t/ac
7.3 t/ac
33.7 t/ac
West Edge CligenGrafton Windgen int
East Edge CligenWannaska Windgen int
East 1/3 Cligen Wannaska Windgen int
West 1/3 CligenArgyle Windgen int
Grand Fork Check CligenGrafton Windgen int
12
Rapid City to Pierre, SDWW-F, mulch-till, 30 bu,
sil soil
Pierre AP CligenGrafton Windgen int
1.0 t/ac
10.0 t/ac w/o int 2.5 t/ac
0.8 t/ac W/O int 0.5 t/ac
2.9 t/ac
5.3 t/ac
Rapid City AP CligenFort Meade Windgen int
63-14 E turn, SD CligenHopewell Windgen int
Philip, SD Cligen Milesville Windgen int
Wasta, SD CligenWasta Windgen int
13
MI Wind Erosion
Muck blown in the waterway

• 3 ft plus field berm

14
Central MI Counties(Center of Co.)Corn-Soybeans,
Fall Plow both crops, 130 bu Corn 35 bu
Beans, LFS soil
38.0 t/ac w/o int 39.4 t/ac
46.4 t/ac w/o int 23.6 t/ac
25.2 t/ac
Gratiot Co. MI CligenAlma Windgen int
26.8 t/ac w/o int 18.8 t/ac
Clinton Co., MI CligenSaint Johns Windgen int
33.8 t/ac
Ingham Co., MI Cligen East Lansing Windgen int
Lapeer Co., MI CligenFlint Windgen int
Saginaw Co., MI Cligen Owosso Windgen int
15
Central MI Counties(Center of Co.)Leafy Veg 2x,
Plow, W Rye Covercrop,Muck soil
6.3 t/ac
27.8 t/ac
Newaygo Co. CligenSaint Johns Windgen int
17.4 t/ac
Allagan., MI Cligen East Lansing Windgen int
13.8 t/ac
Lapeer Co., MI CligenFlint Windgen int
Washtenaw Co., MI CligenFlint Windgen int
16
FL Sugarcane

• At Harvest

Radish
At Planting
17
Palm Beach Co., FL,Sugarcane AreaSugarcane-Corn,
sweet-Radish-Rice,Muck soil
3.9 t/ac
North Point CligenBelle Glade Windgen int
6.3 t/ac
5.4 t/ac
Clewiston Area CligenBelle Glade Windgen int
Center of Co. CligenBelle Glade Windgen int
SE Edge CligenBelle Glade Windgen int
SW Edge CligenBelle Glade Windgen int
6.0 t/ac
6.4 t/ac
18
SC Coastal Sand
Broccoli with Wind and Water issues
Rye Cover Crops
Plastic on beds and alley cover works well.
Cotton many vegetable crops have little residue.
19
Central SC Int., (County Centers)Peanuts-Corn-Cot
ton 2x, conv, Norfolk, LS
2.8 t/ac
0.9 t/ac
5.7 t/ac
3.0 t/ac
23.2 t/ac
Lee Co. CligenSumter Windgen int
Darlington Co CligenDarlington Windgen int
Florence Co CligenFlorance Windgen int
Horry Co CligenConway Windgen int
Marion Co CligenMarion Windgen int
20
NW IN N OH Int., (County Centers)Tomato-Corn-S
B, No Covercrop after Tomatoes
1.8 t/ac
2.5 t/ac
3.4 t/ac
Ft Wayne, IN CligenFt Wayne Windgen int
7.5 t/ac
9.8 t/ac
Allen Co. CligenFt Wayne Windgen int
Defiance Co, OH CligenDefiance Windgen int
Henry Co, OH CligenWauseon Windgen int
Lucas Co,OH CligenToledo Windgen int
21
NY, Long Island
22
Suffolk Co. NYPotato-WW conv Rye Covercrop after
WW 20 ac, SL soil
12.4 t/ac
Riverhead, NY CligenRiverhead Windgen int
12.8 t/ac
14.0 t/ac
12.2 t/ac
Holbrook, NY Cligen Patchogue Windgen int
3.9 t/ac
Greenport, NY CligenWauseon Windgen int
Orient, NY CligenToledo Windgen int
Westhampton, NY CligenRiverhead Windgen int
23
Delaware, Five location N to S,Coastal PlainW
Barley-Spinach, 2cut-Green Bean-Rye cover-Corn,
sweet, conv till Field size 10 ac, LS soil
Middletown, DE CligenMiddletown Windgen int
5.7 t/ac
Dover, DE CligenMiddletown Windgen int
14.8 t/ac
Milford, DE CligenGeorgetown Windgen int
8.4 t/ac
Georgetown, DE Cligen Georgetown Windgen int
5.3 t/ac
Selbyville, DE CligenGeorgetown Windgen int
4.8 t/ac
24
MO boot heel and north-east ARCotton-Corn,
grain, conv, Pivot Irr, SiCL soil
Miss. MO CligenLovelaceville Windgen int
0.4 t/ac
0.4 t/ac
New Madrid, MO CligenSamburg WLR Windgen int
Pemiscot, MO CligenGeorgetown Windgen int
0.9 t/ac
Dunklin, MO Cligen Blytheville Windgen int
1.2 t/ac
Eaker AFB, AR CligenBlytheville Windgen int
1.0 t/ac w/LFS 73 t/ac
25
Summary

• The interpolation routine that Fred Fox added to
  the model seems to work very well. There will be
  no sharp breaks when changing locations from
  station to station.
• You should expect to get a slightly different
  soil loss if you do not use the exact same
  location (Lat-Lon).
• Central States are ready to go.
• We could start final testing.
• I think I would like to wait for the new Map
  Viewer, since I have additional work to do in the
  West.
• Still need CCE approval and NHQs blessing.

26
More Training?

• Many of you have suggested that we have
  additional training.
• I can do anything you all want.
• My preference is to do it face to face.
• Jeff suggested two, one in SD for northern
  states, and one in FW for southern?
• I think Jerry said that FW for one meeting would
  be fine.
• The last and most likely is that we will need to
  do it on the net.

27
Things to Cover

• New additions to the model.
• File management
• Updates, (Crop, Operation, and Management System
  and Version updates)
• Troubleshooting
• Checking Templated Crop System Managements. (I
  am not convinced that we have what we need in
  them)
• How to fix out of order operations.
• How to add irrigation
• Close calls should run long.
• Calibration of multi cut crops.
• Develop runs for and test your problem areas
• Organic soils.

28
Time

• Bill and I think 2.5 days. Come on Mon and leave
  on Thru PM.
• May be in Nov or early Dec.
• May depend on SRCs and funding.

29
Where is this?
Questions?
