Title: The Early Methods of Data Processing


1

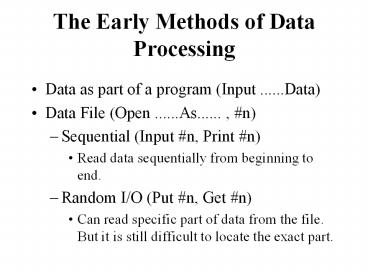

The Early Methods of Data Processing
  • Data as part of a program (Input ......Data)
  • Data File (Open ......As...... , n)
  • Sequential (Input n, Print n)
  • Read data sequentially from beginning to end.
  • Random I/O (Put n, Get n)
  • Can read specific part of data from the file. But
    it is still difficult to locate the exact part.

2
Early Data Models
  • Flat File
  • Hierarchy Model (One to Many)
  • Network Model (Many to Many)
  • The above two models have relations being built
    in the data. Difficult to maintain.
  • Relational

3
An Example of Flat File
4
Split Flat File
5
Relations between the Tables
6
RDBMS Products
  • Desktop RDBMS
  • dBASE, Paradox (Borland)
  • FoxPro, Access (Microsoft)
  • Mainframe (or Client/Server) RDBMS
  • ORACLE (Oracle)
  • MS SQL (Microsoft)
  • DB2 (IBM)
  • Sysbase, Informix

7
Traditional vs Client - Server RDBMS ( I )
  • Traditional
  • Tables, Indices, Codes are in different files
  • Relations, Integrity, Security, Consistency are
    applied by the programs users developed
  • Using FIXED WIDTH to store data
  • Non Traditional (Modern)
  • All the related parts are in a file called
    PROJECT
  • Relations, Integrity, Security, Consistency are
    managed by RDBMS itself
  • Using VARIABLE WIDTH to store data

8
Traditional vs Client - Server RDBMS ( II )
  • Client-Server (Front-End)
  • END databases and FRONT interfaces are
    independent each other
  • Higher performance
  • Better security
  • MS Access A hybrid database product
  • VB/MS Access A good example of client-server
    design tool

9
Database Trend
  • Multiple Platform - Access EXTERNAL DB
  • ISAM (Index Sequential Access Method)
  • ODBC (Open Database Connectivity)
  • OLE DB
  • Data Warehouse / Data Mart
  • Data Mining

10
Database Structure Design
  • A well designed database structure can
  • Keep the project development on the right track.
  • Ensure the system meets all the requirements,
    including Flexibility, Security, Integrity and
    consistency.
  • Save the system's resources by eliminating
    unnecessary duplication.
  • Make programming easier.

11
Data Normalization ( I )
  • Definition
  • the process of transforming existing data into
    relational tables.
  • Objectives
  • To eliminate duplicated fields (attributes)
  • To accommodate future changes
  • To minimize the impact of changes to structure on
    the related programs

12
Data Normalization ( II )
  • Functional Dependency Analysis Group the related
    data into tables according to their
    dependencies.
  • B DEPEND ON A from B, you can only find one A,
    not multiple A's
  • Name, Address, Birthday DEPEND ON Student ID
  • Course NOT DEPEND ON Student ID

13
Data Normalization ( III )
  • First Normal Form Eliminates REAPEATING fields
    and NON ATOMIC values.
  • Second Normal Form Requires each field to
    depend on EVERY PART of the primary key.
  • Third Normal Form Requires all non-primary
    fields SOLELY DEPEND on the primary key (Not
    depend on other fields).
  • Don't include the fields which can be derived
    from others.

14
The Reasons of Violating Normalization
  • A trade off of speed vs storing space,
    flexibility vs efficiency
  • Repeating fields when the repeating number is
    known
  • Non-atomic fields e.g. Address
  • Derived fields when it can improve the speed a
    lot
  • E.g. (Value price x quantity)

15
Name Convention
  • Reasons? -- Limitation from the software
    Readability of the programs (both the yourself
    and others).
  • Length of the Name
  • File Name Not more than 8 characters.
  • Field Name Not more than 10 characters.
  • Characters Used in the Name
  • Names should begin with a LETTER.
  • Don't use control characters (-/gtlt,\)
  • Use the name close to the real attribute
  • (e.g., Name, Address, StudentID)
  • Use certain prefix to group the classes.
  • Use capital letters to separate the words.

16
Table Design (I-1)
  • Field Type
  • Character (Text) Store text data. Each character
    occupies 1 byte. Normally up to 255 digits.
  • Numerical
  • Byte Store 1255, 1 byte.
  • Integer Store integer -32,76832767, 2 bytes.
    (Long Integer 4 bytes)
  • Single Store data with decimal, 4 bytes.
    (Double 8 bytes).

17
Table Design (I-2)
  • Logical (Boolean) Store True/False. 1 byte.
  • Date Store date/time. 8 bytes.
  • Memo Store up to 64 MB text data.
  • General Store up to 1 GB picture/sound.
  • Tip Use the smallest field size because smaller
    file can be processed faster and require less
    memory.

18
Table Design (II-1)
  • Primary Key Unique value to identify each
    record.
  • (in some RDBMS, such as FoxPro, using Record
    Number)
  • To eliminate duplicated records.
  • To build up the relationship with other tables.
  • Index Assistant file to logically re-order the
    records.
  • (Ascending vs Descending)
  • To provide views in different order.
  • To speed up the record search by using SELECT,
    SEEK, FIND commands.

19
Table Design (II-2)
  • Primary /Index Key Can be an expression of
    several fields (Compound key)
  • All the fields must be converted into same type
  • There is limit to the total length

20
Table Design (III-1)
  • Index and Sort (Cluster Index)
  • Index Logically change the records' order
  • Sort Physically change the records' order
  • Pros and Cons of indexes
  • Improve the query performance
  • Increase the work when the field is changed
  • Validation Rule Specify the special requirement
    for the entered data

21
Table Design (III-2)
  • Security Protect the database from illegal
    operations. Two Methods
  • Assigning Password(SID, Security ID) To protect
    whole database from illegal access.
  • Adding Different User Group To limit certain
    users within allowed operations
  • Admins Group Have full access to the database.
  • User Groups Can assign different permissions to
    each group.

22
Table Design (IV)
  • Relationship To link the tables.
  • Foreign Key The key in parent table used to link
    the child table via its primary key.
  • Relation Types One - Many, Many - One, One -
    One, Many - Many.
  • Referential Integrity The rules to ensure the
    relationship between related tables are valid.
  • Basic integrity rule is It not permitted a child
    record exist without its parent.
  • Three actions related to integrity DELETE,
    INSERT, UPDATE.

23
Table Design (V-1)
  • Three integrity rules applied to the actions
  • Cascade Update all child records' foreign key
    with the new parent key primary value upon
    INSERT, UPDATE or DELETE all child records whose
    foreign key is same as the parent key value.
  • Restrict Restrict the key value changes
  • To parent table Prohibit changing the parent
    primary key to any existing foreign child key
    value.
  • To child table Prevent changing child key to any
    non-existing parent key value.
  • Ignore Perform no referential integrity checks.

24
Table Design (V-2)
  • Consistency, Replication and Synchronization.
  • (Master vs Replica)

25
SQL (Structured Query Language) -- A kind of
fourth generation languages (4GLs)
  • First Generation Language Machine code, a kind
    of binary language. Instructions are consisted
    with a series of "0" and "1".
  • Second Generation Language Assembly languages.
    Allows to use simple alphabetic codes.
  • Third Generation Language Procedure languages.
    Using structured English words to write the
    commands. Such as FORTRAN, BASIC, C).
  • Fourth Generation Language Non-procedure
    languages (SQL and OOP).

26
The difference between SQL and 3GLs
  • SQL only tell computer what kind of results are
    needed, not how to get the data.
  • One line of SQL command can have the same effects
    of multi-line procedure in 3GLs.
  • SQL is a WEAKLY DATA TYPED language. Don't need
    to specify the data type in SQL. The type of
    these data rely on the column expression and
    source data type.

27
Basic Elements of SQL Command
  • Verb Such as SELECT. Determine the type of
    operation.
  • Predicate Variable List Specify the variables
    affected by the operation. Normally is a list of
    fields or field expressions.
  • Prepositional Clause Tell to which object the
    operation will apply. Normally a list of tables.
    Such as FROM.

28
Simplest SQL
  • SELECT ltvariable listgt FROM lttable listgt
  • SELECT StudentID, StudentName from StudentInfo

29
Practical Grammar of Simple SQL SELECT Statement
  • SELECT ALLDISTINCT ltvariable listgt
  • FROM lttable listgt
  • WHERE ltcriteriagt

30
Practical Grammar of Simple SQL SELECT Statement
  • SELECT Specify the operation is a query, i.e.,
    extracting the data from the targeted database.
    Variable list can be consisted of
  • Table fields (StudentID, StudentName)
  • Field expression (StreetNumStreetName)
  • Wild character asterisk .
  • ALL Tell to get all the rows in the targeted
    database. DISTINCT can eliminate the duplicated
    rows.
  • FROM specify the targeted tables.
  • WHERE begins a clause that decides which records
    will be selected.

31
SQL Operators and Functions I
  • Arithmetic operators , -, , /, (),
  • Comparison operators
  • Basic gt, gt, , lt, lt, ltgt(!)
  • Range BETWEEN
  • Pattern LIKE (with wild characters)
  • Wild characters
  • () - Replace the character with any length of
    string.
  • ?( _ ) - Replace the character with any ONE
    character.
  • IN x IN (v1,v2,v3,...). Whether expression x
    equals to any v? value.

32
SQL Operators and Functions II
  • The result of a comparison is a logical value
    (TRUE or FALSE)
  • Logical operators Link the comparisons
  • AND x AND y - x and y both TRUE.
  • OR x OR y - Either x or y is TRUE.
  • NOT NOT x - If x is FALSE, then NOT x is TRUE.

33
SQL Operators and Functions III
  • The Order of Operators and the Usage of Brackets
  • Arithmetic operators () -- , / -- , -,
  • Logical operators NOT -- AND, OR
  • Use the brackets () to change the default order.

34
SQL Operators and Functions IV
  • SQL Aggregate Functions
  • AVG(x) Return the arithmetic average of the
    field expression x.
  • COUNT(x) Return the number of rows containing
    NOT NULL value of the field expression x. If
    x"", it returns the number of non empty rows.
  • MIN(x) Return the smallest value of x.
  • MAX(x) Return the largest value of x.
  • SUM(x) Return the total value of x.

35
SQL Operators and Functions V
  • SELECT COUNT(), AVG(mark), MIN(mark), MAX(mark)
    from StudentInfo
  • Some Other Useful Functions (There are some
    difference for different databases)
  • LEFT(string, length) Left part of a string.
  • RIGHT(string, length) Right part of a string.
  • MID(string, start, length) Middle part of a
    string. Some software using SUBSTR().

36
SQL Operators and Functions VI
  • Trim String Get rid of tailing spaces.
  • RTRIM(string) Get rid of right end spaces.
  • LTRIM(string) Get rid of leading spaces.
  • TRIM(string) Get rid of both ends spaces.
  • Data Converting Convert the data into required
    type.
  • CSTR(x) STR(x, len, dec)
  • CINT(y) VAL(y)
  • CDATE(d) CTOD(d)

37
SQL Operators and Functions VII
  • Constant Expressions
  • Numerical No delimiter. (2500, 4.75)
  • String Normally using single or double quotation
    as delimiters.
  • ('string', "STRING").
  • Logical Some software using dot as delimiters (
    .TRUE. , .FALSE. ), some using no delimiter.

38
SQL Operators and Functions VIII
  • Date Normally using number sign as delimiters.
  • (5/10/1998)
  • Note There are two formats of date US format
    (mm/dd/yy) and UK format (dd/mm/yy). In SQL, if
    using to express a date constant, then ONLY US
    format is accepted).

39
Join Tables I
  • CROSS JOIN Return the a cross product of two
    tables. If Table1 has n rows and Table2 has m
    rows, then Table1 CROSS JOIN Table2 creates a
    table with n x m rows.
  • SELECT Publishers.Name, Authors.Author FROM
    Publishers, Authors
  • A very dangerous situation, must avoid
  • Equi-Join or INNER JOIN Creates a table with the
    rows in which the key values exist in both
    tables.
  • Syntax1 SELECT ltListgt FROM Table1 INNER JOIN
    Table2
  • ON Table1.keyTable2.key
  • Syntax2 SELECT ltListgt FROM Table1, Table2 WHERE
    Table1.keyTable2.key
  • SELECT Publishers.Name, Titles.ISBN, Titles.Title
    FROM Publishers INNER JOIN Titles ON
    ublishers.PubIDTitles.PubID

40
Join Tables II
  • Multiple Equi-Joins If 3 or more tables are
    involved in SQL selection, then these tables need
    to be joined by pairs.
  • Syntax1 SELECT ltListgt FROM Table1 INNER JOIN
    (Table2 INNER JOIN Table3 ON Table3.key3Table2.ke
    y2) ON Table2.key2Table1.key1 ... ... ...
  • Syntax2 SELECT ltListgt FROM Table1, Table2,
    Table3, WHERE Table1.key1Table2.key1,
    Table2.key2Table3.key3, ... ... ...

41
Inner Join Examples
  • SELECT Authors.Author, Titles.Title FROM Titles
    INNER JOIN (Authors INNER JOIN Title Author ON
    Authors.Au_ID Title Author.Au_ID) ON
    Titles.ISBN Title Author.ISBN
  • SELECT Authors.Author, Titles.Title FROM Authors,
    Titles, Title Author WHERE Authors.Au_ID
    Title Author.Au_ID AND Titles.ISBN Title
    Author.ISBN

42
Alias in SQL
  • Field alias
  • SELECT Field1 AS Alias1, Field2 As Alias2, ..
  • Table alias
  • FROM Table1 AS Alias1, Table2 AS Alias2,
  • Example
  • SELECT A.Author AS Author Name, B.Title AS
    Book Name FROM Authors A, Titles B, Title
    Author C WHERE A.Au_ID C.Au_ID AND B.ISBN
    C.ISBN

43
Join Tables III
  • Outer Joins
  • Left Join
  • Table1 LEFT OUTER JOIN Table2 Returns all the
    rows in Table1 and only the rows of Table2 with
    matching key values.
  • Left outer join is useful to find "lone parent"
    records.

44
Join Tables IV
  • Right Join
  • Table3 RIGHT OUTER JOIN Table4 Returns all the
    rows in Table4 and only the rows of Table3 with
    matching key values.
  • Right outer join is useful to find "orphan"
    records.

45
Join Tables V
  • Not Equal Join Find the records don't have the
    same key value between the tables. The result
    will be Cross Join minus Inner Join. Use ltgt in
    WHERE clause.
  • Self Join Select records in a single table with
    two fields' value being same.

46
Join Tables VI
  • Sub-query
  • SELECT ltListgt FROM ltTable1gt WHERE ltKeygt IN
    (SELECT ltKeygt FROM ltTable2gt WHERE ltCriteriagt)
  • When using sub-query in WHERE clause, only one
    table's fields can be selected.
  • SELECT Name, PubID FROM Publishers WHERE PubID IN
    (SELECT PubID FROM Titles WHERE Title LIKE
    Database)

47
Merge SELECT Results
  • UNION ALL
  • To merge SELECT results
  • SELECT Statement1 UNION SELECT Statement2
  • ALL Without this keyword, the records from two
    SELECT results will be de-duplicated. With this
    keyword, simply merge two results.

48
Other SQL Clause I
  • ORDER BY Sort the query result in a specified
    order.
  • SELECT ... FROM ... WHERE ORDER BY ltField1gt
    ASCDESC, ltField2gt ASCDESC,
  • SELECT ... ORDER BY Lname, Fname

49
Other SQL Clause II
  • GROUP BY Combine multiple records with identical
    values in the specific field list into a single
    record. It is a useful tool to produce summary
    reports.
  • SELECT ... FROM ... WHERE GROUP BY ltGroupListgt
  • Two important notes
  • The select field expression list must have at
    least one aggregate function. Actually, except
    the fields are specified in GROUP BY clause, all
    the other fields must be displayed in aggregate
    functions.
  • GroupList can have up to 10 fields which can be
    used to produce the summary record for sub
    sections.

50
Other SQL Clause III
  • HAVING ltHavingCriteriagt Apply a filter ONLY to
    GROUP BY output
  • SELECT ... FROM ... WHERE GROUP ltGroupListgt
    HAVING ltHavingCriteriagt
  • HAVING clause can decide which GROUPED ROWS to
    output.
  • WHERE clause provides a filter to decide which
    records are used in the summary report.

51
Example of GROUP BY and HAVING
  • SELECT PubID, Year Published, OUNT(Title) AS
    " of Books" FROM Titles WHERE Title LIKE
    Database GROUP BY PubID, Year Published
    HAVING Year Publishedgt1990

52
Action SQL I
  • SELECT ... INTO Make a table.
  • SELECT ltListgt INTO ltNewTablegt FROM ltSourceTablegt
    WHERE Criteria
  • (Example Make a copy. SELECT INTO CopyPub FROM
    Publishers)
  • INSERT INTO Add records to a table.
  • INSERT INTO ltTargetTablegt IN ltExternalDatabasegt
    (FieldList) SELECT ltSourceFieldListgt FROM
    SourceTable
  • INSERT INTO ltTargetTablegt IN ltExternalDatabasegt
    (FieldList) VALUES (ConstantList)

53
Action SQL Examples
  • INSERT INTO CopyPublishers SELECT FROM
    Publishers
  • Add all the records in Publishers into
    CopyPublishers. All the fields being selected and
    copied.
  • INSERT INTO CopyPublishers (PubID) SELECT PubID
    FROM Publishers WHERE PubID624
  • Add the records in Publishers which meet the
    WHERE criteria into CopyPublishers. Only the
    fields in SELECT list are copied.

54
Action SQL Examples
  • INSERT INTO CopyPublishers (PubID,Name) VALUES
    (0,"Kingston Publishing")
  • Add ONE record into CopyPublishers. Only the
    fields in the list are filled with the value.

55
Action SQL II
  • DELETE Delete records from a table.
  • DELETE FROM ltTableNamegt WHERE ltCriteriagt
  • DELETE FROM CopyPublishers WHERE NameSAMS"

56
Action SQL V
  • UPDATE Change the fields' value in a specified
    table
  • UPDATE ltTablegt SET ltField1gtltValue1gt,
    ltField2gtltValue2gt, WHERE Criteria
  • UPDATE Titles SET PricePrice1.15
  • UPDATE CopyPublishers SET Name"I. B. D." WHERE
    Name"I B D"

57
Crosstab Query
  • Syntax
  • TRANSFORM Aggregate Function SELECT ltExpressiongt
    AS ltAliasgt WHERE ltCriteriagt GROUP BY
    ltGroupListgt PIVOT ltPivotFieldgt
  • It can transform the normal multiple row summary
    report created by GROUP BY query into multiple
    column tabular way. It is a useful tool to
    produce crosstab.

58
Crosstab Query Example
  • TRANSFORM COUNT(Title) AS " of Books" SELECT
    PubID FROM Titles WHERE Title LIKE "Database"
    AND Year Publishedgt1990 GROUP BY PubID PIVOT
    Year Published
  • Copmare with
  • SELECT PubID, Year Published, COUNT() AS "
    of Books" FROM Titles WHERE Title LIKE
    "Database" AND Year Publishedgt1990 GROUP BY
    PubID, Year Published

59
Further Development of SQL
  • Parameter in SQL
  • Procedure in SQL
  • PL/SQL of ORACLE
  • Transact-SQL of MS SQL Server

60
Basic Concepts of MS Access
  • Access Jet (Joint Engine Technology)GUI
    facilities
  • Components of Access
  • Table Organize the data.
  • Query Extract the data.
  • Form Build up Graphic User interface (GUI).
  • Report Present the data.
  • Macro Automate the manipulations.
  • Module Store the common procedures.

61
Levels of Manipulation
  • Manually Manipulate Manually open (close,
    delete, insert etc.) tables, forms, queries,
    reports and so on.
  • Create Macros A macro is a set of actions which
    compose a whole operation.
  • Use Access Basic It is a special version of VBA
    (Visual Basic for Application) which can be put
    into the different kinds of events.

62
Table Properties
  • Description.
  • Validation Rule The validation rule apply to the
    record.
  • Validation Text Message when the record not
    valid.
  • Filter Decide records are logically exist when
    the table is open.
  • Sort By Provide the logical sequence for the
    table.

63
Field Properties
  • Format Specify the data appearance when
    displayed or printed.
  • Input Mask Limit the way the user inputs data
    into the table. Only apply to TEXT and DATE type.
  • Caption Determine the column heading.
  • Default Value The value be automatically filled
    when a new record is created. Two advantages
    Avoid the null value and save the typing time.
  • Validation Rule Decide whether the field is
    properly entered.
  • Indexed Define SINGLE field index.

64
Basic Concepts of MS Access Programming
  • MS Access Programming is a kind of Object
    Oriented Programming (OOP)

65
What is an object?
  • Object is a visual entity in user's interface.
  • Objects can be divided into containers and
    non-containers.
  • Containers The object can contain other objects,
    such as forms, reports, option group.
  • Non-containers individual controls or Data
    Access Objects (DAOs).

66
Properties, Methods and Events
  • Properties The appearance of objects.
  • Typical properties Name, Caption, Visible,
    Enabled, Font Name/Size/Weight, Tooltip, Help
    Context ID, Record/Row/Control Source, etc.
  • Events Actions happen to the object.
  • Typical events Click, Dbl Click, Enter (Open),
    Exit (Close), Got /Lost Focus, etc.
  • Methods Procedures are associated with an
    object.
  • Typical Methods SetFocus, Refresh, etc.

67
What is OOP
  • OOP is a kind of non-procedural programming. It
    combines the concepts of objects, properties,
    events and methods. Instead of programming from
    beginning to the end through the whole process,
    it puts PIECES of procedures into objects' event
    snippets to achieve EVENT DRIVEN or OBJECT
    ORIENTED programming.

68
MS Access Name Convention
  • Up to 64 characters
  • No control characters and special characters
  • No leading spaces
  • Don't use the reserved words such as names of
    properties, events and methods
  • Use ! (exclamation) to refer to objects or
    fields Use . (Dot) to refer the properties,
    events or methods
  • Example Forms!Orders!OrderID.Name
  • Reports!Rpt1!.......

69
Table Operations
  • Delete Fields
  • Delete Records
  • Delete Index
  • Delete Table

70
Query
  • Create new query using QBE (Query By Example)
  • Click ltNewgt button
  • Select Design View
  • Highlight the table(s) and click ltAddgt
  • Drag the field and drop into desired column
  • Untick the column if it is not visible
  • Organize the criteria by
  • Same row AND
  • Different rows OR
  • Switch between Design View and Datasheet view

71
Relationship
  • From Menu Tools, choose Relationship
  • Add necessary tables
  • Drag and drop between two fields in two tables
  • Check Enforce Referential Integrity if needed
  • Right click on the relation to modify

72
Form
  • Example of a simple data display form
  • Click ltNewgt button
  • Choose Design View and choose a table
  • In the form design window, click Menu ViewField
    List.
  • Highlight all fields and drag-drop to the form
  • Run form by clicking Menu ViewForm View
Write a Comment
User Comments (0)
About PowerShow.com
