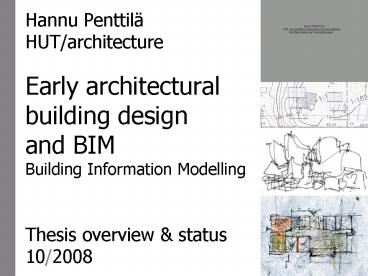

Early architectural building design and BIM Building Information Modelling

1
Early architectural building designand
BIMBuilding Information Modelling
Hannu Penttilä HUT/architecture

• Thesis overview status
• 10/2008

2
BIM.... what BIM ??
3
"all the conceivable data relevant to any
building problem" (Harper 1968)
BIM.... what BIM ??
4
short history ofbuilding information modelling
BIM
1990
2000
2010
curiosity research interest
pragmatic interest
standard tool development
commitment will national company wide
IT-strategies
implementation for practice project
implementation education skills
US NISTDutch TNOFinnish VTT (Ratas)
IFCindustry foundation classes
BuildingSmart
STEPISO 10303standard for the exchange of
product model data
PDESprocess development execution systems
ERPs
PLIBparts library
IGESinitial graphics exchange specification
PLMs
5
tools
architectural design
content
architectural information management
IFC
BIM
praxis
project
AEC-field
engineering
management
6
CAD-systems evolution
information modelling BIM
geometrical modelling 3D
wall length 3200 height 2200 type WT 01 ...
CAD in drawing 2D
wall length 1000 height 2200 type WT 02 ...
joint
lines
digital lines
digital surfaces volumes
digital entities components
meaning properties relations
representation human interpretation
form shape
7
wholeness design practice exploration alternatives
richness
parts components
what_if
what_is
BIM construction process practice commercial BIM
eDIM Early Design Information Management
8
Thesis evolution

• Architectural information management
  Contemporary methods for design and construction
  process
• 2006/6 Describing, evaluating, controlling and
  managing changes in architectural design
  environment
• 2006/12 Changes within the architectural
  profession The effects of ICT on architectural
  design and profession
• 2007 Building project's early architectural
  design data Changes and effects of ICT
• Building project's early architectural design
• and building information models (BIM)

visiting professor in Germany
BIM-articles books
0.5 article complexity
1. article a critical BIM-review
3. article validation results
2. article case documen tation
topic methods theory literature
cases
evaluation
2006
2007
2008
2009
2010
9
Thesis phases documentation

• Research interviews done (100)
• 1 Early building project information
  mnagement A critical review of contemporary BIM
• Project cases to be started
• 2 BIM case projects of early building phases
• (to be submitted 5/2009)
• 3 Testing and validating early building
  project information (12/2009)

accepted, paper to be submitted 7.11.2008 to 5th
Nordic in Iceland 2009
Parviainen architects large industrial
case LPV-architects small public building,
kindergarten Senaatti properties (1..2) valuable
public buildings City of Helsinki HKR-rakennuttaj
at Lapinlahti hospital renovation
10
Researchobjective methods

• Document how model based design is currently done
  in the early architectural design project
  planning phases
• Ask why model based design is performed
• Case projects
• case studies
• participant observation
• exploratory survey ?
• action research ?
• pragmatic approach, praxis
• Measuring results criteria, units of analysis
• Interpreting results meaning, usability,
  applicability
• Evaluating results reliability (ltgt hype)

11
Researchobjective methods

• qualitative
• why ?
• reasons
• because
• its available
• its required
• I get benefits (Olles reasoning)
• consequences
• ...
• methodical basis
• case test, evaluation, BIM noBIM

quantitative how ? - easier to document
12

• Literature foundations
• references, weblinks, journals CAD, BIM,
  architectural ICT
• Preliminry interviews
• 25.01.08 Erkki Keskinen, VVO public housing
  developer
• 14.02.08 Ifa Kytösaho, Helsinki ATT public
  housing developer
• 19.03.08 Marko Kivistö Pauno Narjus,
  LPR architects
• 20.03.08 Juha Posti, Parviainen architects
• 27.03.08 Jarkko Penttilä, Solteq ERP-consult
• 11.04.08 Juha Soilu, Vahanen architects
• 16.04.08 Raimo Seppälä, Rakli owners constr.
  client organization
• 17.04.08 Kalle Kähkönen, VTT research scientist

13
Preliminary interview findings

• Traditional BIM aspects
• Process integration collaboration life
  cycle aspect
• Technical tool oriented aspect
• Project Design content aspect
• project volume/visual shape/architecture
• Functional requirement aspect
• need for space/buildings/property
• New needs and criteria for BIM
• Socio-political aspect
• wider political frameworks for construction
• enabling building
• Administrtive enterprise aspect
• project management administration
• company/enterprise resource planning ERP
• Project premises fostering, enabling factors
• project classification
• a) customer driven / user driven / need based
  projects
• b) facility construction business driven
  projects
• Project constraints limiting factors

14
Early building project information management A
critical review of contemporary BIM

• Introduction (1 page)
• State of the art in BIM (4...5 pages)
• History and evolution
• Approaches on BIM
• Technical approach CAD, standards, tools, data
  exchange
• Project owner approach management, control,
  requirements, guidelines
• Design approach quality, design development,
  integration, collaboration
• Construction approach costs data management,
  process planning, 4D
• Life-cycle approach use maintenance, FM, data
  recycling
• Literature findings
• Critical approach to BIM (2...3 pages)
• few critical voices, costs over quality
• richness and variations vs. single modelling
  method
• included in BIM vs. excluded information
• new aspects based on project planning early
  design
• This research project (2...3 pages)
• Research domain objectives
• Methodology
• Research results and industrial impact (2...3
  pages)

15
project gt design
design gt construction
construction gt use
