Title: Flexible Microplasma Devices: Phototherapeutic Bandages

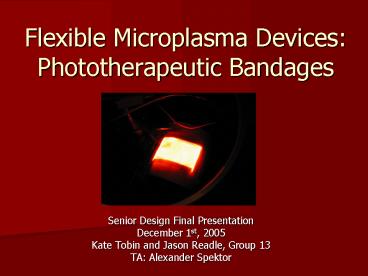

1
Flexible Microplasma Devices Phototherapeutic
Bandages
  • Senior Design Final Presentation
  • December 1st, 2005
  • Kate Tobin and Jason Readle, Group 13
  • TA Alexander Spektor

2
Outline
  • Introduction
  • Objectives
  • Original Design
  • Fabrication
  • Challenges and Design Decisions
  • Testing
  • Performance
  • Safety
  • Recommendations

3
Introduction
  • Devices consist of two treated flexible aluminum
    strips
  • Plasma forms in the gap between strips and
    cavities
  • Gas selection determines output spectrum
  • Flexible light-emitting devices such as these
    have many potential medical applications

4
Objectives
  1. Fabricate devices to operate in vacuum chamber
  2. Also develop a packaging to allow the devices to
    work outside the chamber
  3. Test and characterize device performance
  4. Evaluate safety of device for medical use

5
Wavelengths for Phototherapy
  • Irradiation devices with output from 400-500nm
    have been effective against eczema1
  • UVA (340-400nm) has been successfully used to
    treat sclerosing skin diseases2
  • A wide range of wavelengths have been used in
    tandem with photosensitizers for photodynamic
    therapy, with many new sensitizers with strong
    absorbance at 650-850nm 3,4
  • Time interval between sensitizer administration
    and light treatment can often be several days3
  • Dosage required varies, 3 J/cm2 500 J/cm2 4
  • J. Krutmann, K. Medve-Koenigs, T. Ruzicka, U.
    Ranft, J. H. Wilkens, Ultraviolet-free
    phototherapy, Photodermatology Photoimmunology
    Photomedicine, vol. 21, pp. 59-61, 2005
  • M. Brenner, T. Herzinger, C. Berking, G. Plewig,
    K. Degitz, Phototherapy and photochemotherapy of
    sclerosing skin diseases, Photodermatology
    Photoimmunology Photomedicine, vol. 21, pp.
    157-165, 2005
  • D. Dolmans, D. Fukumura, R. K. Jain,
    Photodynamic therapy for cancer, Nature Reviews
    Cancer, vol. 3, pp. 380-387, 2003
  • 4 T. J. Dougherty, C. J. Gomer, B. W. Henderson,
    G. Jori, D. Kessel, M. Korbelik, J. Moan, Q.
    Peng, Photodynamic therapy review, Journal of
    the National Cancer Institute, vol. 90, pp.
    889-905, 1998

6
Photodynamic Cancer Treatment
D. Dolmans, D. Fukumura, R. K. Jain, Photodynamic
therapy for cancer, Nature Reviews Cancer, vol.
3, pp. 380-387, 2003
7
Original Design
(Proprietary information deleted)
8
Original Design
  • Al2O3 as dielectric barrier on strips
  • Acts as barrier to sputtering caused by AC plasma
  • Protect against shorting out/breakdown
  • Supports electric field to excite gas
  • Glass paste to enhance durability and dielectric
    strength

9
Fabrication
10
Fabrication
Untreated Sample
Anodization
Glass Paste
Baking
11
Vacuum Chamber Devices
Polyimide Tape
Wire Attachment
Vacuum Chamber Device
Vacuum Chamber Device
12
Packaged Devices
(Proprietary information deleted)
13
Challenges and Design Decisions
  • Thickness of Al2O3 layer
  • Too thick higher operating voltages
  • Too thin risk of breakdown greater
  • First vacuum chamber device may have experienced
    breakdown due to thinner layer
  • Glass paste consistency
  • Protects devices from wrinkling easily and
    increases dielectric strength, but can make
    device stiff if too thick

14
Challenges and Design Decisions
  • Gas selection
  • He, Ne, and N2 all have emission lines favorable
    to certain medical applications
  • He has much lower intensity, difficult to
    generate N2 plasma without raising voltage too
    high
  • Focused testing on Ne
  • Lengthy fabrication process
  • Out of 35 strips cut, only 3 devices (6 strips)
    survived for demonstration (2 vacuum chamber
    devices, 1 packaged device)

15
Challenges and Design Decisions
(Proprietary information deleted)
16
Successes
17
TestingPerformance and Safety
18
Tests Performed
  • L-I (chamber only) and I-V by adjusting supply
    voltage and measuring output light (cd/m2) and
    supply current, derived resistance and efficiency
    from this
  • Output spectrum and uniformity using CCD camera
  • Tested leakage in packaged device using pressure
    transducer
  • Measured temperature and conductivity of packaged
    device with thermocouple and multimeter

19
Vacuum System Setup
20
Test Setup
21
L-I-V, Flat Device
Turn on
22
L-I-V, Bent Device
Turn on
23
I-V, Packaged Device
(Proprietary information deleted)
24
Uniformity
  • Measured Luminance (cd/m2) at 9 points on Flat
    Device with constant voltage and pressure, during
    best operation we could achieve

Non-uniformity (lower is better) Standard Deviation 100s/µ 100(Max-Min)/(2µ)
700 Torr Neon, 308 Vrms 5.44 8.99
400 Torr Helium, 263 Vrms 8.44 12.14
As a reference, commercial flat lamp for
backlighting has non-uniformity of 20
25
Efficiency, Flat Device
26
Efficiency, Bent Device
27
Differential Resistance
Most plasma devices have negative differential
resistance
28
706 nm
390 nm
427 nm
29
(No Transcript)
30
585 nm
702 nm
31
Packaging Test
(Proprietary information deleted)
32
Safety
33
Resistance of Packaging
  • Multimeter was unable to read anything but open
    during testing, and is rated to go up to 20 M?
  • Only discharge array would be exposed in final
    product

34
Operating Temperature
  • After device had been running 30 minutes,
    temperature stabilized at 38 C (100 F)
  • Negative temperature effects do not begin until
    43 C (restricted blood flow)
  • Packaging was exposed to up to 80 C over the
    course of an hour without comprising its integrity

35
Range of Operating Voltages
  • Wide operating range turn-on voltage and
    breakdown
  • Table corresponds to tests with Neon at 700 T
  • This will permit the use of a fixed-voltage power
    supply, i.e. 230 Vrms, so that users cannot harm
    themselves adjusting voltage

Turn-On (Vrms) Upper Limit Tested (Vrms)
Vacuum Flat 153 317
Vacuum Bent 164 266
Packaged 195 249
36
Recommendations
  • Automated and standardized fabrication process to
    improve device uniformity
  • Improved uniformity would allow for higher
    applied voltages
  • Greater output intensity without breakdown
  • Use of more difficult gases such as N2
  • Bulk production roll to roll process (to reduce
    costs)
  • Sealing packaging in desired gas environment
  • (Proprietary information deleted)

37
Thanks
  • Dr. Sung-Jin Park Visiting Professor, Mentor
  • Alex Spektor ECE 445 T.A.
  • Dr. J. Gary Eden Director of Laboratory for
    Optical Physics and Engineering
  • Kwang Soo Kim Graduate Student
