THE PHASES OF THE TROPOSPHERIC AEROSOL: THERMODYNAMICS vs' KINETICS

1

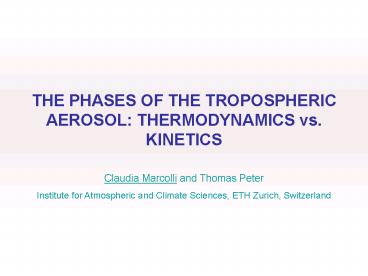

THE PHASES OF THE TROPOSPHERIC AEROSOL
THERMODYNAMICS vs. KINETICS Claudia Marcolli and
Thomas Peter Institute for Atmospheric and
Climate Sciences, ETH Zurich, Switzerland
2
IMPORTANCE OF THE AEROSOL PHASES

• GAS / PARTICLE PARTITIONING
• Adsorptive vs. Absorptive partitioning.
  Absorptive partitioning is dependent on activity
  of the solutes in the solution.
• WATER UPTAKE AND RELEASE
• Continuous water uptake / release of a liquid vs.
  deliquescence / efflorescence of crystalline
  solids.
• CCN ACTIVATION
• Critical supersaturation for CCN activation
  depends on the particle phase (e.g. Broekhuizen
  et al., GRL 2004 adipic acid crystalline vs.
  liquid).
• REACTION MEDIUM
• Adsorptive solid surface vs. absorptive liquid as
  a reaction medium.

3
WHAT IS NEEDED TO MODEL THE PHASES?

• COMPOSITION AND MIXING STATE
• What substances are present within the same
  particle?
• ACTIVITY COEFFICIENTS
• What are the activities of all components in a
  given solution or liquid mixture?
• VAPOR PRESSURES
• What is the partitioning between the gas and the
  particulate phases?
• MINIMIZATION OF THE FREE ENERGY Gives the
  number and the composition of the gas phase and
  the thermodynamically stable particulate phases.

4
CALCULATED PHASES OF PURELY ORGANIC SYSTEM

• Erdakos and Pankow, AE 2004
• Cyclohexene oxidation products Dicarboxylic
  acids, hydroxy- and oxo- carboxylic acids and
  aldehydes.
• Lipid mixture n-alkanes, n-acids, n-alcohols.
• Absorptive partitioning between gas and PM
  phases.
• Activity coefficients calculation of by UNIFAC.
• Free energy minimization using Ficks first law
  to model a pseudo-diffusion process.
• Gas-phase concentrations calculated for one and
  two phase cases.

Error in predicted PM assuming one phase -21.8
5
LIQUIDS AS THE THERMODYNAMICALLY STALBE PHASES OF
THE ORGANIC PM
Marcolli et al., J. Phys. Chem. A., 108, 2216
2224, 2004.
6
PHASES OF AMMONIUM SULFATE / POLYOL / WATER
MIXTURES AT RT
7
MIXING STATE OF THE AEROSOL EXPERIMENTAL EVIDENCE
Single particle mass spectrometry - Continental
region internal mixture of organics / sulfate as
a general characteristic (Lee et al., JGR
2002). - Urban area organics / sulfate,
hydrocarbon / soot, mineral particles and more
complex mixtures (Lee et al., JGR 2002, 2003) -
marine area internal mixtures of sea-salt and
organic species are frequent (Middlebrook et al.,
1998).
H-TDMA Measurements
Weingartner et al., 2002.
8
MIXING STATE OF THE AEROSOL THEORETICAL
CONSIDERATIONS

• MIXING OF NON-VOLATILE SUBSTANCES
• Substances from the same source will be
  internally mixed. Example fresh sea-salt aerosol
  (Cl-, Na, Mg2, SO42-, Ca2, K, Br- some
  organics).
• Further mixing by coagulation.
• MIXING OF SEMIVOLATILE SUBSTANCES
• Mixing by gas phase diffusion.
• Degree of mixing depends on equilibrium
  thermodynamics.
• Example Secondary organic aerosol.

9
VAPOR PRESSURES AND EQUILIBRATION TIMES AT 25ºC
10
VOLATILITY AND MOLECULAR WEIGHTS OF HUMIC LIKE
SUBSTANCES (HULIS)

• Samples from K-puszta (Gelencsér et al., AE 2000,
  Kiss et al., AE 2003)
• Overnight at 250ºC (in air) 30 42 of fine
  aerosol carbon remained.
• Overnight at 340ºC (in air) 1 3 of fine
  aerosol carbon remained.
• Ultrafiltration All the water-soluble organic
  matter passed through a membrane having a 500 Da
  nominal molecular weight cut-off.
• Mass spectrometry average molecular weight in
  the 200 300 Da range.
• Vapour pressure osmometry average molecular
  weight 215 345 Da.
• Sample from Jungfraujoch (Kriváscy et al., JAC
  2001)
• Ultrafiltration All the water-soluble organic
  matter passed through a membrane having a 500 Da
  nominal molecular weight cut-off.
• HPLC-MS mass-to-charge ratios from 53 303.

11
THERMODYNAMICS vs. KINETICS
12
THERMODYNAMIC MODELS WHAT IS NEEDED? WHAT IS
AVAILABLE?
NEEDED Model that can treat inorganic ions and
organic substances in concentrated aqueous and
organic solutions.
Pitzer ion-interaction model for aqueous
solutions up to fairly high concentrations. Zdanov
skii-Stokes-Robinson (ZSR) approach calculation
of water uptake / release. No calculation of
activity coefficients. UNIFAC model developed
for organics and water, based on functional
groups. LIFAC model consisting of Debye-Hückel
term, UNIFAC term, and the osmotic virial
equation (Yan et al., FPE 1999).
13
EXPERIMENTAL DATA WHAT IS NEEDED? WHAT IS
AVAILABLE?

• INORGANIC SALTS
• Water activities for aqueous solutions of the
  relevant salts are known up to high
  supersaturations and also for low temperatures.
• ORGANICS
• Vapor-liquid-equilibrium data for small molecules
  are known. However, parameterization based on
  this data is often inaccurate for more complex
  molecules. Data for complex molecules and low
  temperatures are missing.
• ORGANIC / INORGANIC MIXTURES
• Data for mixtures of atmospheric importance is
  missing.

14
CONCLUSIONS (I)
- A better knowledge of the aerosol phases is
desirable. - The phases of a system can be
predicted theoretically if the components and
their interactions are known. - To determine
the components, the aerosol composition and its
mixing state have to be known. - To determine
the interactions, the activity coefficients have
to be known.
15
CONCLUSIONS (II)

• COMPOSITION
• A characterization with respect to functional
  groups could be sufficient.
• ACTIVITY COEFFICIENTS
• Development of a thermodynamic model to
  calculate the phases of mixed organic / inorganic
  systems.
• Data for the parameterization of the model.
• MIXING STATE
• Better characterization of organics with respect
  to volatility and/or molecular weights.
• Experimental data on the mixing state of
  different organic substance classes and inorganic
  constituents.

16
CHARACTERISTIC TIMES FOR GAS PHASE DIFFUSION
a accommodation coefficient r particle
radius D molecular diffusivity in the gas
phase v mean molecular speed H dimensionless
Henrys law constant rRT/Mp0 n particle number
density
Gas/particle equilibration
Particle/particle equilibration
17
TIME EVOLUTION OF EQUILIBRATION OF AN ORGANIC
SPECIES
For a dimensionless Henrys law constant of 3 x
1014 with a) 20 wt b) 2 wt of organic species
in distribution 1
18
EFFECT OF ENTROPY OF MIXING ON MELTING TEMPERATURE
- Melting point of component i
- Entropy
- Melting point of pure component i in a mixed
solution
19
EFFECT OF ENTROPY OF MIXING EXAMPLES
--- Succinic acid --- Adipic acid Malic
acid - - Glutaric acid -- Lactic acid
