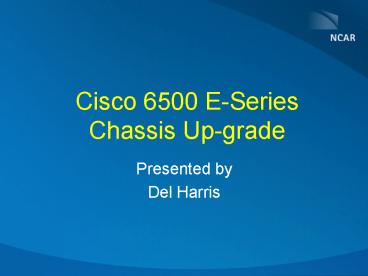

Cisco 6500 E-Series Chassis Up-grade
  • Presented by
  • Del Harris

2
Covered Today
  • Replacement Preparation
  • Replacement
  • Post Replacement Clean-up

3
Replacement Preparation
4
Document Limitations
  • Procedure assumes
  • New chassis has been ordered and has been
    received from Cisco.

5
Typical Replacement Team Execution
  • Chassis replacement requires at least two people
    minimum, with three people as optimum.
  • One person to coordinate the switch chassis
    hardware setup, IOS configuration, chassis
    installation activation monitoring and if needed
    activation changes.
  • Two people to coordinate switch label preparation
    and chassis installation.
  • Chassis replacement outage with new supplies and
    additional new cards, typically so far has taken
    two hours to complete.
  • Schedule outage for 2.5 to 3.0 hours and send
    outage change control.
  • Outage notification should include link to Switch
    ports, should NCAB NNAG individuals a specific
    map of the outage area.

6
Preparation to switch receiving new chassis
up-grade
  • Verify cable labeling at switch Should have good
    readability and accuracy
  • Sup. cards
  • Fiber (Trunks)
  • UTP (Console)
  • Fiber cards
  • User\Machine direct
  • Verify accuracy of label
  • Intermediate Patch (Cisco to distribution panel)
  • Card\slot and group sequence label
  • Individual port sequence labels
  • UTP cards
  • User\Machine direct
  • Verify accuracy of label
  • Intermediate Patch (Cisco to distribution panel)
  • Card\slot and Group sequence label
  • Individual port sequence labels
  • Power Supplies
  • Power Cords
  • UPS or building (Shows supply positions)

7
New Switch Chassis Preparation
  • Unpack (But leave on delivered pallet)
  • Mount rack ears if not already.
  • Do not install supplied cable management under
    rack ears, unless installing chassis where no
    rack cable management is provided.
  • Install Fan Blade
  • Label Chassis
  • Switch ID
  • Slot IDs
  • Install any new cards at final locations in
    chassis if part of up-grade.
  • Do not install new power supplies yet, if part of
    up-grade.
  • Deliver Chassis and supplies to switch up-grade
    location.

8
Prior to outage
  • Save switch configuration to flash
  • Optional Print a copy of switch port
    configuration, from the NETS port lists.
  • Have during chassis replacement.

9
Replacement
10
Chassis Replacement
  • Call NOC before starting work.
  • Shut off power supplies.
  • Start removing cables from the top of the switch
    and working toward the bottom.
  • Be careful to keep fiber ends clean.
  • Remove the chassis rack screws.
  • Do Not remove the lower screws in the chassis
    tray.
  • Remove the chassis ground cable.
  • Remove the switch power supplies.
  • Secure all cables back so cards and switch can be
    removed from tray.

11
Chassis Replacement
  • With non E chassis switch still in rack in its
    tray, set up static system and transfer cards to
    new E-chassis in same slot positions.
  • Install new E-chassis with cards in rack tray.
  • Secure new E-chassis with rack screws.
  • Install power supplies and chassis ground cable
  • Start installing cables from the bottom of the
    switch and working toward the top.

12
Chassis Replacement Power-up
  • Have second person verify re-cabling.
  • Setup boot monitor via the console or Network and
    power-up.
  • If needed upon boot completion, update switch
    configuration for any new card changes during
    up-grade.
  • Monitor to see if POE devices, VOIP and APs,
    come up.
  • Call the NOC to verify, Nagios for active alarms
    related to closet.
  • Reply to Outage Notice that work is complete.

13
Post Replacement Clean-up
14
Post Replacement
  • Verify all up-graded switch cabling is re-managed
    and management covers are in place.
  • Clean up floor of any debris and remove any
    unnecessary tools or documents.
  • Place the old chassis and power supplies on the
    empty E-chassis shipping pallet and transport non
    E-chassis and hardware back to ML-34, for trade
    in.

15
Procedure Document
  • Cisco Chassis Replacement Procedure
  • http//www.cisl.ucar.edu/nets/devices/eswitches/ch
    assis-replace.html
