Cosmic Microwave Background Data Analysis : From Time-Ordered Data To Power Spectra

1

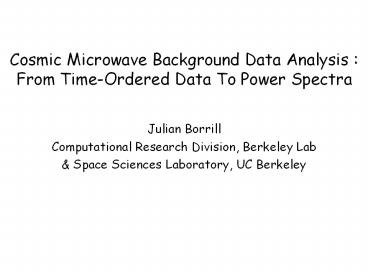

Cosmic Microwave Background Data Analysis From
Time-Ordered Data To Power Spectra

• Julian Borrill
• Computational Research Division, Berkeley Lab
• Space Sciences Laboratory, UC Berkeley

2
CMB Science - I

• The CMB is a snapshot of the Universe when it
  first became neutral 400,000 years after the Big
  Bang.

Cosmic - filling all of space. Microwave -
redshifted by the expansion of the Universe from
3000K to 3K. Background - primordial photons
coming from behind all astrophysical sources.
3
CMB Science - II

• The CMB is a unique probe of the very early
  Universe.
• Its tiny (1105-8) fluctuations carry information
  about
• - the fundamental parameters of cosmology
• - ultra-high energy physics beyond the Standard
  Model

4
CMB Science - III

• The new frontier in CMB research is polarization

• consistency check of temperature results
• re-ionization history of the Universe
• gravity wave production during inflation
• But polarization fluctuations are up to 3 orders
  of magnitude fainter than temperature (we think)
  requiring
• many more detectors
• much longer observation times
• very careful analysis of very large datasets

5
The Planck Satellite

• A joint ESA/NASA mission due to launch in fall
  2007.
• An 18 month all-sky survey at 9 microwave
  frequencies from 30 to 857 GHz.
• O(1012) observations, O(108) sky pixels,
  O(104) spectral multipoles.

6
Overview (I)
CMB analysis moves from the time domain -
observations to the pixel domain - maps to
the multipole domain - power spectra calculating
the compressed data and their reduced error bars
at each step.
7
Overview (II)

• CMB data analysis typically proceeds in 4 steps
• - Pre-processing (deglitching, pointing,
  calibrating).
• - Estimating the time-domain noise statistics.
• - Estimating the map (and its errors).
• - Estimating the power spectra (and their
  errors).
• iterating looping as we learn more about the
  data.
• Then we can ask about the likelihoods of the
• parameters of any particular class of cosmologies.

8
Goals

• To cover the
• basic mathematical formalism
• algorithms their scaling behaviours
• example implementation issues
• for map-making and power spectrum estimation.
• To consider how to extract the maximum amount of
  information from the data, subject to practical
  computational constraints.
• To illustrate some of the computational issues
  faced when analyzing very large datasets (eg.
  Planck).

9
Data Compression

• CMB data analysis is an exercise in data
  compression
• 1. Time-ordered data
• samples detectors x sampling rate x
  duration
• 70 x 200Hz x 18 months for
  Planck
• 2. (HEALPixelized) Maps
• pixels components x sky fraction x 12
  nside2
• (3 - 6) x 1 x 12 x 40962 for
  Planck
• 3. Power Spectra
• bins spectra x multipoles / bin
  resolution
• 6 x (3 x 103) / 1 for Planck

10
Data Parameters
Symbol Description Planck
Number of samples 5 x 1011
Noise bandwidth O(104)
Number of pixels 6 x 108
Number of spectra 6
Maximum multipole 3 x 103
Number of spectral bins 2 x 104
Number of iterations -
Number of realizations -
11
Computational Constraints

• 1 GHz processor running at 100 efficiency for 1
  day performs O(1014) operations.
• 1 Gbyte of memory can hold O(108) element vector,
  or O(104 x 104) matrix, in 64-bit precision.
• Parallel (multiprocessor) computing increases the
  operation count and memory limits.
• Challenges to computational efficiency scaling
• - load balancing (work memory)
• - data-delivery, including communication I/O

12
(No Transcript)
13
Map-Making - Formalism (I)

• Consider data consisting of noise and sky-signal
• where the pointing matrix A encodes the weight of
  each
• pixel p in each sample t - for a total power
  temperature
• observation
• and the sky-signal sp is both beam pixel
  smoothed.

14
Map-Making - Formalism (II)

• Assume Gaussian noise with probability
  distribution
• and a time-time noise correlation matrix
• whose inverse is (piecewise) stationary
  band-limited

15
Aside Noise Estimation

• To make the map we need the inverse time-time
  noise correlations.
• Approximate
• which requires the pure noise timestream.
• i) Assume nt dt
• ii) Solve for the map dp sp
• iii) Subtract the map from the data nt dt -
  Atp dp
• iv) Iterate.

16
Map-Making - Formalism (III)

• Writing the noise in terms of the data and signal
  maximizing its likelihood over all possible
  signals gives the minimum variance map
• with pixel-pixel noise correlations
• Taken together, these are a complete description
  of the data.

17
Map-Making - Algorithms (I)

• We want to solve the system
• Eg. (5 x 1011)2 x (6 x 108) 2 x 1032 for
  Planck !

Equation Naive OpCount




18
Map-Making - Algorithms (II)

• a) Exploit the structure of the matrices
• Pointing matrix is sparse
• Inverse noise correlation matrix is band-Toeplitz
• Associated matrix-matrix -vector multiplication

• scalings reduced from to
  .
• Eg. (5 x 1011) x 104 5 x 1015 for Planck.

19
Map-Making - Algorithms (III)

• b) Replace explicit matrix inversion with an
  iterative solver (eg. preconditioned conjugate
  gradient) using repeated matrix-vector
  multiplications
• reducing the scaling from to
  .
• depends on the required solution accuracy
  and the quality of the preconditioner (white
  noise works well).
• Eg. 30 x (6 x 108)2 1019 for Planck.

20
Map-Making - Algorithms (IV)

• c) Leave the inverse pixel-pixel noise matrix in
  implicit form
• Now each multiplication takes operations
  in pixel space, or operations
  in fourier space.
• Eg. 30 x (5 x 1011) x log2 104 2 x 1014 for
  Planck.
• But this gives no information about the
  pixel-pixel noise correlations (ie. errors).

21
Map-Making - Extensions (I)

• For polarization data the signal can be written
  in terms of the i, q u Stokes parameters and
  the angle ??of the polarizer relative to some
  chosen coordinate frame
• where Atp now has 3 non-zero entries per row.
• We need at least 3 observation-angles to separate
  i, q u.

22
Map-Making - Extensions (II)

• If the data includes a sky-asynchronous
  contaminating
• signal (eg. MAXIMAs chopper-synchronous signal)
• This can be extended to any number of
  contaminants,
• including relative offsets between sub-maps.

23
Map-Making - Extensions (III)

• If the data includes a sky-synchronous
  contaminating signal then more information is
  needed.
• Given multi-frequency data with foreground
• With detectors at d different frequencies this
  can be extended to (d-1) different foregrounds.

24
Map-Making - Implementation (I)

• We want to be able to calculate the inverse
  pixel-pixel
• noise correlation matrix
• because it
• - encodes the error information
• - is sparse, so can be saved even for huge data
• - provides a good (block) diagonal
  preconditioner i/q/u pixel degeneracy test
  with white noise.

25
Map-Making - Implementation (II)

• Both the time- pixel-domain data must be
  distributed.
• We want to balance simultaneously both the work-
  the memory-load per processor.
• Balanced distribution in one basis is unbalanced
  in other
• uniform work/observation but varied work/pixel.
• unequal numbers of pixels observed/interval.
• No perfect solution - have to accept the least
  limiting
• imbalance (pixel memory).

26
Map-Making - Implementation (III)

• Pseudo-code
• Initialize
• For each time t
• For each pixel p observed at time t with weight
  w
• For each time t within of t
• For each pixel p observed at time t with
  weight w
• Accumulate
• Doesnt work well - pixel-memory access too
  random.

27
Map-Making - Implementation (IV)

• Alternative pseudo-code
• For each pixel p find the times at which it is
  observed.
• For each pixel p
• Initialize
• For each time t at which p is observed with
  weight w
• For each time t within of t
• For each pixel p observed at time t
  with weight w
• Accumulate

28
Map-Making - Implementation (V)

• Distribute time-ordered data equally over
  processors.
• Each processor accumulates part of Npp-1 in
  sparse form
• - only over pixels observed in its time
  interval
• - only over some of the observations of these
  pixels
• Then all of these partial matrices, each stored
  in its own sparse form
• (p, z, (p1, n1), , (pz, nz)), , (p, z,
  (p1, n1), , (pz, nz))
• have to be combined.

29
Map-Making - Conclusions

• The maximum-likelihood map only can be calculated
  in operations - O(1014) for Planck.
• The sparse inverse pixel-pixel correlation matrix
  can be calculated in operations -
  O(1015) for Planck.
• A single column of the pixel-pixel correlation
  matrix can be calculated (just like a map) in
  operations - O(1014) for
  Planck.
• Computational efficiency only 5 serial/small
  data, 0.5 parallel/large data.

30
(No Transcript)
31
Power Spectrum Estimation

• From the map-making we have
• the pixelized data-vector dp containing the CMB
  signal(s) plus any other separated components.

(ii) some representation of the pixel-pixel noise
correlation matrix Npp - explicit, explicit
inverse, or implicit inverse. Truncation of Npp
(only) is equivalent to marginalization.
32
Power Spectrum - Formalism (I)

• Given a map of noise Gaussian CMB signal
• with correlations
• and - assuming a uniform prior - probability
  distribution

33
Power Spectrum - Formalism (II)

• Assuming azimuthal symmetry of the CMB, its
  pixel-pixel correlations depend only on the angle
  between the pair.

3 components ? 6 spectra (3 auto 3 cross).
Theory predicts CTB CEB 0 but this
should still be calculated/confirmed (test of
systematics).
34
Power Spectrum - Formalism (III)

• Eg temperature signal correlations
• with beampixel window
• For binned multipoles

35
Power Spectrum - Formalism (IV)

• No analytic likelihood maximization - use
  iterative search.
• Newton-Raphson requires two derivatives wrt bin
  powers

36
Power Spectrum - Algorithms (I)

• For each NR iteration we want to solve the
  system

Equation Naive OpCount




Eg. (2 x 104) x (6 x 108)3 4 x 1030
operations/iteration 8 x (6 x 108)2 3 x
1018 bytes/matrix for Planck !
37
Power Spectrum - Algorithms (II)

• Exploiting the signal derivative matrices
  structures
• - reduces the operation count by up to a factor
  of 10.
• - increases the memory needed from 2 to 3
  matrices.

38
Power Spectrum - Algorithms (III)

• b) Using PCG for D-1 trace approximant
• for dL/dC d2L/dC2 terms.
• scaling as
• Eg. 5 x 104 x (2 x 104) x 103 x (5 x 1011) x
  10
• 5 x 1024 for Planck.

39
Power Spectrum - Algorithms (IV)

• c) Abandoning maximum likelihood altogether !
• Eg. Take SHT of noisy, cut-sky map.
• Build a pseudo-spectrum
• Assume spectral independence
• an invertible linear transfer function

40
Power Spectrum - Algorithms (VI)

• Now use Monte-Carlo simulations of the
  experiments observations of signalnoise noise
  only to determine the transfer matrix Tll the
  noise spectrum Cln, and hence the signal spectrum
  Cls.
• Scales as
• Eg. 104 x 30 x 5 x 1011 x 10 1018 for Planck.
• And provided we simulate time-ordered data, any
  other abuses (filtering etc) can be included in
  the Monte Carlo.

41
Power Spectrum - Implementation (I)

• Even with supercomputers full maximum likelihood
  analysis
• is unfeasible for more than O(105) pixels.
• However, it is still useful for
• low-resolution all-sky maps (eg. for low
  multipoles where Monte Carlo methods are less
  reliable).
• high-resolution cut-sky maps (eg. for consistency
  systematics cross-checks).
• hierarchical resolution/sky-fraction analyses.

42
Power Spectrum - Implementation (II)

• Build the dS/dCb matrices.
• Make initial guess Cb
• Calculate D N Cb dS/dCb invert.
• For each b, calculate Wb D-1 dS/dCb.
• For each b, calculate dL/dCb d Wb z - TrWb
• For each b, b calculate Fbb TrWb Wb
• Calculate new Cb Fbb-1 dL/dCb.
• Iterate to convergence.
• Using as many processors as possible, as
  efficiently as possible.

43
Power Spectrum - Implementation (III)

• The limiting calculation is
• so it sets the constraints for the overall
  implementation.
• Maximum efficiency requires minimum communication
• keep data as dense as possible on the processors
• 3 matrices fill available memory
• Check other steps - none requires more than 3
  matrices.
• Out-of-core implementation, so I/O efficiency is
  critical.

44
Power Spectrum - Implementation (IV)

• Dense data requirement sets the processor count
• PE 3 x 8 x Np2 / bytes per processor
• Eg. 3 x 8 x (105)2 / 109 240,
• but we want to scale to very large systems.
• Each bin multiplication is independent - divide
  the processors into gangs do many Wb
  simultaneously.
• Derivatives terms are bin-parallel too
• dL/dCb trivial
• d2L/dCbdCb requires some load-balancing

45
Aside Fisher Matrix (I)

• Use TrAB Aij Bji
• ATji Bji
• For all my gangs b
• Read Wb
• Transpose WTb
• WTb Wb ? Fbb
• For all b gt b
• Read Wb over Wb
• WTb Wb ? Fbb

2 matrices in memory Nb(Nb1)/2 reads.
46
Aside Fisher Matrix (II)
For all my gangs b Read Wb Transpose WTb
WTb Wb ? Fbb Read Wb1 over Wb WTb Wb1?
Fbb1 Transpose WTb1 For all b gt b1
Read Wb over Wb1 WTb Wb ? Fbb WTb1
Wb ? Fb1 b
3 matrices in memory Nb(Nb2)/4 reads
47
Power Spectrum - Implementation (V)

• All gangs need dS/dCb D-1 first but these terms
  do not bin-parallelize.
• Either - calculate them using all processors
  re-map
• or - calculate them on 1 gang leave
  others idle
• Balance re-mapping/idling cost against multi-gang
  benefit optimal WT2C depends on architecture
  data parameters.
• For large data with many bins efficient
  communication network, sustain 50 peak on
  thousands of processors.

48
Aside Parameterizing Architectures

• Portability is crucial, but architectures
  differ.
• Identify critical components parameterize
  limits.
• Tune codes to each architecture.
• Eg. ScaLAPACK - block-cyclic matrix distribution
  is most efficient data layout (mapped to re-use
  pattern).
• Hardware limit is cache size - set blocksize so
  that requisite number of blocks fit fill cache.
• Eg. Input/Output - how many processors can
  efficiently read/write simultaneously (contention
  vs idling) ?

49
Conclusions

• Maximum likelihood spectral estimation cannot
  handle high-resolution all-sky observation, but
  Monte Carlo methods can (albeit with questions at
  low-l).
• For sufficiently cut-sky or low-resolution maps
  ML methods are feasible, and allow complete
  error-tracking.
• Dense matrix-matrix kernels achieve 50 of peak
  performance (cf. 5 for FFT SHT).
• Inefficient implementation of data-delivery can
  reduce these by an order of magnitude or more
  re-use each data unit as much as possible before
  moving to the next.
• Things are only going to get harder !
