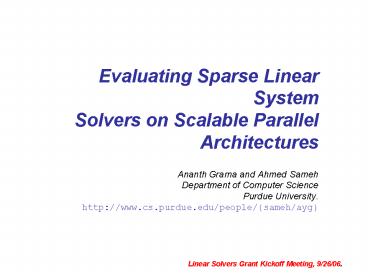

Evaluating Sparse Linear System Solvers on
Scalable Parallel Architectures

• Ananth Grama and Ahmed Sameh
• Department of Computer Science
• Purdue University.
• http//www.cs.purdue.edu/people/sameh/ayg

Linear Solvers Grant Kickoff Meeting, 9/26/06.
2
Evaluating Sparse Linear System Solvers on
Scalable Parallel Architectures

• Project Overview
• Identify sweet spots in algorithm-architecture-pr
  ogramming model space for efficient sparse linear
  system solvers.
• Design a new class of highly scalable sparse
  solvers suited to petascale HPC systems.
• Develop analytical frameworks for performance
  prediction and projection.

• Methodology
• Design generalized sparse solvers (direct,
  iterative, and hybrid) and evaluate their
  scaling/communication characteristics.
• Evaluate architectural features and their impact
  on scalable solver performance.
• Evaluate performance and productivity aspects of
  programming models -- PGAs (CAF, UPC) and MPI.

• Challenges and Impact
• Generalizing the space of parallel sparse linear
  system solvers.
• Analysis and implementation on parallel
  platforms
• Performance projection to the petascale
• Guidance for architecture and programming model
  design / performance envelope.
• Benchmarks and libraries for HPCS.

• Milestones / Schedule
• Final deliverable Comprehensive evaluation of
  scaling properties of existing (and novel sparse
  solvers).
• Six month target Comparative performance of
  solvers on multicore SMPs and clusters.
• 12-month target Evaluation on these solvers on
  Cray X1, BG, JS20/21, for CAF/UPC/MPI
  implementations.

3
Introduction

• A critical aspect of High-Productivity is the
  identification of points/regions in the
  algorithm/ architecture/ programming model space
  that are amenable for implementation on petascale
  systems.
• This project aims at identifying such points for
  commonly used sparse linear system solvers, and
  at developing more robust novel solvers.
• These novel solvers emphasize reduction in
  memory/remote accesses at the expense of
  (possibly) higher FLOP counts yielding much
  better actual performance.

4
Project Rationale

• Sparse system solvers govern the overall
  performance of many CSE applications on HPC
  systems.
• Design of HPC architectures and programming
  models should be influenced by their suitability
  for such solvers and related kernels.
• Extreme need for concurrency on novel
  architectural models require fundamental
  re-examination of conventional sparse solvers.

5
Typical Computational Kernels for PDEs
Integration
Newton Iteration
Linear system solvers
?k
?k
?t
6
Fluid Structure Interaction
7
NESSIE Nanoelectronics Simulation Environment
Mathematical Methodologies Finite Element
Method, mode decomposition, multi-scale,
non-linear numerical schemes,
Numerical Parallel Algorithms Linear solver
(SPIKE), Eigenpairs solver (TraceMin),
preconditioning strategies,
Transport/Electrostatics Multi-scale,
Multi-physics Multi-method
3D CNTs-3D Molec. Devices
3D Si Nanowires
3D III/V Devices
2D MOSFETs
E. Polizzi (1998-2005)
8
Simulation, Model Reduction and Real-Time Control
of Structures
9
Fluid-Solid Interaction
10
Project Goals

• Develop generalizations of direct and iterative
  solvers e.g. the Spike polyalgorithm.
• Implement such generalizations on various
  architectures (multicore, multicore SMPs,
  multicore SMP aggregates) and programming models
  (PGAs, Messaging APIs)
• Analytically quantify performance and project to
  petascale platforms.
• Compare relative performance, identify
  architecture/programming model features, and
  guide algorithm/ architecture/ programming model
  co-design.

11
Background

• Personnel
• Ahmed Sameh, Samuel Conte Professor of Computer
  Science, has worked on development of parallel
  numerical algorithms for four decades.
• Ananth Grama, Professor and University Scholar,
  has worked both on numerical aspects of sparse
  solvers, as well as analytical frameworks for
  parallel systems.
• (To be named Postdoctoral Researcher) will be
  primarily responsible for implementation and
  benchmarking.
• We have identified three candidates for this
  position and will shortly be hiring one of them.

12
Background

• Technical
• We have built extensive infrastructure for
  parallel sparse solvers including the Spike
  parallel toolkit, augmented-spectral ordering
  techniques, and multipole-based preconditioners
• We have diverse hardware infrastructure,
  including Intel/AMP multicore SMP clusters,
  JS20/21 Blade servers, BlueGene/L, Cray X1.

13
Background

• Technical
• We have initiated installation of Co-Array
  Fortran and Unified Parallel C on our machines
  and porting our toolkits to these PGAs.
• We have extensive experience in analysis of
  performance and scalability of parallel
  algorithms, including development of the
  isoefficiency metric for scalability.

14
Technical Highlights

• The SPIKE Toolkit

15
SPIKE Introduction
after RCM reordering

• Engineering problems usually produce large sparse
  linear systems
• Banded (or banded with low-rank perturbations)
  structure is often obtained after reordering
• SPIKE partitions the banded matrix into a block
  tridiagonal form
• Each partition is associated with one CPU, or
  one node
• ? multilevel parallelism

16
SPIKE Introduction
17
SPIKE Introduction
AXF ? SXdiag(A1-1,,Ap-1) F
Reduced system ((p-1) x 2m)
V1
W2
V2
V3
W3
W4
Retrieve solution
A(n x n) Bj, Cj (m x m), mltltn
18
SPIKE A Hybrid Algorithm
Different choices depending on the properties of
the matrix and/or platform architecture

• The spikes can be computed
• Explicitly (fully or partially)
• On the Fly
• Approximately
• The diagonal blocks can be solved
• Directly (dense LU, Cholesky, or sparse
  counterparts)
• Iteratively (with a preconditioning strategy)
• The reduced system can be solved
• Directly (Recursive SPIKE)
• Iteratively (with a preconditioning scheme)
• Approximately (Truncated SPIKE)

19
The SPIKE algorithm
Hierarchy of Computational Modules (systems dense
within the band)
Level Description
3 SPIKE
2 LAPACK blocked algorithms
1 Primitives for banded matrices (our own)
0 BLAS3 (matrix-matrix primitives)
20
SPIKE versions
Algorithm Factorization E Explicit R Recursive T Truncated F on the Fly
P LU w/ pivoting Explicit generation of spikes- reduced system is solved iteratively with a preconditioner. Explicit generation of spikes- reduced system is solved directly using recursive SPIKE Implicit generation of reduced system which is solved on-the-fly using an iterative method.
L LU w/o pivoting Explicit generation of spikes- reduced system is solved iteratively with a preconditioner. Explicit generation of spikes- reduce system is solved directly using recursive SPIKE Truncated generation of spike tips Vb is exact, Wt is approx.- reduced system is solved directly Implicit generation of reduced system which is solved on-the-fly using an iterative method.
U LU and UL w/o pivot. Truncated generation of spike tips Vb, Wt are exact- reduced system is solved directly Implicit generation of reduced system which is solved on-the-fly using an iterative method with precond.
A alternate LU / UL Explicit generation of spikes using new partitioning- reduced system is solved iteratively with a preconditioner. Truncated generation of spikes using new partitioning- reduced system is solved directly
21
SPIKE Hybrids

• SPIKE versions
• R recursive E explicit
• F on-the-fly T truncated
• 2. Factorization
• No pivoting
• L LU
• U LU UL
• A alternate LU UL
• Pivoting
• P LU
• 3. Solution improvement
• 0 direct solver only
• 2 iterative refinement
• 3 outer Bicgstab iterations

22
SPIKE on-the-fly

• Does not require generating the spikes explicitly
• Ideally suited for banded systems with large
  sparse bands
• The reduced system is solved iteratively
  with/without a preconditioning strategy

23
Numerical Experiments(dense within the band)

• Computing platforms
• 4 nodes Linux Xeon cluster
• 512 processor IBM-SP
• Performance comparison w/ LAPACK, and ScaLAPACK

24
SPIKE Scalability
b401 RHS1
IBM-SP
Spike (RL0)
Speed improvement Spike vs Scalapack
procs. 8 16 32 64 128 256 512
N0.5 M 7.2 8.2 7.9 7.0 6.0 5.0 4.1
N1M 8.4 8.2 7.7 6.9 5.7 4.8
N2M 8.3 8.0 7.6 6.0 5.4
N4M 8.2 8.0 7.4 6.4
25
SPIKE partitioning - 4 processor example
Partitioning -- 1
Partitioning -- 2
Factorizations (w/o pivoting)
Processors
A1
LU UL (p2) LU (p3) UL
1 2,3 4
B1
A2
C2
B2
A3
C3
26
SPIKE Small number of processors

• ScaLAPACK needs at least 4-8 processors to
  perform as well as LAPACK.
• SPIKE benefits from the LU-UL strategy and
  realizes speed improvement over LAPACK on 2 or
  more processors.

n960,000 b201
4-node Xeon Intel Linux cluster with infiniband
interconnection - Two 3.2 Ghz processors per
node 4 GB of memory/ node 1 MB cache 64-bit
arithmetic. Intel fortran, Intel MPI Intel MKL
libraries for LAPACK, SCALAPACK
System is diag. dominant
27
General sparse systems

• Science and engineering problems often produce
  large sparse linear systems
• Banded (or banded with low-rank perturbations)
  structure is often obtained after reordering

• While most ILU preconditioners depend on
  reordering strategies that minimize the fill-in
  in the factorization stage, we propose to
• extract a narrow banded matrix, via a
  reordering-dropping strategy, to be used as a
  preconditioner.
• make use of an improved SPIKE on-the-fly
  scheme that is ideally suited for banded systems
  that are sparse within the band.

28
Sparse parallel direct solvers and banded systems
N432,000, b 177, nnz 7, 955, 116, fill-in of
the band 10.4
PARDISO Reordering Factorization Solve
1 CPU- (1 Node) 19.0 4.13 0.83
2 CPU- (1 Node) 18.3 3.11 0.83
SuperLU Reordering Factorization Solve
1 CPU - (1 Node) 10.3 17 8.4
2 CPU- (2 Nodes) 8.2 37 12.5
4 CPU- (4 Nodes) 8.2 41 16.7
8 CPU- (4 Nodes) 7.6 178 15.9
Memory swap too much fill-in
MUMPS Reordering Factorization Solve
1 CPU - (1 Node) 16.2 6.3 0.8
2 CPU- (2 Nodes) 17.2 4.2 0.6
4 CPU- (4 Nodes) 17.8 3 0.55
8 CPU- (4 Nodes) 17.7 20 1.9
29
Multilevel Parallelism SPIKE calling MKL-PARDISO
for banded systems that are sparse within the
band

• This SPIKE hybrid scheme exhibits better
  performance than other parallel direct sparse
  solvers used alone.

30
SPIKE-MKL on-the-fly for systems that are
sparse within the band
N432,000, b 177, nnz 7, 955, 116, sparsity of
the band 10.4

• MUMPS time (2-nodes) 21.35 s time (4-nodes)
  39.6 s
• For narrow banded systems, SPIKE will consider
  the matrix dense within the band.
• Reordering schemes for minimizing the
  bandwidth can be used if necessary.

N471,800, b 1455, nnz 9, 499, 744, sparsity
of the band 1.4

• Good scalability using on-the-fly SPIKE scheme

31
A Preconditioning Approach

• Reorder the matrix to bring most of the elements
  within a band via
• HSLs MC64 (to maximize sum or product of the
  diagonal elements)
• RCM (Reverse Cuthill-McKee) or MD (Minimum
  Degree)
• Extract a band from the reordered matrix to use
  as preconditioner.
• Use an iterative method (e.g. Bicgstab) to solve
  the linear system (outer solver).
• Use SPIKE to solve the system involving the
  preconditioner (inner solver).

32
Matrix DW8192, order N 8192, NNZ 41746,
Condest (A) 1.39e07, Square Dielectric
Waveguide Sparsity 0.0622 , (AA) indefinite
33
GMRES ILU preconditionervs. Bicgstab with
banded preconditioner

• Gmres w/o precond gt5000 iterations
• Gmres ILU (no fill-in) Fails
• Gmres ILU (1 e-3) Fails
• Gmres ILU (1 e-4) 16 iters., r 10-5
• NNZ(L) 612,889
• NNZ(U) 414,661
• Spike - Bicgstab
• preconditioner of bandwidth 70
• 16 iters., r 10-7
• NNZ 573,440

34
Comparisons on a 4-node Xeon Linux Cluster (2
CPUs/node)

• SuperLU
• 1 node -- 3.56 s
• 2 nodes -- 1.87 s
• 4 nodes -- 3.02 s (memory limitation)
• MUMPS
• 1 node -- 0.26 s
• 2 nodes -- 0.36 s
• 4 nodes -- 0.34 s
• SPIKE RL3 (bandwidth 129)
• 1 node -- 0.28 s
• 2 nodes -- 0.27 s
• 4 nodes -- 0.20 s
• Bicgstab required 6 iterations only
• Norm of rel. res. 10-6

Matrix DW8192
Matrix DW8192
Sparse Matvec kernel needs fine-tuning
Sparse Matvec kernel needs fine-tuning
35
Matrix BMW7st_1(stiffness matrix)

• Order N 141,347, NNZ 7,318,399

after RCM reordering
36
Comparisons on a 4-node Xeon Linux Cluster (2
CPUs/node)

• SuperLU
• 1 node -- 26.56 s
• 2 nodes -- 21.17 s
• 4 nodes -- 45.03 s
• MUMPS
• 1 node -- 09.71 s
• 2 nodes -- 08.03 s
• 4 nodes -- 08.05 s
• SPIKE TL3 (bandwidth 101)
• 1 node -- 02.38 s
• 2 nodes -- 01.62 s
• 4 nodes -- 01.33 s
• Bicgstab required 5 iterations only
• Norm of rel. res. 10-6

Matrix BMW7st_1 is diag. dominant
Sparse Matvec kernel needs fine-tuning
37
Reservoir Modeling
38
Bicgstab ILU (0, fill-in) NNZ 50,720
39
Matrix after RCM reordering
40
Bicgtab banded preconditioner bandwidth 61
NNZ 12,464
41
Driven Cavity Example

• Square domain ?1 ? x, y ? 1
• B.CS. ux uy 0 on x, y ?1 x 1
• ux 1, uy 0 on y 1
• Picards iterations Q2/Q1 elements Linearized
  equations (Oseen problem)
• G ? 0
• E As (A AT)/2
• viscosity 0.1, 0.02, 0.01,0.002

42
Linear system for 128 x 128 grid
43
after spectral reordering
44
MA48 as a preconditioner for GMRES on a
uniprocessor
Droptol of iter. T(factor.) T(GMRES iters.) nnz(LU) final residual v
0 2 142.7 0.3 7,195,157 2.07E-13 1/50
1.00E-04 24 115.5 1.4 2,177,181 2.83E-09 1/50
1.00E-03 248 109.6 17.3 1,611,030 5.11E-08 1/50
for drop tolerance .0001, total time 117
sec. No convergence for a drop tolerance of
10-2
45
Spike Pardiso for solving systems involving the
banded preconditioner

• On 4 nodes (8 CPUs) of a Xeon-Intel cluster
• bandwidth of extracted preconditioner 1401
• total time 16 sec.
• of Gmres iters. 131
• 2-norm of residual 10-7
• Speed improvement over sequential procedure with
  drop tolerance .0001
• 117/16 7.3

46
Technical Highlights

• Analysis of Scaling Properties
• In early work, we developed the Isoefficiency
  metric for scalability.
• With the likely scenario of utilizing up to 100K
  processing cores, this work becomes critical.
• Isoefficiency quantifies the performance of a
  parallel system (a parallel program and the
  underlying architecture) as the number of
  processors is increased.

47
Technical Highlights

• Isoefficiency Analysis
• The efficiency of any parallel program for a
  given problem instance goes down with increasing
  number of processors.
• For a family of parallel programs (formally
  referred to as scalable programs), increasing the
  problem size results in an increase in efficiency.

48
Technical Highlights

• Isoefficiency is the rate at which problem size
  must be increased w.r.t. number of processors, to
  maintain constant efficiency.
• This rate is critical, since it is ultimately
  limited by total memory size.
• Isoefficiency is a key indicator of a programs
  ability to scale to very large machine
  configurations.
• Isoefficiency analysis will be used extensively
  for performance projection and scaling properties.

49
Architecture

• We target the following currently available
  architectures
• IBM JS20/21 and BlueGene/L platforms
• Cray X1/XT3
• AMD Opteron multicore SMP and SMP clusters
• Intel Xeon multicore SMP and SMP clusters
• These platforms represent a wide range of
  currently available architectural extremes.
• _______________________________________________
• Intel, AMD, and IBM JS21 platforms are
  available locally at Purdue. We intend to get
  access to the BlueGene at LLNL and the Cray XT3
  at ORNL.

50
Implementation

• Current implementations are MPI based.
• The Spike tooklit will be ported to
• POSIX and OpenMP
• UPC and CAF
• Titanium and X10 (if releases are available)
• These implementations will be comprehensively
  benchmarked across platforms.

51
Benchmarks/Metrics

• We aim to formally specify a number of benchmark
  problems (sparse systems arising in
  nanoelectronics, structural mechanics, and
  fluid-structure interaction)
• We will abstract architecture characteristics
  processor speed, memory bandwidth, link
  bandwidth, bisection bandwidth (some of these
  abstractions can be derived from HPCC
  benchmarks).
• We will quantify solvers on the basis of
  wall-clock time, FLOP count, parallel efficiency,
  scalability, and projected performance to
  petascale systems.

52
Benchmarks/Metrics

• Other popular benchmarks such as HPCC do not
  address sparse linear solvers in meaningful ways.
• HPCC comprises of seven benchmark tests HPL,
  DGEMM, STREAM, PTRANS, RandomAccess, FFT, and
  Communication bandwidth and latency.
• They only peripherally address underlying
  performance issues in sparse system solvers.

53
Progress/Accomplishments

• Implementation of the parallel Spike
  polyalgorithm toolkit.
• Incorporation of a number of parallel direct and
  preconditioned iterative solvers (e.g. SuperLU,
  MUMPS, and Pardiso) into the Spike toolkit.
• Evaluation of Spike on the IBM/SP, SGI Altix,
  Intel Xeon clusters, and Intel multicore
  platforms.

54
Milestones

• Final deliverable Comprehensive evaluation of
  scaling properties of existing (and new solvers).
• Six month target Comparative performance of
  solvers on multicore SMPs and clusters.
• Twelve-month target Comprehensive evaluation on
  Cray X1, BG, JS20/21, of CAF/UPC/MPI
  implementations.

55
Financials

• The total cost of this project is approximately
  150K for its one-year duration.
• The budget primarily accounts for a post-doctoral
  researchers salary/benefits and minor
  summer-time for the PIs.
• Together, these three project personnel are
  responsible for accomplishing project milestones
  and reporting.

56
Concluding Remarks

• This project takes a comprehensive view of
  parallel sparse linear system solvers and their
  suitability for petascale HPC systems.
• Its results directly influence ongoing and future
  development of HPC systems.
• A number of major challenges are likely to
  emerge, both as a result of this project, and
  from impending architectural innovations.

57
Concluding Remarks

• Architectural innovations on the horizon
• Scalable multicore platforms 64 to 128 cores on
  the horizon
• Heterogeneous multicore It is likely that cores
  will be heterogeneous some with floating point
  units, others with vector units, yet others with
  programmable hardware (indeed such chips are
  commonly used in cell phones)
• Significantly higher pressure on the memory
  subsystem

58
Concluding Remarks

• Challenges for programming models and runtime
  systems
• Affinity scheduling is important for performance
  need to specify tasks that must be co-scheduled
  (suitable programming abstractions needed).
• Programming constructs for utilizing
  heterogeneity.

59
Concluding Remarks

• Challenges for algorithm and application
  development
• FLOPS are cheap, memory references are expensive
  explore new families of algorithms that
  optimize for (minimize) the latter
• Algorithmic techniques and programming
  constructs for specifying algorithmic asynchrony
  (used to mask system latency)
• Many of the optimizations are likely to be
  beyond the technical reach of applications
  programmers need for scalable library support
• Increased emphasis on scalability analysis
