Concurrent Transactions

1

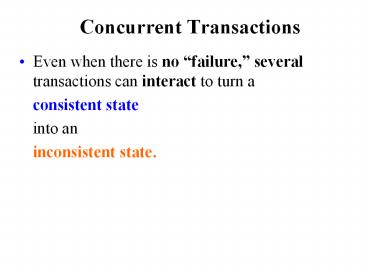

Concurrent Transactions

• Even when there is no failure, several
  transactions can interact to turn a
• consistent state
• into an
• inconsistent state.

2
Overview

• Scheduler manages read/write requests from
  transactions allows execution in an order that
  is serializable, i.e., it looks like the
  transactions executed oneatatime(serial)

3
Example

• Assume A B is required for consistency.

• Note that we omit OUTPUT steps for succinctness
  they always come at the end. We deal only with
  Reads and Writes in the main memory buffers.
• T1 and T2 individually preserve DB consistency.

4
An Acceptable Schedule S1

• Assume initially A B 25. Here is one way to
  execute (S1 T1 T2) so they do not interfere.

5
Another Acceptable Schedule S2

• Here, transactions are executed as (S2T2 T1).
  The result is different, but consistency is
  maintained.

6
Interleaving Doesn't Necessarily Hurt (S3)
7
But Then Again, It Might!
8
The Semantics of transactions is also important.
Suppose T3 is identical to T2 but it multiplies
by 1
9
We Need a Simpler Model

• Assume that whenever a transaction T writes X, it
  changes X in some unique way.
• Arithmetic coincidence never happens
• Thus, we focus on the reads and writes only,
  assuming that whenever transaction T reads X and
  then writes it, X has changed in some unique way.

• Notation rT(X) denotes T reads the DB element X
• wT(X) denotes T writes X
• If transactions are T1,,Tk, then we will simply
  use ri and wi, instead of rTi and wTi

10
Transactions and Schedules

• A transaction (model) is a sequence of r and w
  actions on database elements.
• A schedule is a sequence of reads/writes actions
  performed by a collection of transactions.
• Serial Schedule All actions for each
  transaction are consecutive.
• r1(A) w1(A) r1(B) w1(B) r2(A) w2(A)
  r2(B) w2(B)

11
Transactions and Schedules (Contd)

• Serializable Schedule A schedule whose effect
  is equivalent to that of some serial schedule.
• We will introduce a sufficient condition for
  serializability.

12
Conflicts

• Suppose for fixed DB elements X Y,
• ri(X) rj(Y) is part of a schedule, and we
  flip the order of these operations.
• ri(X) rj(Y) rj(Y) ri(X) In what sense?
• This holds always (even when XY)
• We can flip ri(X) wj(Y), as long as X?Y
• That is, ri(X) wj (X) ? wj(X) ri (X)
• In the RHS, Ti reads the value of X written
• by Tj, whereas it is not so in the LHS.

13
Conflicts (Contd)

• We can flip wi(X) wj(Y) provided X?Y
• However, wi(X) wj(X) ? wj(X) wi(X)
• The final value of X may be different depending
  on which write occurs last.
• There is a conflict if 2 conditions hold.
• A read and a write of the same X, or
• Two writes of X conflict in general and may not
  be swapped in order.
• All other events (reads/writes) may be swapped
  without changing the effect of the schedule (on
  the DB).

14
Precedence Graphs

• If by swapping pairs of non-conflicting actions
  in a schedule S, we end up in a serial schedule,
  then S is called a conflict-serializable
  schedule.
• S r1(A) w1(A) r2(A) w2(A) r1(B) w1(B)
  r2(B) w2(B)
• Conflict-serializability is a sufficient
  condition for serializability but not necessary.
• Serializability/precedence graph for S
• Nodes transactions T1,,Tk
• Arcs There is an arc from Ti to Tj if they have
  conflict access to the same database element X
  and Ti is first in written Ti ltS Tj.

15
(No Transcript)
16

• If there is a cycle in the graph
• Then, there is no serial schedule which is
  conflictequivalent to S.
• Each arc represents a requirement on the order of
  transactions in a conflict equivalent serial
  schedule.
• A cycle puts too many requirements on any linear
  order of transactions.
• If there is no cycle in the graph
• Then any topological order of the graph suggests
  a conflictequivalent schedule.

17
Why the Precedence-Graph Test Works?

• Idea if the precedence graph is acyclic, then we
  can swap actions to form a serial schedule
  consistent with some topological order
• Proof By induction on n, number of
  transactions.
• Basis n 1. That is, ST1 then S is already
  serial.
• Induction ST1,T2,,Tn. Given that SG(S) is
  acyclic, then pick Ti in S such that no Tj in S
  is dependent on.
• We swap all actions of Ti to the front (of S).
• (Actions of Ti)(Actions of the other n-1
  transactions)
• The tail is a precedence graph that is the same
  as the original without Ti, i.e. it has n-1
  nodes.
• ? By the induction hyposthesis, we can reorder
  the actions of the other transactions to turn it
  into a serial schedule

18
Schedulers

• A scheduler takes requests from transactions for
  reads and writes, and decides if it is OK to
  allow them to operate on DB or defer them until
  it is safe to do so.
• Ideal a scheduler forwards a request iff it
  cannot lead to inconsistency of DB
• Too hard to decide this in real time.
• Real it forwards a request if it cannot result
  in a violation of conflictserializability.
• We thus need to develop schedulers which ensure
  conflict-serializablility.

19
Lock Actions

• Before reading or writing an element X, a
  transaction Ti requests a lock on X from the
  scheduler.
• The scheduler can either grant the lock to Ti or
  make Ti wait for the lock.
• If granted, Ti should eventually unlock (release)
  the lock on X.
• Shorthands
• li(X) transaction Ti requests a lock on X
• ui(X) Ti unlocks/releases the lock on X

20

• The use of lock must be proper in 2 senses
• Consistency of Transactions
• Read or write X only when hold a lock on X.
• ri(X) or wi(X) must be preceded by some li(X)
  with no intervening ui(X).
• If Ti locks X, Ti must eventually unlock X.
• Every li(X) must be followed by ui(X).
• Legality of Schedules
• Two transactions may not have locked the same
  element X without one having first released the
  lock.
• A schedule with li(X) cannot have another lj(X)
  until ui(X) appears in between

21
Legal Schedule Doesnt Mean Serializable
22
Two Phase Locking
There is a simple condition, which guarantees
confict-serializability In every transaction,
all lock requests (phase 1) precede all unlock
requests (phase 2).
23
Why 2PL Works?

• Precisely a legal schedule S of 2PL transactions
  is conflictserializable.
• Proof is an induction on n, the number of
  transactions.
• Remember, conflicts involve only read/write
  actions, not locks, but the legality of the
  transaction requires that the r/w's be consistent
  with the l/u's.

24
Why 2PL Works (Contd)

• Basis if n1, then ST1, and hence S is
  conflict-serializable.
• Induction ST1,,Tn. Find the first
  transaction, say Ti, to perform an unlock action,
  say ui(X).
• Can we show that the r/w actions of Ti can be
  moved to the front of the other transactions
  without conflict?
• Consider some action such as wi(Y). Can it be
  preceded by some conflicting action wj(Y) or
  rj(Y)? In such a case we cannot swap them.
• If so, then uj(Y) and li(Y) must intervene, as
• wj(Y)...uj(Y)...li(Y)...wi(Y).
• Since Ti is the first to unlock, ui(X) appears
  before uj(Y).
• But then li(Y) appears after ui(X), contradicting
  2PL.
• Conclusion wi(Y) can slide forward in the
  schedule without conflict similar argument for a
  ri(Y) action.

25
Shared/Exclusive Locks

• Problem while simple locks 2PL guarantee
  conflictserializability,
• they do not allow two readers of DB element X at
  the same time.
• But having multiple readers is not a problem for
  conflictserializability (since read actions
  commute).

26
Shared/Exclusive Locks (Contd)

• Solution Two kinds of locks
• 1. Shared lock sli(X) allows Ti to read, but not
  write X.
• It prevents other transactions from writing X but
  not from reading X.
• 2. Exclusive lock xli(X) allows Ti to read and/or
  write X no other transaction may read or write
  X.

27

• Consistency of transaction conditions
• A read ri(X) must be preceded by sli(X) or
  xli(X), with no intervening ui(X).
• A write wi(X) must be preceded by xli(X), with no
  intervening ui(X).
• Legal schedules
• No two exclusive locks.
• If xli(X) appears in a schedule, then there
  cannot be a xlj(X) until after a ui(X) appears.
• No exclusive and shared locks.
• If xli(X) appears, there can be no slj(X) until
  after ui(X).
• If sli(X) appears, there can be no wlj(X) until
  after ui(X).
• 2PL condition
• No transaction may have a sl(X) or xl(X) after a
  u(Y).

28
Scheduler Rules

• When there is more than one kind of lock, the
  scheduler needs a rule that says if there is
  already a lock of type A on DB element X, can I
  grant a lock of type B on X?
• The compatibility matrix answers the question.
  Compatibility Matrix for Shared/Exclusive Locks
  is

29
Upgrading Locks

• Instead of taking an exclusive lock immediately,
  a transaction can take a shared lock on X, read
  X, and then upgrade the lock to exclusive so that
  it can write X.

30
Upgrading Locks (Cont.)
Had T1 asked for an exclusive lock on B before
reading B, the request would have been denied,
because T2 already has a shared lock on B.
31
Deadlocks
ExampleT1 and T2 each reads X and later writes
X.
Problem when we allow upgrades, it is easy to
get into a deadlock situation.
32
Solution Update Locks

• Update lock uli(X) with asymetric compatibility
  matrix.
• Only an update (not read) can be upgraded to
  write (If there are no shared locks anymore).
• Legal schedules read action permitted when there
  is either a shared or update lock.
• An update can be granted while there is a
  sharedlock, but the scheduler will not grant a
  sharedlock when there is an update.

33
Compatibility Matrix for Shared, Exclusive, and
Update Locks
34
Example T1 and T2 each read X and later write
X.
