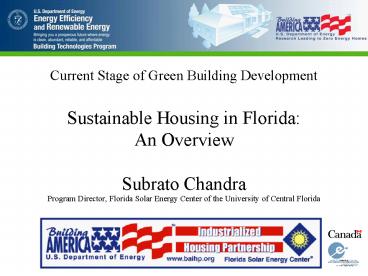

Current Stage of Green Building Development

1

• Current Stage of Green Building Development
• Sustainable Housing in Florida
• An Overview
• Subrato Chandra
• Program Director, Florida Solar Energy Center of
  the University of Central Florida

2
3 high profile programs

• Building America
• Florida Green Building Coalition
• USGBC- LEED for Homes Pilot
• Hundreds of Green homes are being built annually
  in Florida by these three programs

3
Building America Goals

• Perform cost shared R D and provide technical
  assistance to builders that result in thousands
  of high performance homes saving 30 - 50 or
  greater in whole house energy use while enhancing
  comfort, indoor air quality and durability
• www.buildingamerica.gov

4
BAIHP Overview

• One of six and the only university based prime
  contractor to US DOE Building America
• Initiated in September, 1999 Recompeted 2006
• Team comprises FSEC (lead), UCFIE, WSU, ODOE,
  UT-Austin SOA, Fl-Hero, Calcs-Plus, RESNET over
  50 builders, home manufacturers and suppliers
• BAIHP works in all housing sectors, focusing on
  factory built housing.

5
BAIHP is saving over 22,000,000/yr in 135,000
homes produced since Sept99
6
Whole House Approach for Production Builders

• Example GW Robinson Builders, Gainesville, FL
• Lead Florida H.E.R.O. (Ken Fonorow)

7
Systems Engineering Approach

• Understand builder desire
• GW Wanted To Build Greenest, Healthiest Homes
• Provide customized solution including plan
  analysis, HVAC design, inspecting, testing and
  rating every home
• Progressively increase energy efficiency over
  time
• Consistently deliver homes that save gt30 on a
  whole house BA benchmark basis
• Currently 20 homes/month being delivered with
  this level of performance from GW and other BAIHP
  builders

8
General Specs

• SEER 14 Air conditioner
• 93 AFUE Gas Furnace
• EF.84 Tankless gas water heater
• 0.28 SHGC, U.39 Vinyl Low-e windows
• R-30 with Radiant barrier vented attic
• 2 x 4 Frame construction w/R-13 cellulose
• Wide Overhangs on Patio doors and windows
• Moisture Management Techniques, Low VOC paints

9
Typical AHU in Florida Garages

• Causes Energy Waste
• Can draw in pollutants and car exhausts
• Mold because of exterior condensation

10
AHU in conditioned space

• Review Plans and Recommend Making AHU Closet Part
  of Conditioned Space
• Isolated from Garage
• Improves Everything - Health, Safety, Durability,
  Comfort and Energy Efficiency
• Also Results in 15 sq. ft. More Conditioned
  Space
• 1,500 Appraised Value
• 500 In First Cost

11
Air Intakes and Ventilation

• Provide For
• Filtered Air Intake
• Combustion Air Inlets And Outlets
• 30cfm Outside Air Only When AHU runs
• Positive house
• Pressurization

12
Right-Sized A/C and Sealed Ducts

• Right-Size A/C Using Manual J
• Size and Layout Ducts Using Manual D
• Short, Well Supported Duct Runs
• Duct Leakage 4 to Outside

13
Inspect, Test, Rate

• Perform Periodic Site Inspections, Tests And Rate
  Each Home (HERS 89 91)
• Provide Feedback To Builder
• Qualifies for 2,000 federal tax credit

14
Results in Happy Builder and DOE!
15
Monitored Cooling Energy Savings

• Hoak Residence, Orlando FL
• Cambridge Homes, Orlando FL
• Notsobig showhouse, Orlando FL
• New Generation Homes, Ft. Myers FL
• ORNL ZEH4, Lenoir City TN

16
First , the limits.

• Lakeland Study
• Zero Energy Home
• Monitored 1998-2002
• Saved 75 Cooling Energy Compared To Control
• Lakeland FL
• 2428 Sq. Ft.
• SEER 14.4/ SEER10
• Lead Danny Parker

17
The Hoak Residence, Orlando FL

• 4,200 sq. ft, unvented attic, occup. by family of
  4
• 13 SEER 2sp 4zone a/c HERS 91

18
Ducts in conditioned space in unvented attic
19
Bonus room resulting from unvented attic
20
Heat Pump Water Heater

• Provides Hot water
• Integrated with house cooling system to take
  advantage of free cooling and dehumidification
  provided by the HPWH

21
65 savings
22
Cambridge Homes model, Orlando

• 2674 sq. ft.
• SEER 13
• No zoning
• Two a/c units
• 62.2 vent
• Dehumidifier
• HERS 87

23
40 savings
24
Notsobig showhouse model, Orlando

• 2660 sq. ft.
• SEER 16/2sp
• No zoning
• Two a/c units
• No vent
• Cool Roof
• HERS 94

25
40 savings
26
New Gen. Homes by Kingon Occupied

• 2481 sq. ft.
• SEER 15
• No zoning
• 5 ton (oversized)
• 32 cfm vnt (runt.)
• Leaky ducts (6)
• Vented attic
• HERS 88
• Ft. Myers, FL

27
20 savings
28
ORNL ZEH4 Occupied (family of 3)

• 1,200 sq. ft.
• SEER 17
• HERS 91
• 62.2 vent
• Earth contact

29
70 savings
30
Conclusions so far

• 40 - 70 savings in heating, cooling, water
  heating and lighting over code minimum housing
  are possible and have been repeatedly
  demonstrated by the Building America program
• Appliance and plug load savings are much more
  difficult requires home owner cooperation
• FGBC and USGBC programs next

31
Florida Green Building Coalition, Inc.
To provide a statewide green building
program with environmental and economic benefits.

• Non-profit, membership based organization
• Encourage green building in Florida
• Voluntary standards

www.FloridaGreenBuilding.org
32
Florida Green Building Coalition, Inc.
FSEC Involvement

• Member of founding board of directors
• Chaired development of home, land development,
  and local government standards
• Oversee the certification processes
• Provide technical assistance, training, and
  education

33
Florida Green Building Coalition, Inc.
Statistics

• gt 300 individual and
  organizational members
• gt 600 homes certified
• 6 developments certified comprising gt 17,000
  acres
• 5 local governments seeking certification

34
Incentives for Green Buildings

• Gainesville Green Building Program
• ½ off building permit fee
• Free fast track permitting
• Marketing for builders
• Sarasota Green Building Program
• Same as Gainesville
• Incentives for staff to get green training
• Miami-Dade County
• Encourages green buildings

35
FSEC was selected as one of 11 regional program
providers and oversees this national residential
green standard in Florida during the pilot.
USGBC
PILOT
36
What is the LEED System?
Leadership in Energy and Environmental
Design A leading-edge system
for certifying the greenest performing buildings
in the world
37
Status of Pilot

• National
• 142 Pilot Builders
• 752 Registered Projects
• 24 Certified Projects
• 17 certified, 4 silver, 2 gold, 1 platinum
• Florida
• 7 registered projects
• None certified

38

• Expect a full national release of LEED for Homes
  in Spring 2007
• FSEC hopes to foster a single, combined rating
  system for Florida that
• Adds additional tiers to current FGBC system.
• Engages FGBC network of members.
• Engages FGBC network of raters.
• Brings national recognition through USGBC

39
Thank You
