Development of a Theoretical Model for Membrane Hydrophone Transfer Characteristics

1

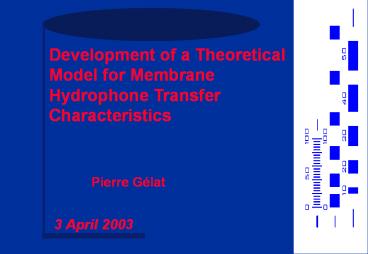

Development of a Theoretical Model for Membrane
Hydrophone Transfer Characteristics
Pierre Gélat
3 April 2003
2
Background

• Bilaminar hydrophones are extensively used to
  measure and characterise medical ultrasound
  fields
• Developing a hydrophone model would enable users
  to improve the accuracy of their measurements in
  the field of medical ultrasound (phase response,
  deconvolution)
• Type of hydrophone initially modelled 25 ?m film
  thickness 0.5 mm diameter bilaminar membrane
  hydrophones
• Need to generalise model to simulate the response
  of the new generation of Precision Acoustics
  bilaminar membrane hydrophones (15 ?m film
  thickness, 0.4 mm diameter)

3
A bilaminar membrane hydrophone
4
Diagram of a bilaminar membrane hydrophone
5
Hydrophone model assumptions

• 25 ?m pvdf film thickness, 0.5 mm diameter
  bilaminar
• Assume plane wave incidence on hydrophone
• Use transfer matrix formulation to evaluate
  pressure and particle velocities at extremities
  of pvdf layers
• Account for secondary piezoelectric effects
• Model pvdf layers as equivalent voltage sources
  in series with capacitance
• Model leg as distributed series resistance shunt
  capacitance network
• Model coaxial cable as transmission line
• Account for electrical loading on cable (e.g.
  oscilloscope, amplifier, arbitrary load)

6
Bilaminar Hydrophone Equivalent Electrical Circuit
7
Model input parameters


8
Open-circuit sensitivity
9
Predicted phase response
10
Prediction of pressure waveform
11
Conclusions

• Validation of a model for predicting the transfer
  characteristics of membrane hydrophones
• Can be used to estimate true pressure waveform
