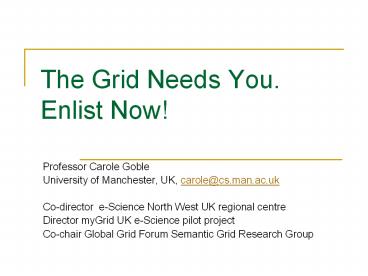

1The Grid Needs You. Enlist Now!
- Professor Carole Goble
- University of Manchester, UK, carole_at_cs.man.ac.uk
- Co-director e-Science North West UK regional
centre - Director myGrid UK e-Science pilot project
- Co-chair Global Grid Forum Semantic Grid Research
Group
2The Grid Needs You. Enlist Now!
- The what and why of the Grid.
- Services, data and semantics and the Grid.
- Getting involved a call to arms.
3The take home
- The Grid is the next big thing and it isnt
just big computers and fat pipes. - The Grid is actually the latest attempt at
distributed computing - If you arent involved yet maybe its because you
dont think its relevant, or its done already or
you havent anything to offer - You are most likely wrong
- If you are already into the Grid this is a ra
ra exercise ?
4Origins of the Grid
- The Grid Blueprint for a New Computing
Infrastructure - Edited by Ian Foster and Carl Kesselman
- July 1998, 701 pages.
- a proposed distributed computing infrastructure
for advanced science and engineering - pervasive and dependable
5What is the Grid?
- Computational power as a utility
- Securely and transparently sharing supercomputing
resources on demand. - Fast pig iron with fat pipes for cycle intensive
scientific problems - Large scale data access and transportation
- Making the most of what you have got
6Why do it now?
- Enormous quantities of data Petabytes
- For an increasing number of communities, gating
step is not collection but analysis - Ubiquitous Internet 100 million hosts
- Collaboration resource sharing the norm
- Ultra-high-speed networks 10 Gb/s
- Global optical networks
- Huge quantities of computing 100 Top/s
- Moores law gives us all supercomputers
7Isnt this just high performance computing for
high energy physicists?
8What is the Grid for?
- Global e-Science
- Large-scale science and engineering are done
through the interaction of people, heterogeneous
computing resources, information systems, and
instruments, all of which are geographically and
organizationally dispersed. - The motivation for Grids is to facilitate the
routine interactions of these resources in order
to support large-scale science and engineering. - KEYWORDS
- Collaboration, Democratization, Speculation
Bill Johnston, NASA July 01
9Global Collaborative Knowledge Communities
Slide courtesy of Ian Foster
10Global Knowledge Communities
- Teams organised around common goals
- Communities Virtual organisations
- Overlapping memberships, resources and activities
- Essential diversity is a strength challenge
- membership capabilities
- Geographic and political distribution
- No location/organisation/country possesses all
required skills and resources - Dynamic adapt as a function of their situation
- Adjust membership, reallocate responsibilities,
renegotiate resources
Slide derived from Ian Fosters SSDBM 03 keynote
11The Grid Opportunity
- flexible, secure, coordinated resource sharing
among dynamic collections of individuals,
institutions, and resources - what we refer to as
virtual organizations."
KEYWORD VIRTUALISATION
The Anatomy of the Grid Enabling Scalable
Virtual Organizations Foster, Kesselman, Tueke
12Why Grids?
- A biochemist exploits 10,000 computers to screen
100,000 compounds in an hour - A biologist combines a range of diverse and
distributed resources (databases, tools,
instruments) to answer complex questions - 1,000 physicists worldwide pool resources for
petaop analyses of petabytes of data - Civil engineers collaborate to design, execute,
analyze shake table experiments - Climate scientists visualize, annotate, analyze
terabyte simulation datasets - An emergency response team couples real time
data, weather model, population data - A multidisciplinary analysis in aerospace couples
code and data in four companies
Slide courtesy of Steve Tuecke
13Telemicroscopy
- Sharing of UHVEM(Ultra High Voltage Electron
Microscopy) in Osaka University with NCMIR
(National Center for Microscopy and Imaging
Research) - 3 Million electron volts the most powerful
microscopy facility - KEYWORDS SHARING SCARCE RESOURCES ON DEMAND
14Smallpox Grid
- United Devices, IBM, Oxford University, Accelrys
- Analysis of 35 million drug compounds against
nine smallpox proteins to try to find a way to
stop the replication of the virus. - Volunteers from over 190 countries donated their
spare CPU power at www.grid.org, the world's
largest public computing resource - Contributed over 39,000 years of computing time
in less than six months.
September 30, 2003 delivered the results of the
Smallpox Research Grid project to representatives
from the United States Department of Defense in
an event hosted by the British Embassy in
Washington, D.C.
15Digital
Digital
2,000,000 - Screened every Year 120,000 -
Recalled for Assessment 10,000 - Cancers 1,250 -
Lives Saved
230 - Radiologists (Double Reading) 50 -
Workload Increase
16http//www.nbirn.net/
17RealityGrid http//www.realitygrid.org
Scientist remotely steers calculation from
laptop Visualization and computation use
supercomputers accessed via Grid.
X-ray microtomography produces 3D X-ray
attenuation maps of specimens at a microscopic
level
- Closely coupling computation and experiment
to speed up scientific discovery. - Simulation, visualization and data gathering
coupled
18Collaboration
- Interactive environments and virtual presence
integrated with Grid middleware
- SARS Combat Grid, Taiwan
- Emergency Access Grids
- Integration of patient data and models of
dissemination
http//www.accessgrid.org
19Access Grid
20Foundation for e-Science
sensor nets
Diagram derived from Ian Fosters slide
21Butterfly.net
- Fully-distributed server technology pioneering
the use of open grid computing protocols in
large-scale immersive game networks that support
unlimited numbers of players and require the most
demanding levels of service.
22More commercial examples
- Novartis Pharmaceuticals accelerate lead
identification and profiling to increase relevant
targets in drug discovery, screening applications
that were previously considered CPU constrained. - Nippon Life Insurance improve the performance of
Financial Risk Management Applications customer
project in applying Grid technology for this
application. Reduced processing time for
financial risk calculation from around 10 hours
to about 49 minutes a 12-fold increase in
speed. Can run more complex scenarios to reduce
risk exposure
23Global Grid Forumhttp//www.ggf.org
- Standards body for Grid Computing
- Over 2000 members
- All the vendors
- 44 WGs and RGs
- Three meetings per annum
- 1000 attendees at plenary meetings
- 400 at working meetings
- GGF10 Frankfurt, March 2004
24Investment
- UK Government invested 240 million into
e-Science and Grid related research - EU invested 351million in FP5 and FP6
- USA invested lots!
- IBM invested 10-20 RD budget in Grid Computing
- 1.5million per annum on GridFTP alone
- Japan and China invested in Grids
- Practically every EU member has a Grid programme.
25The Grid means what I say it means
- The Grid the vision of forming federations
- A Grid - A virtual organisation of resources
- Machines computational grid
- Geography a UK Grid
- A field Mouse Genome Grid
- A (temporary) problem protein folding
simulation - No one grid lots of interoperating Grids
- Grid middleware infrastructure specification
- Services stacks, policies, protocols, standards,
APIs - Reference implementations
- Globus, Condor, Unicore, Sun Grid Engine, Avaki,
United Devices... - Grid tools
- Portals, heartbeat monitors etc
- E-Science application of all the above for the
benefit of Science
26The Grid is forming federations
- Infrastructure middleware for establishing,
managing, and evolving multi-organizational
federations - Dynamic, autonomous, domain independent
- On-demand, ubiquitous access to computing, data,
and services - Mechanisms for resource virtualization workflow
management within federations - New capabilities constructed dynamically and
transparently from distributed services - Service-oriented, virtualization
27when the federations are
- Dynamic and volatile. A consortium of services
(databases, sensors, compute servers)
participating in a complex analysis may be
switched in and out they become available or
cease to be available - Ad-hoc. Service consortia have no central
location, no central control, and no existing
trust relationships - Large Hundreds of services could be orchestrated
at any time - Potentially long-lived. A simulation could take
weeks. - HOLD THESE THOUGHTS!
28Grid Computing characteristics
- Implement One from Many
- Virtualization at every layer of the computing
stack - Provisioning of work and resources based on
policies and dynamic requirements - Pooling of resources to increase utilization
- Manage Many as One
- Self-adaptive software that largely tunes and
fixes itself - Unified management and provisioning
29which gives some challenges!
- Dynamic formation and management of virtual
organizations - Online negotiation of access to services who,
what, why, when, how - Configuration of applications and systems able to
deliver multiple qualities of service - Autonomic management of distributed
infrastructures, services, and applications - Management of distributed state as a fundamental
issue
30myGrid http//www.mygrid.org.uk
- Knowledge-driven middleware for data
intensive ad hoc in silico experiments in biology
- Straightforward discovery, interoperation,
deployment sharing of services - Service-oriented architecture
- Semantic based discovery of workflows and
workflow composition - Integration and Information
- Workflow Distributed DB Queries
- Experimentation
- Provenance, propagating change, personalisation
31Three legacy views
- Grid middleware is a bag of low level protocols
- The Grid is about compute cycle stealing
- The Grid is about plumbing and has nothing to do
with semantics
32Three legacy views
- Grid middleware is a bag of low level protocols
- The Grid is about compute cycle stealing
- The Grid is about plumbing and has nothing to do
with semantics - This was once true. Some still hold this view
(notably US programme managers) - It is not the view of the Grid visionaries or the
Grid policy makers outside the US.
33Three legacy views
- Grid middleware is a bag of low level protocols
- The Grid is about compute cycle stealing
- The Grid is about plumbing and has nothing to do
with semantics - This was once true. Some still hold this view
(notably US programme managers) - It is not the view of the Grid visionaries or the
Grid policy makers outside the US.
34Grid Evolution1st generation
- Computationally intensive
- File access/transfer
- Bag of various heterogeneous protocols
toolkits - Monolithic design
- Recognises internet, ignores Web
- Academic teams
Increased functionality, standardization
Legion, Condor, Unicore
Custom solutions
Time
(based on Foster GGF7 Plenary)
35Grid Evolution2nd Generation
- Data intensive -gt knowledge intensive
- Open services-based architecture
- Recognises Web services
- Global Grid Forum
- Industry participation
App-specific Services
Increased functionality, standardization
Custom solutions
Time
(based on Foster GGF7 Plenary)
36Open Grid Services Architectureongoing since
early 2002
Specific services drug discovery pipeline
Standard services agreement, data access and
integration, workflow, security, policy
Standard interfaces and behaviours for
distributed systems naming, service state,
lifetime management, notification
Standard mechanisms for describing and invoking
services WSDL, SOAP, WS-Security etc
(Graphic courtesy of Savas Parastatidis )
37OGSI Standard Web Services Interfaces
Behaviours
- Naming and bindings (basis for virtualization)
- Every service instance has a unique name (Grid
Service Handle) from which can discover supported
bindings which are volatile (Grid Service
Reference) - Two tiered naming scheme to cope with service
migration and failover - Lifecycle (basis for fault resilient state
management) - Service instances created by factories
- Destroyed explicitly or via soft state
- Information model (basis for monitoring
discovery) - Service data (attributes) associated with GS
instances (SDEs) - Operations for querying (introspecting) and
setting this info - Asynchronous notification of changes to service
data - Service Groups (basis for registries collective
services) - Group membership rules membership management
- Base Fault type
All sound kind of familiar?
38OGSI
- Lifetime management
- Explicit destruction
- Soft-state lifetime
Data access
Implementation
Hosting environment/runtime (C, J2EE, .NET, )
(Slide courtesy of Ian Foster)
39OGSI
Authentication authorization are applied to all
requests
Service factory
Service requestor (e.g. user application)
Service registry
Interactions standardized using WSDL
(Slide courtesy of Ian Foster)
40OGSI and Handle Resolution
- Grid Service Handle (GSH)
- Permanent network pointer to a Grid service
- URI scheme indicates resolution mechanism
- Grid Service Reference (GSR)
- Network endpoint info to access the service
- Binding-specific (for SOAP, GSRWSDL doc)
- HandleResolverfindByHandle
- Service portType to resolve GSH gt GSR
- Service Locator structure
- Includes service GSHs, GSRs and portTypes
- Factory/Find communicate Locators
(Slide courtesy of Ian Foster)
41GSHgtGSR Resolution
- Transparent service migration
- Move service state to different hosting
environment - Update GSR with new network endpoint info
- Update GSHGSR binding in HandleResolver
- After access error or GSR-expiration, new GSR
obtained through GSH lookup - (Re-)Activation of dormant service
- Transparent fail-over
- Load balancing
- Mobile services
- Files, database result sets, data fragments,
agreements, etc.
(Slide courtesy of Ian Foster)
42Service Migration
HandleResolver
Requester
GSH
GSR
GSH
GSR
ltwsdlgt
hdl1.2/abc
...
...
Service Locator
hdl1.2/abc
ltwsdlgt
...
...
Service
Hosting Environment B
Hosting Environment A
(Slide courtesy of Ian Foster)
43Sound familiar?
Web Services Loose coupled, stateless, persistent
- Layering a component-based distributed object
model over a web service framework - Early OGSI implementations
- Globus Toolkit 3
- OGSI.NET
- OGSILite
- Unicore
Grid Services Robust naming, stateful, lifetime
management
CORBA Tightly coupled, naming, stateful,
lifetime management
44OGSI Status and Issues
https//forge.gridforum.org/projects/ogsi-wg
- OGSI version 1.0 in GGF proposed recommendation
- Issue compliance to Web Service Standards
- GWSDL changes WSDL 1.1 by extending portType
syntax to define a Service Data Element. - Why not use WS standards for state management
idioms e.g. WS-Context/Coordination? - By eliminating a new mandatory infrastructure
(OGSI), can use conventional tooling. - But it needs to meet the requirements of Grid
(Graphic courtesy of Savas Parastatidis)
45300 pound gorillas
- If you want to use standards then you have to use
them or work with them - W3C and OASIS are big gorillas
- E.g. GSH/GSR, Handle.net, Life Science Identifer
and WS-address
46Open Grid Service Architecturewhere are the
OGSI services
- Technical specifications
- Open Grid Services Infrastructure is almost
complete - Security, data access, Java binding, common
resource models, etc., etc., in the pipeline - Implementations and compliant products
- OGSA-based Globus Toolkit v3, OGSALite,
OGSA.NET, - IBM, Avaki, Platform, Sun, NEC, Oracle,
- Rich set of service definitions implementations
- Starting on OGSI-compliant services
- OGSA Use Cases
- https//forge.gridforum.org/projects/ogsa-wg
- OGSA-Data Access and Integration
47Grid Applications On The MoveThe rise of the
Information Grid
Large scale data Large number of
machines Computationally intensive Simple
semantics Small homogeneous communities
Smaller scale data Data intensive Complex
heterogeneous applications Complex
semantics Large diverse communities
High Energy Physics
Functional Genomics Oceanography Biodiversity Eart
h Science Neuroscience
48OGSA roadmap
(Slide courtesy of Hiro Kishimoto)
Use cases
Commercial Data Center
Analyze Extract
Requirements (Functions)
OGSA-WG
Data Sharing
Evaluate Prioritize
Mechanism (Services)
Data Management
Dispatch
OGSA-DAI
interface
Existing or new WGs
DAIS-WG
49Data-intensive integrationwhat the e-scientist
REALLY wants
- Scientists do data integration
- Actually they do application and model
integration too! - Cooperative information systems
- Workflows
- Data virtualisation
50Integrating Across Biological Systems
51From WIT to Gwiz to Systems Biology(N. Maltsev
et al., Argonne)
Delivarables
Data sources
Whole genome
ORF identification
Genome Features
Un
-
annotated genomes
Analysis
Annotated Genome Maps
Genome Annotations
Genomes Comparisons
from public databases
Visualization
Experimental Results
Sequence Analysis
results
Delivarables
Gene Functions predictions
Domain analys
is
Sequence Analysis
Motif analysis
Evolutionary sequence
analysis
Gene Functions Predictions
Data sources
Assignments
Metabolic data from
public databases (EMP,
KEGG, EcoCyc, Brenda,
Gene Networks
Delivarables
etc)
Predictions of Regulation
Analysis
Regulatory data from
Predictions of New pathways
(Regulatory and
public databases
Functions of Hypotheticals
Metabolic)
(RegulonDB, Sentra, etc)
Networks Comparisons
Evolutionary Analysis
Experimental Results
Networks Analysis results
Gene Networks Reconstructions
Metabolic Flux Analysis
(Annotated s
toichiometric Matrices)
Data sources
Delivarables
Metabolic
Prediction of Dynamic
Enzymatic and enzyme
Behavior
kinetic data from EMP
Predictions of Phenotypes
Simulation
Experimental Results
Predictions of Gene
Networks Analysis results
Networks Architecture
Phenotypes Predictions
Levels ofRepresentation
Metabolic
Engineering
52 Types of Information
ID MURA_BACSU STANDARD PRT 429
AA. DE PROBABLE UDP-N-ACETYLGLUCOSAMINE
1-CARBOXYVINYLTRANSFERASE DE (EC 2.5.1.7)
(ENOYLPYRUVATE TRANSFERASE) (UDP-N-ACETYLGLUCOSAMI
NE DE ENOLPYRUVYL TRANSFERASE) (EPT). GN MURA
OR MURZ. OS BACILLUS SUBTILIS. OC BACTERIA
FIRMICUTES BACILLUS/CLOSTRIDIUM GROUP
BACILLACEAE OC BACILLUS. KW PEPTIDOGLYCAN
SYNTHESIS CELL WALL TRANSFERASE. FT ACT_SITE
116 116 BINDS PEP (BY SIMILARITY). FT
CONFLICT 374 374 S -gt A (IN REF.
3). SQ SEQUENCE 429 AA 46016 MW 02018C5C
CRC32 MEKLNIAGGD SLNGTVHISG AKNSAVALIP
ATILANSEVT IEGLPEISDI ETLRDLLKEI GGNVHFENGE
MVVDPTSMIS MPLPNGKVKK LRASYYLMGA MLGRFKQAVI
GLPGGCHLGP RPIDQHIKGF EALGAEVTNE QGAIYLRAER
LRGARIYLDV VSVGATINIM LAAVLAEGKT IIENAAKEPE
IIDVATLLTS MGAKIKGAGT NVIRIDGVKE LHGCKHTIIP
DRIEAGTFMI
53Data on the Grid pre OGSA
- Chiefly files!
- LDAP as a query language
- No RDBMS access from Globus 1.1
- MDS and MCAT catalogs
- Honorable exception
- Storage Resource Broker
- Support data-intensive applications that
manipulate very large data sets by building upon
object-relational database technology and
archival storage technology
54OGSA-Data Access and IntegrationGGF OGSA-DAIS WG
- Data Grid applications benefit from many lower
level services - Data movement.
- Data Replication.
- Data Virtualisation
- Database access and integration.
- Work underway on designing, developing and
standardising many core Grid Data Management
services. - Designing services in a dynamic and heterogeneous
environment is non-trivial, - Plenty to be done!!
Clever semantic integration stuff here
OGSA-DAI Distributed Query
OGSA-DAI Basic Services
Data Grid Infrastructure Location, Delivery,
Replication
Resource Grid Infrastructure OGSA
Database, Communication, OS Technology
55Infrastructure Architecture
(Slide Courtesy Malcolm Atkinson, UK National
e-Science Centre
56OGSA-DAIS, OGSA-DAIS, OGSA-DAIT
- Part of Globus Toolkit 3
- Data can be XML, RDBMS and ODBMS
- UK dominance
DB2
Oracle 10g
57Data Access Integration Services
Slide Courtesy Malcolm
Atkinson, UK eScience Center
58Any database challenges?
- Data Virtualisation
- Enable the user to view the output of a
computation as an answer to a query. - User defines the what rather than the how.
- Planners map query to an execution plan (eager,
lazy and just in time). - Workflow manager executes plan.
- Schedulers manage tasks.
- Performance
- Scalability
- Unpredictablility
- Meta-data-driven access
- From registries
- Federation
- DQP
- Workflows
- Dynamic provisioning for meeting quality of
service
Terabytes of data to ship around Very long lived
workflows Services disappear under your feet!
59Virtual Data Concept
- Capture and manage information about
relationships among - Data (of widely varying representations)
- Programs ( their execution needs)
- Computations ( execution environments)
- Apply this information to, e.g.
- Discovery Data and program discovery
- Workflow for organizing, locating, specifying,
requesting data - Explanation provenance
- Planning and scheduling
Search for WW decays of the Higgs Boson for
which only stable, final state particles are
recorded?
Workflow by Rick Cavanaugh and Dimitri Bourilkov,
University of Florida
60Federation, Federation, Federation
- Data integration the derivation of new data
from old, via coordinated computation(s) - May be computationally demanding
- Science as Workflow
- Build workflows
- Share and reuse workflows
- Explain workflows
- Schedule workflows
Terabytes of data to ship around Very long lived
workflows Services disappear under your feet!
61Grid intelligence semantics
- A gap between grid computing endeavours and the
vision of Grid computing - To support the full richness of the grid
computing vision we need to explicitly assert
explicitly use semantics (knowledge) throughout
the Grid software stack - The Grid has always had lots of semantics
embedded in Schema and Directory services, and
used by schedulers and brokers - Globus MDS2 -gt Globus Information Service
- Condor ClassAds
62Semantic Grid http//www.semanticgrid.org
- Semantic Web Services -gt Semantic Grid Services
- GGF SEM-GRD RG bringing semantic web technologies
and techniques to the Grid - Ontologies RDF
63Grids are driven by metadata
- The semantics might be buried but they are there
nonetheless! - Grid Applications
- Operational know-how of the domain.
- a query or workflow the annotation of results,
parameters, personal notes, provenance data
describing sources and derivation paths of
information, etc - Knowledge about the domain its data and its
processes
64A Multi-Hierarchical Rock Classification
Ontology (GSC)
Slide courtesy of Bertram Ludascher
Genesis
Fabric
Composition
Texture
65Grids are driven by metadatathe semantics might
be buried but they are there nonetheless!
- Grid infrastructure
- the classification of computational and data
resources, performance metrics, job control
schema integration, workflow descriptions,
resource brokering, resource scheduling, service
state, event notification topics, typing service
inputs and outputs, provenance trails access
rights to databases, personal profiles and
security groupings charging infrastructure - problem solving selection and intelligent
portals
Managing and operating a Grid intelligently
requires the interpretation of knowledge about
the state and properties of Grid components, and
their configurations for solving problems
Knowledge permeates the Grid Data
elements Service descriptions (service data
elements) Protocols (e.g. policy, provisioning)
66Semantics in myGrid http//www.mygrid.org.uk
Workflow construction
Semantic mark up of results and logs
Service discovery
Workflow discovery
67Pegasus planning environment for LIGO Pulsar
search
Slide courtesy of Jim Blyth
68Grid Interoperability ProjectInteroperable
Resource Broker
NJS
Resource Discovery Service
Diagram Of Broker Architecture
Delegates resource check
Broker
Other Brokers
Unicore Broker
Globus Broker
Delegates translation
Uses to drive MDS search
Lookup resources
Translator
Uses to Drive MDS Search
IDB
Filter
Ontology engine
Hierarchical Grid Search
Nodal Grid Search
Filter
Resource Discovery Service
Slide courtesy of John Brooke
69Semantics for integration and scientific workflows
- Semantic registration of data sets
- How to employ semantic information in data
discovery, workflow discovery, service discovery,
data binding, query and workflow planning and
execution - Semantic matchmaking of grid resources to satisfy
requirements of application components in
workflows, and indeed substituting whole
workflows - Intelligent reasoners for grid computing
(semantic matchmakers, planners, resource
brokers, etc.) that exploit knowledge of
scientific applications as well as grid
resources - Scientific workflow design and execution
- Scientific workflow lifecycle methodology
(authoring, publishing, discovering,
personalising, enacting, validating, modifying of
workflows)
The list goes on.
70Semantic Grid
Web Services
Grid services
Semantic Web Services
Grid
Semantic Web
Semantic Grid
Semantics for the Grid
Grid-ware Semantic Services
71An attempt at a context picture
72Reality Check!
- Official production request of the CMS
collaboration of 1,200,000 Monte Carlo simulation
data with Grid resources. - We encountered many problems during the run, and
fixed many of them, including integration issues
arising from the integration of legacy CMS
software tools with Grid tools, bottlenecks
arising from operating system limitations, and
bugs in both the grid middleware and application
software. - Every component of the software contributed to
the overall "problem count" in some way.
However, we found that with the current level of
functionality, we were able to operate the US-CMS
Grid with 1.0 FTE effort during quiescent times
over and above normal system administration and
up to 2.5 FTE during crises.
The Grid in Action Notes from the Front G.
Graham, R. Cavanaugh, P. Couvares, A. DeSmet, M.
Livny, 2003
73Goal
B e n e f i t s
Effort
Slide courtesy of Miron Livny
74Ok, whats the reality?
- The Grid is in the same state as the Web was 10
years ago - Few production grids and not many killer demos -
something you couldnt have done before. - Middleware hard to use and incomplete (and
certainly not invisible!) - OGSA in its infancy.
- Varying degrees of maturity, but people use it
anyway! - Deployment, research, development, applications
and standardisation all happening together - Danger of half-baked solutions, premature
standardisation, a Grid Winter
The Invisible Grid? Come back in 10 years
Pioneering spirit! Its the Wild West!! Its all
very exciting and rather daunting
75Are you involved in Grid?
- There is hardly a paper at OTM that isnt
relevant. - But participation in Grid is largely from the
Grid Community - When the database people came to town they rocked
it! - But there are not so many that take part, and
its the vendors that dominate though there are
many research problems to overcome. - Reinvention, muddle, confusion ensues.
- Why arent you involved?
76Why you should be involved in Grid
- Established communities can be hard work to get
involved in the latest thing - DCOM, CORBA, WSwe have seen it all before!
- So your history is valuable. And its not just
rehashing your history either (crossing out
agents and crayoning in grid aint gonna work!) - An amazing, open and active community.
- With tons of real applications and users who
really need this stuff. - GridPP had better work!!
- Some substantial industry and government backing.
77Between community travellers Pioneers on tour!
- SSDBM2003
- ISWC2002
- WWW2002
- VLDB2003
- OTM2003
- AIMA2003
The Web
The Semantic Web
The Grid
WWW2002 Waikiki, Hawaii
78Grid Middleware On The Move
Data and Information Grids
Semantic Grids
Second Generation Grid Computing
Open Service Architecture
79The Grid Needs You! Enlist Now!
The Grid
Now with added services architecture, data
management and semantics!!
