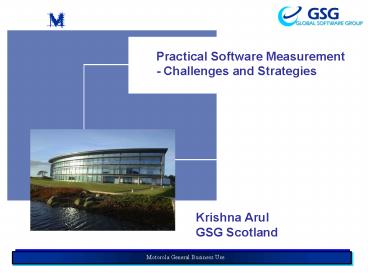

Practical Software Measurement Challenges and Strategies

1
Practical Software Measurement- Challenges and
Strategies
Krishna ArulGSG Scotland
2
Objectives

• Provide an overview of the challenges faced by
  software engineering teams in the Software
  Measurement arena
• Outline some of the strategies that are employed
  to meet these challenges in GSG

3
Overview

• About Motorola
• Organisation
• Global Software Group
• GSG Scotland
• CMM
• Concept of Six Sigma
• Metrics
• Define Measure
• Data Set
• Analysis
• Tools Methodology
• Improvements
• Conclusions
• Control
• Future Plans

4
Motorolas Global Software Group
Premier provider of Software Systems Solutions,
Software Products, and Software Technologies to
Motorola Businesses and their customers worldwide

• Idea conceived 1990 to support rapidly increasing
  software demand in Motorola products
• First Center established in Bangalore India
• Currently gt20 city locations around the world
• Independent organization partnering with Motorola
  business units and their customers
• Domain-focused centers of excellence
• Skills orientation
• Process focus
• Process/methodology improvement to control costs
  and cycle-time
• Current world-wide headcount gt 5000

5
GSG Locations
Nanjing
St. Petersburg
Livingston
Chicago
Montreal
Hyderabad
Beijing
Seoul
Krakow
Chendu
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
Kuala Lumpur
Perth
Turin
Cordoba
Phoenix
Ft Lauderdale
Bangalore
Singapore
Adelaide
6
GSG Scotland - Background

• Centre Started in Dec 2000.
• Why Scotland ?
• Large talent pool of qualified Engineers from
  Scottish Universities.
• Synergy with (Motorola) Semiconductors and ISLI
  (Institute of System Level Integration)
• Proximity to, and ease of doing business with,
  main European markets
• Scotland is now the lead Automotive centre for
  GSG.
• Focussed on embedded software applications
  primarily automotive.
• System-on-Chip (SoC) design team focussed on
  Motorola design needs post Freescale split
• Achieved CMM L3 certification in May 2004,
  currently working towards Level 5 later this year

7
Six Sigma
3 sigma
3 sigma
8
Software Six Sigma

• An overall business improvement methodology that
  drives consistently excellent products, services,
  designs and processes.
• Metric 3.4 DPMO
• Process Improvement
• Management System E-Training ,E-Processes
  ,E-Tools ,E-Tracking, E-Visibility
• Typical software processes operate at between 2.3
  and 3.0 Sigma
• The best software processes operate at 4 to 5
  Sigma

9
Strategies Process Improvement
Analysis
More Metrics
Metrics
CMM Model
10
DMAIC - Define

• DEFINE what is important to the Organization ?
• But what is of paramount importance to GSG?
• Parameters chosen for Measurement Analysis
  (Scorecard)
• CSS ( Customer Satisfaction Survey)
• COQ and COPQ (Cost of Quality and Cost of Poor
  Quality)
• Productivity
• Estimation Accuracy
• Effort
• Schedule
• Size

11

DMAIC - Measure

• Data Source
• Annual Release data from Motorolas
• Global Software Centres is used for analysis
• Tools
• WISE-TCS (Web based Total Customer Satisfaction
  Tool)
• EPMS (Primavera)
• IQMEn / E-IQMEn (Quality Metrics Environment)
• JMP Tool / Minitab for Statistical Analysis
• JMP - The Statistical Discovery Software

12
Customer Satisfaction Surveys

• Pre and Post Project Surveys
• Criteria of satisfaction and importance
• Scorecard goal- 8.86 average and 75 of
  projects with all high importance areas rated at
  8 or above
• Measured against a Baseline

13
COQ and COPQ

• Cost Of Quality (COQ) is the sum of effort due to
  appraisal, prevention, internal failure and
  external failure, expressed as a percentage of
  total project effort.
• Cost Of Poor Quality (COPQ) is the sum of effort
  due to internal failure and external failure,
  expressed as a percentage of total project
  effort.
• COQ COPQ Appraisal Effort Prevention
  Effort

14
COQ and COPQ

• Current Baseline based on Scorecard
• Cost of Quality lt25 (/-10 for each project)
• Cost of Poor Quality lt5

15
Productivity

• Productivity is the ratio of Delta Code released
  to the customer (New Deleted Modified
  Reused Tool-generated) to the Total Project
  Effort.
• Productivity increase 10 ? 0.62 KAELOC/SM

16
Estimation Accuracy

• Estimation Accuracy is the ratio of Actual value
  to the Estimated value of a parameter.
• Size, Effort and Schedule estimates are not
  stand-alone metrics but should be analysed in
  context with each other.
• Deviations of all three estimations going outside
  of the limits are indications that the collective
  action of the estimation, planning and control
  processes is not performing well.

17
Estimation Accuracy - Size

• The size estimation accuracy metric (ZEA)
  provides an insight into the project's ability to
  estimate the size of the project
• ZEA is critical for Embedded Application where
  size is constraint by target device
• Size Estimation Accuracy ZEA 100 /- 15

18
Estimation Accuracy - Effort

• The effort estimation accuracy metric (EEA)
  metric provides an insight into the project's
  ability to estimate effort of the project
• EEA critical for accurate cost estimation
• Effort Estimation Accuracy EEA 100 /- 15

19
Estimation Accuracy - Schedule

• The schedule estimation accuracy metric (SEA)
  metric provides an insight into the project's
  ability to estimate effort of the project
• SEA critical for On Time Delivery
• Schedule Estimation Accuracy SEA 100 /- 15

20
DMAIC - Analyze

• E- IQMEn, PSD and SMSC
• Project Summary Database (PSD) is the output from
  E- IQMEn, which serves as the GSG organizational
  data repository.
• Software Metrics Summary Charts (SMSC) are
  integrated with the PSD, with no additional data
  input required by users.

21
Solution Design
22
DMAIC - Improve Software Metrics Summary
Charts-Organizational Health
23
DMAIC - Improve Software Metrics Summary
Charts-Organizational Health
24
DMAIC - Future Plans (1)

• Concentrate on ensuring that the data in E-IQMEn
  is
• Accurate The data should provide a true
  reflection of the status of GSG projects, both
  completed and active.
• Complete The data should be span all major
  metrics areas (effort, size and faults).
• Up to date Monthly updates to keep data current.
• Inclusive E-IQMEn should contain as much GSG
  data as possible, for all types of GSG work.

25
DMAIC - Future Plans (2)

• Continuing work in this area
• Redefinition of project categories to simplify
  (and othogonalise) schema.
• Building traceability through intermediate tools
  if required, to allow for better tracking of GSG
  effort usage.
• Development of interfaces from E-IQMEn to other
  tools to facilitate once-only data entry.

26
DMAIC - Conclusions

• Return On Investment of such analysis is very
  high to
• the organization in terms of effort
  spent to
• perform such analysis. i.e. in
  selection of Domains and
• type of projects.
• A strong Measurement System for Software Data
• is established to ascertain if any
  correlation existed
• between the domains, effort, errors
  ,and other parameters
• Any Cost avoidance is Cost saving
• Nobody said it was going to be easy

27
Thank You

• Krishna Arul
• Motorola
