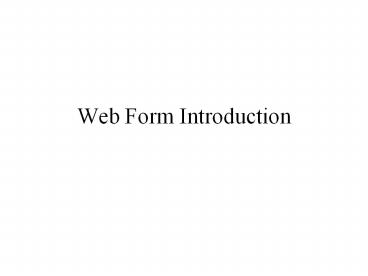

Web Form Introduction

1
Web Form Introduction
2
Web Server

• Web Server
• Internet Information Service
• ControlPanel/AdministrativeTools/Internet
  Information Services
• Built-in Web Server
• VS 05 uses the built-in web server for debugging.
• IIS Default directory
• C\InetPub\wwwroot
• Default home page
• Default.aspx, default.asp, default.htm
• ASP.Net project directory
• Note Using the Built-In web server, a web
  project can be created in any folders.

3
Web Project

• Start Internet Information server
• File/New Website/ ASP.Net Application
• Website folder
• Web form
• default.aspx
• Design view and source (HTML) view
• Default.Aspx.VB
• CodeBehind
• Inline coding
• To set start up page
• Point to the web page in the Solution Explorer
  and right click to choose Set As Start Page.

4
Web Data Form

• The database used to define a DataSource object
  must store in the App_Data folder of the website

• At the Solution Explorere, right click Project
  Folder and choose Add Folder. Name the folder
  App_Data
• To add databsse to this folder you can
• From the Solution Explorer, right click the
  App_Data folder and choose Add Existing Item,
  then browse to find the database.

5
Create a Web Form with a Bound GridView Control

• 1. Define an AccessDataSource control
• Open ToolBox Data tab and double AccessDataSource
  control
• Use the controls Smart tag to configure the data
  source
• 2. Double click the GridView control (under the
  ToolBox Data tab)
• 3. Use the GridViews smart tag to choose Data
  Source.
• Note We can also Drag/Drop tables from Server
  Explorer to create GridView control automatically.
