Title: PVSS Oracle archiving


1

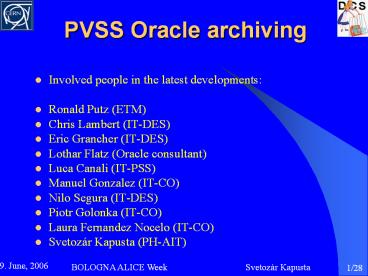

PVSS Oracle archiving
  • Involved people in the latest developments
  • Ronald Putz (ETM)
  • Chris Lambert (IT-DES)
  • Eric Grancher (IT-DES)
  • Lothar Flatz (Oracle consultant)
  • Luca Canali (IT-PSS)
  • Manuel Gonzalez (IT-CO)
  • Nilo Segura (IT-DES)
  • Piotr Golonka (IT-CO)
  • Laura Fernandez Nocelo (IT-CO)
  • Svetozár Kapusta (PH-AIT)

2
History
  • 2004
  • ETM (company developing PVSS) promises to its
    customers to be able to archive to different
    flavors of database systems
  • 2005
  • First prototype comes to CERN with many
    functionality issues, mainly loosing data and low
    client performance (100 changes/s)
  • Q4 2005
  • Oracle consultant (paid by CERN) comes to ETM to
    boost client performance
  • Q1 2006
  • IT-CO puts enormous effort to test the new RDB
    Mgr (Relational DataBase Manager)
  • insertion rate of 1500 changes/s for a few
    minutes
  • Stability issues, memory leak, slow Event Mgr
    Data Mgr communication, server shows low
    performance
  • Huge client memory consumption (up to 1.5GB RAM)

3
History 2
  • April 2006
  • Tuning session at CERN with Oracle consultant, 23
    clients, 2 node RAC (Real Application Cluster)
    Oracle server
  • Many enhancements, new issues discovered
  • Archive groups not working partitioning on
    server instead
  • 24 000 changes/s inserted continuously
  • Bottleneck Network
  • May 2006
  • Tuning session at CERN with fixed RDB Mgr (also
    Linux version available), 56 clients, 2 (later 4)
    node RAC server
  • lower memory consumption (300MB RAM)
  • 56 000 (later 100k) changes/s inserted
    continuously
  • Bottleneck Server

4
History 3
  • End of May 2006
  • Tuning session at CERN with ETM employee, 150
    clients, 6 node RAC server
  • Schema enhancements, new issues discovered and
    fixed
  • 150 000 changes/s inserted continuously
  • Last Week weekend
  • Tuning session at CERN, 170 clients, 6 node RAC
    server
  • 70 000 changes/s inserted continuously over the
    weekend
  • Right Now
  • The tests with 170 clients still continue until
    end of the month to tune queries

5
Test Configuration
  • Client side
  • mixture of Windows
  • ALICE DCS lab (20 PC) bldg 12
  • IT-CO lab (4 PC) bldg 13
  • and Linux clients
  • LHCb (44 PC) Point 8
  • LxBatch (120 PC) Computing Center
  • PVSS 3.1, cumulative patch
  • patches 167, 203 (available from IT-CO web page)
  • framework 2.3.6
  • data generated with simulator drivers configured
    to change the values of DPEs (DataPoint Elements)
    at the required rate.
  • Server side
  • Oracle RAC server with 1, 2, 4 and 6 nodes (PCs)
    respectively
  • 3 GHZ Dual Processor Xeon, 2GB RAM, Oracle Real
    Application Cluster 10.2.0.2 on Linux Red Hat
    Enterprise
  • Fiber channel RAID10, 32 SATA disks (20 write, 32
    read)

6
Performance Improvements
7
Disable job to analyze tables and indexes
  • PVSS server job running every 3 hours
  • gathers statistics on objects in the DB to
    improve performance
  • degrades performance considerably (one order of
    magnitude) if ran at inappropriate times
  • this is a typical task for the DB administrator

8
Disable indexes on TS and element_ID
  • Indexes are used to boost queries which filter on
    the timestamp and/or element_ID (unique number
    for each DP element)
  • Slowed the server considerably
  • Consumed a lot of disk space (2/3 of data volume
    was in the indexes (extra data in the redo
    logs))
  • Useless for ALICE
  • Got disabled, let only the primary key (composite
    index on columns TS and element_ID)
  • Once the data are inserted, if required the
    disabled indexes could be enabled
  • More efficient in CPU and storage usage

9
Use direct path for data insertion instead of
merge
  • Used to move data from the client temporary
    tables to the history table
  • Has a big impact on performance
  • Changes completely the current approach
  • Previously check is done before inserting a new
    value to see if it is a correction value or a new
    value
  • Currently insert everything in the history table
    and treat the errors afterwards
  • More efficient since new values will occur much
    more frequently in comparison to correction
    values
  • This way of treating errors can only be used
    since Oracle 10.2.

10
Index Organized Tables
  • Data and index data are kept together
  • Fits the design (many inserts, few deletes)
  • Transparent for client
  • Not as performant as INSERT /APPEND/

11
INSERT /APPEND/
  • Oracle hint
  • Dont search for an empty place, just append it
    at the end of the table
  • Boosts performance in high insert rate
    environments (more than IOT)
  • But only 1 client can write into 1 table in time

12
Partition of the history table per client
  • Comes as an implication of the previous point
  • The history table has to be partitioned
  • Each client accesses only one partition and
    doesn't interfere with other clients
  • Due to the way insert append works
  • To allow for scalability in a RAC server
  • Special feature that doesn't come in the standard
    Oracle version

13
Initial size and extend of tablespaces
  • It is important to preallocate enough space
  • Space allocations and extensions were happening
    very often and penalizing performance
  • We used the PVSS data driven mechanism to tune
    the parameters for allocations and extensions

14
Requests Open Issues
  • Password has to be introduced in config file in
    plain text
  • It is just a workaround to be able to easily
    start the RDB for the first time
  • one should rely on the internal DP
  • Negative system ids
  • system numbers bigger than 127 appear negative in
    the database
  • Problem fixed (new version of patch 203).
  • Archive groups
  • We spent a lot of time trying to understand what
    the clients do when groups are used
  • We have not been able to make the Archive groups
    work
  • Remains an open issue

15
Requests Open Issues 2
  • Queries separated per DPE
  • One SQL statement, let the DB do the processing
  • Dont issue several separated SQL statements with
    processing in client
  • ETM needs to modify the dpGetPeriod function
    (also used by the IT-CO trending tool)
  • use dpQuery in your code, so PVSS will not split
    the SQL queries
  • Memory allocation at OCCI level
  • OCCI 10.1 has a bug that makes the RDB Mgr crash
    if the first block sent over OCCI is big
  • Current workaround The RDB Mgr starts with a
    small block size, increased afterwards
  • Solutions
  • Put a logic in the RDB limiting the size of the
    first block sent through OCCI
  • Use OCCI 10.2
  • ETM claims it has a bug when running queries
  • requires newer version of compilers that the ones
    ETM is using)

16
Requests Open Issues 3
  • Number of blocks retained in overload/DB not
    reachable condition
  • A parameter limits the number of blocks in memory
    of the RDB Mgr when it is not able to send all
    data
  • However the RDB Mgr buffers blocks without any
    limit
  • Dangerous since it could make the PVSS project
    crash
  • Happens because the thread that writes to the DB
    is the same that manages the blocks in memory
  • Solution would be to do the management of the
    blocks in the same thread that receives data from
    the DM and writes data to the blocks

17
Requests Open Issues 4
  • Very slow start up of clients
  • RDB Mgr does several queries at start up
  • Query to get maximum Time Stamp in the history
    table
  • Query to get all elements for events
  • Query to get all elements for alerts
  • The bigger the history table, the longer it takes
    run an initial query
  • The more clients were connected the slower the
    start of each client was
  • Last 2 queries a client is iterating over all the
    elements but keeps only his ones (this filtering
    is much better done by the server and was fixed)
  • First query still an issue
  • Used to decide which values stored in the local
    lastval archive have to be sent to the DB
  • ETM claims it is faster than to send all the
    values and see if there are duplicates
  • Query the whole history table gtmore than 1
    client, it will not be coherent (client should
    ask for the latest timestamp of a value inserted
    by him and not any client)
  • History tables will be big gt more efficient to
    insert all the local lastval values and the
    correct duplicates afterwards
  • Not clear how this will work in 3.5 (local
    lastval archive has been disabled)

18
Requests Open Issues 5
  • Slow/Deadlock when starting clients after
    reconfiguration
  • concurrent start of the clients was very slow and
    in some cases lead to a deadlock
  • solution is that each client takes a lock on all
    the tables it requires (this serializes the
    operations and will not produce any deadlock
    situation)
  • Site configuration in RAC servers
  • There seems to be a problem when having a RAC as
    DB server. It is not foreseen to easily reflect
    the RAC configuration in the internal table
    arc_site
  • This is an issue because there is a check (SQL
    join) between the information in arc_site and a
    system view (vinstance) in the code
  • Algorithm to calculate element_id limited to 255
    systems
  • The current algorithm to calculates the
    element_id in the DB from the dpe_id, dp_id and
    system_id, is limited to 255 systems
  • PVSS 3.5 will not be limited to 255 systems in a
    distributed system
  • Querying data from a remote system requires local
    connection to DB
  • When querying data from a remote system, the
    local system needs to be connected to the DB even
    though the query is executed by the remote system

19
Requests Open Issues 6
  • Error monitoring handling
  • monitor the number of blocks in the RDB with an
    internal DPE
  • know which periods of time were stored to file
    instead of the DB
  • timeout in the threads that interact with the DB.
    If for any reason they get blocked, their
    operation should finish gracefully

20
Future ETM improvements
  • PVSS Set up script for Oracle server
  • Will be run from a panel in PVSS
  • First version available
  • Future release will contain advanced
    configuration parameters for CERN that set up the
    database to
  • Disable the job gathering statistics
  • Disable useless indexes
  • Use direct path for data insertion instead of
    merge
  • Use INSERT /APPEND/
  • Partitioning (it is not a standard feature and
    most of the ETM customers will not have it)
  • Default parameters for allocation and extension
    of tablespaces

21
Future ETM improvements 2
  • Queries in distributed systems
  • Query on data from a remote system goes via the
    remote system
  • Degrades performance of the remote system
  • Some PVSS systems will be mostly writing to the
    DB, others will be mostly querying (load will be
    on the systems that write data to the DB)
  • If remote systems are not available it is not
    possible to query their data, even if all the
    information is in the DB
  • We would like to have the following behavior
  • Queries go always through the local system, even
    if they require data from a remote system
  • Remote system is running, use its DP
    identification to query the DB
  • Remote system is not running, use the information
    stored in the DB to query the data. (Given a DP
    element name the query to get the element id for
    the DB is very straight forward and more
    efficient that manipulating the dpe id, dp id and
    system id to calculate the element id

22
Future ETM improvements 3
  • Buffer to local disk when not possible to send
    data to DB
  • If the buffers in the RDB exceed a given size
    either because of an overload or because the DB
    is not reachable, it writes to files in the local
    disk
  • separate file for each block that could not be
    handled
  • format of the files is ASCII
  • File contains SQL statements that are required to
    insert data into Oracle
  • Scheduled to be released in August.
  • CERN Comments on the concept
  • The insertion from the files is done value by
    value. This is very bad for performance, as we
    already saw in the early versions of the RDB
    manager.
  • Bind variables are not used. This is dangerous
    because it could delete the parsed queries in the
    Oracle cache.
  • It was suggested to explore other possibilities
  • Use Oracle SQL loader to import files with the
    values. This is the fastest way to insert the
    data. Error handling is a bit more complex
    because one has to wait for some report files to
    be generated.
  • Use the same method as for the normal insertion
    write to the client temporary table and let the
    PL/SQL code in the DB do the job. This may
    require some changes in the PL/SQL code because
    right now it can only insert in the current
    history table, not in previous ones

23
CERN tests results
  • Inserts of 170 clients each at 1000 changes/s
  • DB was not able to handle fully the load
  • Clients were inserting the data at the same time
    because of their simultaneous start
  • Starting clients randomly has increased
    performance
  • Long term stability 170 clients each inserting
    at 500 changes/s during 14 hours
  • Currently the impact of queries is tested

24
Other News And Reminders
  • SPD are configuring their FERO using the Oracle
    DB sitting in the DCS lab
  • At CERN
  • Use CERN DB service for PVSS configuration DB
  • Use CERN DB service for FERO configuration DB or
    ask ACC team
  • Ask ACC team or IT for an account
  • At home institute
  • install your own (Oracle versions to use)

25
Oracle Versions to use
  • The latest!
  • Server 10.2.0.2
  • Standard and Enterprise editions (advanced users)
  • http//www.oracle.com/technology/software/products
    /database/oracle10g/index.html
  • Express edition 10.2.0.1
  • http//www.oracle.com/technology/software/products
    /database/xe/index.html
  • Any other development PCs
  • Oracle instant client 10.2.0.2
  • http//www.oracle.com/technology/software/tech/oci
    /instantclient/index.html

26
Current organization of SPD FERO configuration
data
MBRVersion
MBRVersion Number(9) PK
MBRVect Varchar2(2460)
27
Conclusions
  • Huge improvements in performance of the PVSS
    Oracle archiving accomplished
  • RDB Manager is getting mature
  • Application can and will scale
  • No showstopper identified
  • Full functionality and tests expected this summer

28
  • Thank you for your attention

29
Appendix
30
Organization of the Configuration Database
  • The ALICE Running mode (e.g. lead-lead, cosmics,
    p-p, etc.) is defined by the ECS
  • The mode is sent to the DCS at every change
  • A valid configuration must exist for every
    running mode
  • The same configuration might be re-used for
    several modes
  • FERO Configuration lookup tables define the
    relationship between the ALICE Running mode and
    the corresponding configuration version for each
    sub-detector

31
Hierarchical organization of DCS FERO
configuration data
A view created from the individual detector
versions
Actual configuration modes (Fixed number of rows,
only updates)
ALIVersion
TypeOfRun PK
SPDMode
Table Name
SPDVersion PK
SPDVersion PK
TypeOfRun PK
SPDversion FK
Column Name
SPD Data
SDDVersion PK
SDDVersion PK
SDD Data
SSDVersion PK
SSDVersion PK
number(4,0)
number(7,0)
Oracle Datatype

SSD Data
ppRunID
xxxxx


CosmicsRunID
xxxxx

PbPbRunID
xxxxx
TRDVersion PK
TRDVersion PK

xxxxx
TRD Data

xxxxx
xxxxx


xxxxx
SPDRemark
SPDversion FK
Remark
number(7,0)
varchar2(1000)
xxxxx
xxxxx
xxxxx
xxxxx
xxxxx
xxxxx
xxxxx
xxxxx
xxxxx
xxxxx
xxxxx
xxxxx
xxxxx
xxxxx
32
Organization of the Configuration Database
  • Separate schemas (users and their tables) are
    created for each detector
  • Data organization is hierarchical and follows the
    intrinsic detector segmentation
  • The atomic data records represent a group of
    parameters, which should be loaded together (e.g.
    chip settings, sector settings)
  • A new configuration data for any of the detector
    components results in a new configuration set for
    the whole detector
  • Hierarchical organization allows for re-using the
    information already stored in the database

33
Configuration DB hierarchical organization
Configuration Version
Group 1 Version
Group 1. Version

Sub-group 1 Version
Sub-group 1 Version
Group n Version

DATA
Sub-group n Version
Sub-group n Version
DATA
Group n Version
Sub-group 1 Version
Sub-group 1 Version

DATA
Sub-group n Version
Sub-group n Version
DATA
34
Configuration DB example SPD
Configuration Version
Side A Version
Side A Version
Side C Version
Sector 0 Version
Sector 0 Version

Half-Stave 0 Version

Sector 9 Version
Half-Stave 0 Version

DATA
Half-Stave 5 Version
Side B Version
Sector 0 Version

Sector 9 Version
Half-Stave 5 Version
DATA
35
  • There are two options for writing the data record
    type
  • Table containing individual parameters
  • Configuration data stored in a BLOB
  • It is the responsibility of detector groups to
    define the database schema and implement the
    client code in the FED server(s)
  • The DCS team will
  • Provide assistance (we can help you to create the
    schema and implement the client code)
  • Verify the schema (in collaboration with IT)
  • Install, operate and maintain the database

36
General recommendations
  • Development of Oracle applications -General
    advices from IT
  • https//twiki.cern.ch/twiki/bin/view/PSSGroup/Gene
    ralAdvices
  • Reference slideshow
  • https//twiki.cern.ch/twiki/bin/view/PSSGroup/Refe
    renceSlideshow
  • Database design
  • http//agenda.cern.ch/askArchive.php?baseagendac
    atega044825ida044825s0t2/moreinfo

37
Define keys, constraints and indices
  • Primary key
  • Column or set of columns that uniquely identifies
    table rows
  • Every table should have a primary key defined
  • Primary key protects from entering duplicated
    rows to a table
  • Oracle implicitly creates a unique index on
    primary key columns
  • Foreign key
  • Relation (e.g. master-detail) between 2 tables
    should be formalized by creating a foreign key
    constraint
  • Foreign key helps to keep data integrity and
    facilities cascade operations
  • Oracle DOES NOT create implicitly indices on
    foreign key columns so if related tables are
    supposed to be joined one needs to create such
    index by hand.

38
Define keys, constraints and indices (2)
  • Primary and foreign keys syntax examples
  • ALTER TABLE employees ADD CONSTRAINT employees_pk
    PRIMARY KEY (id)
  • ALTER TABLE departaments ADD CONSTRAINT
    employees_pk PRIMARY KEY (dept_id)
  • ALTER TABLE employees ADD CONSTRAINT
    departaments_fk FOREIGN KEY (dept_id) REFERENCES
    departaments (dept_id)

39
Define keys, constraints and indices (3)
  • Unique keys
  • Column or set of columns other then primary key
    that uniquely identifies rows in the table
  • Oracle implicitly creates index on unique keys
  • In contrary to primary keys, unique keys allow
    NULL values
  • ALTER TABLE employees ADD CONSTRAINT
    employees_unq UNIQUE (lname)

40
Define keys, constraints and indices (4)
  • Other constraints
  • Usually it is better to enforce data integrity
    constraints on database server side than on
    client/middle tier side
  • Central management
  • Easier maintenance
  • Better performance
  • Allowed constraints
  • NOT NULL
  • CHECK
  • ALTER TABLE employees ADD CONSTRAINT salary_chk
    CHECK (salary BETWEEN 1000 AND 50000)

41
Define keys, constraints and indices (5)
  • Indices
  • They are like indices in books -gt they speed up
    lookups
  • BUT insert into a table with 3 indices is 10
    times slower than into table without indices
  • It is important to find for each table a minimal
    set of indices
  • It is usualy better to not create indexed on
    small tables (lt 50 rows)
  • CREATE INDEX emp_dept_id_idx ON employees
    (dept_id)

42
Use Bind Variables
  • Place-holder variables in SQL statements that are
    substituted with concrete values before statement
    execution e.g
  • SELECT "schedulerJobId" FROM CMS_DASHBOARD.JOB
    WHERE "jobId" 2001
  • SELECT "schedulerJobId" FROM CMS_DASHBOARD.JOB
    WHERE "jobId job_id
  • Bind variables help
  • To reduce CPU consumption (less hard parses)
  • 5000 executions of query above take either 2.4 or
    18.1 s depending on whether bind variable has
    been used or not.
  • To improve application scalability (less Oracle
    internal locking)
  • To decrease DBAs anger
  • To improve code security
  • Bind variables protect from SQL injections.
  • To make code more readable and easier to maintain
  • Concatenated strings with hard-coded values are
    usually less readable then strings with bind
    variables

43
Connection management
  • Opening a connection to a database is very
    expensive from Oracle point of view
  • New OS process has to be forked
  • Session context has to be created inside Oracle
    instance
  • User has to be authenticated and authorized
  • Client-server applications
  • Database session should be created at the
    beginning of the client program execution and
    reused during its lifetime
  • EXCEPTION if client is idle for a long period of
    time it is better to close the session and free
    server-side resources

44
Recapitulation of General Recommendations
  • Use bind variables
  • Use primary keys
  • Define foreign keys (and add indices)
  • Add indices to columns which are referred to
    often in the WHERE clause of queries
  • Use constrains to enforce the data integrity
  • Use a normalized schema
  • Focus on representing the modularity of the
    detector when creating the tables

45
Application of General Recommendations for FERO
  • Implement constrains on table columns
  • Use Primary keys PK on columns which contain the
    version number
  • Use Foreign keys FK on the columns which
    reference the primary keys.
  • Use NOT NULL keywords for columns in order to
    have for every version the corresponding data
  • Use constrains with CHECK in order to have the
    configuration data within reasonable values
  • Since no deletes and no updates will be run-
  • Consider using IOTs (Index Organized Tables)
    (CREATE TABLE ORGANIZATION INDEX) to assure
    for future performance

46
Once the schema is ready
  • When populating the tables (e.g. from
    configuration files) you might use the /APPEND/
    hint (example insert /append / into mytable
    values (1, 255))
  • You can let the version column increment itself
    by creating a sequence and a trigger
  • create or replace sequence myseq increment by 1
    start with 1 nomaxvalue nocycle
  • create or replace trigger mytrigger before insert
    on mytable for each row begin select
    myseq.nextval into new.version from dualend/)

47
SPD
48
SPD
49
SPD
50
Hierarchical organization of DCS SPD FERO
configuration data version 2
1
2
20
120
SIDAVersion
SIDVersion PK
SECA0Version
SECA1Version
SEC0Ver FK
Halfstave 0
SECA2Version
Halfstave 0
SEC1Ver FK
Halfstave 1

HASA90Version
Halfstave 0
Halfstave 1
SEC2Ver FK
Halfstave 2
SPDVersion

Halfstave 0
Halfstave 1
Halfstave 2
HASVersion PK


SPDVersion PK
SECA9Version
Halfstave 0
Halfstave 1
Halfstave 2



MCMVer FK
SIDAVer FK
SECVersion PK
Halfstave 1
Halfstave 2


SEC9Ver FK
Halfstave 5
DACVer FK
SIDCVer FK
HAS0Ver FK
Halfstave 2


Halfstave 5
MASVer FK
SIDCVersion
HAS1Ver FK


Halfstave 5
SIDVersion PK


Halfstave 5
SEC0Ver FK

Halfstave 5
SEC1Ver FK
HAS5Ver FK
SEC2Ver FK


SEC9Ver FK
51
Hierarchical organization of DCS SPD FERO
configuration data version 2 continued
1
1
MBRVersion
MBRVersion Number(9) PK
Version 1 508 Tables 507 Primary Keys 3862
Foreign Keys
Version 2 147 Tables 146 Primary Keys 502
Foreign Keys
MBR Varchar(1640)
Redesign
52
Hierarchical organization of DCS SPD FERO
configuration data version 3
Version 3 4 Tables 4 Primary Keys 3 Foreign Keys
1
1
1
MBRVersion
MBRVersion Number(9) PK
MBRVect Varchar2(2460)
53
Connecting and disconnecting from a Oracle
database server using OCCI 10.2.0.1 and MSVC
.NET 2003 7.1.3088
  • On a dual Xeon HT 2.8GHz, 3GB RAM, 2GB RAM for
    Oracle 10gR2, Win2003
  • 0.184625s (1000 loops)
  • 0.1836 s (100 loops)
  • 0.186 s (10 loops)
  • 0.266 s (0 loops)
  • P4 HT 3.4GHz, 3GB RAM, 2GB RAM for Oracle 10gR2,
    WinXP
  • 0.158344s (1000 loops)
  • 0.15422 s (100 loops)
  • 0.164 s (10 loops)
  • 0.25 s (0 loops)
  • P4 HT 3.0GHz, 1GB RAM, 0.7GB RAM for Oracle
    10gR1, WinXP
  • 0.325016s (1000 loops)
  • 0.32735 s (100 loops)
  • 0.3531 s (10 loops)
  • 0.391 s (0 loops)

54
Results of Oracle server tests
  • Configuration Data download
  • Blobs
  • Big
  • Small

55
Data Download from Oracle Server (BLOBs)
  • Large BLOBS were stored on the DB server
    connected to private DCS network (1Gbit/s server
    connection, 100Mbit/s client connection)
  • Retrieval rate of 150MB configuration BLOBs by 3
    concurrent clients was measured to be
  • 3-11 MB/s/client
  • Upper limit of 11MB/s corresponds to client
    network connection
  • results depend on Oracle cache status, first
    retrieval is slower, succeeding access is faster
  • Depending on detector access patterns, the
    performance can be optimized by tuning the
    servers cache

56
Test With Small BLOBs
  • Test records consists of 10 Blobs with size 10kB
    each
  • 260 configuration records were retrieved per test
  • Allocation of BLOBs between configuration records
    altered
  • From random
  • To shared (certain BLOBs were re-used between
    configuration records) -gt to test the ORACLE
    caching mechanism

57
BLOB Retrieval Tests
58
Data Insertion Rate to the DB Server
  • Data was inserted to 2 column table (number(38),
    varchar2(128), no index)
  • Following results were obtained (inserting 107
    rows into DB)
  • OCCI autocommit 500 values/s
  • PL/SQL (bind variables) 10000 values/s
  • PL/SQL (vararrays)
  • gt73000 rows/s (1 client)
  • gt42000 rows/s/client (2 concurrent clients)
  • gt25000 rows/s/client (3 concurrent clients)

59
Data Download From Tables
  • The FERO data of one SPD readout chip consists of
  • 44 DAC settings/chip
  • There are in total 1200 chips used in the SPD
  • Mask matrix for 8192 pixels/chip
  • 15x120 front-end registers
  • The full SPD configuration can be loaded within
    3sec

60
Results of Oracle server tests (Data download)
  • 150MB of configuration data, 3 concurrent
    clients, DCS Private 100Mbit/s network, 1Gbit
    switch
  • Bfile 10.59 MB/s
  • Blob 10.40 MB/s
  • Blob, stream 10.93 MB/s
  • Blob, ADO.NET 10.10 MB/s
  • 150MB of configuration data, 1 concurrent client,
    CERN 10Mbit/s network
  • Bfile 0.81 MB/s
  • Blob 0.78 MB/s
  • Blob, stream 0.81 MB/s
  • Blob, ADO.NET 0.77 MB/s

61
AMANDA
  • AMANDA is a PVSS-II manager which uses the PVSS
    API to access the PVSS archives
  • Developed in collaboration with the offline team
  • AMANDA is the only interface to the DCS archive
  • Archive architecture (files/RDB) is transparent
    to AMANDA
  • AMANDA can be used as an interface between the
    PVSS archive and non-PVSS clients
  • AMANDA returns data for requested time period

62
AMANDA status
  • AMANDA version 4.0 released
  • Tests look promising (stable and smooth
    operation)
  • Still being tested by offline
  • Tool is ready for pre-installation

63
Operation of AMANDA
64
AMANDA in distributed system
  • The PVSS can directly access only file-based data
    archives stored by its own data manager
  • In a distributed system also data produced by
    other PVSS can be accessed, if the connection via
    DIST manager exists
  • In case of the file-based archival DM of the
    remote system is always involved in the data
    transfer
  • In case of RDB archival, the DM can retrieve any
    data provided by other PVSS within the same
    distributed system without bothering other DMs
  • It is foreseen, that each PVSS system will run
    its own AMANDA
  • There will be at least one AMANDA per detector
  • Using more AMANDA servers overcomes some API
    limitations some requests can be parallelized
    (clients need to know which sever has direct
    access to the requested data)

65
AMANDA
User Interface Manager
User Interface Manager
User Interface Manager
AMANDA Client
API Manager
Control Manager
Archive Manager(s)
Archive Manager(s)
Archive Manager
Event Manager
AMANDA Server
Database Manager
Driver
Driver
Driver
PVSS-II
Archive(s)
66
AMANDA in the distributed environment (archiving
to files)
DIS
DIS
DIS
67
AMANDA in the distributed environment (archiving
to ORACLE)
DIS
ORACLE
DIS
DIS
Write a Comment
User Comments (0)
About PowerShow.com
