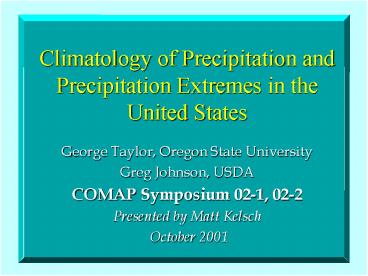

Climatology of Precipitation and Precipitation Extremes in the United States

1
Climatology of Precipitation and Precipitation
Extremes in the United States

• George Taylor, Oregon State University
• Greg Johnson, USDA
• COMAP Symposium 02-1, 02-2
• Presented by Matt Kelsch
• October 2001

2
A Spatial Climate Modeling System

• PRISM (Parameter-elevation Regressions on
  Independent Slopes Model)
• Developed by Dr. Chris Daly of the Spatial
  Climate Analysis Service, Oregon State University

3
Issues of Scale(Spatial and Temporal)

• Over long averaging times (say, the 30 year
  normal maps), only the most important and
  consistent meteorological factors are evident
• Progressively shorter time spans reveal
  ever-increasing nuances of the atmospheric system

4
Spatial Considerations

• Means and extremes are not always correlated,
  especially over large spatial domains, or even in
  small regions with significant climate
  variations
• Portland OR MAP 37.39
• Max24 2.62
• Washington DC MAP 39.00
• Max24 7.19

5
Orographic Precipitation Enhancement Factors

• Wind Direction (relative to topography)
• Wind Speed
• Atmos. Moisture (precipitable water)
• Elevation Rise
• Slope Angle

6
(No Transcript)
7
(No Transcript)
8
(No Transcript)
9
Precipitation Observations

• First order stations
• Cooperative Observers
• Local Networks
• Forest Service
• Psuedo Sites (based on limited observations)
• Snow Courses (liquid equivalent readings)
• most representative in areas where bulk of
  precipitation falls as snow

10
(No Transcript)
11
(No Transcript)
12
438 stations
lt20 to gt200
PRISM Mean Annual Precipitation Hawaiian
Islands, 1961-90
13
Mean Annual Precipitation, Hawaii
4-km grid
14
(No Transcript)
15
Terrain Influences

• Facets allow for windward/leeward effects
• Vertical Extrapolation applies bias for elevation
  changes between gauge locations

16
Olympic Mtns Annual Precipitation Facets On
Vertical Extrapolation On
Inches

17
Olympic Mtns Annual Precipitation Facets On
Vertical Extrapolation Off
Inches
18
Olympic Mtns Annual Precipitation Facets Off
Vertical Extrapolation Off
Inches
19
Olympic Mtns Annual Precipitation
No elevation
Inches
20
Olympic Mtns Annual Precipitation Facets On
Vertical Extrapolation On
Inches

21
Precipitation Trends (in./decade)
22
(No Transcript)
23
Extreme Precipitation Climatology
24
Precipitation Frequency Definition

• 100 - Year Event An event which has a 1
  percent chance of occurrence IN ANY YEAR NOT ONE
  event every 100 years.

25
(No Transcript)
26
Probable Maximum Precipitation (PMP)

• Theoretically, the greatest depth of
  precipitation for a given duration that is
  physically possible over a given size storm area
  at a particular geographical location at a
  certain time of the year.

27
(No Transcript)
28
(No Transcript)
29
(No Transcript)
30
2/24hr
31
(No Transcript)
32
Fort Collins, CO 27-28 July 1997
33
03Z
0530Z
08Z
34
PRISM Product Dissemination

• Web Sites
• OSU www.ocs.orst.edu/prism/prism_new.html
• (Raster and polygon coverages of practically
  everything produced to date (Arc, GRASS)
  documentation metadata DEMs)
• NRCS www.ftw.nrcs.usda.gov/prism/prism.html
• (U.S., Regional and State mean annual
  precipitation cartographic products)

35
PRISM Product Dissemination

• Compact Discs
• All precipitation layers for all of the U.S.
  3 CDs (East, Central, West) of the lower 48
  states. Includes Arc Explorer viewing software,
  and all documentation.
• Available from the NRCS-NCGC
• 800-672-5559
