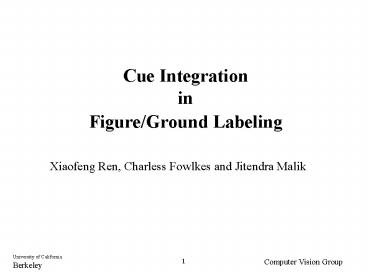

Cue Integration in Figure/Ground Labeling

• Xiaofeng Ren, Charless Fowlkes and Jitendra Malik

2
Abstract

• We present a model of edge and region grouping
  using a conditional random field built over a
  scale-invariant representation of images to
  integrate multiple cues. Our model includes
  potentials that capture low-level similarity,
  mid-level curvilinear continuity and high-level
  object shape. Maximum likelihood parameters for
  the model are learned from human labeled
  groundtruth on a large collection of horse images
  using belief propagation. Using held out test
  data, we quantify the information gained by
  incorporating generic mid-level cues and
  high-level shape.

3
Introduction
Conditional Random Fields on triangulated images,
trained to integrate low/mid/high-level grouping
cues
CRF
4
Inference on the CDT Graph
Z
Contour variables Xe
Region variables Yt
Object variable Z
Integrating Xe,Yt andZ
low/mid/high-level cues
5
Grouping Cues

• Low-level Cues
• Edge energy along edge e
• Brightness/texture similarity between two regions
  s and t
• Mid-level Cues
• Edge collinearity and junction frequency at
  vertex V
• Consistency between edge e and two adjoining
  regions s and t
• High-level Cues
• Texture similarity of region t to exemplars
• Compatibility of region shape with pose
• Compatibility of local edge shape with pose

L1(XeI)
L2(Ys,YtI)
M1(XVI)
M2(Xe,Ys,Yt)
H1(YtI)
H2(Yt,ZI)
H3(Xe,ZI)
6
Conditional Random Fields for Cue Integration
Estimate the marginal posteriors of X, Y and Z
7
Encoding Object Knowledge
8
H3(Xe,ZI) local shape and pose
Let S(x,y) be the shapeme at image location
(x,y) (xo,yo) be the object location in Z.
Compute average log likelihood SON(e,Z) as
shapeme i (horizontal line)
distribution ON(x,y,i)
SOFF(e,Z) is defined similarly.
Then we have
shapeme j (vertical pairs)
distribution ON(x,y,j)
9
Training and Testing

• Trained on half (172) of the grayscale horse
  images from the Borenstein Ullman 02 Horse
  Dataset.
• Use human-marked segmentations to construct
  groundtruth labels on both CDT edges and
  triangles.
• Uses loopy belief propagation for approximate
  inference takes lt 1 second to converge for a
  typical image.
• Parameter estimation with gradient descent for
  maximum likelihood converges in 1000 iterations.
• Tested on the other half of the horse images in
  grayscale.
• Quantitative evaluation against groundtruth
  precision-recall curves for both contours and
  regions.

10
(No Transcript)
11
(No Transcript)
12
Results
Input
Input Pb
Output Contour
Output Figure
13
Input
Input Pb
Output Contour
Output Figure
14
Input
Input Pb
Output Contour
Output Figure
15
Conclusion

• Constrained Delaunay Triangulation provides a
  scale-invariant discrete structure which enables
  efficient probabilistic inference.
• Conditional random fields combine joint contour
  and region grouping and can be efficiently
  trained.
• Mid-level cues are useful for figure/ground
  labeling, even when powerful object-specific cues
  are present.
