SAP

1

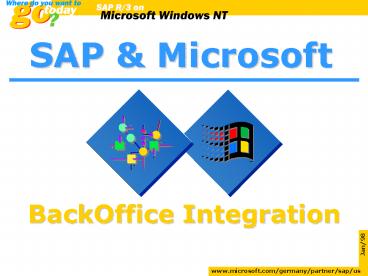

SAP Microsoft

• BackOffice Integration

2
Microsoft BackOfficeThe client/server platform
...for SAP R/3
3
BackOfficeClever Computing
4
Microsoft BackOfficeOne single, integrated
architecture

• Applications
• User Interface
• Administration Security Model
• Network Model
• Programming Interfaces and -Tools
• Broad choice reg. Hardware

5
Microsoft Clustering Wolfpack
6
Microsoft Clustering Wolfpack

• phase 1 High Availability
• 2-node Cluster
• 11 of 17 certified Hardware Partners will support
  Wolfpack
• away from HW proprietary Systems to a generic NT
  based solution
• R/3 will support Microsofts standard based High
  Availability solution
• phase 2 n-nodes for higher scalability

7
Cluster Administration Tools
8
Microsoft SQL Server 6.5 for R/3 NT since R/3
2.2G, 3.0C

• SQL Server Advantages
• Ease of Use
• Fast Implementation
• Best Price/Performance Ration
• Joint Development Project
• Synchronization of Releases
• Thorough Testing of Pre-Releases
• Dedicated Support Ressources
• 800 Installations
• Clustering enabled
• First Customer Shipment

9
Large Customers SAP R/3 NT with SQL Server
10
SQL Server 7.0 Sphinx

• Special Requirements of SAP
• Joint Development and Tests in Redmond
• Complete Row-Level Locking Performance Increases
• End of FCS Status
• No Performance Limitations

11
Licensing Model for Microsoft SQL Server

• Server Licenses One Microsoft SQL Server
  License per used Server
• Client Access Licenses Two different Models
• per seat
• per server

12
SQL Server 6.5Less expensive then Others

• Support Costs 124 higher for Oracle
• Development Costs 167 higher for Oracle
• System Costs 47 higher for Oracle
• Database administration almost the same

Cost-to-Use (per month, per user over five years)
Source IDC 1996
13
SQL Server Market Leader on Windows NT Server

• 1995 Revenue

Source IDC, May 1996
14
Homogeneous R/3 Architecture
15
R/3 C/S SW Architecture
Layer 3-Tier Multiple Tier C/S
Architektur
User Dialog Graphical information processing
Web Browser
Presentation Service
Presentation
Web Server
Handling Internet access
Processing R/3 Internet Trans- actions
Internet Transaction Server
Processing of application logic System
Management Transaction Monitoring
Application Service
Application
Information Storage Database Backup
Database Service
Database
16
Internet/Intranet Architecture
Web Server SW
Internet TransactionServer
Web Server API
R/3
Intranet
Web Server
R/3 Application Server
Windows NT Server 4.0
Web Server SW
Inter Trans Ser
net actionver
R/3
Web Server API
Internet
Firewall
R/3 Application Server
ITS Server
Web Server
Windows NT Server 4.0
3rd Party
Windows NT Server 4.0
R/3 Platforms
17
Site Server Enterprise Edition
Personalisation Extension

• Commerce Server Microsoft Wallet
• Personalization System
• Visual InterDev

18
Microsoft Site Server

• Store Creation / Catalog Creation
• creating on-line stores
• Configuration
• setting up the software to work for you
• Administration
• managing the on-going operation of your store
• Order Management
• handling inventory, tax, shipping, payment
• Security
• protecting merchant and consumer
• Shopper and Personalization
• enhancing the shoppers experience

19
Commerce Server Architecture
HTML pages
Store Data
Commerce Svr
Shop Purchase
Consumer Browser
ODBC
Legacy
Internet Information Server
Firewall
Manage the Store
Commerce Browser
...
Payment Provider
SAP
Taxware
TanData
Bank
20
Microsoft SNA ServerCertified Gateway for SAP R/3
21
Systems Management ServerCertified for SAP R/3
Available today Available for future
versions
22
SMS Packages Server Side
23
FaxConnector
ExchangeConnection
Workflow-Einbindung von Nicht-R/3-Usern
Exchange Server als Messaging-Infrastruktur für
SAP R/3
RFC
MAPI
Exchange Client/Outlook als komfortables
Mail-Frontend für SAP R/3
SAP Business Workflow
MAPI
BAPI
24
SAP R/3 and Exchange
Exchange
R/3 Mail
Internet Fax X.400
25
R/3 - Exchange Integration
Part of R/3 3.1G
26
SAP MAPI Service Provider
27
SAP Exchange Connector
28
Exchange Connector Installation

• Installation Program (setup.exe)
• Configuration via Installation Program
• Administration via Exchange Administrator

29
R/3 Workflow with Exchange Forms

• Start a Workflow in R/3 via self-defined Exchange
  Forms

30
(No Transcript)
31
SAP Forms Designer
