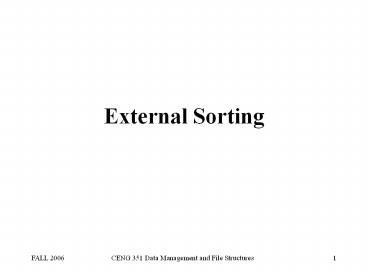

External Sorting
2
External Sorting

• Problem Sort 1Gb of data with 1Mb of RAM.
• When a file doesnt fit in memory, there are two
  stages in sorting
• File is divided into several segments, each of
  which sorted separately
• Sorted segments are merged
• (Each stage involves reading and writing the file
  at least once)

3
Sorting Segments

• Two possibilities depending on the number of
  disks
• Heapsort
• optimal routine if only one disk drive is
  available.
• It can be executed by overlapping the
  input/output with processing
• Each sorted segment will be the size of the
  available memory.
• Replacement selection
• optimal for two or more disk drives.
• Sorted segments are twice the size of memory.
• Reading in and writing out can be overlapped

4
Heapsort

• What is a heap?
• A heap is a binary tree with the following
  properties
• Each node has a single key and that key is
  greater than or equal to the key at its parent
  node.
• It is a complete binary tree. i.e. All leaves are
  on at most 2 levels, leaves on the lowest level
  are at the leftmost position.
• Can be stored in an array the root is at index
  1, the children of node i are at indexes 2i, and
  2i1. Conversely, the parent of node j is stored
  at index ?j/2? (very compact no need to store
  pointers)

5
Example
Heap as a binary tree Height ?log n?
10
35
20
25
30
45
40
60
50
55
Heap as an array
10 35 20 45 40 25 30 60 50 55
6
Heapsort Algorithm

• First Stage Building the heap while reading the
  file
• While there is available space
• Get the next record from current input buffer
• Put the new record at the end of the heap
• Reestablish the heap by exchanging the new node
  with its parent, if it is smaller than the
  parent otherwise leave it, where it should be.
  Repeat this step as long as heap property is
  violated.
• Second stage Sorting while writing the heap out
  to the file
• While there are records in heap
• Put the root record in the current output buffer.

• Replace the root by the last record in the heap.
• Restore the heap again, which has the complexity
  of O(log n)

7
Example

• Trace the algorithm with
• 48 70 30 19 50 45 100 15

8
Heapsort

• How big is a heap?
• As big as the available memory.
• What is the time it takes to create the sorted
  segments?
• Ignoring the seek time and assuming b blocks in
  the file, where heap processing overlaps
  (approximately) with I/O.
• The time for creating the initial sorted segments
  is 2bbtt (read in the segment and write out the
  runs)
• Note that the entire file has not been sorted
  yet. These are just sorted segments, and the size
  of each segment is limited to the size of the
  available memory used for this purpose.

9
Multiway Merging

• K-way merge we want to merge K input lists to
  create a single sequentially ordered output list.
  (K is the order of a K-way merge)
• We will adapt the 2-way merge algorithm
• Instead of two lists, keep an array of lists
  list0, list1, listk-1
• Keep an array of the items that are being used
  from each list item0, item1, itemk-1
• The merge processing requires a call to a
  function (say MinIndex) to find the index of the
  item with the minimum value.

10
Finding the minimum item

• When the number of lists is small (K? 8)
  sequential search among items works nicely.
  (O(K))
• When the number of lists is large, we could place
  the items in a priority queue (an array heap).
• The min value will be at the root (1st position
  in array)
• Replace the root with the next value from the
  associated list. This insert operation is O(log
  K)

11
Merging as a way of Sorting Large Files

• Let us consider the following example
• File to be sorted
• 8,000,000 records
• R 100 bytes
• Size of the key 10 bytes
• Memory available as a work area 10MB (not
  counting memory used to hold program, O.S., I/O
  buffers etc.)
• Total file size 800MB
• Total number of bytes for all keys 80MB
• So, we cannot do internal sorting nor keysorting.

12
Basic idea

• Forming runs (i.e. sorted subfiles)
• bring as many records as possible to main memory,
  sort them using heapsort, save it into a small
  file.
• Repeat this until we have read all records from
  the original file.
• Do a multiway merge of the sorted subfiles.

13
Cost of Merge Sort

• I/O operations are performed in the following
  times
• Reading each record into main memory for sorting
  and forming the runs.
• Writing sorted runs to disk.
• These two steps are done as follows
• Read a chunk of 10MB, write a chunk of 10Mb
  (repeat this 80 times)
• In terms of basic disk operations, we spend
• For reading 80 seeks transfer time for 800 MB
• Same for writing

14

• Reading runs into memory for merging. Read one
  chunk of each run, so 80 chunks. Since available
  memory is 10MB each chunk can have
  (10,000,000/80)bytes 125,000 bytes 1250
  records.
• How many chunks to be read for each run?
• Size of run/size of chunk 10,000,000/125,000
  80
• Total number of basic seeks Total number of
  chunks (counting all runs) is 80 runs 80
  chunks/run 802 chunks 6400 seeks.
• Reading each chunk involves average seeking.

15

• Writing sorted file to disk after the first
  pass, the number of separate writes closely
  approximate reads. We estimate two seeks - one
  for reading and one for writing- for each piece
  80 80 pieces therefore
• 6400 seeks

16
Sorting a File that is 10 times larger

• How is the time for merge phase affected if the
  file is 80 million records?
• More runs 800 runs
• 800-way merge in 10MB memory
• i.e. divide the memory into 800 buffers.
• Each buffer holds 1/800th of a run
• So, 800 runs 800 seeks/run 640,000 seeks

17
The cost of increasing the file size

• In general, for a K-way merge of K runs, the
  buffer size for each run is
• (1/K) size of memory space (1/K) size of
  each run
• So K seeks are required to read all of the
  records in each run.
• Since there are K runs, merge requires K2 seeks.
• Because K is directly proportional to N it also
  follows that the sort merge is an O(N2) operation.

18
Improvements

• There are several ways to reduce the time
• Allocate more hardware (e.g. Disk drives, memory)
• Perform merge in more than one step.
• Algorithmically increase the lengths of the
  initial sorted runs
• Find ways to overlap I/O operations.

19
Multiple-step merges

• Instead of merging all runs at once, we break the
  original set of runs into small groups and merge
  the runs in these groups separately.
• more buffer space is available for each run
  hence fewer seeks are required per run.
• When all of the smaller merges are completed, a
  second pass merges the new set of merged runs.

20
25 sets of 32 runs each


Two-step merge of 800 runs
21
Cost of multi-step merge

• 25 sets of 32 runs, followed by 25-way merge
• Disadvantage we read every record twice.
• Advantage we can use larger buffers and avoid a
  large number of disk seeks.
• Calculations
• First Merge Step
• Buffer size 1/32 run gt 3232 1024 seeks
• For 25 32-way mergesgt 25 1024 25,600 seeks

22

• Second Merge Step
• For each 25 final runs, 1/25 buffer space is
  allocated.
• So each input buffer can hold 4000 records (or
  1/800 run)
• Hence, 800 seeks per run, so we end up making 25
  800 20,000 seeks.
• Total number of seeks for reading in two steps
• 25600 20000 45,600
• What about the total time for merge?
• We now have to transmit all of the records 4
  times instead of two.
• We also write the records twice, requiring an
  extra 45,600 seeks.
• Still the trade is profitable (see sections
  8.5.1-8.5.5 for actual times)

23
Increasing Run Lengths

• Assume initial runs contain 200000 records.Then
  instead of 800-way merge we need 400-way merge.
• A longer initial run means
• fewer total runs,
• a lower-order merge,
• bigger buffers,
• fewer seeks.
• How can we create initial runs that are twice as
  large as the number of records that we can hold
  in memory?
• gt Replacement selection

24
Replacement Selection

• Idea
• always select the key from memory that has the
  lowest value
• output the key
• replacing it with a new key from the input list

25

• Input
• 21,67,12, 5, 47, 16
• Remaining input Memory (P3) Output run
• 21,67,12 5 47 16 _
• 21,67 12 47 16 5
• 21 67 47 16 12,5
• _ 67 47 21 16,12,5
• _ 67 47 _ 21,16,12,5
• _ 67 _ _ 47, 21,16,12,5
• _ _ _ _ 67,47, 21,16,12,5
• What about a key arriving in memory too late to
  be output into its proper position? gt use of
  second heap

Front of input
26
Trace of replacement selection

• Input ( P 3)
• 33, 18, 24,58,14,17,7,21,67,12,5,47,16

27
Replacement Selection with two disks

• Algorithm
• Construct a heap (primary heap) in the memory,
  while reading records block by block from the
  first disk drive,
• As we move records from the heap to output
  buffer, we replace those records with records
  from the input buffer.
• If some new records have keys smaller than those
  already written out, a secondary heap is created
  for them.
• The other new records are inserted to the primary
  heap.
• Repeat step 2 as long as there are records left
  in the primary heap and there are records to be
  read.
• When the primary heap is empty make the secondary
  heap into primary heap and repeat steps 1-3.
