MCC-PRR: Overview of MCC Updates Since FDR

1

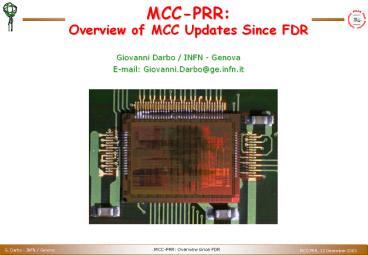

MCC-PRR Overview of MCC Updates Since FDR

• Giovanni Darbo / INFN - Genova
• E-mail Giovanni.Darbo_at_ge.infn.it

2
Brief MCC History

• 1997 Specification of the ATLAS Pixel Detector
  System Architecture -gt Two chips on module FE
  MCC.Ref.http//www.ge.infn.it/ATLAS/Electronics/
  Demonstrator-20/MCMSpec.2.0.pdf
• 1998 (MCC-AMS) First non rad-hard
  implementation, AMS technology, ReceiveFIFO sizes
  32 words, many demonstator modules built.
• 2000 (MCC-D) DMILL implementation of AMS design.
  Chip size 50 larger, very low yield (no one of
  the packaged tested chip fully functional).
  Project abandoned, move to DSM technology.
• 2002 (MCC-I1) Complete redesign of the MCC,
  increase ReceiverFIFO to 128 words, added delay
  line block for FE calibration, added features for
  better module debugging. Many modules (100)
  built and characterised. Found very radiation
  resistant (chip working up to 60 Mrad). FDR
  passed (12/02).
• 2003 (MCC-I2) Final design, improved SEU
  tolerance by adding replica logics in most of the
  critical parts and redundant hit encoding in
  FIFOs. Design error (no read back configuration
  data from FE) -gt FE-I2.1.
• December 2003 6 wafer tested - 2666 good chips!

3
Pixel Module Controller Chips
MCC-AMS MCC-I1 MCC-I2 Technology 0.8µm 0.25
µm 0.25 µm Routing layers (1P)/2M (1P)/5M
(1P)/5M No. Stand.Cells. 17.922 29.000 68.000 No
. Transistors 363 k 650 k 880 k Area
(mm2) 66.8 25.4 35.2 No. Of Test Vectors 0.6
M 1.5 M 3.0 M
MCC-I2
MCC-AMS
MCC-I1
MCC-D2
2003
2002
2000
1998
4
What the Reasons MCC-I1 ? MCC-I2

• Bug Fixes.
• Unfortunately a major bug have been introduced in
  the MCC-I2 which prevents readout of FE
  configuration.
• Easily fixed from in MCC-I2.1.
• Increase SEU tolerance
• Most of the critical logics uses tree replica
  with majority decision.
• Implications
• Functional spec changes see Robertos talk).
• SEU improvement see Guidos talk.
• IDD, Timing, Size next slides.

5
MCC-I1 vs MCC-I2

• No. of Std Cells 33,332
• No. of nets 34,368
• No. of Inv1 18,834
• No. of transistors 660K
• Dimensions 6380 x 3980 mm2

• No. of Std Cells 67,919
• No. of nets 69,501
• No. of Inv1 35,130
• No. of transistors 880K
• Dimensions 6840 x 5140 mm2

6
IDD

• Dynamic IDD scales with the number of standard
  cells 30 more. This is observed in the
  measures done by Delta on wafers (see fig.)
• We have increased the VDD/GND busses to
  compensate the more current. We had to balance
  between chip size (Flex Hybrid constraint) and
  power/standard cells increase.

7
Power and Ground Resistance
8
Timing

• The MCC-I2 has been synthesized with the same
  timing parameters as MCC-I1 (400 ps for clock
  skew, 70 MHz nominal CK frequency).
• Clock tree has been generated by Silicon
  Ensemble and Pearl static analysis gives similar
  results as MCC-I1 100 ps hold time (best case)
  and master clock tree distribution
• MCC-I1 MCC-I2
• Max. transition time at leaf pins 0.341
  ns 0.309 ns
• Min. insertion delay to leaf pins 2.511
  ns 3.080 ns
• Max. insertion delay to leaf pins 2.984
  ns 3.423 ns
• Max. skew between leaf pins 0.473 ns 0.343 ns

9
The SMPW1 Wafer

• 134 potentially good reticles/wafer
• 536 (562) potentially good MCC-I2/wafer
• 2666 good MCC-I2

10
Design Validation

• Verilog behavioural validation
• The MCC behavioural model is first validated
  using using SimPix scripts (about 2 M clock
  cycles). Validation is made by SimPix by
  comparing Verilog results with expected data from
  a c model of the MCC.
• In case of anomalies flagged by SimPix, the
  designer check results by hand.
• Synthesized netlist is passed trough SimPix
  analysis for final check.
• Most of the SimPix scripts written for design
  validation are then used for chip test
• Special designed hardware tester MCCex
• Logic State Analyser Agilent 16700
• Production test external contractor (Delta -
  DK).

11
SimPix block diagram
Clock Generator
Detector response and LVL1 simulator
FE behavioral simulation
MCC behavioral simulation
MCC input preparation
MCC or Verilog model
MCC command generator
MCC output decoding
Time oriented database
Automatic analysis
12
Standard SimPix operations
C FE Model
Module selector
MCC
Geant Module Hits
Automatic Comparison
Random Hits/Noise Generator
C MCC Model

• In the standard configuration SimPix compares the
  output of a true MCC or of a Verilog model with
  the output of a behavioral C MCC model. The
  input is taken from a Geant simulation and
  modified by a C FE model.

13
Hits
C MCC LVL1
LVL1
MCC LVL1
FE out
C MCC out
Anomalies
MCC out
14
SimPix Example Event Dump
15
Chip Test Validation

• Single MCC-I2 chips packaged and tested
• To study critical timing aspects SimPix with
  logic state analyzer. Validation of the chip can
  be done trough SimPix or comparing two chips.
• To have longer and faster test vectors runs
  MCCex.

Example of event R/O error happening at low VDD
16
The MCC Exerciser
2x8 Mbit Memory Card

• Its a 6U VME card developed for testing the
  MCC-AMS. It provides 20 bi-directional 8 Mbit
  deep channels, which can be used to send inputs
  to the MCC or receive outputs. Data are stored in
  a VME accessible RAM.
• Pro
• Deep memory.
• Fast data download/upload.
• Cons
• Designed for MCC-AMS no DTO2 and 80 Mbit/s
  support.
• Clock fixed at 40 MHz.

MCC
VME Interface
17
MCC-I2 R/O Bug

• Because of an error in a logical condition of
  the source code describing the MCC-I2, it is
  impossible to read configuration data from FEs.
  The problem can be easily patched with a cut of
  an enable line and its connection to VDD (see
  fig.)
• Few MCC-I2 modified by FIB (next slide).
• Spinoff wafers (6 wafer partially processed, no
  metallizations) with M2 mask modified
• 6 Production Wafers.

18
Surgical Care for MCC-I2
Opening to align GDS with chip M4 (all. Oriz)
LM (all. Vert)

• Used Focussed Ion Beam (FIB) to cut a M2 (40µm)
  trace and to connect one side of it VDD (M1) by
  deposition of W.
• Some 25 MCC-I2 fibbed to test and produce
  modules.

Cut M2
Weld M2-M1
19
MCC-I2 / FH5.x / FE-I2.1

• Many modules built with MCC-I2.fib
• Genova
• 2 MCC-I2 fibbed FE-I1 (1 used at test beam)
• 1 MCC-I2 FE-I1
• 5 MCCI2 fibbed FEI2.1 (2 irradiation 1 fast
  extraction)
• Bonn
• 7 MCCI2 fibbed FEI2.1 (2 irradiation)
• LBL
• 3 MCC-I2 fibbed FE-I1 (1 test beam)
• 5 MCC-I2 fibbed FEI-2.1 (3 irradiation)

20
Irradiation at PS High Intesity Beam

• Single chips and modules tested at PS and at the
  high intensity beam.
• Chips can sustain 60 Mrad integrated dose.
• SEU and SEE effects greatly improved from MCC-I1.
• R/O doesnt hung-up due to SEU.
• Results from Guidos talk

7 Modules _at_ PS
21
Critical Aspect VDD

• Corruption of event R/O happens when modules are
  operated at VDD slightly below the nominal VDD.
• Some modules showed even corruption at 2 V.
• Extensive investigation and test carried on from
  last summer.
• Left fig. typical event corruption, extra hits
  on some columns and inefficiencies on others.

Inefficiencies
Extra hits
Extra LV1
22
DVDD Threshold
VDD measured on pigtail, MCC VDD is 150 mV
lower
23
MCC-I2 / MCCex
VDD is on MCC
24
VDD _at_ Irradiated Modules

• Several modules irradiated to 55 Mrad tested for
  R/O corruption vs. VDD.
• Rather wide spread of error free VDD threshold
  (between 2.15 V and 2.4 V measurerd on the
  pigtail, which is 150 mV higher than MCC)
• Before irradiation those modules shown already
  rather high VDD threshold in the PS setup (higher
  than other modules tested in the lab).

GE-26 T0ºC
GE-27 T0ºC
25
Consideration on VDD

• Test summary
• Not irradiated modules tested in the lab at low
  temperature works correctly at nominal 2 V VDD.
• Single chip MCC tested in the lab with MCCex
  works around 1.8 V before irradiation and near
  1.92.0 V after 60 Mrad irradiation (not tested
  before irradiation).
• Single chips and modules have a temperature
  dependence. Lower temperature is better.
• Some modules after irradiation need a VDD
  sensibly higher than nominal.
• What to do
• Added a VDD sweep in the production test sort
  chips for B_layer
• Irradiate MCC having different VDD threshold
  (V1.75 and V1.9) and correlate before/after
  irradiation.
• Conclusion
• Sort chip for B_layer, rise VDD as dose rise
  take good physics!

26
Conclusions

• MCC-I2.1 is qualified for the use in ATLAS.
• We have enough good MCC-I2.1 for the 3 layer
  Pixel Detector.
• Listen to
• Specification changes update.
• SEU upset data (it was slightly at the limit for
  the MCC-I1).
• Production test specification and results.
• Then we wait for the Green light to use them !
