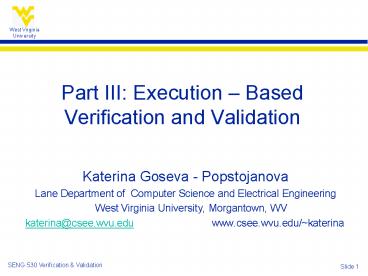

Part III: Execution

1
Part III Execution Based Verification and
Validation

• Katerina Goseva - Popstojanova
• Lane Department of Computer Science and
  Electrical Engineering
• West Virginia University, Morgantown, WV
• katerina_at_csee.wvu.edu www.csee.wvu.edu/katerin
  a

2
Outline

• Introduction
• Definitions, objectives and limitations
• Testing principles
• Testing criteria

• Testing techniques
• Black box testing
• White box testing
• Fault based testing
• Fault injection
• Mutation testing
• Hierarchy for test adequacy criteria

3
Outline

• Testing levels
• Unit testing
• Integration testing
• Top-down
• Bottom-up
• Regression testing
• Validation testing

• Non-functional testing
• Configuration testing
• Recovery Testing
• Safety testing
• Security testing
• Stress testing
• Performance testing

4
Black box testing

• Also called behavioral or functional testing
• The program test cases are based on the system
  specification
• Test planning can begin early in the software
  process

5
Black box testing
6
Black box testing - Equivalence partitioning

• Input data and output results often fall into
  different classes where all members of a class
  are related
• Each of these classes is an equivalence partition
  where the program behaves in an equivalent way
  for each class member
• An equivalence class represents a set of valid or
  invalid states for input conditions

7
Black box testing - Equivalence partitioning

• Equivalence classes may be defined according to
  the following guidelines
• If an input condition specifies a range, one
  valid and two invalid equivalence classes are
  defined
• If an input condition requires a specific value,
  one valid and two invalid equivalence classes are
  defined
• If an input condition specifies a member of a
  set, one valid and one invalid equivalence class
  are defined
• If an input condition is Boolean, one valid and
  one invalid class are defined

8
Black box testing - Equivalence partitioning

• Example
• If input is a 5-digit integer between 10,000 and
  99,999 (input condition range)
• equivalence partitions are
• less than 10,000 (invalid)
• between 10,000 and 99, 999 (valid)
• more than 99,999 (invalid)
• Choose test cases at the boundary of these sets
• 9,999 10,000 99,999 100,000

9
Black box testing Boundary value analysis

• Boundary value analysis (BVA) requires selection
  of test cases that exercise bounding values
• Most software engineers intuitively perform BVA
  to some degree
• BVA is a technique that complements equivalence
  partitioning
• Rather than focusing solely on input conditions,
  BVA derives test cases from the output domain as
  well

10
Black box testing Random testing

• Random testing is essentially a black box testing
  technique in which a program is tested by
  randomly selecting some subsets of all possible
  inputs
• The distribution of the inputs may be arbitrary
  or may reflect the distribution of the inputs in
  the application environment (i.e., operational
  profile)

11
White box testing

• Also called glass-box testing or structural
  testing
• Derivation of test cases according to program
  structure
• Control flow coverage
• Data flow coverage
• Higher coverage is better
• White box testing is not an alternative to black
  box testing. Rather, it is a complementary
  approach

12
White box testing

• The starting point for white box testing is a
  program flow graph
• Nodes represent one or more statements
• Arcs (also called edges or links) represent flow
  of control

13
Binary search (Java)
14
Binary search program flow graph
15
Control flow coverage

• All-paths coverage traverse all possible paths
• Equivalent to exhaustively testing the program
• In general, all-paths coverage is not possible
• Loops result in an infinite number of possible
  paths
• If there are no loops, but only branching
  instructions, the number of possible paths
  increases exponentially with the number of
  branching points
• There may be paths that are never executed (quite
  likely, the program contains a fault in this case)

16
Control flow coverage

• All-statements coverage covers all possible
  statements
• Rather weak criterion
• It is relatively easy to achieve 100 statement
  coverage

17
Control flow coverage

• All-branches coverage all possible branches are
  chosen at least once
• Nodes that contain a condition, such as the
  boolean expression in an if statement, can be a
  combination of elementary predicates connected by
  logical operators
• igt0 V jgt0 requires at least two tests to
  guarantee that both branches are taken. For
  example i1,j1 and i0,j1. Other possible
  combinations of through values of the atomic
  predicates (i1,j0 and i0,j0) need not be
  considered to achieve branch coverage
• Extended branch coverage requires that all
  possible combinations of elementary predicates in
  conditions to be covered

18
Control flow coverage

• All-independent paths coverage
• Independent path is any path through the program
  which traverses at least one new edge in the flow
  graph (exercising one or more new conditions)
• 1, 2, 3, 8, 9
• 1, 2, 3, 4, 6, 7, 2
• 1, 2, 3, 4, 5, 7, 2
• 1, 2, 3, 4, 6, 7, 2, 8, 9
• If all independent program paths are executed we
  can be sure that
• Every statement has been executed at least once
• Every branch has been executed for true and false
  conditions

19
Control flow coverage

• The number of independent paths in a program can
  be discovered by computing the cyclomatic
  complexity
• Cyclomatic complexity Number of edges - Number
  of nodes 2
• 11 - 9 2 4
• For programs without goto statements cyclomatic
  complexity equals number of conditions in a
  program
• Design test cases to execute each of these paths
• A dynamic program analyser may be used to check
  that paths have been executed

20
Data flow coverage

• Data flow testing selects test paths of a program
  according to the location of definitions and uses
  of variables in the program
• A variable is defined in a certain statement if
  it is assigned a (new) value
• DEF(S) X statement S contains a definition
  of X
• After that, a new value will be used in
  subsequent statements
• USE(S) X statement S contains a use of X

21
Data flow coverage

• Variable definition in statement X is alive in
  statement Y if there exists a path from X to Y in
  which that variable does not get assigned a new
  value in some intermediate node such a path is
  called definition-clear
• Two types of variable use
• P-uses predicate uses (like those in the
  conditional part of an if-statement)
• C-uses all other uses (like uses in
  computations or I/O statements)
• With data flow analysis too, we may define test
  adequacy criteria and use these criteria to guide
  testing

22
Data flow coverage

• All-uses coverage traverse a definition-clear
  path between each definition of a variable an
  each (P- or C-) use of that definition and each
  successor of that use
• Each successor is included to force all branches
  following a P-use to be taken
• All-DU-paths requires that each
  definition-clear path is either cycle-free or a
  simple cycle
• Slightly stronger criterion than all-uses coverage

23
Data flow coverage

• All-def coverage requires each definition to be
  used at least once
• All-C-uses/Some-P-uses coverage requires
  definition-clear paths from each definition to
  each computational use if definition is used
  only in predicates, at least one definition-clear
  pat to a predicate use must be executed

24
Data flow coverage

• All-P-uses/Some-C-uses coverage requires
  definition-clear paths from each definition to
  each predicate use if definition is used only in
  computations, at least one definition-clear path
  to a computational use must be executed
• All-P-uses coverage requires definition clear
  paths from each definition to each predicate use

25
Telcordias ATAC white box testing tool
http//xsuds.argreenhouse.com
26
ATAC

• ATAC is a coverage analysis tool that aids in
  testing programs written in the C or C
  programming language
• Using ATAC focuses on three main activities
• instrumenting the software to be tested
• occurs at compile-time
• large systems can be instrumented
  a-piece-at-a-time
• executing software tests
• determining how well the software has been tested

• display uncovered source code
• generate reports that reveal the current coverage
  measures for each criteria

27
Program instrumentation, test execution and
coverage analysis
28
ATAC

• ATAC highlights the covered and uncovered blocks
  in the source code and prioritizes them into an
  order in which you should try to cover them
• Constructing the tests is the role of the tester
  ATAC does not construct the tests or determine
  what inputs are needed to cover the uncovered
  code
• ATAC, however, simplifies the tester's job by
  guiding him or her into creating a small set of
  high-efficiency, high-leverage test cases that
  yield high coverage quickly

29
ATAC Display of uncovered source code
30
ATAC - Display of uncovered source code

• Each color represents a certain weight
• If, for example, a block has weight 30, it means
  any test case that causes that block to be
  exercised, or covered, is guaranteed to cover a
  minimum of 29 other blocks as well
• White represents zero weight and red represents
  the highest weight among all blocks in the file
• If a block is highlighted in white, it means that
  it has already been covered by a test case and
  covering it again will not add new coverage
• If, on the other extreme, a block is highlighted
  in red, it means that it has not been covered by
  any test case so far and covering it first is the
  most efficient way to add new coverage to the
  program

31
ATAC - Display of uncovered source code
32
ATAC - Display of uncovered source code
33
ATAC

• Coverage criteria
• Block - a sequence of instructions that, except
  for the last instruction, is free of branches and
  function calls
• a block may contain more than one statement if no
  branching occurs between statements
• a statement may contain multiple blocks if
  branching occurs inside the statement
• an expression may contain multiple blocks if
  branching is implied within the expression (e.g.,
  conditional, logical-and, and logical-or
  expressions)

34
ATAC Basic blocks
Block 1 consists of a logical-expression embedded
within a compound conditional-expression
Block 2 consists of an entire conditional
expression
Block 3 consists of the entire body of an
if-statement
35
ATAC Report on current coverage
36
ATAC Report on current coverage
37
ATAC

• Coverage criteria
• Decision (i.e., branch coverage)
• C-uses
• P-uses
• All-uses (sum of P-uses and C-uses coverage
  measures)

38
ATAC - An example C-uses

39
ATAC - An example P-uses
40
ATAC

• Other coverage criteria
• function-entry - all functions are called at
  least once
• function-return - all explicit and implicit
  returns or exits from a function are executed at
  least once
• complete function- return coverage usually
  guarantees complete function-entry coverage,
  since, a function usually has at least one return
  or exit
• function-call - each call to a function is
  covered at least once
• Complete function-call coverage does not
  guarantee complete function-entry coverage since
  it is possible to have a function that does not
  contain any function calls

41
ATAC Report on current coverage
42
Fault based testing

• Aimed at finding a test set with a high ability
  to detect faults
• Two techniques
• Fault injection
• Mutation testing

43
Fault injection

• Non-software example
• We want to estimate the number of pikes in Lake
  Soft
• Catch a number of pikes, N, in Lake Soft
• Mark them and throw them into Lake Soft
• Catch a number of pikes, M, in Lake Soft
• Suppose that M out of the M pikes are found to
  be marked, the total number of pikes originally
  present in Lake Soft is then estimated as
• (M-M)N/M

44
Fault injection

• Fault injection
• Artificially inject (seed) a number faults in
  program
• When program is tested, we will discover both
  injected faults and new ones
• Total number of faults is then estimated from the
  ration of those two numbers

45
Fault injection

• Several assumptions underlie this method
• Injected faults are representative for real
  faults
• Both real and injected faults have the same
  distribution
• The results can be trusted if we find many
  injected faults and relatively few others
• The opposite in not true

46
Mutation testing

• A large number of variants (mutants) of a program
  is generated
• Each of these mutants slightly differs from the
  original version
• Usually mutants are obtained by mechanically
  applying a set of simple transformations called
  mutation operations
• Replace a constant by another constant
• Replace a variable by another variable
• Replace a constant by a variable
• Replace an arithmetic operator by another
  arithmetic operator
• Replace a logical operator by another logical
  operator
• Insert a unary operator
• Delete a statement

47
Mutation testing

• Next, all these mutants are executed using a
  given test set
• When a test produces a different result for one
  of the mutants, that mutant is said to be dead
• Mutants that produce the same results for all the
  tests are said to be alive
• Mutation adequacy score of a test set is given by
• D/M, where D is the number of dead mutants and M
  is the total number of mutants

48
Mutation testing

• Suppose we have a program P with a component T
• Two variants of mutation testing
• strong mutation testing
• Requires that tests produce different results for
  program P and a mutant P
• weak mutation testing
• Requires that component T and its mutant T
  produce different results at the level of P this
  difference need not crop up

49
Mutation testing

• Several assumptions underlie mutation testing
• Incorrect versions of a program differ from a
  correct version by relatively minor faults
• Tests that can reveal simple faults can also
  reveal complex faults

50
Comparison of test techniques

• Most techniques are heuristic in nature and lack
  a sound theoretical basis
• Manual test techniques rely heavily on the
  qualities of the participants in the test process
• Relating different test adequacy criteria
• Sound theoretical answer to the questions such as
  Is All-uses adequacy criterion stronger or
  weaker that the All-branches adequacy criterion?

51
Comparison of test techniques

• First, let us define the notion of stronger
• Criterion X is stronger than criterion Y if, for
  all programs P and all test sets TS, X-adequacy
  implies Y-adequacy
• In testing literature this relation is known as
  subsume
• In this sense, All-uses criterion is stronger
  than All-branches criterion
• A problem with any graph-based adequacy criterion
  is that it can only deal with paths that can be
  executed (feasible paths)

52
Hierarchy for test adequacy criteria
All-pats

• An arrow A?B indicates that A is
• stronger than (subsumes) B
• Arrows with an asterisk () denote
• relations which hold only for the
• infeasible version

All-DU-pats

All-uses
All-C-uses/ Some-P-uses
All-P-uses/ Some-C-uses
Strong mutation
All-defs
All-P-uses
All-independent paths
Extended branch
Weak mutation

All-branches
All-statements
53
Hierarchy for test adequacy criteria
All-statements
Function-return
Function-call
Function-entry
54
Conclusion

• Experiments indicate that there is no best
  testing technique
• Different techniques tend to reveal different
  types of faults
• The use of multiple testing techniques results in
  the discovery of more faults
