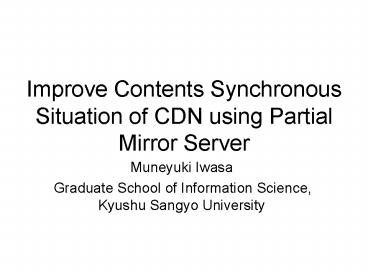

Improve Contents Synchronous Situation of CDN using Partial Mirror Server

1
Improve Contents Synchronous Situation of CDN
using Partial Mirror Server

• Muneyuki Iwasa
• Graduate School of Information Science, Kyushu
  Sangyo University

2
Outline

• 1.Background
• 2.Purpose of this study
• 3.Proposal
• 4.Related work
• 5.Future works
• 6.Conclusion

3
Background load balancing

• Client-server model has a problem that over load
  of servers and networks
• ?Some servers can not provide their service
  because of the over load
• Load balancing technology
• Multiple servers
• Servers are distributed in wide area

4
Background -CDN

• CDN(Contents Delivery Network)
• Contents are delivered by multiple surrogate
  servers
• Video streaming services, Software distribution
  services
• Mirror server
• Deliver contents to users

5
Background -CDN
Enlarged size
copies and synchronize
copies all contents
delivers contents
synchronous situation becomes worse
Does not hold contents
6
Purpose of this study

• Problem
• Mirror server does not hold contents at CDN

Improve contents synchronous situation of CDN
using partial mirror server
7
Define some Term

• Original contents
• the whole contents that an origin of distribution
  offers
• Package
• a part of original contents
• Mirror
• doing synchronization of contents
• Full mirror
• to mirror whole original contents
• Server selection
• to select the best server from mirror servers

8
Partial Mirror Server

• has a small part of original contents
• A unit of mirroring is a package
• reduction mirroring contents

The synchronous situation can improve
9
Conventional CDN Model
Each mirror server does full mirror
10
Proposal Model
Each partial mirror servers may do mirror par
package
connect to partial mirror server holding contents
11
Navigation Method to Partial Mirror Server

• Connect to partial mirror server holding contents
  that a user wants
• Use DNS
• Scalable
• Convenience for users

12
Navigation using DNS

• Hostname including the package name
• include the name of package which the mirror
  server holds
• Hostname list must be announced that the user can
  use
• make links to each mirror servers on some Web site

A user can connect to one of the partial mirror
server which holds contents that the user needed
13
Example(1/4) ? conventional

• Assume mirror servers of FreeBSD
• FreeBSDs packages
• source code
• ISO image for installation
• compiled applications
• Hostname
• www.example.ne.jp
• The hostname of the mirror server which has whole
  contents of FreeBSD

14
Example(2/4) ? conventional
source code ISO image applications
source code ISO image applications
source code ISO image applications
source code ISO image applications
www.example.ne.jp
www.example.ne.jp
15
Example(3/4) ? proposal

• Want source code
• source.freebsd.example.ne.jp has the source code
  of FreeBSD
• Want ISO image for installation
• iso.frebsd.example.ne.jp has the ISO image for
  installation of FreeBSD
• Want compiled application
• application.freebsd.example.ne.jp has the
  compiled application of FreeBSD

16
Example(4/4) ? proposal
source code ISO image applications
ISO image
applications
source code ISO image
The host has ISO image for installation
The host has compiled application
iso.frebsd.example.ne.jp
application.frebsd.example.ne.jp
17
Advantage of this Method

• Easy to integrate with the existing system
• Base on DNS
• Practical and convenient
• Simple hostname
• Integrate with the existing server selection
  system
• Existing server selection methods
• Selection by routing information
• Selection by the synchronous state of contents

18
Disadvatage of this Method

• Management of hostnames
• Whenever the number of mirror packages increases,
  the host names increases
• Consider about link site

19
Related work

• Server selection technique using DNS to the
  server group of a partial mirror
• master thesis of the Kochi University of
  Technology in 2003
• Uses s hostname including the directory
  information of file and file name that needed
• Example hostname
• README.Audio.GNUinfo.GNU.pub.server.ring
• gcc-g---2.95.tar.gz.gcc-2.95.gcc.GNU.pub.ring.kiku
  ken.org
• Problem of this technique
• Complexity of hostname
• Not practical
• Hard to integrate with the existing system

20
Future Work

• Implement the prototype system of the proposal
  method
• Use Tenbin for prototype system
• Do some experiment in local environment
• Apply the proposal method to the Ring Server
  System
• Do some experiments in a real environment
• Study about fusion of this method and the other
  existing server selection method

21
Conclusion

• Background
• CDN is used widely
• Contents synchronous situation of the mirror
  server turns worse with the enlargement of
  contents is expected in future
• Purpose of this study
• Improve the contents synchronous situation of CDN
• Develop the operation technique of the partial
  mirror server which is practical conventionally
• Improvement of contents synchronous situation is
  tried by providing partial mirror service of CDN
  for user
• Future work
• Implement the prototype system of the proposal
  method and do some experiment

22
Tenbin

• DNS based Server Selection Mechanism
• DNS name resolution as selection policy
• Example of a selection policy
• data-transfer rate
• round-trip-time
• load state of server
• Easy to integrate with the existing system

23
Ring Server

• One of famous and largest distributed file server
  in Japan
• Collects free software and provides download
  service
• More than 20 servers distributed in wide area
• Server Selection Mechanisms
• round robin, by routing information
• Each mirror servers are managed by each
  organization voluntary
• Contents Synchronous Problem
