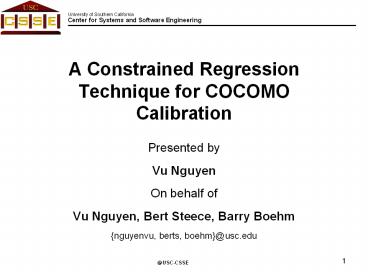

A Constrained Regression Technique for COCOMO Calibration

1
A Constrained Regression Technique for COCOMO
Calibration

• Presented by
• Vu Nguyen
• On behalf of
• Vu Nguyen, Bert Steece, Barry Boehm
• nguyenvu, berts, boehm_at_usc.edu

2
Outline

• Introduction
• Multiple Linear Regression
• OLS, Stepwise, Lasso, Ridge
• Constrained Linear Regression
• Validation and Comparison
• COCOMO overview
• Cross validation
• Conclusions
• Limitations
• Future Work

3
Introduction

• Building software estimation models is a search
  problem to find the best possible parameters that

• generate high prediction accuracy
• satisfy predefined constraints

4
Multiple Linear Regression

• Multiple linear regression is presented as
• yi ?0 ?1xi1 ?kxik ?i , i 1,2,,
  n
• Where,
• ?0, ?1,, ?k are the coefficients
• n is the number of observations
• k is the number of variables
• xij is the value of the variable jth for the ith
  observation
• yi is the response of the ith observation

5
Ordinary Least Squares

• OLS is the most common method to estimate
  coefficients ?0, ?1,, ?k
• OLS estimates coefficients by minimizing the sum
  of squared errors (SSE)
• Minimize
• is the estimate of ith observation

6
Some Limitations of OLS

• Highly sensitive to outliers
• Low bias but high variance (e.g., caused by
  collinearity or overfitting)
• Unable to constrain the estimates of coefficients
• Estimated coefficients may be counter-intuitive
• Example, OLS coefficient estimate for RUSE is
  negative, e.g., increase RUSE rating results in a
  decrease in effort

OLS estimates
Develop for Reuse (RUSE)
7
Some Other Approaches

• Stepwise (forward selection)
• Start with no variable and gradually add
  variables until optimal solution is achieved
• Ridge
• Minimize SSE and impose a penalty on sum of
  squared coefficients
• Lasso
• Minimize SSE and impose a penalty on sum of
  absolute coefficients

8
Outline

• Introduction
• Multiple Linear Regression
• OLS, Stepwise, Lasso, Ridge
• Constrained Linear Regression
• Validation
• COCOMO overview
• Cross validation
• Conclusions
• Limitations
• Future Work

9
Constrained Regression

• Principles
• Use optimization paradigm optimizing objective
  function with constraint
• Minimize f(y, X) subject to cf(z)
• Impose constraints on coefficients and relative
  error
• Expect to reduce variance by reducing the number
  of variables (variance and bias tradeoff)

10
Constrained Regression (cont)

• General form
• Minimize subject to
• Constrained Minimum Sum of Squared Errors (CMSE)
• Constrained Minimum Sum of Absolute Errors (CMAE)
• Constrained Minimum Sum of Relative Errors (CMRE)

11
Solve the Equations

• Solving the equations is an optimization problem
• CMSE quadratic programming
• CMRE and CMAE transformed to the form of linear
  programming
• We used lpsolve and quadprog packages in R
• Determine parameter c using cross-validation

12
Outline

• Introduction
• Multiple Linear Regression
• OLS, Stepwise, Lasso, Ridge
• Constrained Linear Regression
• Validation and comparison
• COCOMO overview
• Cross validation
• Conclusions
• Limitations
• Future Work

13
Validation and Comparison

• Two COCOMO datasets
• COCOMO 2000 161 projects
• COCOMO 81 63 projects
• Comparing with popular model building approaches
• OLS
• Stepwise
• Lasso
• Ridge
• Cross-validation
• 10-fold cross validation

14
COCOMO

• Cost Constructive Model (COCOMO) first published
  in 1981
• Calibrated using 63 projects (COCOMO 81 dataset)
• Uses SLOC as a size measure and 15 cost drivers
• COCOMO II published in 2000
• Reflects changes in technologies and practices
• Uses 22 cost drivers plus size measure
• Introduces 5 scale factors
• Calibrated using 161 data points (COCOMO II
  dataset)

15
COCOMO Overview (cont)

• COCOMO Effort Equation, non-linear
• Linearize the model using log-transformation
• COCOMO 81
• log(PM) ?0 ?1 log(Size) ?2 log(EM1)
  ?16 log(EM15)
• COCOMO II
• log(PM) ?0 ?1 log(Size) ?i SFi
  log(Size) ?j log(EMj)
• Estimate coefficients using a linear regression
  method

16
Model Accuracy Measures

• Magnitude of relative errors (MRE)
• Mean of MRE (MMRE)
• Prediction Level PRED(l) k/N
• Where, k is the number of estimates with MRE
  l

17
Cross Validation

• 10-fold cross validation was used
• Step 1. Randomly split the dataset into K10
  subsets
• Step 2. For each i 1 ... 10
• Remove the subset i th and build the model
• i th subset is used as testing set to calculate
  MMREi and PRED(l)I
• Step 3. Repeat 1 and 2 for r15 times

18
Non-cross validation results
CMSE CMSE CMAE CMAE CMRE CMRE
Max. MRE (c) MMRE PRED MMRE PRED MMRE PRED
infinity 0.23 0.78 0.22 0.81 0.21 0.78
1.2 0.23 0.78 0.21 0.81 0.21 0.80
1.0 0.23 0.76 0.21 0.77 0.21 0.77
0.8 0.23 0.72 0.22 0.73 0.21 0.75
0.6 0.24 0.68 0.25 0.65 0.23 0.70
COCOMO II dataset (N 161)
OLS Max MRE1.23 PRED0.78
CMSE CMSE CMAE CMAE CMRE CMRE
Max. MRE (c) MMRE PRED MMRE PRED MMRE PRED
infinity 0.30 0.62 0.29 0.65 0.30 0.68
1.2 0.30 0.65 0.28 0.65 0.28 0.62
1.0 0.30 0.62 0.29 0.62 0.29 0.59
0.8 0.30 0.58 0.29 0.60 0.30 0.59
COCOMO 81 dataset (N 63)
PRED(0.3)
19
Cross-validation Results
COCOMO II dataset
20
Statistical Significance

• Results of statistical significance tests on MMRE
  (0.05 confidence level used)
• Mann-Whitney U hypothesis test

COCOMOII.2000 COCOMO 81
There are statistical differences among Lasso, Ridge, OLS, Stepwise p gt 0.11 p gt 0.15




CMSE outperforms Ridge, OLS p gt
0.10 p gt 0.10
CMSE outperforms Lasso, Stepwise p lt
0.02 p gt 0. 05
CMAE outperforms Lasso, Ridge, OLS p lt 10-3
p lt 0. 02
Stepwise
CMRE outperforms Lasso, Ridge, OLS p lt 10-4
p lt 10-4
Stepwise
21
Comparing With Published Results

• Some best published results in for COCOMO
  datasets
• Bayesian analysis (Boehm et al., 2000)
• Chen et al., 2006
• Best cross-validated mean PRED(.30)

Dataset Bayesian Chen et al CMRE
COCOMO II 70 NA 75
COCOMO 81 NA 51 56
22
Productivity Range
CMRE A 2.27 B 0.98
COCOMO II.2000 A 2.94 B 0.91
23
Outline

• Introduction
• Multiple Linear Regression
• OLS, Stepwise, Lasso, Ridge
• Constrained Linear Regression
• Validation and comparison
• COCOMO overview
• Cross validation
• Conclusions
• Limitations
• Future Work

24
Conclusions

• Technique imposes constraints on the estimates of
  coefficients and the magnitude of errors term
• Directly resolving the unexpected estimates of
  coefficients determined by data
• Estimation accuracies are favorable
• CMRE and CMAE outperform OLS, Stepwise, Ridge,
  Lasso, and CMSE
• MRE and MAE are favorable objective functions
• Technique can be applied in not only COCOMO-like
  models but also other linear models
• An alternative for researchers and practitioners
  to build models

25
Limitations

• As the technique deals with the optimization,
  sub-optimal solution is returned instead of
  global-optimal one
• Multiple solutions exist for the estimates of
  coefficients
• There are only two datasets investigated, the
  technique might not work well on other datasets

26
Future Work

• Validate the technique using other datasets
  (e.g., NASA datasets)
• Compare results from the technique with others
  such as neutral networks, generic programming
• Apply and compare with other objective functions
• MdMRE (median of MRE)
• Z measure (zestimate/actual)

27
References

• Boehm et al., 2000. B. Boehm, E. Horowitz, R.
  Madachy, D. Reifer, B. K. Clark, B. Steece, A. W.
  Brown, S. Chulani, and C. Abts, Software Cost
  Estimation with COCOMO II. Prentice Hall, 2000.
• Chen et al., 2000, Z. Chen, T. Menzies, D. Port,
  and B. Boehm. Finding the right data for software
  cost modeling. IEEE Software, Nov 2005.

28
Thank You

• QA
