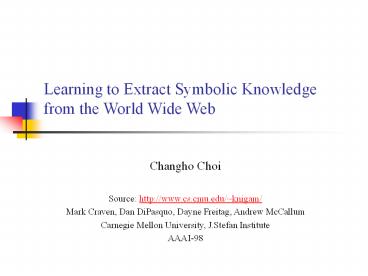

Learning to Extract Symbolic Knowledge from the World Wide Web

1
Learning to Extract Symbolic Knowledge from the
World Wide Web

• Changho Choi
• Source http//www.cs.cmu.edu/knigam/
• Mark Craven, Dan DiPasquo, Dayne Freitag, Andrew
  McCallum
• Carnegie Mellon University, J.Stefan Institute
• AAAI-98

2
Abstract
Information on the Web
Unstandable to Human
Knowledgable
????
Extract information
KB
3
Introduction (1/4)

• Two types of inputs
• of the information extraction system
• Ontology
• Specifying the classes and relations of interest
• For example, a hierarchy of classes including
  Person, Student, Research.Project, Course, etc.
• Training examples
• Represent instances of the ontology classes and
  relations
• For example, a course web page for Course
  classes, faculty web pages for Faculty classes,
  this pair of pages for Courses.Taught.By, etc.

4
(No Transcript)
5
Introduction (3/4)

• Assumptions
• about the mapping between the ontology and the
  Web
• 1. Each instance of an ontology class is
• a single Web page,
• a contiguous string of text,
• or a collection of several Web pages.
• 2. Each instance of a relation is
• a segment of hypertext,
• a contiguous segment of text,
• or t he hypertext segment.

6
Introduction (4/4)

• Three primary learning tasks
• Involved in extracting knowledge-base instances
  for the Web
• 1. Recognizing class instances by classifying
  bodies.
• 2. Recognizing relation instances by classifying
  chains of hyperlinks.
• 3. Recognizing class and relation instances by
  extracting small fields of text form Web pages.

7
Experimental Testbed

• Experiments
• Based on the ontology
• ClassesDepartment, faculty, staff, student,
  research_project, course, other
• Relations Instructors.Of.Course(251),
  Members.Of.Project(392), Department.Of.Person(748)

• Data sets
• A set of pages(4127) and hyperlinks(10945) from 4
  CS dept.
• A set of pages(4120) from numerous other CS dept.
• Evaluation
• Four-fold cross validation
• 3 for training, 1 for testing

8
Statistical Text Classification

• Process
• building a probabilistic model of each class
  using labeled training data
• Classifying newly seen pages by selecting the
  class that that is most probable given the
  evidence of words describing the new page.
• Train three classifiers
• Full-text
• Title/Heading
• Hyperlink

9
Statistical Text Classification

• Approach
• the naïve Bayes, with minor modifications
• Based on Kullback-Leibler Divergence
• Given a document d to classify, we calculate a
  score for each class c as follows

10
Statistical Text Classification

• Experimental evaluation

ActualPredicted course student faculty staff Research_project department other Accuracy
Course 202 17 0 0 1 0 552 26.2
Student 0 421 14 17 2 0 519 43.3
Faculty 5 56 118 16 3 0 264 17.9
Staff 0 15 0 4 0 0 45 6.2
Research_project 8 9 10 5 62 0 384 13.0
Department 10 8 3 1 5 4 209 1.7
Other 19 32 7 3 12 0 1064 93.6
Coverage 82.8 72.4 77.1 8.7 72.9 100.0 35.0
11
Accuracy/coverage

• Coverage
• The percentage of pages for a given class that
  are correctly classified as belonging to the
  class
• accuracy
• The percentage of pages classified into a given
  class that are actually members of that class

12
Accuracy/coverage tradeoff
1. Full-text classifiers
2. Hyperlink classifiers
3. Title/heading classifiers
Hyperlink information can provide strong
knowledge.
