Real-Time Model Checking on Secondary Storage

1

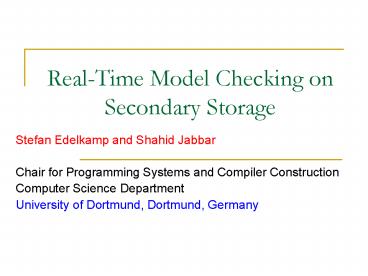

Real-Time Model Checking on Secondary Storage

• Stefan Edelkamp and Shahid Jabbar
• Chair for Programming Systems and Compiler
  Construction
• Computer Science Department
• University of Dortmund, Dortmund, Germany

2
Real-Time Model Checking

• Model checking of real time critical systems.
• Example A rail-road crossing that has to follow
  strict time constraints.
• Systems are modeled by Timed-Automata
• Extension of ordinary automata with clocks and
  constraints.

x ?0
x and y are real-time clocks
Constraints
y 4
y 4
0 y 4
s3
s2
s1
x ?0
x ?0
Reset
3
Timed Automata

• A state in timed automata is a pair (l, u), where

• l is the current location/state in the automata
• uC ? IR is the Clock valuation function.
• Two types of Transitions
• Delay Transition (l,u) ? (l, ud) that increases
  the values of all clocks by a positive real d.
• Edge Transition (l,u) ? (l, u) that changes
  the location to l. u is obtained from u by
  executing the reset statements on the edges. Only
  possible if the constraints on the edge are
  satisfied by the clocks.

x ?0
y 4
x and y are real-time clocks
Constraints
y 4
0 y 4
s3
s2
s1
x ?0
x ?0
Reset
4
Priced Timed Automata

• Timed Automata extended with cost variables.
• Each transition can have a cost for taking it.
• Each location/state can have a cost for staying
  at it.
• Used in Scheduling also in this paper.

x ?0
y 4
x and y are real-time clocks
Constraints
y 4
0 y 4
s3
s2
s1
x ?0
x ?0
Reset
c 2
c c 4
c c 1
c 4
Cost for taking the transition
Cost per unit time for staying at s1
5
Cost-optimal reachibility using Priced Timed
Automata (UPPAAL-CORA)

• UPPAAL-CORA uses admissible but inconsistent
  heuristics as guidance.
• the first solution found is not optimal.
• But can be taken as an upper bound to prune the
  non-promising states branch-and-bound.

goal
Pruning value
cost
Search frontier
6
Problems

• Since clocks are real-values variables
• ? infinite state spaces.
• Classical approach for proving decidability is to
  divide the state space into regions.
• In practice, tools like KRONOS and UPPAAL use a
  Zone-based representation a symbolic
  representation for sets of states.
• Still the combinatorial explosion due to adding
  new components is inevitable.

7
Problem with the Virtual Memory
Virtual Address Space
0x000000
Memory Page
0xFFFFFF
8
External Memory Model (Aggarwal and Vitter)
If the input size is very large, running time
depends on the I/Os rather than on the number of
instructions.
M
Scan(N) O(N / B) Sort(N) O(N/B log M/B N/B)
Input of size N and N gtgt M
9
External Breadth-First Search for Explicit Graphs
(Munagala Ranade, SODA-99)
I Remove Duplicates by sorting the nodes
according to the indices and doing an scan and
compaction phase.
II Subtract layers t and t1 from t2.
10
External Breadth-First Branch-and-Bound in
UPPAAL-CORA

• Can we use the same approach by Munagala and
  Ranade here ? YES and NO
• Duplicate Elimination is not trivial!

l active locations in local automata
Z Zone - set of constraints
satisfied by clocks
Trivial state spaces
Real-Time state spaces
(l,Z4) (l,Z5) (l,Z6)
A
(l,Z1) (l,Z2) (l,Z3)
A
Zone Union same location but different zones
A state (l,Z) is a duplicate of (l,Z) iff Z ?
Z and f(Z) ? f(Z)
cost
?
No total order on Zones gt O(n2) comparisons for
each location
Search frontier
11
Bucket

• A Bucket is a set of states, residing on the
  disk, having the same g value,
• Where, g number of transitions needed to
  transform the initial state to the states of the
  bucket,
• No state is inserted again in a bucket that is
  expanded.
• If Active (being read or written), represented
  internally by a small buffer.

when full, sort and flush
Insert state
Buffer in internal memory
File on disk
12
I/O Complexity of Breadth-First Branch-and-Bound

• Assumption At least two zone unions can fit into
  the main memory.
• Expansion O(scan(V)) I/Os
• Duplicates Removal
• Stage 1 Removal of duplicates within a layer.
• O(sort(E) I/Os for sorting,
• O(scan(E) I/Os for scanning and compacting.
• Stage 2 Removal of duplicates wrt previous
  layers.
• Depends on the locality of the graph the
  longest back-edge
• locality(G) x scan(V) I/Os
• Cumulative Complexity
• O(sort(E) locality(G) x scan(V) I/Os.

13
External Breadth-First Branch-and-Bound
14
Problems with Breadth-First BnB

• Too much efforts until some solution is found.
• Solution
• Explore partial space to search for some
  solution.
• Increase the coverage of the space and improve
  the solution.
• Iterative Broadening External Breadth-First BnB

15
Iterative Broadening External Breadth-First BnB
100
80
60
cost
40
k20
Search frontier
Only pick best k nodes for expansion.
16
Selection Criteria

• How can we guarantee that the solution will be
  improved or at least remain the same ?
• Possible if
• Selection Criteria
• Best k of the nodes PLUS
• All the states that have the same cost as that of
  the last state of the selected list PLUS
• All the sates that have the cost smaller or equal
  to the maximum cost selected in the previous
  iteration.

i layer number l iteration
Select the whole cost plateau
Select all plateaus from the previous iteration
17
Iterative Broadening External BF BnB
18
Aircraft Landing Scheduling Problem1 runway 10
planes
Beam Width in Given Upper Bound New Upper Bound Expanded States
1 8 970 91
20 970 970 91
40 970 810 125
60 810 710 281
80 710 700 439
100 700 700 577
100 8 700 31,458
External Breadth-First BnB
19
Aircraft Landing Scheduling Problem2 runway 20
planes
Beam Width in Given Upper Bound New Upper Bound Expanded States
0.1 8 1940 1,060
20 1940 1940 1,285
40 1940 1420 18,142
60 1420 1410 69,341
80 1410 1410 147,128
100 1410 1400 195,145
100 8 -- --
Out-of-space with External Breadth-First BnB
20
Alternate Modeling of Aircraft Landing Scheduling
(Dierks, VVPS05)
Incomplete exploration due to space constraints.

• 3 runways but 13 clocks
• External Breadth-First BnB
• Harddisk usage 311 Gigabytes
• RAM usage 1.8 Gigabytes
• Time 12 hours

Iterative Broadening did not pay off due to large
cost plateaus
21
Issues in External Exploration

• Error trace
• No predecessor pointers!
• Save the predecessor with each state.
• Trace back from the goal state to the start state
  breadth-wise.
• Disk space eaten by duplicate states
• Start Early Delayed Duplicate Detection

22
Summary Outlook

• Contribution
• External storage can provide the facility to save
  open and closed lists.
• Iterative broadening strategy can outperform
  simple breadth-first branch-and-bound.
• Future Work
• Externality gt promising for distributed
  execution by distributing a layer on multiple
  processors.
• Can pause-and-resume your execution to add more
  harddisks.
• Completely orthogonal - Can be combined with
  other state-space reduction techniques.
