EUCALYPTUS: An Open Source Infrastructure for Elastic Computing Research

1

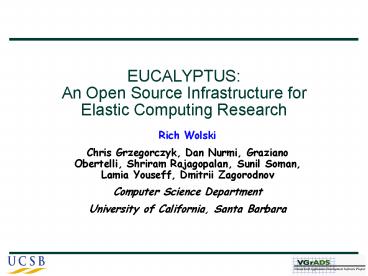

EUCALYPTUSAn Open Source Infrastructure
forElastic Computing Research

• Rich Wolski
• Chris Grzegorczyk, Dan Nurmi, Graziano Obertelli,
  Shriram Rajagopalan, Sunil Soman, Lamia Youseff,
  Dmitrii Zagorodnov
• Computer Science Department
• University of California, Santa Barbara

2
Exciting Weather Forecasts
3
Commercial Cloud Formation
4
What is a Cloud?
SLAs
Web Services
Virtualization
5
How do they work?

• What can and cannot easily be hosted in a cloud?
• What extensions or modifications are required to
  support a wider variety of services and
  applications?
• Scientific computing
• Data assimilation
• Multiplayer gaming
• How can cloud computing be coupled with other
  distributed software systems and infrastructure?
• How should clouds and mobile devices (e.g. cell
  phones) interact?
• Open Source Cloud
• Simple
• Extensible
• Based on widely available and popular
  technologies
• Easy to install and maintain

6
The Skies are Opening

• Nimbus (Freeman and Keahey, University of
  Chicago)
• Client-side cloud-computing interface to
  Globus-enabled TeraPort cluster at U of C
• Based on GT4 and the Globus Virtual Workspace
  Service
• Lots of cool features
• Great if local resources are GT4 proficient
• Tutorials and documentation in grid space
• Enomalism
• Start-up company distributing open source
• REST APIs
• User dashboard
• Multi-virtulaization support
• Lost of extended cloud services
• Beta version now available for download from
  SourceForge

7

• Elastic Utility Computing Architecture Linking
  Your Programs To Useful Systems
• Web services based implementation of
  elastic/utility/cloud computing infrastructure
• Linux image hosting ala Amazon
• How do we know if it is a cloud?
• Try and emulate an existing cloud EC2 S3
• Works with command-line tools from Amazon w/o
  modification
• Enables leverage of emerging EC2 value-added
  service venues (e.g. Rightscale)
• Functions as a software overlay
• Existing installation should not be violated (too
  much)
• One-button install using Rocks
• System Administrators are people too.

8
Goals for Eucalyptus

• Foster research in elastic/cloud/utility
  computing
• models of service provisioning, scheduling, SLA
  formulation, hypervisor portability and feature
  enhancement, etc.
• Experimentation vehicle prior to buying
  commercial services
• Tech Preview using local machines with local
  system administration support
• Provide a debugging and development platform for
  EC2 (and other clouds)
• Allow the environment to be set up and tested
  before it is instantiated in a for-fee
  environment
• Provide a basic software development platform for
  the open source community
• E.g. the Linux Experience
• Not a designed as a replacement technology for
  EC2 or any other cloud service

9
Challenges

• Extensibility
• Simple architecture and open internal APIs
• Client-side interface
• Amazons EC2 interface and functionality
  (familiar and testable)
• Networking
• Virtual private network per cloud
• Must function as an overlay gt cannot supplant
  local networking
• Security
• Must be compatible with local security policies
• Packaging, installation, maintenance
• system administration staff is an important
  constituency for uptake

10
Eucalyptus Architecture WS-Cloud
Amazon EC2 Interface
Client-side API Translator
Database
Cloud Controller
Cluster Controller
Node Controller
11
EC2 Compatibility

• Interface is based on Amazons published WSDL
• 2008 compliant except for
• static IP address assignment
• Security groups
• Availability zones correspond to individual
  clusters
• Uses the EC2 command-line tools downloaded from
  Amazon
• REST interface
• S3 support/emulation not yet, but on its way
• Images accessed by file system name instead of S3
  handle for the moment
• Unless user wants to use the actual S3 and pay
  for the egress charges
• System administration is different
• Eucalyptus defines its own Cloud Admin. tool set
  for user accounting and cloud management

12
Networking

• Eucalyptus does not assume that all worker nodes
  will have publicly routable IP addresses
• Each cloud allocation will have one or more
  public IP addresses
• All cloud images have access to a private network
  interface
• Two types of networks internal to a cloud
  allocation
• Virtual private network
• Uses VDE interfaced to Xen that is set up
  dynamically
• Substantial performance hit within a cluster
• Allows a cloud allocation to span clusters
• High-performance private network (availability
  zone)
• Bypasses VDE and uses local cluster network for
  each allocation
• Runs at native network speed (I.e. with Xen)
• Cloud allocations cannot span clusters
• Availability zone approach fits with Amazons
  high-level semantics

13
Virtual Network Ethernet Overlay
ssl
14
Performance of the Virtual Network
15
Security

• All Eucalyptus components use WS-security for
  authentication
• Encryption of inter-component communication is
  not enabled by default
• Configuration option
• Ssh key generation and installation ala EC2 is
  implemented
• Cloud controller generates the public/private key
  pairs and installs them
• User sign-up is web based
• User specifies a password and submits sign-up
  request
• Cert is generated but withheld until admin.
  approves request
• User gains access to cert. through
  password-protected web page
• Similar to EC2 model without the credit cards

16
Packaging, Installation, and Deployment

• Rocks
• One-button install per cluster
• Requires Rocks V (the most current release) for
  Xen support
• If you know what you are doing, RPMs can be
  extracted and installed manually
• Multiple clusters requires a configuration file
• Multi-cluster configuration tools ala Rocks not
  readily available
• Build-from-source
• Many-button install
• Instructions, scripts, rsync, and perseverance
• Single-machine cloud
• All components run in dom0
• Need to resolve port-conflicts by hand

17
Whats it Made Out Of?

• Axis2 and Axis2c version 1.4.0
• Hibernate 3.2.2
• HSQLDB 1.8.0
• jetty 6.1.9
• JiBX (March 30th sourceforge)
• Mule 2.0.1
• Rampart version 1.3
• libvirt version 0.4.2
• socat-1.6.0
• VDE version 2.2.0-pre2

18
Eucalyptus Public Cloud

• Free, time limited access to a Eucalyptus
  installation at UCSB
• Only installed images can be run (i.e. no image
  uploading)
• 4 VM limit
• 6 hour limit
• Reverse firewall
• Configuration
• 8 Pentium Xeon processors (3.2 GHz)
• 2.5 GB of memory per image
• 36 GB of disk space
• 1 Gb enet interconnect
• Local availability zone only (i.e. no VDE)
• Debian 4.0, Linux v2.6.18-xen-3.1
• Xen 3.2

Demo
19
EC2 and EPC Throughput
20
EC2 and EPC RTT
21
Single Instance
22
Four Instances
23
Eight Instances
24
Version History

• Eucalyptus version 1.0 became available for
  public release 5/28/08 (Rocks binary only)
• Version is 1.1 shipped 7/1/2008
• Bug fixes
• Decent WS-security implementation
• REST interface
• Source code release
• Build-from source guidance scripts and
  instructions
• Version 1.2 shipped 8/1/2008
• Primarily a bug-fix release
• Upgrade mechanism (instead of re-install)
• Version 1.3 shipped 8/23/2008
• Amazon changed their client-side tools

25
Next Releases

• Version 1.4 (expected 11/5/2008)
• S3 support uses local file system
• Administrator definable SLAs
• Cross cluster layer 2 networking
• Elastic IPs and security groups, metadata service
• User-defined image management and registration
• Version 1.5 (expected 1/1/09)
• Elastic Block Store (EBS)
• VLAN safe layer 3 networking
• Credential federation support
• DB managed configuration support
• Distributed DB state management (maybe)
• Should be fully 2008 interface compatible in
  Release 1.5

26
Next Generation Eucalyptus Networking

• Multiple networking implementations
• Open Source academic environment overlay or
  nothing
• Some sites are willing to tolerate a more
  invasive networking approach in exchange for
  performance and scalability
• Three different approaches
• Exploit Xen network interface isolation and VLANS
• software only approach
• - will make Eucalyptus more Xen dependent
• IP-tables and NATs
• high-level software only approach
• - possible conflicts with existing IP-tables
  configuration(s)
• Hardware-supported VLANs and trunking
• fast and scalable
• - requires on-line access to VLAN configuration
  interface

27
More Plans

• Hypervisor religiosity and secularism
• Current implementation uses a subset of the
  libvirt interface
• Xen, VMWare, kvm
• Eucalyptus Xen VMWare works but is clearly
  not the right answer
• HyperV
• Initial study makes it look quite doable for
  virtualization support
• Understanding the networking is next on the list
• Port of the Eucalyptus components to .Net
• UCSB Campus Cloud(s)
• UC Cyberinfrastructure pilot
• Test installation up at California Nanosystems
  Institute (CNSI)
• Leverage UCSB VMWare installation and Eucalyptus
  installation at SDSC
• Requires a very rich user accounting system

28
Ancillary Projects

• Google App Engine
• AppDrop will run App Engine inside EC2
• Port AppDrop to Eucalyptus
• Port App Engine to Hbase and/or Hypertable
• Should provide an interesting research vehicle
• Rightscale
• Local enterprise focused on providing
  Ruby-on-Rails infrastructure for EC2
• Turing Test for Eucalyptus
• Can Rightscale tell that it isnt talking to
  EC2?
• Requires that the REST interface be solid
• Testing now against the EPC

29
Clouds Versus Grids

• Clouds and Grids are distinct
• Cloud
• Full private cluster is provisioned
• Individual user can only get a tiny fraction of
  the total resource pool
• No support for cloud federation except through
  the client interface
• Opaque with respect to resources
• Grid
• Built so that individual users can get most, if
  not all of the resources in a single request
• Middleware approach takes federation as a first
  principle
• Resources are exposed, often as bare metal
• These differences mandate different architectures
  for each

30
Lessons Learned so Far

• Open source for cloud computing constrains design
  more than we thought it would
• More of the technical challenge centers on
  dealing with local configuration choices
• Multi-cluster service ensemble really isnt a
  typical open source tool
• Do we really need a laptop edition?
• Administrators in the real world still build
  clusters by hand
• We thought the use of Rocks early on would make
  us heroes -- it hasnt
• In HPC space, admin time is really expensive
• There are few, if any, cloud configuration tools
  available
• Red Hat, Debian, CentOS, Ubuntu gt linux
  packaging and deployment
• Rocks gt cluster packaging and deployment
• ??? gt cloud packaging and deployment?

31
Thanks, More Information, and Help!

• National Science Foundation
• VGrADS Project
• SDSC, CNSI, IU, Rice University
• RightScale.com
• The Eucalyptus Development Team at UCSB is
• Chris Grzegorczyk -- grze_at_cs.ucsb.edu
• Dan Nurmi -- nurmi_at_cs.ucsb.edu
• Graziano Obertelli -- graziano_at_cs.ucsb.edu
• Shriram Rajagopalan -- shriram_at_cs.ucsb.edu
• Sunil Soman -- sunils_at_cs.ucsb.edu
• Lamia Youseff -- lyouseff_at_cs.ucsb.edu
• Dmitrii Zagordnov -- dmitrii_at_cs.ucsb.edu
• rich_at_cs.ucsb.edu
• http//eucalyptus.cs.ucsb.edu
