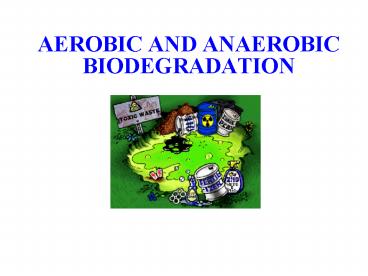

AEROBIC AND ANAEROBIC BIODEGRADATION

1

• AEROBIC AND ANAEROBIC BIODEGRADATION

2
Bioavailability
Not accessible
Accessible
3
Biodegradation and Mineralization
Biodegradation a biological process of reducing
a compound complexity. Mineralization a
degradation process of organic compounds into
inorganic one.
4
Biodegradation and Biotransformation

• Conversion of contaminants to mineralized (e.g.
  CO2, H2O, and salts) end-products via biological
  mechanisms
• Biotransformation refers to a biological process
  where the end-products are not minerals (e.g.,
  transforming TCE to DCE)
• Involves the process of extracting energy from
  organic chemicals via oxidation of the organic
  chemicals

5
Biodegradation

• Aerobic and anaerobic degradation
• Reduces aqueous concentrations of contaminant
• Reduction of contaminant mass
• Most significant process resulting in reduction
  of contaminant mass in a system

6
Fundamentals of Biodegradation

• All organics are biodegradable, BUT
  biodegradation requires specific conditions
• There is no Superbug - not Volkswagon
• Contaminants must be bioavailable
• Biodegradation rate and extent is controlled by a
  limiting factor

7
Biodegradation
GROWTH - CELL DIVISION INCREASE IN BIOMASS
O2 consumption
ORGANIC POLLUTANT AND NUTRIENTS (C,P,N,O,Fe,S)
CO2 evolved
Controlled release of energy Slow Burning!
8
Microbes Role on Biodegradation
Biodegradation uses naturally occurring
microbes. Microbes use the organic compounds for
their carbon and sometimes energy sources to grow.
9
What do Microbes Need to Grow?

• Like all living things, microorganisms need
• Food
• Supply carbon
• Supply energy
• Respiratory substrate
• Something to breathe
• Some use oxygen as the electron acceptor,
  others can use alternatives including chlorinated
  solvents. Otherwise there should be donor
  electron as energy source

10
Oxygen and Electron Acceptors Crucial for
biodegradation reactions in the environment
11
Terminology and Definitions

• Electron donor
• A compound that donates electrons during its
  oxidation
• Simple organic compounds such as sugars,
  alcohols, or methane can be oxidized to carbon
  dioxide (CO2)
• Electron acceptor
• A compound that accepts electrons during its
  reduction
• Inorganic compounds like oxygen, nitrate,
  sulfate, oxidized metals, or CO2 can be reduced
  to water, dinitrogen gas, hydrogen sulfide,
  dissolved metals, or methane, respectively

12
Electron Acceptor Use Preferred Order
High
O2 NO3- Fe (III) Mn (IV) SO42- CO2, Organics
Energy Yield
Low
13
Role of electron acceptors rate of biodegradation
O2
NO3-
SO42-
Fe3
NO2- N2
H2O
H2S
Fe2
0.814V
-0.214V
-0.185V
0.741V
FAST GROWTH
SLOW GROWTH
14
Aerobic vs Anaerobic Biodegradation (A matter of
terminal electron acceptor)

• If oxygen is the terminal electron acceptor, the
  process is called aerobic biodegradation
• All other biological degradation processes are
  classified as anaerobic biodegradation
• In most cases, bacteria can only use one terminal
  electron acceptor
• Facultative aerobes use oxygen, but can switch to
  nitrate in the absence of oxygen

15
Electron Acceptor Zone Formation
16
Microbes

• Obligate aerobes - Microbes for which the
  presence of oxygen is essential. Oxygen is the
  only electron acceptor that these species can
  employ.
• Facultative anaerobes - Can use oxygen if it is
  available but are able to switch to alternate
  electron acceptors when oxygen is depleted.
• Obligate anaerobes - Use alternate electron
  acceptors exclusively. Oxygen is toxic.

17
Electron Exchange
18
Metabolism and Oxidation

19
Biotransformation of Organic Substances

• If carbon is in oxidized form (positive
  valencies), biotranformation by reduction is more
  important
• If carbon is reduced (negative valencies),
  biotranformation by oxidation is more efficient

perchloroethene (PCE) C(II)
carbon tetrachloride (CT) C(IV)
vinyl chloride C(-I)
20
Aerobic Oxidation
21
Oxidation and Extraction of Energy

• Oxidation of organic matter provides energy for
  living organisms because such reactions are
  thermodynamically favored
• ¼ CH2O ½ O2 ? ¼ CO2 ¼ H2O
• ?G? -119.98 kJ/electron equivalent
• Microbes employ catalyzing enzymes to surmount
  kinetic barriers.
• Enzymes function by forming a complex with the
  reactants, bringing them in close contact.

22
Microbiology of Aerobic Oxidation

• A wide variety of microorganisms can carry out
  these oxidation processes
• Activity is believed to be ubiquitous
  bioaugmentation is not likely to be required
• Activity can be stimulated by oxygen addition
• Oxygen solubility is limited so the treatable
  concentrations are low

23
Oxygen Utilization of Substrates

• Benzene C6H6 7.5O2 gt 6CO2 3H2O
• Stoichiometric ratio (F) of oxygen to benzene
• Each mg/L of benzene consumes 3.07 mg/L of O2

24
Fixation of oxygen as a first step in
biodegradation
Cell membrane
Cell Biomass
Further degradation
CO2
25
Cl
Cl
Cl
BphD
BphC

BphA
BphB
OH
O
COOH
COOH
OH
OH
Degradation pathway of biphenyl/PCBs by
Pseudomonas KF707
26
Biodegradation of Pentachlorophenol
27
Aerobic Oxidation
Cl-
R-Cl
CO2 H2O
O2
28
Cometabolism (Aerobic)

• Fortuitous transformation of a compound by a
  microbe relying on some other primary substrate
• Generally a slow process - Chlorinated solvents
  dont provide much energy to the microbe
• Most oxidation is of primary substrate, with only
  a few percent of the electron donor consumption
  going toward dechlorination of the contaminant
• Not all chlorinated solvents susceptible to
  cometabolism (e.g., PCE and carbon tetrachloride)

29
Methanotrophs, example of cometabolism

• Use methane as the primary substrate, but
  cometabolize chlorinated solvent compounds.
• They oxidize methane to methanol using methane
  monooxygenase (MMO).
• MMO is non-specific, and cometabolizes
  trichloroethene (TCE) to TCE epoxide
• This eventually degrades to CO2, Cl- and H2O.

30
Cometabolic Transformations ofChlorinated
Aliphatic Hydrocarbons (CAHs)
NADH, O2
Primary Reaction
CO2 , H2O
CH4
MMO
O

• CCl2CHCl Cl2C CHCl CO2,
  Cl , H2O

-
Secondary Reaction
NADH, O
2
31
Aerobic Co-metabolism
32
Anaerobic Co-metabolism
Cl-
R-Cl
O2
Mn4 NO3- Fe3 SO42- CO2 H2
Mn2 N2 Fe2 S2- CH4
33
Dehalogenation

• Dehalogenation refers to the process of stripping
  halogens (generally Chlorine) from an organic
  molecule
• Dehalogenation is generally an anaerobic process,
  and is often referred to as reductive
  dechlorination
• RCl 2e H gt RH Cl
• Can occur via dehalorespiration or cometabolism
• Some rare cases show cometabolic dechlorination
  in an aerobic environment

34
Dehalogenation of PCE

• PCE (perchloroethylene or tetrachloroethylene)
• TCE (trichloroethylene)
• DCE (cis-, trans-, and 1,1-dichloroethylene
• VC (vinyl chloride)

35
Anaerobic Transformation

• Reductive dechlorination - Most common anaerobic
  process. A cometabolic process in which the
  solvent is reduced by the replacement of a
  chlorine atom with a hydrogen atom.
• Compounds that contain more than 1 Cl atom
  dechlorinate in a series of steps, each involving
  loss of a single Cl atom.
• Carbon tetrachloride degrades to chloroform via
  reductive dechlorination. The latter is more
  resistant and accumulates.
• PCE and TCE degrade with cis-1,2-DCE and vinyl
  chloride as intermediates.
• VC is highly mobile and toxic.

36
Anaerobic biotransformation pathways of
chlorinated aliphatic hydrocarbons (From Vogel et
al., 1987). a abiotic pathway.
37
Reductive dechlorination of TCE under anaerobic
conditions (from Vogel, 1994).
38
Dehalorespiration (Anaerobic)

• Certain chlorinated organics can serve as a
  terminal electron acceptor, rather than as a
  donor
• Confirmed only for chlorinated ethenes
• Rapid, compared to cometabolism
• High percentage of electron donor goes toward
  dechlorination
• Dehalorespiring bacteria depend on
  hydrogen-producing bacteria to produce H2, which
  is the preferred primary substrate

39
Dependence on Redox Condition













1. Highly biodegradable
2. Moderately biodegradable
3. Slow biodegradation
4. Not biodegraded
40
Biodegradation of Chlorinated Organics

• More resistant to biodegradation than aromatic
  hydrocarbons.
• Bacteria cannot use most of these compounds as a
  substrate.
• Most biodegradation occurs via cometabolism.
• Cometabolism is slower than heterotrophic
  metabolism and requires the presence of suitable
  primary substrates.

41
Stoichiometry

• Electron Donor to Electron acceptor ratios
• Hydrocarbon requirements for electron acceptor
  are well defined
• Electron donor requirements for dechlorination
  are poorly defined
• Cometabolic processes are not predictable
• Each Electron Donor/Electron Acceptor pair has a
  unique stoichiometric ratio
