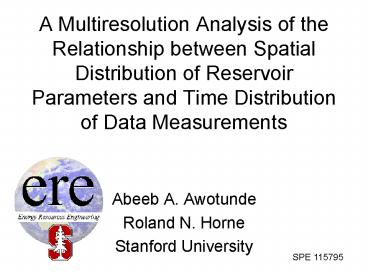

A Multiresolution Analysis of the Relationship
between Spatial Distribution of Reservoir
Parameters and Time Distribution of Data
Measurements

• Abeeb A. Awotunde
• Roland N. Horne
• Stanford University

SPE 115795
2
Outline

• Objective
• Time wavelets
• Space wavelets
• Demonstrative examples
• Field example
• Conclusion

3
Objective

• To investigate the relationship between
  time-dependent wavelet transforms of pressure
  response and spatially-dependent wavelet
  transforms of reservoir parameters

time
space
4
Time wavelets Wt

• Time series can be decomposed into averages and
  differences at multiple resolutions

5
Parameterizations
6
Four choices of regression
7
1. p-k model

• Vary reservoir parameters to match measured data

8
2. p-wk model

• Reparameterization of model space using wavelet
  transform by Lu and Horne SPE 62985

9
3. wp-k model

• First consider time-dependent wavelets
• Establish the relationship between regression in
  the time domain and regression in the wavelet
  domain.
• Provided that all the wavelet coefficients are
  used, regression in the time domain is exactly
  the same as regression in the wavelet domain.

10
3. wp-k model

• Transform the data space
• Compute wavelet sensitivity coefficient
• Threshold the sensitivity matrix and data space
• Solve the inverse problem

11
3. wp-k model
Full wavelet sensitivity matrix
12
3. wp-k model
Thresholded wavelet sensitivity matrix
13
4. wp-wk model

• Nonlinear regression in wavelet domain
• Transform the model space and data into space and
  time wavelet domains
• Compute sensitivity of transformed data to
  transformed model parameters
• Use this wavelet sensitivity matrix to threshold
  the model space, the data space and the wavelet
  sensitivity matrix (itself)
• Solve the inverse problem

14
4. wp-wk model

• Solution of inverse problem in the two wavelet
  domains

15
4. wp-wk model
Full wavelet sensitivity matrix
16
4. wp-wk model
Thresholded wavelet sensitivity matrix
17
4. wp-wk model

• The thresholding scheme is
• data-or-sensitivity-based for data space
• sensitivity-based for parameter space
• parameter-dependent
• regression adaptive

18
Example 32 rings
Match to observed data
dp, t.dp/dt, psia
t, hrs
19
Example 32 rings
Modeled permeability distributions
k, md
ring number
20
Example 32 rings
21
Example 32 rings
wp-wk
No. of wavelets used as model parameters
p-wk
iteration count
22
Example 32 rings
wp-k
No. of wavelets used as regression data
wp-wk
iteration count
23
Field Example (Fall-off Test)

• Water injection followed by shut-in
• 16,384 measured data
• We model the k/µ in 16 rings, s and C
• Initial guesses
• Homogeneous mobility of 353 md/cp
• Skin -2
• Wellbore storage coefficient 1 bbl/psi

24
Field Example (Fall-off Test)
Match to observed data
dp, t.dp/dt, psia
t, hrs
25
Field Example (Fall-off Test)
mobility, md/cp
Modeled mobility distributions
radius, ft
26
Field Example (Fall-off Test)
No of wavelets used as regression data
(Recall 16,384 measured data)
iteration count
27
2D Reservoir

• Available data
• BHP from 2 injection wells
• BHP from 3 producers
• Water cut from 3 producers
• Multiobjective function minimization

28
2D Reservoir
Match to BHP
BHP at Injectors
BHP, psia
BHP at Producers
t, days
29
2D Reservoir
Match to Water cut at Producers
water cut
t, days
30
2D Reservoir
Decay of residual
residual
p-k, p-wk
wp-k, wp-wk
iteration number
31
2D Reservoir
Decay of residual
p-wk
residual
reduced number of coefficients
wp-wk
iteration number
32
2D Reservoir
residual norm of k
model type
33
Ongoing work

• Multiobjective function Analysis
• Minimizing the Frobenius norm of the residual
  matrix
• Results will be presented at SUPRID Annual meeting

34
Conclusion

• Determines the appropriate resolution of the
  problem both for the data and for the reservoir
  description.
• Also improves the computational efficiency of
  nonlinear regression.

35

• Thanks
