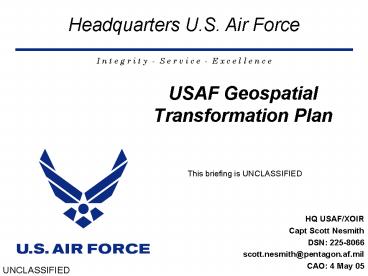

USAF Geospatial Transformation Plan

1
USAF Geospatial Transformation Plan
Headquarters U.S. Air Force
I n t e g r i t y - S e r v i c e - E x c e l
l e n c e
This briefing is UNCLASSIFIED

• HQ USAF/XOIR
• Capt Scott Nesmith
• DSN 225-8066
• scott.nesmith_at_pentagon.af.mil
• CAO 4 May 05

2
2010 Environment
SBR
Wings
Squadrons
Transforming GIS is critical for all future
operations
3
AF GIS Requirements in 2010
Targeting
Campaign Planning Mission Planning/Rehearsal
CIB DTED CADRG DAFIF DPPDB DCHUM ECHUM VOD FFD
CIB DTED CADRG DPPDB FFD
Military Air Lift
Combat Search Rescue
CIB DTED CADRG DAFIF DPPDB DCHUM ECHUM VOD FFD
CIB DTED CADRG DAFIF DPPDB DCHUM ECHUM VOD FFD
UNCLASSIFIED
4
Foundation Data
BLUF Foundation Data
Digital Nautical Chart
Digital Point Positioning Data Base (DPPDB)
Controlled Image Base
Foundation Data
Digital Terrain Elevation Data
Mission Specific Data
5
Overview

• HAF/XOIRY-G Responsibilities
• NGA/AF Direction
• AF GPT Implementation Plan
• Four Spiral Approach
• NRO CENTAF Effort
• Conclusion

6
Responsibilities

• HQ USAF/XOIRY
• GIS Functional Manager
• AF lead for GIS Transformation
• Develops GIS training and equipping policy
• Validates AF GIS Requirements
• Interacts with NGA/Commands/Services
• Other Key USAF Organizations
• AFMC/IN future system development requirements
• AFC2ISRC plays important modernization role
• 480 IW is focus for USAF GIS production/dissemina
  tion

7
What is Geospatial Information?

• Historically Geospatial Information was paper
• maps and charts and the information to
• provide precise coordinates
• Eventually these old products evolved
• into the digital maps, charts, and data bases
• we have been using for the past 20 years
• Now we are moving to an all digital world of
• maps and charts, data bases and imagery
• -- all of these are geospatial information

8
NGAs Direction

• In 2000 NGA established the goal of an all
  digital environment by 2010
• National Geospatial Transition Plan (GTP)
  provides guidance to the Services
• In 2002 AF/XO published AF GTP
• Implements National GTP
• Provides AF users with processes, architectures,
  tools, and training to transition to the 2010
  environment

9
AF GTP Implementation

• Spiral 1 Mission planning and rehearsal support
  (GPL)
• Initiated 1 Jan 03 fielding complete NLT Summer
  05
• Spiral 2 Precise positioning (GRIDLOCK/DPPDB)
• Adds data to support targeting
• Complete fielding summer 06
• Spiral 3 Automation of updates
• Replace manual updates with automated
  synchronization
• Complete FY 06
• Spiral 4 Foundation Data (FD)
• NGA FD concept still under development

Note Spiral development running concurrently
10
Spiral 1 Geospatial Product Library
Precise Point Mensuration
Portable Flight Planning System
Geospatial Product Library (GPL) GIS data server
Mission Planning/Rehearsal
Coming Soon
11
Air Force GPL Hardware
Wing Level GPL Capacity 3.2 TB Multi-AOR data
sets
GPL Firewire Drive Capacity 250 or 300 GB AOR
Specific data sets
MAJCOM Level GPL Capacity 6 TB Worldwide data set
GPL LIMDIS Workstation Capacity 2 TB Worldwide
data sets
12
Air Force GPL Hierarchy
UNCLASSIFIED
13
Spiral 1 Fielding Status

• USAFE CompleteMAJCOM and Wing GPLs fielded
• AFSOC CompleteMAJCOM and Wing GPLs fielded
• AMC CompleteMAJCOM GPL and FireWire fielded
• CENTAF CompleteWing GPLs fielded
• PACAF Complete MAJCOM and Wing GPLs fielded
• ACC MAJCOM GPL fielded Wing GPL fielding in
  progress
• AETC MAJCOM GPL fielded Wing GPLs unfunded
• AFSPACE IncompleteNo MAJCOM GPL Wing GPLs
  unfunded
• AFMC Incomplete No MAJCOM GPL Wing GPLs
  unfunded

14
GPL Program -Today

• AF Solution for JCS directed below the Line of
  Demarcation Requirement
• Initial fielding 03 in support of GWOT
• 7/9 HQ MAJCOM GPLs fielded
• CENTAF AEF support established Jun 03 at Bahrain
• 56 units supported (16 AF) daily
• MAJCOM updates via Firewire Drives, moving to GBS
• Drafting MOA between XOIR and NGA-Arnold
• Resounding success, now relied upon by across the
  board
• Numerous Non-AF units/organizations supported by
  480IW
• Homeland Defense, FBI, NSA, STRATCOM, Army, Navy
• State Dept _at_ US Embassy Baghdad, Iraq Coalition
  Teams

15
GPL Program -Tomorrow

• USA (Topographic Engineering Center) and USMC
  (Marine Corps Intelligence Activity) offered GPL
  data load and monthly updates, via 480IW
• TEC/MICA provides updates to their
  units/organizations
• Both have requested service unique data to be
  included
• USN to be contacted
• GPL possible DoD GPL
• In-Line with NGA NSGI ORD Intent
• GeoScout/J-GES/GIDM efforts supported

16
GPL Status

• Red No GPL Available
• Orange Hardware is Inoperable
• Yellow GPL available but not updated within the
  last 90 days
• Green GPL available and up-to-date

17
ACC
Status D H
GPL Type
Location
Langley AFB, VA (480th IW)
MAJCOM
Langley AFB, VA (480th IW)(4 GPL Requirements)
Depl/Spare
Base
Langley AFB, VA (1 OSS)
Base
Shaw AFB, SC (20 FS)
Base
Nellis AFB, NV (547 IS)
Base
Davis-Monthan AFB, AZ (612 AIS)
Eglin AFB, FL (68 EWS) (Fielding to AFMC)
Base
Beale AFB, CA (9 IS)
Base
Barksdale AFB, LA (608 AIS)
Base
Seymoure Johnson AFB, NC (4 OSS)
Base
Base
Mountain Home AFB, ID (306 OSS)
Base
Whiteman AFB, MO (509 OSS)
18
ACC
Status D H
GPL Type
Location
Holloman AFB, NM (49 OSS)
Base
Dyess AFB, TX (7 OSS)
Base
Ellsworth AFB, SD (28 OSS)
Base
Minot AFB, ND (5 OSS)
Base
Cannon AFB, NM (27 OSS)
Base
Offutt AFB, NE (55 OSS)
Base
Hill AFB, UT (388 OSS/IN) (Fielding to AFMC)
Base
Base
Pope AFB, NC (23 OSS) (Fielding to AMC)
Base
Little Rock AFB, AK (314 OSS/IN)(Fielding to AETC)
Tyndall AFB, FL (325 OSS/IN) (Fielding to AETC)
Base
Base
Lackland AFB, TX (318TS/IN (Fielding to AETC)
7 of 26 GPLs Fielded 27
19
CENTAF
Status D H

GPL Type
Qty
Location
2
KCIA (5 EAMS)
FireWire
FireWire
2
Manas, KG (376th AEW)
K-2, UZ (376th AEW)
4
FireWire
FireWire
Djibouti (CJTF HOA)
4
42 of 42 GPLs Fielded 100
20
CENTAF
Status D H
GPL Type
Qty
Location
Al Udeid, Qatar 379th WOC
Base
2
2
Al Udeid, Qatar CAOC
Force
Al Dhafra AB, UAE (380th AEW)
FireWire
2
1
Manama, Bahrain (GIL OFC Share)
Base
Bagram, Afghanistan (455 AEG)
4
FireWire
Kandahar, AF (K1- 451stAEG)
3
FireWire
KRAB, IZ (506th EAG)
FireWire
1
TLAB, IZ (407th AEG)
FireWire
2
2
BLAB, IZ (332nd WES)
Base
BIAP, IZ (447 AEG)
FireWire
3
Firewire
6
Ali Al Saleem (386 AEW)
Diego Gancia (40th AEG)
2
Firewire
21
USAFE
Status D H
GPL Type
Location
Ramstein AB, Germany (USAFE/A2Y)
MAJCOM
RAF Lakenheath, UK (48 OSS/IN)
Base
RAF Mildenhall, UK (100 OSS/IN)
Base
Spangdahlem AB, GE (52 OSS/IN)
Base
Sembach AB, GE (786 SFS/IN) (Temp Removed)
Base
Sullivan Barracks, GE (4 ASOS/IN)
Deployable
Aviano AB, Italy (31 OSS)
Base
Incirlik AB, Turkey (39 OS/IN)
Base
Keflavik NAS, Iceland (85 OS/IN)
FireWire
9 of 9 GPLs Fielded 100
22
AFSOC
Status D H
GPL Type
Location
MAJCOM/ LPW
Hurlburt AFB, FL (AFSOC HQ-2 GPLs Available)
Hurlburt AFB, FL (16 OSS/IN-2 GPLs Available)
Base/LPW
Hurlburt AFB, FL (16 OSS/IN - 4 GPLs Available)
Deployable
In-Garrison/ Deployable
Hurlburt AFB, FL (720 STG/IN 2 GPLs Available)
Duke Field, FL (919 OSS/IN)
Base
Duke Field, FL (919 OSS/IN)
Deployable
Base
Harrisburg IAP, PA (193 OSS/IN)
Deployable
Harrisburg IAP, PA (193 OSS/IN)
Davis Monthan AFB, AZ (563 RQG/IN-2 GPLs
Unavailable) (Fielding to ACC)
Base/Dep
In-Garrison/ Deployable
Moffett Field CA (129 RQW - 2 GPLs Unavailable)
FireWire
Nellis AFB, AZ (Det 1 563 RQG) (Fielding to ACC)
Base/Dep
Gabreski Field, NY (106 RQW - 2 GPLs Unavailable)
23
AFSOC
Status D H
GPL Type
Location

Deployable
Kadena AB, Japan (353 OSS/IN) (Fielding to PACAF)
Kadena AB, Japan (353 OSS/IN) (Fielding to PACAF)

In-Garrison
Moody AFB, GA (347/IN OSS)
Deployable
Moody AFB, GA (347/IN OSS-2 GPLs Available)
Base/LPW
Patrick AFB, FL (920 OSS/IN-2 GPLs
Available) (Fielding to AFMC)
In-Garrison/ Deployable
Kirkland AFB, NM (58 SOW)(Fielding to AFMC)
In-Garrison
Deployable
RAF Mildenhall (352 OSS/IN) (Fielding to USAFE)
In-Garrison
RAF Mildenhall (352 OSS/IN) (Fielding to USAFE)
Pope AFB, NC (21 STS/IN) (Fielding to AMC)
In-Garrison
McChord AFB, WA (22 STS/IN) (Fielding to AMC)
In-Garrison
LPWLIMDIS Prod Workstation 33 of 33 GPLs
Fielded 100
24
PACAF
Status D H
Location
GPL Type
MAJCOM
Hicham AFB, HI
Anderson AFB, Guam
Base
Osan AB, ROK
Base
Kunsan, ROK
Base
Misawa AB, Japan
Base
Yakota AB, Japan
Base
Kadena AB, Japan
Base
Base
Elmendorf, AFB, AK
Base
Eileson AFB, AK
Base
Camp Red Cloud, ROK
Base
Wheeler AAF, HI
Base
Kulis Avey AS, AK
Diego Garcia
Base
13 of 13 GPLs Fielded 100
25
AETC
Status D H
GPL Type
Location
Randolph AFB, TX (12 OSS/IN)
MAJCOM
Goodfellow AFB, TX (17 TRG)
Base
Vance AFB, OK (?)
Base
Tucson AFB, AZ (?)
Base
Altus AFB, OK (97OSS/IN)
Base
Columbus AFB, MS (14 FTW/IN)
Base
Base
Keesler AFB, MS (45 AS/IN)
Base
Sheppard AFB, TX (?)
Base
Laughlin AFB, TX (47 FTW/IN)
Base
Maxwell, AL (CADRE)
2 of 10 GPLs Fielded 20
26
AFSPC
Status D H
GPL Type
Location
Peterson AFB, CO (?)
MAJCOM
Vandenberg AFB, CA (?)
Base
Shriever AFB, CO (?)
Base
?
Thule AFB, Greenland (?)
Los Angeles AFB, CA (?)
?
Patrick AFB, FL (?)
?
?
F.E. Warren AFB, WY (?)
?
Malmstrom AFB, MT (?)

0 of 8 GPLs Fielded 0
27
AFMC
Status D H
GPL Type
Location
Wright Patterson AFB, OH (HQ AFMC)
MAJCOM
Base
Robbins AFB, GA (?)
Eglin AFB, FL (33 OSS/IN)
Base
Nellis AFB, AZ (CAOC-N)
Base
Hanscom AFB, MA (ESC)
FireWire

2 of 5 GPLs Fielded 33
28
AMC
Status D H
GPL Type
Location
Scott AFB, IL (HQ AMC)
MAJCOM
Little Rock, AK (463 OSS)
FireWire
FireWire
Pope AFB, NC (43 OSS/IN)
FireWire
McChord AFB, WA (446 OSF and 62 OSS)
McGhee Tyson ANGB, TN (134 OSF/IN)
FireWire
St Joseph, MO (139 AW) (at Rosencrans Apt)
FireWire
FireWire
Corapolis, PA (171 OSF 911 OSF)
FireWire
McConnell AFB, KS (931 OSF/IN 22 OSS)
FireWire
Louisville, KY (123 OSF)
FireWire
Fairchild AFB, WA (141 OSF/IN)
FireWire
Keesler AFB, MS (403 OSF/IN)
29
AMC
Status D H
GPL Type
Location
St Paul, MN (934/IN)
FireWire
Garden City, GA (165 OSF/IN)
FireWire
FireWire
Grissom AFB, IN (434 OSS/IN)
FireWire
Gen Mitchell IAP, WI (440 OSF)
Pease ANGB, NH (157 AEW/IN)
FireWire
Meridian, MS (186 OSF/IN)
FireWire
FireWire
Milwaukee, WI (128 OSF)
FireWire
McGuire AFB, NJ (305 OSS/IN 514 OSF/IN)
FireWire
Westover ARB, MA (439 OSS/IN)
FireWire
Charleston, WV (437 OSF 130 OSF/IN)
FireWire
Mansfield Lahm Apt, OH (179 OSF)
30
AMC
Status D H
GPL Type
Location
Scotia, NY (109 AW/IN)
FireWire
Nashville, TN (118 OSF/IN)
FireWire
FireWire
Ft Worth, TX (136 OSF/IN)
FireWire
Salt Lake City, UT (151 OSF/IN)
March ARB, CA (452 OSF/IN)
FireWire
Vienna, OH (910 OSF)
FireWire
FireWire
Oklahoma City, OK (137 OSF)
FireWire
Maxwell AFB, AL (908 OSF/IN)
Baltimore, MD (135 OSF)
FireWire
FireWire
Beale AFB, CA (940 OSF/IN)
FireWire
New Castle Co Apt, DE (165 OSF/IN)
31
AMC
Status D H
GPL Type
Location
Peoria Apt, IL (182 OSF)
FireWire
Dover, DE (436 OSF/IN)
FireWire
Niagara Falls ARS, NY (914 OSF/IN)
FireWire
Robins AFB, GA (190 OSS)
FireWire
Travis AFB, CA (60 OSS/IN 349 OSF/IN)
FireWire
Forges Field, KS (190 OSF)
FireWire
FireWire
Port Hueneme, CA (146 OSF)
46 of 46 GPLs Fielded 100
32
Spiral 2 GRIDLOCK

• Autoregistration capability for tactical and NTM
  sensors
• Replace current manual image correlation process
  with an automated machine-to-machine process
• Automatically correlate tactical to reference
  imagery in less than 1 minute (lt10 seconds
  objective)
• Provide commanders with actionable target
  information by producing consistently accurate
  target coordinates and error estimates
• Minimize need for extensive and perishable
  training by providing point-and-click
  generation of aimpoints

33
Spiral 2 DPPDB

• Developing DPPDB Server with increased data
  management
• Worldwide standardized database for Falconer AOC
  DCGS
• GPL like server CY05 target date for prototype

34
Spiral 3 Automated GPL

• Execute automated updates synchronization via
  network
• GPLs mirror each other
• Low user interface
• Operates in a Network Centric environment
• Interfaces with NGA Databases

35
Spiral 4 Mission Specific Data
Intensification/
densification and the
addition of other layers
(such as utilities) are
performed within the
Currently responsible for data production.
area of Interest to satisfy
mission requirements
MSD/SUP
36
NRO CENTAF EFFORT

• Migrating to Iraq Mega-Server for all things
  imagery geospatial
• Prototype GeoINT Server
• AF/XOIRY supplying technical support to AFCSO
  NRO
• Conducted site surveys at Camp Victory and Balad
• Ensuring GPL interoperability with Mega-Server
• Greater emphasis being placed on injecting data
  into theater via Global Broadcast System (GBS)

GPL is foundation for GeoINT Server
37
Summary

• Provides trusted data from single AF source480
  IW
• Proactive update mechanism guarantees
  availability of latest data
• Data is tailorable to unit/mission needs
• Data is directly useable on standard mission
  planning systems
• Expanding to support precise positioning
