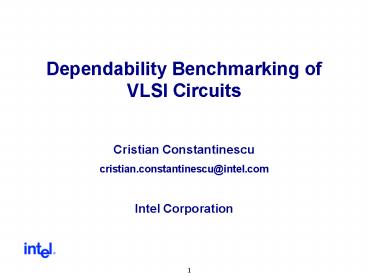

Dependability Benchmarking of VLSI
Circuits Cristian Constantinescu cristian.constan
tinescu_at_intel.com Intel Corporation
2
Outline

• Neutron SER characterization of microprocessors
• SER scaling trends
• Experimental set-up
• Experimental Results
• Other sources of errors
• Memory intermittent faults
• Front side bus intermittent faults
• Using environmental tests as dependability
  benchmarking tools
• Temperature and Voltage Operating Test
• ESD Operating Test
• Summary
• Backup
• Linpack benchmark
• References
• Acknowledgement
• Neutron SER characterization Bruce Takala, Steve
  Wander (LANSCE), Nelson Tam, Pat Armstrong (Intel
  Corp.)
• Environmental testing John Blair, Scott
  Scheuneman (Intel Corp.)

3
Neutron SER Characterization of Microprocessors
4
Single Event Upsets

• Single event upsets (SEU) are
• induced by
• Alpha particles generated during
• radioactive decay of the package
• and interconnect materials
• Neutrons, protons, pions generated
• by cosmic rays penetrating the atmosphere
• SEU may induce errors both in storage elements
  and combinational logic
• Frequency of occurrence of the particle induced
  induced errors soft error rate (SER)

5
SER Scaling Trends

• SRAM SER per bit and chip Latch SER per
  bit and chip

Assumption SRAM/latch count increases 2x per
generation
6
Hadron Cascades
Main constituents of atmospheric hadron cascades

• Neutrons represent 94 of the hadrons reaching
  sea level
• For terrestrial applications it makes sense to
  benchmark the impact of
• neutron SER

7
LANSCE Neutron Beam

• Los Alamos Neutron Science Center (LANSCE)
• Generates high-energy neutrons by spallation a
  linear accelerator generates a pulsed proton beam
  that strikes a tungsten target

Energy dependence of the natural cosmic-ray
neutron flux and the LANSCE neutron flux
8
Experimental Set Up

• Itanium processor based server
• Windows NT 4.0 operating system
• Linpack benchmark
• Performs matrix computations
• Derives residues can detect silent data
  corruption (SDC)
• Fission ion chamber to determine neutron fluence

9
Deriving MTTF

• MTTF Tua/U
• Tua duration of an equivalent experiment,
  taking place in unaccelerated conditions h
• U total number of upsets (failures) over the
  duration of the experiment
• Tua (Fcp Nc)/ Nf
• Fcp total number of fission chamber pulses,
  over the duration of the experiment
• Nc average neutron conversion factor
  neutrons/fission pulse/cm2
• Nf cosmic-ray induced neutron flux at the
  desired geographical location and altitude
  neutrons/cm2/h

10
Experimental Results

• Run Linpack benchmark for square matrixes of size
  800 and 1000
• Completed 40 runs
• Duration of one run 10 s 5 min
• Failure types
• Blue screen
• Hang
• Silent data corruption (SDC)

11
Experimental Results

• Itanium processor MTTF due to neutrons, as a
  function of number of runs

12
Experimental Results

• MTTF confidence intervals

• SDC one event
• Insufficient for statistical analysis

13
Practical Considerations

• Error handling techniques differ greatly from one
  manufacturer to another
• HW error detection and correction, e.g. ECC, is
  faster
• FW/SW implemented recovery may be overwhelmed by
  an accelerated test (near coincident faults
  scenario)
• Acceleration factor is an important variable
• Failure prediction and automatic deconfiguration
  may lead to misleading results
• Multiple experiments
• Beam divergence
• Beam attenuation

14
Other Sources of Errors
15
Memory Intermittent Faults

• Intermittent faults are induced by unstable or
  marginal hardware
• Intermittent shorts/opens
• Manufacturing residuals
• Timing faults

Number of memory single-bit errors reported by
193 systems over 16 months
Daily number of memory single-bit errors
reported by one system over 16 months
16
Front Side Bus Intermittent Faults

• Front side bus (FSB) errors
• Bursts of single-bit errors (SBE) on data path
• SBE detected and corrected (data path protected
  by ECC)
• Failure analysis results
• Intermittent contacts at solder joints
• Fault injection showed that similar faults
  experienced by control signals induce SDC

17
Using Environmental Tests as Dependability
Benchmarking Tools
18
Temperature and Voltage Operating Test

• Ten systems were tested
• Workload Linpack benchmark

70o C
25o C
-10o C

• Profile of the test

• 9 systems experienced SDC
• SDC events 134 (90.5)
• Detected errors 14 (9.5)
• SDC preceded detected errors

19
Temperature and Voltage Operating Test

• Distribution of the SDC events
• Failure analysis results
• Memory controller setup and hold-time violations

20
ESD Operating Test

• 4 servers from 2 manufacturers
• Workload Linpack benchmark
• 30 test points per server
• 20 positive and 20 negative discharges per test
  point
• Air discharge 4 kV 15 kV
• Contact discharge 8 kV
• One server experienced SDC
• 8 of the discharges targeted to the disk bay
  area (15 kV, air)
• First ESD operating test to reveal SDC in a
  commercially available server

21
Summary

• The need for dependability benchmarking is
  increasing
• Wider use of COTS components in critical
  applications
• Technology is a two edge sword
• Higher performance
• Higher rates of occurrence of the transient and
  intermittent faults
• SDC is a real threat
• We take for granted the correctness of the
  computer data
• Dependability benchmarks should determine whether
  the circuits/systems under evaluation experience
  SDC
• Fault injection techniques require in depth
  knowledge of the evaluated system
• Appropriate for designers and manufacturers
• Accelerated neutron tests and environmental tests
  are a black box approach
• Capable of unveiling SDC
• In depth knowledge of the system under test is
  not required
• Linpack benchmark is available for free
• Can be used both by manufacturers and independent
  evaluators

22
Backup
23
Linpack Benchmark

• Example of Linpack output large residues
  indicate SDC

24
References

• Neutron SER characterization of
  microprocessors, Proc. of the International
  Conference on Dependable Systems and Networks,
  Yokohama, Japan, June 2005, pp. 754-759.
• Dependability benchmarking using environmental
  test tools, Proc. of the Reliability and
  Maintainability Symposium, Alexandria, VA, USA,
  January 2005, pp. 567 571.
• Impact of deep submicron technology on
  dependability of VLSI circuits, Proc. of the
  International Conference on Dependable Systems
  and Networks, Washington, DC, USA, June 2002, pp.
  205-209.
