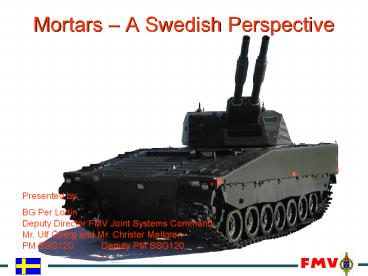

Mortars A Swedish Perspective
Presented by BG Per Lodin Deputy Director FMV
Joint Systems CommandMr. Ulf Öberg and Mr.
Christer MellgrenPM SSG120 Deputy PM
SSG120
2
Swedish Armed Forces Transition
3
Changing Focus
4
Upgrading Strategy
5
Possibilities Risks
6
Operational Context for SSG120
Indirect Fire Support for Manoeuvre
Units Stand-alone or as a platoon All are
sensors Unit Command Engagement Command New
Ammunition PE and Area Engagement
7
Armoured 120 mm Mortar ProgrammeKey Requirements
Net-centric Responsive Indirect Direct
Firepower for National
International Manoeuvre
Battalions
C3I
ALFF
Engagement
8
Programme Overview
9
(No Transcript)
10
(No Transcript)
11
(No Transcript)
12
(No Transcript)
13
(No Transcript)
14
Armoured rapid response a Precision
Engagement product built for the future combat
environment
Indirect Fire Support for Manoeuvre Units All are
sensors Net-centric Warfare Unit Command -
Engagement Command New Ammunition Precision
Engagement and Area Engagement
15
Nordic Co-operation in Mortars
Background and Scope

• Task given 1996 to a Joint Nordic working group
  Study and Develop an armoured mortar system well
  suited for Nordic conditions.
• Joint Nordic 4-Nation Project Agreement signed
  October 1999
• The agreement outlines co-operation with regards
  to such issues as commercial, technical, tactical
  info
• Phase 1 of the Project Agreement defines a
  co-operation until end 2003. Phase 2 (under
  preparation) shall cover all activities related
  to Full Development until 2007

Government Co-operation
Industrial Co-operation

• Swedish FMV and Finnish DFMC are active partners
• Danish HMAK and Norwegian FLO/Land are observers
• Canada have applied for observer status

• Finnish Patria Hägglunds OY is the prime
  contractor.
• Patria Weapon Systems and Alvis Hägglunds are sub
  contractors and do all principal work (also
  owners of PH)

16
Overall Programme Schedule
01
02
03
04
05
06
07
08
09
Phase/Swe FY
Studies, Concept and Technical Development, Field
Testing
Product Definition, Development and Production of
Prototypes
Production and Deployment
Operations and Support
Fielding
17
Overall Programme Schedule
01
02
03
04
05
06
07
08
09
Phase/Swe FY
Studies, Concept and Technical Development, Field
Testing
Product Definition, Development and Production of
Prototypes
Production and Deployment
Operations and Support
Fielding
18
User Requirements
19
User Requirements

• Readiness
• Indirect firing within 15/30 seconds after
  receiving target data when stationary/on the
  move.
• Out of action in less than 10 seconds.
• Direct firing within 15 seconds after target
  detection.
• Range threshold 7, objective 10 km
• Rapid firing at multiple targets enabled by
  turret design.

20
User Requirements

• Firepower
• 4 rds in less than 5 sec
• 8 rds in less than 20 sec
• 12 rds per minute for 3 min
• 72 rds on board - HE, plus DPICM and/or smart
  guided AT.
• 6 rds MRSI.
• Compatible with conventional 120 mm mortar
  ammunition and STRIX.

21
User Requirements

• C4ISR
• The SSG120 shall have both INS and GPS for
  navigation and laying
• Digital/graphical integration of INS/GPS, BMS and
  FCC.

22
Fulfillment of Requirements
Readiness
User Req. Fulfilmentstoday Note
Indirect firing, lt15 sec after receiving target data when stationary. Y lt 10 s if in firing position. lt 30 s if on the move without preparations
Indirect firing, lt30 sec after receiving target data. N Due to safety restrictions
Direct firing,15 seconds after receiving target data. Y lt 10 s if in firing position.
Range threshold 7 km, objective 10 km Y/N 9.1 km (5C)
Out of action in less than 10 seconds. Y
Two different targets (4 rds at each) lt 30 sec, azimuth deviation of the targets lt 45 degrees and while the target distance deviation shall not be more than 1 km. N Laying and loading system not yet fully developed
23
Fulfillment of Requirements cont.
Firepower C4ISR
User Req. Fulfilmentstoday Note
4 rds in less than 5 sec N Due to safety restrictions, ammunition loading system
8 rds in less than 20 sec N Due to safety restrictions, ammunition loading system
12 rds per minute for 3 min N Due to safety restrictions, ammunition loading system
72 rds - HE, plus DPICM and/or smart guided AT. N SSG120 Test Vehicle turret 2x10, chassimag. 40
6 rds MRSI Y
Compatible with conventional 120 mm mortar ammunition and STRIX. Y
Digital/graphical integration of INS/GPS, BMS and FCC. Y
24
Current Status of magazines

• Turret
• 2x10 rds
• Automated loading functioning.
• Chassis
• New installedin Dec-02, containing 40 rds

25
Current Status of FCS

• Swedish ballistic kernel
• Fully integrated GPS aided inertial navigation
  system
• Integrated digital data message formats from FO
• MMI with map display (land version)

• Capable of continuous calculation to enable fire
  on the move/at moving targets
• MMI with map display (land version)
• Automated handling of
• MET
• Different targets
• Up to 4 different fire missions simultaneously
  (land version)

26
Current Status of

• BMS
• Stand alone
• Own MMI
• Under development in an other programme
• GPS aid

• Other Equipment
• Air compressor for loading system and fume
  extraction
• Automated laying system
• Stub Case needed

27
SSG120 Navy Application
Turret on Combat Boat 90

• Joint Army/Navy programme to be in full operation
  from SDD (PDF)
• Primary focus of tests is put on
• Firing precision and accuracy
• Fire on the move
• Tests also focused at subsystem compatibility
  FCC, INSGPS, MMI
• SSG120 Navy will take full advantage from
  experience for the Army version
• Worlds first truly remotely controlled mortar
  turret
• Objective also to pave the way for firing on the
  move with SSG120 Army version

28
Areas of Particular Concern

• Today's ammunition
• Only qualified for transport in original boxes
• Not optimised for breech loading and direct fire
• Needs a man in the loop
• Fuzes
• No inductive setter developed and tested
• No inductive setting fuze developed for direct
  firing
• Stub case
• Logistic tail
• System responsibility

29
Requirements Summary

• Winter and summer trials successfully conducted
  by Swedish Army Combat School
• The SSG120 is fully autonomous and automated
• The SSG120 can fire on the move at moving targets
• The SSG120 has a significant development potential

SSG120 meets TRL7 todayTRL Technology Readiness
Level in accordance with US definition
30
Programme Summary

• SSG120 will be the Indirect Direct Firepower
  for National International Manoeuvre Battalions
  and Amphibious Task Units
• SSG120 aims at Net-centric integration
• SSG120 supports both Precision Engagement and
  Area Engagement
• SSG120 is Responsive and Accurate
• SSG120 is a fully funded programme throughout
  series production

SSG120 has proven exceptional performance and is
showing great potential for future development
