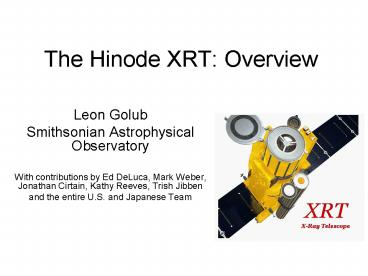

The Hinode XRT: Overview

1
The Hinode XRT Overview

• Leon Golub
• Smithsonian Astrophysical Observatory
• With contributions by Ed DeLuca, Mark Weber,
  Jonathan Cirtain, Kathy Reeves, Trish Jibben
• and the entire U.S. and Japanese Team

2
Mission Overview

• Hinode is an international collaboration between
  Space Agencies of Japan, the USA, the UK and
  Europe.
• It contains three instruments for coordinated
  observations to follow the generation, transport
  and dissipation of magnetic energy from the
  photosphere to the corona
• SOT a high resolution optical telescope that
  provides spectrally resolved images, Dopplergrams
  and vector magnetograms
• XRT A high resolution X-ray telescope that
  provides coronal temperature and density maps
• EIS An EUV imaging spectrometer that provides
  spatially resolved high resolution spectra.

3
The Hinode Spacecraft

• The Hinode spacecraft is built around the
  optical telescope assembly (OTA).
• The focal plane package (FPP) of the OTA, the XRT
  and EIS are strapped to the sides of the OTA.
• The payload has a dry weight of 875 kg, the
  solar arrays provide 1000 w of power and the
  telemetry systems has a downlink capability of
  4.2 Mbps.
• ESA is providing 15 contacts per day from
  Svalbard to supplement the four daily passes at
  Kagoshima for a total of 7 GB per day.

Two Views of Hinode
4
The Focal Plane Package
The FPP contains three instruments SP, BFI and
NFI. Dimensions 1.63 x 0.65 x 0.37 m3 Mass
48.4 kg

• The Spectropolarimeter (HAO) records full Stokes
  profiles of the magnetic field
• Slit Width 1.6 x 164 arcsec2
• Spectral Range 6302.05Å
• Spectral Resolution 25 mÅ
• Polarimetric Accuracy 104
• The Broad Band Filter Imager retains the highest
  spatial resolution (0.053 pixels) for photo and
  chromospheric imaging in six bands, 380 670 nm
• The Narrow Band Filter Imager measures vector
  magnetic fields and Dopplergrams using a tunable
  filter
• Spectral Coverage 5170 6570 Å
• Magnetic Sensitivity 5 G (long) 50 G (trans)
• Doppler Velocities 50 100 ms-1

5
The EUV Imaging Spectrometer

• The EIS is a joint effort between MSSL and NRL.
• EIS provides temperature and density diagnostics
  of coronal and transition region plasmas and will
  attempt to detect reconnection flows.
• Properties
• Wavelengths 170-210 Å, 250-290 Å
• Resolution Spatial 1.0 arcsec pixel Spectral
  2.23 mÅ/pixel
• Slits1 x 512 and 2 x 512 arcsec2
• Slot 40 x 512 and 250 x 512 arcsec2

Final Preparations for EIS
6
The X-Ray Telescope

• The telescope is a modified Wolter I with a 35 cm
  aperture and a 2.71 m focal length. It has
  on-orbit focus adjustment and provides a flare
  flag to alert the other instruments.
• Properties
• Angular Resolution 1 arcsec pixels
• Encircled Energy 50 within a 1 arcsec diameter
  circle at 0.523 KeV
• Improved temperature sensitivity over the range
  from 130 MK using a back thinned 2048x2048 CCD

Length 3.0 m, Diameter 0.42 m (max), Mass 48.4 kg
XRT Point Spread Function 50 Power Within One
Pixel
7
Comparative Fields of View
EIS can independently offset along the EW axis.
8
XRT Science Goals

• Coronal Mass Ejections
• Large field of view
• Coronal Heating
• High spatial resolution
• Reconnection and Jets
• Broad T-coverage
• Flare Energetics
• High time resolution
• Large dynamic range
• Photospheric-Coronal Coupling
• Coordination with SOT and EIS

9
XRT Observation Modes

• Dynamics
• Rapid evolution associated with reconnection and
  plasma instabilities
• High Cadence
• Energetics
• The thermal evolution of structures heating
  cooling
• The emission measure evolution of structures up
  flows down flows
• Multiple filters
• Topology
• Identify the magnetic connections that control
  the heating and dynamics
• Large FOV, long and short exposures

10
XRT First Light
28 October 2006
Hinode XRT Quiet Sun
11
28 October 2006
Hinode XRT False Color
12
A typical corona (QS small AR) requires gt104
dynamic range
Combined 4s 0.5s XRT exposures, Thin Al filter.
13
TRACE and XRT are Complementary
TRACE 173Å 11/13/06
XRT Thin Al 11/13/06
14
XRT Sees Fine Detail in ARsThe High Temperature
Corona is NOT Fuzzy!
1 arcmin
15
B vs. X
MDI Magnetogram
XRT Thin Ti, 1 sec., 11/04/06
16
XRT works with EIS for combined diagnostics
EIS 40 Slot
??? XRT ??
XRT
Fe XV 284
He II 256
EIS Spectrum
??(nm)
17
XRT Combines With SOT for Photosphere/Corona
Connectivity Studies
XRT v. SOT G-band 11/14/06 B bifurcation over
light bridge
18
XRT Shows Extent of Structure Surrounding ARs
19
Detailed views of AR from XRT
Small AR near CMP
Thin Al/Poly 1 sec
20
Filament/Prominence Studies Cavity Structures
Seen at Limb
21
Transit of Mercury (Useful for finding the best
focus)
22
Synoptic Sun-Center Program 5-min cadence, 8-hr
duration
23
Quiet Sun XBP Studies30-sec cadence, 12-hour
duration
24
Coronal Dynamics in XRT
5-min cadence, 12-hour duration
25
Downflows Seen in Flares
Note highly sheared inner and unsheared outer
loops in flaring region.
26
Growth of Postflare Cusp
Note downward-moving cooling fronts.
27
Flare of 17-DEC-2006

• EIS 256 x 256 raster - 1 slit
• He II (log T 4.9) and ions for
• 6.0 lt log T lt 6.7
• Bi-directional Doppler shifts
• seen in the loop-top source

28
EIS view at limb
TRACE movie
EIS movie
29
Some flares show unexpected behavior
30
Combined SOT and XRT Observations
31
Extensive Structure Seen Above ARs
32
Does XRT See Slip-Running Reconnection?
33
Polar JetsNumerous Jet-like Events Observed
Image Cadence 30 sec.
34
LEFT XRT Polar Jet movie RIGHT Shimojo,
M., and Shibata, K., ApJ 542, 1100 (2000). From
the Hudson Solar Cartoon Archive
(http//solarmuri.ssl.berkeley.edu/hhudson/cartoo
ns/overview.html)
35
Coronal Dynamics in XRT North Polar XBP and Jets
11/23/06 Thin Al/Poly 4s. exp. 30-sec cadence,
7-hour duration
Mass loss estimate Np1037 per event Event
frequency 10/hr Net flux gt1012 p/cm2/s Avg.
solar wind flux 1013 p/cm2/s
36
Combined EIS/XRT Polar Jet Obs
37
Access to Hinode data

• Chief Coordinators
• John Davis (john.m.davis_at_nasa.gov)
• Tetsuya Watanabe (watanabe_at_uvlab.mtk.nao.ac.jp)
• Science Schedule Coordinators (in U.S.)
• SOT T. Berger (berger_at_lmsal.com)
• XRT L. Golub (golub_at_cfa.harvard.edu)
• EIS J. Mariska (mariska_at_nrl.navy.mil)
• L. Culhane (jlc_at_mssl.ucl.ac.uk) in Europe
• XRT Observing (XOB) Proposals http//solar.physic
  s.montana.edu/HINODE/XRT
• Master Schedule will be placed on line
• Hinode-timeline.xls
