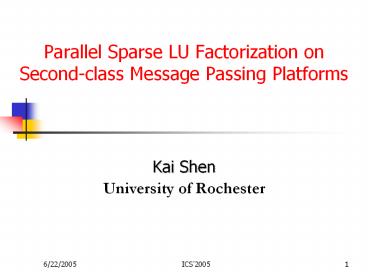

Parallel Sparse LU Factorization on Second-class
Message Passing Platforms

• Kai Shen
• University of Rochester

2
PreliminaryParallel Sparse LU Factorization

• LU factorization with partial pivoting used for
  solving a linear system Ax b (PALU).
• Applications
• Device/circuit simulation, fluid dynamics, ...
• In the Newtons method for solving non-linear
  systems
• Challenges for parallel sparse LU factorization
• Runtime data structure variation
• Non-uniform computation/communication patterns
• ? Irregular

3
Existing Solvers and Their Portability

• Shared memory solvers
• SuperLU Li, Demmel et al. 1999, WSMP Gupta
  2000, PARDISO Schenk Gärtner 2004
• Message passing solvers
• S Shen et al. 2000, MUMPS Amestoy et al.
  2001, SuperLU_DIST Li Demmel 2004
• Existing message passing solvers are portable,
  but perform poorly on platforms with slow message
  passing
• Mostly designed for parallel computers with fast
  interconnect
• Performance portability is desirable
• Large variation in the characteristics of
  available platforms

4
Example Message Passing Platforms

• Three platforms running MPI
• Regatta-shmem, Regatta-TCP/IP, PC cluster
• Per-CPU peak BLAS-3 performance is 971 MFLOPS on
  Regatta and 1382 MFLOPS on a PC

5
Parallel Sparse LU Factorization on the Three
Platforms

• Performance of S Shen et al. 2000

• We investigate communication reduction techniques
  to improve the performance on platforms with slow
  comm.

6
Data Structure and Computation Steps
Row block K

• for each column block K (1?N)
• Perform Factor(K)
• Perform SwapScale(K)
• Perform Update(K)
• endfor

• Processor mapping
• 1-D cyclic
• 2-D cyclic (more scalable)

Column block K
7
Large Diagonal Batch Pivoting

• Large diagonal batch pivoting
• Locate the largest elements for all columns in a
  block using one round of communication
• Use them as pivoting elements
• may be numerically unstable
• We check the error and fall back to original
  pivoting if necessary
• Previous approaches Duff and Koster 1999, 2001
  Li Demmel 2004 use it in iterative methods

• Batch pivoting to reduce comm.

8
Speculative Batch Pivoting

• Large diagonal batch pivoting fails the numerical
  stability test frequently
• Speculative batch pivoting
• Collect candidate pivot rows (for all columns in
  a block) at one processor using one gather
  communication
• Perform factorization at that processor to
  determine the pivots
• Error checking and fall back to original pivoting
  if necessary
• Both batch pivoting strategies
• Require additional computation
• May slightly weaken the numerical stability

9
Performance on Regatta-shmem

• LD large diagonal SBP speculative batch
  pivoting
• TP threshold pivoting Duff et al. 1986

• Virtually no performance benefits

10
Performance on Platforms with Slower Message
Passing

• PC cluster
• Improvement of SBP is 28-292 for a set of 8 test
  matrices
• Regatta-TCP/IP
• The improvement is up to 48

11
Application Adaptation

• Communication-reduction techniques
• Effective on platforms with relatively slow
  message passing
• Ineffective on first-class platforms
• their by-products (e.g., additional computation)
  may not be worthwhile
• Sampling-based adaptation
• Collect application statistics in sampling phase
• Coupled with platform characteristics, to
  adaptively determine whether candidate techniques
  should be employed

12
Adaptation on Regatta-shmem

• The Adaptive version
• Disables the comm-reduction techniques for most
  matrices
• Achieves similar numerical stability as the
  Original version

13
Adaptation on the PC Cluster

• The Adaptive version
• Employs the comm-reduction techniques for all
  matrices
• Performs close to the TPSBP version

14
Conclusion

• Contributions
• Propose communication-reduction techniques to
  improve the LU factorization performance on
  platforms with relatively slow message passing
• Runtime sampling-based adaptation to
  automatically choose the appropriate version of
  the application
• http//www.cs.rochester.edu/kshen/research/s/
