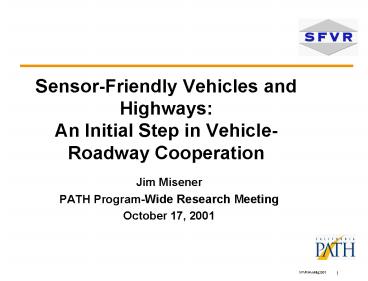

Sensor-Friendly Vehicles and Highways An
Initial Step in Vehicle-Roadway Cooperation

• Jim Misener
• PATH Program-Wide Research Meeting
• October 17, 2001

2
Outline

• Motivation/Background
• Candidate Concepts/Experiments
• LEDBM Taillights
• IR Fluorescent Pant
• Passive License Plates
• Passive Corner Cube Reflectors Spaced
  Tetrahedral Array Retroreflectors (STAR)
• Summary and Conclusions

3
Motivation Sensor Friendly Vehicles and Roadways

• Premise Infrastructure Can Supplement Emerging
  Driver-Assist Systems
• Clutter/Misidentified Targets is the Problem
• Forward Collision Warning Systems with Automotive
  Radar
• Lane Departure Warning Systems with Optical
  Sensors
• Benefits
• Improved Effectiveness
• Quicker Deployment
• Effectiveness Means User Acceptance
• Lives Saved

4
MOU 368 (Sensor-Friendly Highways) and US DOT
Contract (Evaluation of Sensor-Friendly Vehicles
and Roadways to Support Intelligent Vehicle
Services)

• Objectives
• Overarching
• In support of IVI, investigate cooperative
  systems to improve the performance of intelligent
  vehicles
• Specific
• ID alternative passive devices and marking
  methods for vehicles and roadway features
• Evaluate the potential of IDd concepts
• Assess Incremental costs and benefits,
  availability, and deployment time
• Propose strategy for achieving a national
  deployment
• to include a program of research, ranking,
  development, field test, evaluation, and
  deployment

5
Vehicle-Roadway Environment Potential Problems
Due to Geometrics

• Target Loss in Tight Turns
• Deceleration Due to Vehicles in Adjacent Lanes
• Acceleration in Merging/Lane Change Situations
• Target Loss on Downgrades
• Cut-Ins
• Vehicle Enters Lane at Short Range then
  Decelerates
• Other Sources of False Alarms
• Clutter Identified as Target
• Ambiguous Range Objects
• Vehicles Outside FOV
• side lobes

6
Radar Performance In Roadway Environment San
Rafael Bridge

7
Another Illustration...
8
Some Observations

• Signs and Other Roadside Features Detected with
  Some Frequency
• overpasses and sign panels
• electroliers (cylindrical shape, low RCS)
• chainlink fences
• painted road markings
• however, at close range, occasional detection of
• bridge trusses
• traffic signals
• smaller sign panels
• Common Precursor to Detection Periodic and
  long-duration dihedral or trihedral patterns

9
Technologies (Categorized)
10
Light Emitting Diode Brake Messaging (LEDBM)
11
LEDBM Supplement to Forward Collision Warning

• LEDBM System (Two Photodiode Assemblies)
• LEDBM Prototype Specifications
• Operating Range 0 60 m
• Azimuth up to /- 12.5 degrees (adjustable)
• Elevation up to /- 12.5 degrees (adjustable)
• Tracking 1 target

12
Proof of Concept Tests
13
Varying Roadway and Traffic Conditions Around
Curve
14
Varying Roadway and Traffic Conditions
Elevation Change
15
Varying Roadway and Traffic Conditions Dense
Traffic
16
Rapid and Gradual Decelerations
17
Cut-Ins
18
Selected Results
19
IR Fluorescent Paint
20
Fluorescence

• Definition
• Absorbs light of one color, then emits light of
  another color
• Application
• Metal oxide pigments added to paint or beads
  (glass or plastic) beads
• Makes lane markings detectable by their
  fluorescence

21
Fluorescent Lane Markings
22
Findings

• From Laboratory Experiments
• Signal and signal-to-noise ratio are easily
  adequate for look-down or short look-ahead
• But may not be adequate for distant look- ahead
  using economically viable equipment
• Sufficient codespace is available for simple
  labels, e.g., left vs. center vs. right markers
• We require fluorescent pigments whose sensitivity
  is not suppressed by sunlight

23
Passive License Plates
24
Passive License Plates Without Dielectric Filler
25
PLP High Radar Reflection at 45 Degrees Off
Center
26
Passive License Plate Test Car
27
Vehicle Tests of Radar Signal from PLP
With Passive License Plate
With Regular License Plate

• Red arrow shows magnitude of return from target
• Both at 0 degrees angle of incidence

28
Radar Signal from PLP
With Passive License Plate
With Regular License Plate

• Red arrow shows magnitude of return from target
• Both at 22.5 degrees angle of incidence

29
Findings

• In the laboratory, PLP tests showed high target
  returns at plus-or-minus 45 degrees
• Potential reliable point source signature in
  the middle of target vehicles, regardless of
  curvature
• In the field, PLP tests worked well only near
  zero degrees angle of incidence
• Further and more extensive testing required

30
Passive Corner Cubes
31
Corner Cube

• Radar Cross Section (RCS) proportional to L and
  to wavelength.
• Our test corner cubes RCS 6.6 m2

32
Spatial Tetrahedral Arrays of Reflectors (STAR)

• Unique arrays of corner cubes corresponding to
  infrastructure markings
• 77 GHz 0.15-in wavelength -- easy to create
  relatively cheap corner cubes
• External beam shaping
• In-Vehicle
• Roadside

33
Test Vehicle
34
Roadside Corner Cube Markings
35
Radar Map for six equally spaced Corner Cubes
36
Radar Map for Corner Cube Pattern 110101
37
Findings

• Corner Cube Patterns were well detected and
  distinguished by Radar Sensor.
• Would work well for encoding roadway objects.

38
Summary and Conclusions

• Candidate Concepts Developed and Evaluated
• LEDBM Taillights
• IR Fluorescent Pant
• Passive License Plates
• Passive Corner Cube Reflectors Spaced
  Tetrahedral Array Retroreflectors (STAR)
• Technology and Cost Benefits (TRR Article)
  Quantified
• Prototypical, Preliminary
• Sensor Friendly has High Potential
• Near Term Enabler of Emerging Forward Collision
  Warning Safety Systems
• Perhaps the Only Way These Promising Safety
  Systems Will Effectively Work
