Garbage Collection

1

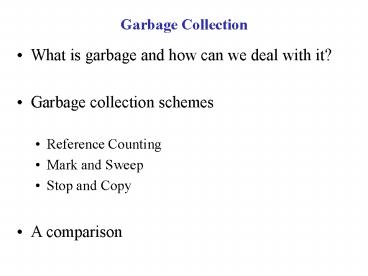

Garbage Collection

• What is garbage and how can we deal with it?
• Garbage collection schemes
• Reference Counting
• Mark and Sweep
• Stop and Copy
• A comparison

2
How Objects are Created in Java

• An object is created in Java by invoking the
  new() operator.
• Calling the new() operator, the JVM will do the
  following
• allocate memory
• assign fields their default values
• run the constructor
• a reference is returned.

3
How Java Reclaims Objects Memory

• Java does not provide the programmer any means to
  destroy objects explicitly
• The advantages are
• No dangling reference problem in Java
• Easier programming
• No memory leak problem

4
What is Garbage?
Ali Object

• Garbage unreferenced objects
• Student ali new Student()
• Student khalid new Student()
• alikhalid
• Now ali Object becomes a garbage,
• It is unreferenced Object

ail
khalid
Khalid Object
5
What is Garbage Collection?

• What is Garbage Collection?
• Finding garbage and reclaiming memory allocated
  to it.
• When is the Garbage Collection process invoked?
• When the total memory allocated to a Java program
  exceeds some threshold.
• Is a running program affected by garbage
  collection?
• Yes, the program suspends during garbage
  collection.

Refference to ali object
Refference to khalid object
Khalid Object
6
Strategies for Handling Garbage

• Modern Societies produce an excessive amount of
  waste?
• What is the solution?
• Reduce
• Reuse
• Recycle
• The same Applies to Java!!!

7
Reduce Garbage

• A Java program that does not create any objects
  does not create garbage.
• Objects used until the end of the program do not
  become garbage.
• Reducing the number of objects that may be used
  until the end of the program will reduce the
  amount of garbage generated.

8
Reuse Garbage

• Reuse objects instead of generating new ones.
• for (int i0ilt1000000 i)
• SomeClass obj new SomeClass(i)
• System.out.println(obj)
• This program generates one million objects and
  prints them out.
• SomeClass obj new SomeClass()
• for (int i0ilt 1000000 i)
• obj.setInt(i)
• System.out.println(onj)
• Using only one object and implementing the
  setInt() method, we dramatically reduce the
  garbage generated.

9
Recycle Garbage

• Don't leave unused objects for the garbage
  collector.
• Put them instead in a container to be searched
  when an object is needed.
• Advantage reduces garbage generation.
• Disadvantage puts more overhead on the
  programmer.

10
Helping the Garbage Collector

• Sometimes we need the garbage collector to run
  more frequently.
• How we can help the collector?
• Eleminate all references to objects that are no
  longer needed
• This can be done by assigning null to every
  variable that refers to an object that is no
  longer needed

11
Reference Counting Garbage Collection

• Main Idea Add a reference count field for every
  object.
• This Field is updated when the number of
  references to an object changes.
• Example
• Object p new Integer(57)
• Object q p

p
57
refCount 2
q
12
Reference Counting (cont'd)

• The update of reference field when we have a
  reference assignment ( i.e pq) can be
  implemented as follows
• if (p!q)
• if (p!null)
• --p.refCount
• pq
• if (p!null)
• p.refCount

Example Object p new Integer(57) Object q
new Integer(99) pq
p
57
refCount 0
q
99
refCount 2
13
Reference Counting (cont'd)

• What in case of indirect references?
• We can still use reference counting, provided we
  consider all references to an object including
  references from other objects.
• Object p new Association(new Integer(57), new
  Integer(99))

14
Reference Counting (cont'd)

• When does reference counting fail?
• When head is assigned to null, first object
  reference count becomes 1 and not zero
• Reference counting will fail whenever the data
  structure contains a cycle of references

ListElements
ListElements
ListElements
head
next
next
next
refCount 1
refCount 1
refCount 1
15
Reference Counting (cont'd)

• Advantages and Disadvantages
• Garbage is easily identified.
• Garbage can be collected incrementally.
• - Every object should have a reference count
  field.
• Overhead for updating reference count fields.
• It fails in the case of cyclic references.
• It does not de-fragment the heap

16
Mark-and-Sweep Garbage Collection

• It is the first garbage collection algorithm that
  is able to reclaim garbage even for cyclic data
  structures.
• Mark and sweep algorithm consists of two phases
• mark phase
• sweep phase
• for each root variable r
• mark(r)
• sweep()

17
Mark and Sweep (cont'd)

• void sweep()
• for each Object p in the heap
• if (p.marked)
• p.markedfalse
• else
• heap.release(p)

program
18
Mark and Sweep (cont'd)

• Advantages
• It correctly identifies and collects garbage even
  in the presence of reference cycles.
• No overhead in manipulating references.
• Disadvantages
• The program suspends while garbage collecting.
• It does not De-Fragment the heap.

19
Stop-and-Copy Garbage Collection

• This algorithm collects garbage and defragments
  the heap.
• The heap is divided into two regions active and
  inactive.
• When the memory in the active region is
  exhausted, the program is suspended and
• Live objects are copied to the inactive region
  contiguously
• The active and in active regions reverse their
  roles
• The Algorithm
• for each root variable r
• rcopy(r,inactiveHeap)
• swap (activeHeap,inactiveHeap)

20
Stop-and-Copy Garbage Collection (cont'd)
head

• Object copy(Object p, Heap destination)
• if (pnull)
• return null
• if (p.forwardnull)
• qdestination.newInstance(p.class)

• p.forward q
• for each field f in p
• if ( f is primitive type)
• q.fp.f
• else
• q.f copy(p.f,
  destination)
• q.forware null
• return p.forware

inactive
A
active
null
B
null
C
null
21
Stop-and-Copy Garbage Collection (cont'd)

• Advantages
• It works for cyclic data structures
• It Defragments the heap.
• Disadvantages
• All objects should be copied when the garbage
  collector is invoked it does not work
  incrementally.
• It requires twice as much memory as the program
  actually uses.
