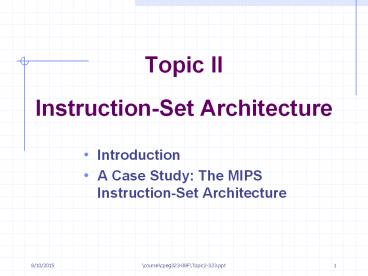

Topic II Instruction-Set Architecture

1
Topic IIInstruction-Set Architecture

• Introduction
• A Case Study The MIPS Instruction-Set
  Architecture

2
Reading List

• Slides Topic2x
• Henn Patt Chapter 2
• Other papers as assigned in class or homeworks

3
The Stored Memory Computer

• Five parts of a computer
• Datapath (channels/changes bits)
• Control (directs operations)
• Memory (places to keep bits)
• Input (get data from outside)
• Output (send data to outside

4
Steps in Executing an Instruction

• Instruction Fetch Fetch the next instruction
  from memory
• Instruction Decode Examine instruction to
  determine
• What operation is performed by the instruction
  (e.g., addition)
• What operands are required, and where the result
  goes
• Operand Fetch Fetch the operands
• Execution Perform the operation on the operands
• Result Writeback Write the result to the
  specified location
• Next Instruction Determine where to get next
  instruction

5
What is Specified in an ISA?

• Instruction Decode How are operations and
  operands specified?
• Operand Fetch Where can operands be located? How
  many?
• Execution What operations can be performed? What
  data types and sizes?
• Result Writeback Where can results be written?
  How many?
• Next Instruction How can we choose the next
  instruction?

6
A Simple ISA Memory-Memory

• What operation can be performed? Basic arithmetic
  (for now)
• What data types and sizes? 32-bit integers
• Where can operands and results be located? Memory
• How many operands and results ? 2 operands, 1
  result
• How are operations and operands specified?
• OP DEST, SRC1, SRC2
• How can we choose the next instruction? Next in
  sequence

7
Memory Model

• Think of memory as being a large array of n
  integers, referenced by the index (random Access
  Memory, or RAM)

For instance, M1 contains the value 3. We can
read and write these locations. These are the
only locations available to us. All abstract
locations (such as variables in a C program) must
be assigned locations in M.
Address Contents
0
14
1
3
2
99
. . .
. . .
N - 1
0
8
Simple Code Translation

• Given the C code
• A B C
• Assuming that we could decide that variable A
  uses location 100, B uses 48, and C uses 76.
  Convert the code above to the following
  assembly code
• ADD M100, M48, M76
• How would we express
• A (B C) (D E)

9
Using a Temporary Location

• Assume we put A in 100, B in 48, C in 76, D in
  20, and E in 32.
• Now choose an unused memory location (e.g., 84).
• ADD M100, M48, M76 A B C
• ADD M84, M20, M32 temp D E
• MUL M100, M100, M84 A A temp

10
Problems with Memory-Memory ISAs

• Main memory much slower than arithmetic circuits
• This was as true in 1950 as in today!
• It takes a lot of room to specify memory
  addresses
• Results are often used one or two instructions
  later
• Remember make the common case fast!
• Solution store temporary or intermediate results
  in fast memories near the arithmetic units.

11
Accumulator Machines

• An accumulator machine keeps a single
  high-speed buffer (e.g., a set of D latches or
  flip-flops, one for each data bit) near the
  arithmetic logic.
• In the simplest kind, only one operand can be
  specified the accumulator is implicit OP
  operand means
• acc. acc. OP operand
• Example
• LOAD M48 Load B into acc.
• ADD M76 Add C to acc. (now has BC)
• STORE M100 Write acc. To A

12
Accumulator Machines Does A(BC)(DE)

• LOAD M20 Load D into acc.
• ADD M32 Add E to acc. (now has DE)
• STORE M100 Write acc. To A
• LOAD M48 Load B into acc.
• ADD M76 Add C to acc. (now has BC)
• MUL M100 Multiply A to acc.
• STORE M100 Write (BC) (DE) to A

13
Shortcomings of Accumulator Machines

• Still requires storing lots of temporary and
  intermediate values in memory
• Accumulator is only really beneficial for a chain
  (sequence) of calculations where the result of
  one is the input to the next.

14
Still, Accumulator Machines Were Common in Early
Computers

• A simple design, and hence popular, especially
  for
• Early computers
• Early microprocessors (4004, 8008)
• Low-end (cheap) models
• Reason accumulator logic much more expensive
  than memory
• Vacuum tubes vs. core memory
• D flip-flops vs. DRAM
• Precious space on processor chip vs. off-chip DRAM

15
Alternatives to Accumulator Machines

• If more hardware resources are available, put
  more fast storage locations alongside the
  accumulator
• Stack machines
• Register machines
• Special purpose
• General purpose

16
Stack Machines

• Idea A pile of fast storage locations with a top
  and a bottom.

An instruction can only get at the top value, or
may be the top two or three values. We can put
new values on the top (push) or take them off
the top (pop) but thats it. We cant get to
locations underneath the top unless we remove
everything above.
Address Contents
top
14
2nd from top
3
3rd from top
99
. . .
. . .
bottom
0
17
Stack Machine ISA

• Basic operations include
• Load get value from memory and push onto stack
• Store pop value off of stack and put into memory
• Arithmetic pop 1 or 2 values off of stack push
  result on stack
• Dup Get value at top of stack without removing
  push new copy onto stack (why is this useful?)

18
Stack Machine Does A(BC)(DE)
(stack top at start)
(DE)
ADD
XXX
(D)
LOAD M20
XXX
(B)
(DE)
LOAD M48
XXX
(E)
(D)
(continued next slide)
LOAD M32
XXX
19
Stack Machine (cont.)
((BC)(DE))
(B)
XXX
MULT
(DE)
LOAD M76
XXX
STORE M100
(BC)
(DE)
ADD
XXX
Note that the stack is now the same as when we
began.
20
Stack Machines Used

• Some early computers
• 8086 floating point unit (sort of)
• Java Virtual Machine (JVM)

21
Register Machines

• Idea Put more storage locations (registers)
  near the accumulator
• Regs have names/numbers and can be used instead
  of memory
• Accessed much faster than main memory
• (1-2 CPU cycles vs. 10s to 100 cycles)
• Far fewer registers than memory locations
• MIPS has 32 32-bit registers
• Fewer regs, smaller addresses, fewer bits to name
  them
• A scarce resource use them carefully!

22
Special- vs. General-Purpose Registers

• A special-purpose register is used for specific
  purposes and there may be limitations on which
  operations can use it
• Easier on the HW design put the reg right where
  its needed
• More difficult for the compiler to use
  effectively
• A general-purpose register can be used in any
  operation
• - Datapaths more general, but routing is more
  difficult

23
Special-Purpose Registers The Z-80 CPU

• Seven 8-bit registers A, B, C, D, E, H, L (BC,
  DE, HL can be pairs)
• Three 16-bit registers SP, IX, IY, plus PC
  (Program counter)
• Add, subtract, shift can only be done to A (8-bit
  accumulator)
• Increment and decrement can be done to all regs
  and reg pairs
• Can fetch from memory at address (HL) and put in
  any 8-bit reg
• A fetch from address (BC) or(DE) can only go to A
• Fetches from (BC), (HL) and (IX) take different
  numbers of cycles
• Anyone want to write a compiler for this?

24
General Purpose Register (GPR) Machines

• The MIPS (and similar processors) has 32 General
  Purpose Registers (GPRs), each 32 bits long. All
  can be read or written, except register 0,
  whichis always 0 and cant be changed.
• Register access time is uniform.

Address Contents
0
0
1
3
2
99
. . .
. . .
31
14
25
GPR Machine Does A(BC)(DE)

• ADD 1 M48, M76 R1 B C
• ADD 2 M20, M32 R2 D E
• MUL M100, 1, 2 A R1 R2

26
Some Trend

• From hardware technology number of Rs can be
  put on chip has potential grow very fast (Moores
  Law ?)
• Very large register set will have slow access
  time.
• Instruction set evolution is slow to accommodate
  the change of of Rs

27
Memory and Data Sizes

• So far, weve only talked about uniform data
  sizes. Actual data come in many different sizes
• Single bits (boolean values, true or false)
• Bytes (8 bits) Characters (ASCII), very small
  integers
• Halfwords (16 bits) Characters (Unicode), short
  integers
• Words (32 bits) Long integers, floating-point
  (FP) numbers
• Double-words (64 bits) Very long integers,
  double-precision FP
• Quad-words (128 bits) Quad-precision
  floating-point numbers

NOTE There is another data size which is called
extended double precision which is 80 bits long.
Used in x86 FPUs
28
Different Data Sizes

• How do we handle different data sizes?
• Pick one size to be the unit stored in a single
  address
• Store larger datum in a set of contiguous memory
  locations
• Store smaller datum in one location use shift
  mask ops
• Today, almost all machines (including MIPS) are
  byte-addressable each addressable location in
  memory holds 8 bits.

29
MIPS Memory

• On a byte-addressable machine such as the MIPS,
  if we say a word (32 bits) is stored at address
  80, we mean it occupies locations 80-83. (The
  next word would start at 84.)
• Normally, multi-byte loads and stores must be
  aligned. The address of an n-byte load/store
  must be a multiple of n. For instance, halfwords
  can only be stored at even addresses.
• MIPS allow non-aligned loads and stores using
  special instructions, but they may be slower.
  (Most processors dont allow this at all!)

30
Byte-Order (Endianness)

• For a multi-byte datum, which part goes in which
  byte?
• If 1 contains 1,000,000 (F4240H) and we store it
  into address 80
• On a big-endian machine, the big end goes
  into address 80
• On a little-endian machine, its the other way
  around

00 0F 42 40
79 80 81 82 83 84

40 42 0F 00
79 80 81 82 83 84

31
Big-Endian vs. Little-Endian

• Big-endian machines MIPS, Sparc, 68000
• Little-endian machines most Intel processors,
  Alpha, VAX, Intel 8086
• No real reason one is better than the other
• Compatibility problems transferring multi-byte
  data between big-endian and little-endian
  machines CAREFUL!
• Read Appendix A-43 for more information.

32
Addressing Modes

• - An ISAs addressing modes answer the question
  where can operands be located?
• We have two types of storage in the MIPS (and
  most other machines) registers and main memory.
• We can go to either or both for operands. A
  single operand can come from either a register or
  a memory location
• and addressing modes offer various ways of
  specifying this location.

33
Simple Addressing Modes

• In these modes, a location or datum is given
  directly in the instruction

Mode name Example Meaning
Register mov 1, 2 R2 R1
Direct (or absolute) mov 1, (40) M40 R1
Immediate mov 1, 40 40 R1
34
Indirect Addressing Modes

• One or more registers are used to produce a
  memory address

Mode name Example Meaning
Reg. Indirect mov 1, (2) MR2 R1
Displacement mov 1, 40(2) M40R2 R1
Indexed mov 1, 4(2) MR4R2 R1
Mem. Indirect mov 1, _at_(2) MMR2 R1
35
Advanced Addressing Modes

• Extra features to support features in high-level
  languages or reduce the number of instructions
  during common memory accesses

Mode name Example Meaning
Auto-increment mov 1, 4(2) M4R2 R1
Auto-decrement mov 1, 4(2) - - MR2-4 R1
Scaled mov 1, 40(2) s M40R2xs R1
36
Choices in Addressing Modes

• Anything goes Any addressing mode may be used
  for any operand at any time
• - Easier to map high-level statements directly
  to instructions
• - Hard to design processor, due to all the
  complexity
• Limited addressing Only allow a few modes,
  and/or restrict some operands to certain modes
• - Harder for compiler/programmer to follow all
  the rules
• - Code may be longer

37
Frequency of Addressing Modes

• 3 programs measured on VAX, which supports all
  kinds of modes

Frequency of mode () Min. ave. max.
Mode Name
Displacement 32 42 55
Immediate 17 33 43
Reg. Indirect 3 13 24
Scaled 0 7 16
Mem. Indirect 1 3 6
Others 0 2 3
38
Empirical Data on Addressing Modes

• How big do the displacements need to be?
• In study of SPECin92 and SPECfp92, 99 of
  displacements fell within 215
• How big do the immediates (constants) need to be?
• Studies show 50 - 60 fit within 8 bits
• 75-80 fit within 16 bits

Excercise search current results (e.g. for
SPEC2005 ?)
39
How Do We Represent Instructions?

• We need some bits to tell what operation is
  performed (e.g., add, sub, mul, etc.) this is
  called the opcode.
• We need some bits for each operand and result (3
  total, in our case)
• What type of addressing mode
• Number of the register, memory address and/or
  immediate constant

40
Variable-Length Instructions

• Since the VAX allows any mode for any operand,
  there could be an instruction with three 32-bit
  addresses (direct addressing) ? gt 12 bytes in
  this instruction.
• But registers need only a few bits to specify, so
  12 bytes would be wasteful for an instruction
  using 3 registers only!
• Must use variable-length instructions. On the
  VAX, instructions can vary from 1 to 17 bytes!

41
Fixed-Length Instructions

• If every instruction has the same number of bits
  (preferable a nice even number like 16 or 32),
  many components of the processor will be simpler.
• But we either waste some amounts of space or
  cant support all the addressing modes!

42
Loading Small Integers

• All registers in MIPS are 32 bits
• What if we load a byte or halfword into a reg?
• Load the bits into the lowest 8 or 16 bits of the
  reg.
• Unsigned load All upper bits set to 0
• Signed load All upper bits set to sign bit (MSB
  of byte/halfword)

43
The RISC Approach

• In a Reduced Instruction Set Computer
• All instructions are the same size (32 bits on
  the MIPS)
• Few addressing modes are supported (only the
  frequent ones)
• Only a few instruction formats (makes decoding
  easier!)
• Arithmetic instructions can only work on
  registers
• Data in memory must be loaded into registers
  before processing
• - This is called a load-store architecture

44
RISC Criteria Colwell 85

• Single cycle operation
• Load/store machine
• Hardwired control
• Relative few instructions and addressing modes
• Fixed instruction format
• More compile time effort
