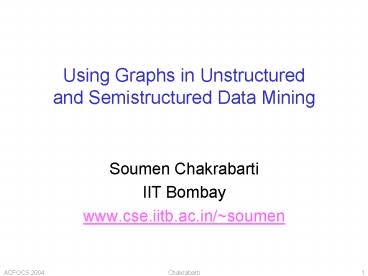

Using Graphs in Unstructured and Semistructured Data Mining

1
Using Graphs in Unstructuredand Semistructured
Data Mining

• Soumen Chakrabarti
• IIT Bombay
• www.cse.iitb.ac.in/soumen

2
Acknowledgments

• C. Faloutsos, CMU
• W. Cohen, CMU
• IBM Almaden (many colleagues)
• IIT Bombay (many students)
• S. Sarawagi, IIT Bombay
• S. Sudarshan, IIT Bombay

3
Graphics are everywhere

• Phone network, Internet, Web
• Databases, XML, email, blogs
• Web of trust (epinion)
• Text and language artifacts (WordNet)
• Commodity distribution networks

Protein Interactions genomebiology.com
Internet Map lumeta.com
Food Web Martinez 91
4
Why analyze graphs?

• What properties do real-life graphs have?
• How important is a node? What is importance?
• Who is the best customer to target in a social
  network?
• Who spread a raging rumor?
• How similar are two nodes?
• How do nodes influence each other?
• Can I predict some property of a node based on
  its neighborhood?

5
Outline, some more detail

• Part 1 (Modeling graphs)
• What do real-life graphs look like?
• What laws govern their formation, evolution and
  properties?
• What structural analyses are useful?
• Part 2 (Analyzing graphs)
• Modeling data analysis problems using graphs
• Proposing parametric models
• Estimating parameters
• Applications from Web search and text mining

6
Modeling and generatingrealistic graphs
7
Questions

• What do real graphs look like?
• Edges, communities, clustering effects
• What properties of nodes, edges are important to
  model?
• Degree, paths, cycles,
• What local and global properties are important to
  measure?
• How to artificially generate realistic graphs?

8
Modeling why care?

• Algorithm design
• Can skewed degree distribution make our algorithm
  faster?
• Extrapolation
• How well will Pagerank work on the Web 10 years
  from now?
• Sampling
• Make sure scaled-down algorithm shows same
  performance/behavior on large-scale data
• Deviation detection
• Is this page trying to spam the search engine?

9
Laws degree distributions

• Q avg degree is 10 - what is the most probable
  degree?

count
??
degree
10
10
Laws degree distributions

• Q avg degree is 10 - what is the most probable
  degree?

degree
11
Power-law outdegree O
Frequency
Exponent slope
O -2.15
-2.15
Nov97
Outdegree

• The plot is linear in log-log scale FFF99
• freq degree (-2.15)

12
Power-law rank R
outdegree
Exponent slope R -0.74
R
Dec98
Rank nodes in decreasing outdegree order

• The plot is a line in log-log scale

13
Eigenvalues

• Let A be the adjacency matrix of graph
• The eigenvalue ? is
• A v ? v, where v some vector
• Eigenvalues are strongly related to graph
  topology

14
Power-law eigenvalues of E

• Eigenvalues in decreasing order

Eigenvalue
Exponent slope
E -0.48
Dec98
Rank of decreasing eigenvalue
15
The Node Neighborhood

• N(h) of pairs of nodes within h hops
• Let average degree 3
• How many neighbors should I expect within 1,2, h
  hops?
• Potential answer
• 1 hop -gt 3 neighbors
• 2 hops -gt 3 3
• h hops -gt 3h

16
The Node Neighborhood

• N(h) of pairs of nodes within h hops
• Let average degree 3
• How many neighbors should I expect within 1,2, h
  hops?
• Potential answer
• 1 hop -gt 3 neighbors
• 2 hops -gt 3 3
• h hops -gt 3h

WRONG!
WE HAVE DUPLICATES!
17
The Node Neighborhood

• N(h) of pairs of nodes within h hops
• Let average degree 3
• How many neighbors should I expect within 1,2, h
  hops?
• Potential answer
• 1 hop -gt 3 neighbors
• 2 hops -gt 3 3
• h hops -gt 3h

WRONG x 2!
avg degree meaningless!
18
Power-law hop-plot H
of Pairs
H 2.83
H 4.86
of Pairs
Dec 98
Hops Router level 95
Hops

• Pairs of nodes as a function of hops N(h) hH

19
Observation

• Q Intuition behind hop exponent?
• A intrinsicfractal dimensionality of the
  network

N(h) h1
N(h) h2
20
Any other laws?

• Bow-tie, for the Web Kumar 99
• IN, SCC, OUT, tendrils
• Disconnected components

21
Generators

• How to generate graphs from a realistic
  distribution?
• Difficulty simultaneously preserving many local
  and global properties seen in realistic graphs
• Erdos-Renyi switch on each edge independently
  with some probability
• Problem degree distribution not power-law
• Degree-based
• Process-based (preferential attachment)

22
Degree-based

• Fix the degree distribution (e.g., Zipf)
• Assign degrees to nodes
• Add matching edges to satisfy degrees
• No control over other properties

23
Process-based Preferential attachment

• Start with a clique with m nodes
• Add one node v at every time step
• v makes m links to old nodes
• Suppose old node u has degree d(u)
• Let pu d(u)/ ?wd(w)
• v invokes a multinomial distribution defined by
  the set of ps
• And links to whichever us show up
• What is the degree distribution?

24
Bipartite cores

• Problem with preferential attachment does not
  explain dense/complete bipartite cores
• 100,000s in O(20 million)-page crawl
• Need a better generation process

Log(count)
n1
n3
n2
23 core (mn core)
Log(m)
25
Other process-based generators

• Copying model Kleinberg1999
• Sample a node v to which we must add k links
• W.p. b add k links to nodes picked u.a.r.
• W.p. 1b choose a random reference node r
• Copy k links from r to v
• Much more difficult to analyze
• Reference node ? compression techniques!
• Fabrikant, 02 H.O.T. connect to closest,
  high connectivity neighbor
• Pennock, 02 Winner does not take all

26
R-MAT Graph generator package

• Recursive MATrix generator Chakrabarti,04
• Goals
• Power-law in- and out-degrees
• Power law eigenvalues
• Small diameter
• Few parameters

27
Graph Patterns
Count vs edge-stress
28
R-MAT

• Subdivide the adjacency matrix
• choose a quadrant with probability (a,b,c,d)

29
R-MAT

• Recurse till we reach a 11 cell

a
b
a
c
d
d
c
30
R-MAT

• by construction
• rich-get-richer for in-degree
• ....................... for out-degree
• communities within communities
• and
• small diameter

31
Experiments (Clickstream)
Count vs Indegree
Count vs Outdegree
Hop-plot
Singular value vs Rank
Left Network value
Right Network value
R-MAT matches it well
32
Power laws all over

• Bible rank vs. word frequency
• Length of file transfers Bestavros
• Web hit counts Huberman
• Click-stream data Montgomery01
• Lotkas law of publication count (CiteSeer data)

33
Resources

• Generators
• RMAT (deepay_at_cs.cmu.edu)
• BRITE www.cs.bu.edu/brite/
• INET topology.eecs.umich.edu/inet
• Visualization tools
• Graphviz www.graphviz.org
• Pajek vlado.fmf.uni-lj.si/pub/networks/pajek
• Kevin Bacon web sitewww.cs.virginia.edu/oracle
• Erdos numbers etc.

34
Outline, some more detail

• Part 1 (Modeling graphs)
• What do real-life graphs look like?
• What laws govern their formation, evolution and
  properties?
• What structural analyses are useful?
• Part 2 (Analyzing graphs)
• Modeling data analysis problems using graphs
• Proposing parametric models
• Estimating parameters
• Applications from Web search and text mining

35
Centrality and prestige
36
How important is a node?

• Degree, min-max radius,
• Pagerank
• Maximum entropy network flows
• HITS and stochastic variants
• Stability and susceptibility to spamming
• Hypergraphs and nonlinear systems
• Using other hypertext properties
• Applications Ranking, crawling, clustering,
  detecting obsolete pages

37
Motivating problem

• Given a graph, find its most interesting/central
  node

A node is important, if it is connected with
important nodes (recursive, but OK!)
38
Motivating problem pageRank solution

• Given a graph, find its most interesting/central
  node
• Proposed solution Random walk spot most
  popular node (-gt steady state prob. (ssp))

A node has high ssp, if it is connected with
high ssp nodes (recursive, but OK!)
39
(Simplified) PageRank algorithm

• Let A be the transition matrix ( adjacency
  matrix) let AT become column-normalized - then

From
AT
To

40
(Simplified) PageRank algorithm

• AT p p

AT p p
2
1
3

4
5
41
(Simplified) PageRank algorithm

• AT p 1 p
• thus, p is the eigenvector that corresponds to
  the highest eigenvalue (1, since the matrix is
  column-normalized)

42
(Simplified) PageRank algorithm

• In short imagine a particle randomly moving
  along the edges
• compute its steady-state probabilities (ssp)
• Full version of algo with occasional random
  jumps see later

43
Intuition

• A as vector transformation

x
x
x

x
1
3
2
1
44
Intuition

• By defn., eigenvectors remain parallel to
  themselves (fixed points)

v1
v1
l1
3.62

45
Convergence

• Usually, fast
• depends on ratio
• l1 l2

l2
l1
46
Prestige as Pagerank BrinP1997

• Maxwells equation for the Web
• PR converges only if E is aperiodic and
  irreducible make it so
• d is the (tuned) probability of teleporting to
  one of N pages uniformly at random
• (Possibly) unintended consequences topic
  sensitivity, stability

u
v
OutDegree(u)3
47
Prestige as network flow

• yij surfers clicking from i to j per unit time
• Hits per unit time on page j is
• Flow is conserved at
• The total traffic is
• NormalizeCan interpret pij as a probability
• Standard Pagerank corresponds to one solution
• Many other solutions possible

48
Maximum entropy flow Tomlin2003

• Flow conservation modeled using feature
• And the constraints
• Goal is to maximizesubject to
• Solution has form
• ?i is the hotness of page i

49
Maxent flow results
?i ranking is better than Pagerank Hiranking
is worse
Two IBMintranetdata setswith knowntop URLs
Depth up to whichdmoz.org URLs areused as
ground truth
Averagerank (106) of knowntop URLswhensorted
byPagerank
Hi
?i
(Smaller rank is better)
Average rank (108)
50
Nodes influencing neighbors

• Q1 How does a virus spread across an arbitrary
  network?
• Q2 will it create an epidemic?
• Susceptible-Infected-Susceptible (SIS) model
• Cured nodes immediately become susceptible

51
The model

• (virus) Birth rate b probability than an
  infected neighbor attacks
• (virus) Death rate d probability that an
  infected node heals

Healthy
N2
N
N1
Infected
N3
52
The model

• Virus strength s b/d

Healthy
N2
N
N1
Infected
N3
53
Epidemic threshold t

• of a graph, defined as the value of t, such that
• if strength s b / d lt t
• an epidemic can not happen
• Thus,
• given a graph
• compute its epidemic threshold

54
Epidemic threshold t

• What should t depend on?
• avg. degree? and/or highest degree?
• and/or variance of degree?
• and/or third moment of degree?

55
Epidemic threshold

• Theorem We have no epidemic, if

ß/d ltt 1/ ?1,A
56
Epidemic threshold

• Theorem We have no epidemic, if

epidemic threshold
recovery prob.
ß/d ltt 1/ ?1,A
largest eigenvalue of adj. matrix A
attack prob.
Proof Wang03
57
Experiments (Oregon)
b/d gt t (above threshold)
b/d t (at the threshold)
b/d lt t (below threshold)
58
HITS Kleinberg1997

• Two kinds of prestige
• Good hubs link to good authorities
• Good authorities are linked to by good hubs
• Eigensystems of EET (h) and ETE (a)
• Whereas Pagerank uses the eigensystem of where
• Query-specific graph drop same-site links

59
Kleinbergs algorithm

• Step 1 expand by one move forward and backward

60
Kleinbergs algorithm

• give high score ( authorities) to nodes that
  many important nodes point to
• give high importance score (hubs) to nodes that
  point to good authorities)

hubs
authorities
61
Kleinbergs algorithm

• Observations
• recursive definition!
• each node (say, i-th node) has both an
  authoritativeness score ai and a hubness score hi

62
Kleinbergs algorithm

• Let A be the adjacency matrix
• the (i,j) entry is 1 if the edge from i to j
  exists
• Let h and a be n x 1 vectors with the
  hubness and authoritativiness scores.
• Then

63
Kleinbergs algorithm

• In conclusion, we want vectors h and a such that
• h A a
• a AT h
• That is
• a ATA a

64
Kleinbergs algorithm

• a is a right- singular vector of the adjacency
  matrix A (by dfn!)
• eigenvector of ATA
• Starting from random a and iterating, well
  eventually converge
• (Q to which of all the eigenvectors? why?)

65
Dyadic interpretation CohnC2000

• Graph includes many communities z
• QueryJaguar gets auto, game, animal links
• Each URL is represented as two things
• A document d
• A citation c
• Max
• Guess number of aspects zs and use Hofmann 1999
  to estimate Pr(cz)
• These are the most authoritative URLs

66
Dyadic results for Machine learning
Clustering based on citations ranking within
clusters
67
Spamming link-based ranking

• Recipe for spamming HITS
• Create a hub linking to genuine authorities
• Then mix in links to your customers sites
• Highly susceptible to adversarial behavior
• Recipe for spamming Pagerank
• Buy a bunch of domains, cloak IP addresses
• Host a site at each domain
• Sprinkle a few links at random per page to other
  sites you own
• Takes more work than spamming HITS

68
Stability of link analysis NgZJ2001

• Compute HITS authority scores and Pagerank
• Delete 30 of nodes/links at random
• Recompute and compare ranks repeat
• Pagerank ranks more stable than HITS authority
  ranks
• Why?
• How to design more stable algorithms?

HITS Authority
Pagerank
69
Stability depends on graph and params

• Auth score is eigenvector for ETE S, say
• Let ?1 gt ?2 be the first two eigenvalues
• There exists an S such that
• S and S are close SSF O(?1 ?2)
• But u1 u12 ?(1)
• Pagerank p is eigenvector of
• U is a matrix full of 1/N and ? is the jump prob
• If set C of nodes are changed in any way, the new
  Pagerank vector p satisfies

70
Randomized HITS

• Each half-step, with probability ?, teleport to a
  node chosen uniformly at random
• Much more stable than HITS
• Results more meaningful
• ? near 1 will always stabilize
• Here ? was 0.2

Randomized HITS
Pagerank
71
Another random walk variation of HITS

• SALSA Stochastic HITS Lempel2000
• Two separate random walks
• From authority to authority via hub
• From hub to hub via authority
• Transition probability Pr(ai?aj)
• If transition graph is irreducible,
• For disconnected components, depends on relative
  size of bipartite cores
• Avoids dominance of larger cores

a1
72
SALSA sample result (movies)
HITS The Tightly-Knit Community (TKC) effect
SALSA Less TKC influence (but no reinforcement!)
73
Links in relational data GibsonKR1998

• (Attribute, value) pair is a node
• Each node v has weight wv
• Each tuple is a hyperedge
• Tuple r has weight xr
• HITS-like iterations to update weight wv
• For each tuple
• Update weight
• Combining operator ? can be sum, max, product, Lp
  avg, etc.

74
Distilling links in relational data
Theory
Database
Author
Author
Forum
Year
75
Searching and annotating graph data
76
Searching graph data

• Nodes in graph contain text
• Random?Intelligent surfer RichardsonD2001
• Topic-sensitive Pagerank Haveliwala2002
• Assigning image captions using random walks
  PanYFD2004
• Rotting pages and links BarYossefBKT2004
• Query is a set of keywords
• All keywords may not match a single node
• Implicit joins Hulgeri2001, Agrawal2002
• Or rank aggregation Balmin2004 required

77
Intelligent Web surfer
Keyword
Probabilityof teleportingto node j
Probability of walking from i to j wrt q
Relevanceof node k wrt q
Pick out-link to walk on inproportion to
relevance oftarget out-neighbor
Querysetof words
Pick a query word per some distribution, e.g. IDF
78
Implementing the intelligent surfer

• PRQ(j) approximates a walk that picks a query
  keyword using Pr(q) at every step
• Precompute and store Prq(j) for each keyword q in
  lexicon space blowup avg doc length
• Query-dependent PR rated better by volunteers

79
Topic-sensitive Pagerank

• High overhead for per-word Pagerank
• Instead, compute Pageranks for some collection of
  broad topics PRc(j)
• Topic c has sample page set Sc
• Walk as in Pagerank
• Jump to a node in Sc uniformly at random
• Project query onto set of topics
• Rank responses by projection-weighted Pageranks

80
Topic-sensitive Pagerank results

• Users prefer topic-sensitive Pagerank on most
  queries to global Pagerank keyword filter

81
Image captioning

• Segment images into regions
• Image has caption words
• Three-layer graph image, regions, caption words
• Threshold on region similarity to connect regions
  (dotted)

82
Random walks with restarts
Regions
Images
Testimage
Words

• Find regions in test image
• Connect regions to other nodes in the region
  layer using region similarity
• Random walk, restarting at test image node
• Pick words with largest visit probability

83
More random walks Link rot

• How stale is a page?
• Last-mod unreliable
• Automatic dead-link cleaners mask disuse
• A page is completely stale if it is dead
• Let D be the set of pages which cannot be
  accessed (404 and other problems)
• How stale is a page u? Start with p ? u
• If p?D declare decay value of u to be 1, else
• With probability ? declare decay value of u 0
• W.p. 1? choose outlink v, set p?v, loop

84
Page staleness results
Decay
404s

• Decay score is correlated with, but generally
  larger than the fraction of dead outlinks on a
  page
• Removing direct dead links automatically does not
  eliminate live but rotting pages

85
Graph proximity search two paradigms

• A single node as query response
• Find node that matches query terms
• or is near nodes matching query terms
• Goldman 1998
• A connected subgraph as query response
• Single node may not match all keywords
• No natural page boundary Bhalotia2002
  Agrawal2002

86
Single-node response examples

• Travolta, Cage
• Actor, Face/Off
• Travolta, Cage, Movie
• Face/Off
• Kleiser, Movie
• Gathering, Grease
• Kleiser, Woo, Actor
• Travolta

Movie
is-a
Face/Off
Grease
Gathering
acted-in
Travolta
Cage
A3
directed
is-a
Actor
Kleiser
Woo
is-a
Director
87
Basic search strategy

• Node subset A activated because they match query
  keyword(s)
• Look for node near nodes that are activated
• Goodness of response node depends
• Directly on degree of activation
• Inversely on distance from activated node(s)

88
Proximity query screenshot
http//www.cse.iitb.ac.in/banks/
89
Ranking a single node response

• Activated node set A
• Rank node r in response set R based on
  proximity to nodes a in A
• Nodes have relevance ?R and ?A in 0,1
• Edge costs are specified by the system
• d(a,r) cost of shortest path from a to r
• Bond between a and r
• Parameter t tunes relative emphasis on distance
  and relevance score
• Several ad-hoc choices

90
Scoring single response nodes

• Additive
• Belief
• Goal list a limited number of find nodes with
  the largest scores
• Performance issues
• Assume the graph is in memory?
• Precompute all-pairs shortest path (V 3)?
• Prune unpromising candidates?

91
Hub indexing

• Decompose APSP problem using sparsevertex cuts
• AB shortest paths to p
• AB shortest paths to q
• d(p,q)
• To find d(a,b) compare
• d(a?p?b) not through q
• d(a?q?b) not through p
• d(a?p?q?b)
• d(a?q?p?b)
• Greatest savings when A?B
• Heuristics to find cuts, e.g. large-degree nodes

A
B
p
a
b
q
92
ObjectRank Balmin2004

• Given a data graph with nodes having text
• For each keyword precompute a keyword-sensitive
  Pagerank RichardsonD2001
• Score of a node for multiple keyword search based
  on fuzzy AND/OR
• Approximation to Pagerank of node with restarts
  to nodes matching keywords
• Use Fagin-merge Fagin2002 to get best nodes in
  data graph

93
Connected subgraph as response

• Single node may not match all keywords
• No natural page boundary
• On-the-fly joins make up a response page
• Two scenarios
• Keyword search on relational data
• Keywords spread among normalized relations
• Keyword search on XML-like or Web data
• Keywords spread among DOM nodes and subtrees

94
Keyword search on relational data

• Tuple node
• Some columns have text
• Foreign key constraints edges in schema graph?
• Query set of terms
• No natural notionof a document
• Normalization
• Join may be needed to generate results
• Cycles may exist in schema graph Cites

Cites
Paper
CitingCited? ? ?
PaperIDPaperName? ? ?
Writes
Author
AuthorIDPaperID? ? ?
AuthorIDAuthorName? ? ?
95
DBXplorer and DISCOVER

• Enumerate subsets of relations in schema graph
  which, when joined, may contain rows which have
  all keywords in the query
• Join trees derived from schema graph
• Output SQL query for each join tree
• Generate joins, checking rows for matches
• Agrawal2001, Hristidis2002

T4
K1,K2,K3
T2
T3
T4
T2
T5
T1
T2
T3
K2
T4
T2
T3
T5
T2
T3
T5
K3
96
Discussion

• Exploits relational schema information to contain
  search
• Pushes final extraction of joined tuples into
  RDBMS
• Faster than dealing with full data graph directly

• Coarse-grained ranking based on schema tree
• Does not model proximity or (dis) similarity of
  individual tuples
• No recipe for data with less regular (e.g. XML)
  or ill-defined schema

97
Motivation from Web search

• Linux modem driver for a Thinkpad A22p
• Hyperlink path matches query collectively
• Conjunction query would fail
• Projects where X and P work together
• Conjunction may retrieve wrong page
• General notion of graph proximity

• IBM Thinkpads
• A20m
• A22p

• Thinkpad
• Drivers
• Windows XP
• Linux

• Download
• Installation tips
• Modem
• Ethernet

• The B System
• Group members
• P
• S
• X

• Home Page ofProfessor X
• Papers
• VLDB
• Students
• P
• Q

Ps home page I work on the B project.
98
Data structures for search

• Answer tree with at least one leaf containing
  each keyword in query
• Group Steiner tree problem, NP-hard
• Query term t found in source nodes St
• Single-source-shortest-path SSSP iterator
• Initialize with a source (near-) node
• Consider edges backwards
• getNext() returns next nearest node
• For each iterator, each visited node v maintains
  for each t a set v.Rt of nodes in St which have
  reached v

99
Generic expanding search

• Near node sets St with S ?t St
• For all source nodes ? ? S
• create a SSSP iterator with source ?
• While more results required
• Get next iterator and its next-nearest node v
• Let t be the term for the iterators source s
• crossProduct s ? ?t ?tv.Rt
• For each tuple of nodes in crossProduct
• Create an answer tree rooted at v with paths to
  each source node in the tuple
• Add s to v.Rt

100
Search example (Vu Kleinberg)
Quoc Vu
Jon Kleinberg
author
writes
cites
paper
101
First response
Quoc Vu
Jon Kleinberg
writes
writes
writes
Organizing Web pagesby Information Unit
Authoritative sources in ahyperlinked environment
cites
A metriclabeling problem
writes
cites
cites
Divyakant Agrawal
writes
Eva Tardos
author
writes
cites
paper
102
Subgraph search screenshot
http//www.cse.iitb.ac.in/banks/
103
Similarity, neighborhood, influence
104
Why are two nodes similar?

• What is/are the best paths connecting two nodes
  explaining why/how they are related?
• Graph of co-starring, citation, telephone call,
• Graph with nodes s and t budget of b nodes
• Find best b nodes capturing relationship
  between s and t FaloutsosMT2004
• Proposing a definition of goodness
• How to efficiently select best connections

Negroponte
Palmisano
Esther Dyson
Gerstner
105
Simple proposals that do not work

• Shortest path
• Pizza boy p gets same attention as g
• Network flow
• s?a?b?t is as good as s?g?t
• Voltage
• Connect 1V at s, ground t
• Both g and p will be at 0.5V
• Observations
• Must reward parallel paths
• Must reward short paths
• Must penalize/tax pizza boys

a
b
s
g
t
p
106
Resistive network with universal sink

• Connect 1V to s
• Ground t
• Introduce universal sink
• Grounded
• Connected to every node
• Universal sink is a tax collector
• Penalizes pizza boys
• Penalizes long paths
• Goodness of a path is the electric current it
  carries

a
b
s
g
t
p
Connectedto every node
107
Resistive network algorithm

• Ohms law
• Kirchhoffs current law
• Boundary conditions (without sink)
• Solution
• Here C(u,v) is the conductance from u to v
• Add grounded universal sink z with V(z)0
• Set
• Display subgraph carrying high current

108
Distributions coupled via graphs

• Hierarchical classification
• Document topics organized in a tree
• Mapping between ontologies
• Can Dmoz label help labeling in Yahoo?
• Hypertext classification
• Topic of Web page better predicted from hyperlink
  neighborhood
• Categorical sequences
• Part-of-speech tagging, named entity tagging
• Disambiguation and linkage analysis

109
Hierarchical classification

• Obvious approaches
• Flatten to leaf topics, losing hierarchy info
• Level-by-level, compounding error probability
• Cascaded generative model
• Pr(cd,r) estimated as Pr(cr)Pr(dc)/Z(r)
• Estimate of Pr(dc) makes naïve independence
  assumptions if d has high dimensionality
• Pr(cd,r) tends to 0/1 for large dimensions and
• Mistake made at shallow levels become irrevocable

r
c
110
Global discriminative model

• Each node has an associated bit X
• Propose a parametric form
• Each training instance sets one path to 1, all
  other nodes have X0

T
xr
d
F(d,xr)
xr0
xr1
2T1
wc
111
Hypertext classification

• cclass, ttext, Nneighbors
• Text-only model Prtc
• Using neighbors textto judge my topicPrt,
  t(N) c
• Better modelPrt, c(N) c
• Non-linear relaxation

?
112
Generative graphical model results

• 9600 patents from 12 classes marked by USPTO
• Patents have text and cite other patents
• Expand test patent to include neighborhood
• Forget fraction of neighbors classes

113
Discriminative graphical model

• OA(X) direct own attributes of node X
• LD(X) link-derived attributes of node X
• Mode-link most frequent label of neighbors(X)
• Count-link histogram of neighbor labels
• Binary-link 0/1 histogram of neighbor labels
• Iterate as in generative case

Local model params
Neighborhood model params
114
Discriminative model results Li2003

• Binary-link and count-link outperform
  content-only at 95 confidence
• Better to separately estimate wl and wo
• InOutCocitation better than any subset for LD

115
Undirected Markov networks

• Clique c?C(G) a set of completely connected nodes
• Clique potential ?c(Vc) a function over all
  possible configurations of nodes in Vc
• Decompose Pr(v) as (1/Z)?c?C(G)?c(Vc)
• Parametric form

Label coupling
Instance
Local feature variable
Label variable
Params of model
Feature functions
116
Conditional and relational networks

• x vector of observed features at all nodes
• y vector of labels
• A set of clique templatesspecifying links to
  use
• Other features in the sameHTML section

117
Special case sequential networks

• Text modeled as sequence of tokens drawn from a
  large but finite vocabulary
• Each token has attributes
• Visible allCaps, noCaps, hasXx, allDigits,
  hasDigit, isAbbrev, (part-of-speech, wnSense)
• Not visible part-of-speech, (isPersonName,
  isOrgName, isLocation, isDateTime),
  startscontinuesends-noun-phrase
• Visible (symbols) and invisible (states)
  attributes of nearby tokens are dependent
• Application decides what is (not) visible
• Goal Estimate invisible attributes

118
Hidden Markov model

• A generative sequential model for the joint
  distribution of states (s) and symbols (o)

St-1
St
St1
...
...
Ot
Ot1
Ot-1
119
Using redundant token features

• Each o is usually a vector of features extracted
  from a token
• Might have high dependence/redundancy hasCap,
  hasDigit, isNoun, isPreposition
• Parametric model for Pr(st?ot) needs to make
  naïve assumptions to be practical
• Overall joint model Pr(s,o) can be very
  inaccurate
• (Same argument as in naïve Bayes vs. SVM or
  maximum entropy text classifiers)

120
Discriminative graphical model

• Assume one-stage Markov dependence
• Propose direct parametric form for conditional
  probability of state sequence given symbol
  sequence

Model
Log-linear form
Feature function mightdepend on whole o
Parameters to fit
121
Feature functions and parameters
Penalizelarge params
Maximize total conditional likelihood over all
instances

• Find ?L/??k for each k and perform a
  gradient-based numerical optimization
• Efficient for linear state dependence structure

122
Conditional vs. joint results
Out-of-vocabulary error
Orthography Use words, plus overlapping
features isCap, startsWithDigit, hasHyphen,
endsWith -ing, -ogy, -ed, -s, -ly, -ion, -tion,
-ity, -ies
123
Summary

• Graphs provide a powerful way to model many kinds
  of data, at multiple levels
• Web pages, XML, relational data, images
• Words, senses, phrases, parse trees
• A few broad paradigms for analysis
• Factors affecting graph evolution over time
• Eigen analysis, conductance, random walks
• Coupled distributions between node attributes and
  graph neighborhood
• Several new classes of model estimation and
  inferencing algorithms

124
References

• BrinP1998 The Anatomy of a Large-Scale
  Hypertextual Web Search Engine, WWW.
• GoldmanSVG1998 Proximity search in databases.
  VLDB, 2637.
• ChakrabartiDI1998 Enhanced hypertext
  categorization using hyperlinks. SIGMOD.
• BikelSW1999 An Algorithm that Learns Whats in
  a Name. Machine Learning Journal.
• GibsonKR1999 Clustering categorical data An
  approach based on dynamical systems. VLDB.
• Kleinberg1999 Authoritative sources in a
  hyperlinked environment. JACM 46.

125
References

• CohnC2000 Probabilistically Identifying
  Authoritative Documents, ICML.
• LempelM2000 The stochastic approach for
  link-structure analysis (SALSA) and the TKC
  effect. Computer Networks 33 (1-6) 387-401
• RichardsonD2001 The Intelligent Surfer
  Probabilistic Combination of Link and Content
  Information in PageRank. NIPS 14 (1441-1448).
• LaffertyMP2001 Conditional Random Fields
  Probabilistic Models for Segmenting and Labeling
  Sequence Data. ICML.
• BorkarDS2001 Automatic text segmentation for
  extracting structured records. SIGMOD.

126
References

• NgZJ2001 Stable algorithms for link analysis.
  SIGIR.
• Hulgeri2001 Keyword Search in Databases. IEEE
  Data Engineering Bulletin 24(3) 22-32.
• Hristidis2002 DISCOVER Keyword Search in
  Relational Databases. VLDB.
• Agrawal2002 DBXplorer A system for
  keyword-based search over relational databases.
  ICDE.
• TaskarAK2002 Discriminative probabilistic
  models for relational data.
• Fagin2002 Combining fuzzy information an
  overview. SIGMOD Record 31(2), 109118.

127
References

• Chakrabarti2002 Mining the Web Discovering
  Knowledge from Hypertext Data
• Tomlin2003 A New Paradigm for Ranking Pages on
  the World Wide Web. WWW.
• Haveliwala2003 Topic-Sensitive Pagerank A
  Context-Sensitive Ranking Algorithm for Web
  Search. IEEE TKDE.
• LuG2003 Link-based Classification. ICML.
• FaloutsosMT2004 Connection Subgraphs in Social
  Networks. SIAM-DM workshop.
• PanYFD2004 GCap Graph-based Automatic Image
  Captioning. MDDE/CVPR.

128
References

• Balmin2004 Authority-Based Keyword Queries in
  Databases using ObjectRank. VLDB.
• BarYossefBKT2004 Sic transit gloria telae
  Towards an understanding of the Webs decay.
  WWW2004.
