Title: Regular Expression Manipulation FSM Model

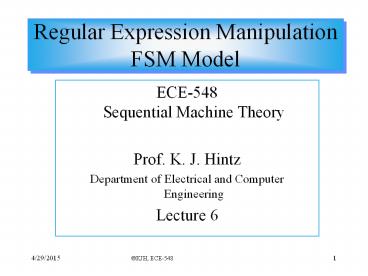

1
Regular Expression ManipulationFSM Model
  • ECE-548 Sequential Machine Theory
  • Prof. K. J. Hintz
  • Department of Electrical and Computer Engineering
  • Lecture 6

2
Null Machine
  • 3 Methods for Proving That a Machine Accepts No
    Words
  • By inspection
  • Any path from the start state to a final state
    means that at least one word is accepted by the
    machine
  • By state diagram manipulation
  • If a final state is relabeled as a start state,
    then the machine must accept at least one word

3
Null Machine
  • By converting the regular expression into a
    deterministic FA
  • If possible, FA must accept at least one word
  • Conversion to FA may not be possible
  • Machine may have no final states.
  • There is no path from the initial state to any
    final state.

4
State Diagram Manipulation
  • A procedure to determine if a machine accepts no
    strings
  • Remove all edges (arrows) to the start state.
  • From the start state, identify all single-step
    next states.
  • Relabel these next states as start states and
    eliminate the edges used to get there.
  • go to (b)
  • If a final state is relabeled as a start state,
    then the machine must accept at least one word.

5
State Diagram Manipulation

6
State Diagram Manipulation

7
State Diagram Manipulation
  • Does Not Accept Any
  • Word Since
  • There Is No
  • Path From
  • - To .

8
The Complement Machine
  • A Complement Machine Accepts All Expressions
    Other Than Those Accepted by the Original Machine
  • Method
  • Change all non-final states into final states
  • Change all final states into non-final states
  • Leave start state unchanged

9
Language Decidability
  • Methods for Determining If Two Regular
    Expressions Define the Same Language
  • Language Enumeration with 11 correspondence
    between the 2 languages.
  • The regular languages can be accepted by
    identical FAs.
  • Generate

10
Language Overlap
  • If the Overlap Language Is NOT the Null Set, Then
    There Is Some Word in L1 Which Is Not Accepted by
    L2 and Vice Versa.
  • If the Overlap Language Accepts the Null String,
    Then the Languages Are Not Equal.

11
DeMorgans Theorem
  • Applies Equally Well to Sets As Well As Boolean
    Algebra

12
Regular Expression Equivalence
  • Methodology
  • Construct the complement machines
  • Apply DeMorgans theorem since it is difficult to
    form the intersect machine

13
Regular Expression Equivalence
  • Take the Unions of the Complemented and
    Non-complemented Several Times to Determine
    Whether Loverlap Is the Null Set or Not

14
RE Equivalence Example
  • Two REs are represented by their equivalent FAs
    (FA1 does FA2)

Cohen, Prob. 2, page 233.
15
RE Equivalence Example
  • Form the Complement Machines

16
RE Equivalence Example
  • Make the Product Machine of FA2 and the
    Complement of FA1.

17
RE Equivalence Example
  • States of Product Machine, FA1-bar FA2
  • Only One Start State/Multiple Final States

18
RE Equivalence Example

19
Product Machine State Table
20
State Diagram of Product
  • FA1-Bar, FA2

21
Reduced State Diagram
  • Non-Reachable States Removed

22
RE Equivalence Example
  • Take the Complement Of the Union by changing
    final states to non-final and vice-versa
  • No Final States, So Complement FA Accepts No Words

23
RE Equivalence Example
  • Do the Same for the Right Term of Loverlap

24
RE Equivalence Example
  • Application of Same Procedure to Preceding
    Machine Also Results in No Recognizable Words.
  • Since Both Terms of Loverlap are Null, Then REs
    Are Equivalent Since Their Union Is Null.

25
Moore Mealy Machines
  • The Behavior of Sequential Machines Depends on
    Previous Inputs.
  • Moore Machine
  • Output only depends on present state
  • Mealy Machine
  • Output depends on both the present state and the
    present input

26
Moore Mealy Machines
  • Equivalent Descriptive Methods
  • Transition (state) table
  • Transition (state) diagram
  • Operational descriptions using set theory
  • (Language recognized by the machine)

27
Moore Machine
Input
Present State
Output
Output Is Only a Function of Present State
28
Primitive State Diagram, Moore
29
Moore Machine State Diagram
30
Mealy Machine
Input
Present State
Output
Output Is Function of Present State AND Present
Input
31
Primitive State Diagram, Mealy
32
Mealy Machine State Diagram
33
Transition Table

34
FSM Design Approaches
  • One-Hot
  • One flip-flop is used to represent each state
  • Costly in terms of discrete hardware, but trivial
    to design
  • Efficient in FPGAs because FF part of each CLB
  • Binary Coded State
  • n flip-flops used to store 2n states
  • Most efficient
  • Need to account for unused states

35
FSM and Clocks
  • Synchronous FSMs may change state only when a
    unique input, the clock, occurs
  • Asynchronous FSMs may change state when input
    changes
  • Next state depends on present input and present
    state for both Moore and Mealy

36
Synch vs. Asynch
  • Synchronous FSMs
  • Easier to design, turn the crank
  • Slower operation
  • Asynchronous
  • Harder to design because of potential for races,
    iterative solutions
  • Faster operation

37
Mealy 0101 Detector
  • M ( S, I, O, d, b )
  • S A, B, C, D
  • I 0, 1
  • O 0, 1 not detected, detected
  • d next slide
  • b next slide

38
Mealy Transition/Output Table
Next State/Output
39
0101 State Diagram
1/0
0/0
0/0
1/0
0/0
1/0
1/1
0/0
40
Moore 0101 Detector
  • M ( S, I, O, d, l )
  • S A, B, C, D, E
  • I 0, 1
  • O 0, 1 not detected, detected
  • d next slide
  • l next slide

41
Moore Transition/Output Table
Next State
42
Moore 0101 State Diagram
0
1
0 detected
0
A/0
B/0
0
1
1
1
0
C/0
0
1
01 det
0101 det
010 det
43
Asynchronous FSM
  • Fundamental Mode Assumption
  • Only one input can change at a time
  • Analysis too complicated if multiple inputs are
    allowed to change simultaneously
  • Circuit must be allowed to settle to its final
    value before an input is allowed to change
  • Behavior is unpredictable (nondeterministic) if
    circuit not allowed to settle

44
Asynch. Design Difficulties
  • Delay in Feedback Path
  • Not reproducible from implementation to
    implementation
  • Variable
  • may be temperature or electrical parameter
    dependent within the same device
  • Analog
  • not known exactly

45
Stable State
  • PS NS Stability
  • Machine may pass through none or more
    intermediate states on the way to a stable state
  • Desired behavior since only time delay separates
    PS from NS
  • Oscillation
  • Machine never stabilizes in a single state

46
Races
  • A Race Occurs in a Transition From One State to
    the Next When More Than One Next State Variables
    Changes in Response to a Change in an Input
  • Slight Environment Differences Can Cause
    Different State Transitions to Occur
  • Supply voltage
  • Temperature, etc.

47
Races
48
Types of Races
  • Non-Critical
  • Machine stabilizes in desired state, but may
    transition through other states on the way
  • Critical
  • Machine does not stabilize in the desired state

49
Races
PS
if Y2 changes first
if Y1 changes first
desired NS non- critical race
50
Asynch. FSM Benefits
  • Fastest FSM
  • Economical
  • No need for clock generator
  • Output Changes When Signals Change, Not When
    Clock Occurs
  • Data Can Be Passed Between Two Circuits Which Are
    Not Synchronized

51
Asynch. FSM Example
input
next state
present state
y1
y2
52
Next State Variables
53
Sequential Machines Problems
  • Three Problems of Sequential Machines
  • State minimization problem
  • Determine all equivalent states of a sequential
    machine, and,
  • Eliminate redundant states
  • Machine Decomposition
  • Separate large machines into an interconnected
    set of smaller machines
  • Easier to design and analyze small machines

54
Sequential Machine Problems
  • State assignment problem
  • There is no guidance on which binary number to
    assign to which state in a primitive state table
  • Complexity of implementation is dependent on
    mapping of states to binary numbers
  • Unsolved problem
  • Design all machines and compare
  • Benefit of decomposition of large machine into
    smaller machines.

55
Set Theoretic Description
  • Moore Machine is an ordered quintuple

56
Set Theoretic Description
  • Mealy Machine is an ordered quintuple

57
Recursive Definitions of Delta
  • State Transition for Moore Mealy
  • Single-valued, else not deterministic.
  • At least a partial function
  • Not necessarily injective or surjective
  • Shields nomenclature

58
Recursive Definitions of Delta

59
Recursive Definitions of Beta
  • Causal, No Output for No Input.
  • For a Given Input Sequence, There Will Be a
    Deterministic Output Sequence of the Same Length
    As the Input.

60
Recursive Definitions of Lambda
  • Same Caveats As Beta

sk
sk-1
