Title: Neural Nets Using Backpropagation

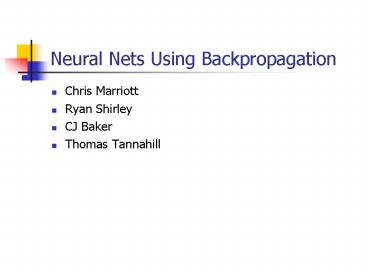

1
Neural Nets Using Backpropagation
  • Chris Marriott
  • Ryan Shirley
  • CJ Baker
  • Thomas Tannahill

2
Agenda
  • Review of Neural Nets and Backpropagation
  • Backpropagation The Math
  • Advantages and Disadvantages of Gradient Descent
    and other algorithms
  • Enhancements of Gradient Descent
  • Other ways of minimizing error

3
Review
  • Approach that developed from an analysis of the
    human brain
  • Nodes created as an analog to neurons
  • Mainly used for classification problems (i.e.
    character recognition, voice recognition, medical
    applications, etc.)

4
Review
  • Neurons have weighted inputs, threshold values,
    activation function, and an output

5
Review
4 Input AND
Inputs
Threshold 1.5
Outputs
Threshold 1.5
Inputs
Threshold 1.5
All weights 1 and all outputs 1 if active 0
otherwise
6
Review
  • Output space for AND gate

Input 1
(1,1)
(0,1)
1.5 w1I1 w2I2
Input 2
(1,0)
(0,0)
7
Review
  • Output space for XOR gate
  • Demonstrates need for hidden layer

Input 1
(1,1)
(0,1)
Input 2
(1,0)
(0,0)
8
Backpropagation The Math
  • General multi-layered neural network

Output Layer
0
1
2
3
4
5
6
7
8
9
X9,0
X0,0
X1,0
Hidden Layer
0
1
i
Wi,0
W0,0
W1,0
Input Layer
0
1
9
Backpropagation The Math
  • Backpropagation
  • Calculation of hidden layer activation values

10
Backpropagation The Math
  • Backpropagation
  • Calculation of output layer activation values

11
Backpropagation The Math
  • Backpropagation
  • Calculation of error

dk f(Dk) -f(Ok)
12
Backpropagation The Math
  • Backpropagation
  • Gradient Descent objective function
  • Gradient Descent termination condition

13
Backpropagation The Math
  • Backpropagation
  • Output layer weight recalculation

Learning Rate (eg. 0.25)
Error at k
14
Backpropagation The Math
  • Backpropagation
  • Hidden Layer weight recalculation

15
Backpropagation Using Gradient Descent
  • Advantages
  • Relatively simple implementation
  • Standard method and generally works well
  • Disadvantages
  • Slow and inefficient
  • Can get stuck in local minima resulting in
    sub-optimal solutions

16
Local Minima
Local Minimum
Global Minimum
17
Alternatives To Gradient Descent
  • Simulated Annealing
  • Advantages
  • Can guarantee optimal solution (global minimum)
  • Disadvantages
  • May be slower than gradient descent
  • Much more complicated implementation

18
Alternatives To Gradient Descent
  • Genetic Algorithms/Evolutionary Strategies
  • Advantages
  • Faster than simulated annealing
  • Less likely to get stuck in local minima
  • Disadvantages
  • Slower than gradient descent
  • Memory intensive for large nets

19
Alternatives To Gradient Descent
  • Simplex Algorithm
  • Advantages
  • Similar to gradient descent but faster
  • Easy to implement
  • Disadvantages
  • Does not guarantee a global minimum

20
Enhancements To Gradient Descent
  • Momentum
  • Adds a percentage of the last movement to the
    current movement

21
Enhancements To Gradient Descent
  • Momentum
  • Useful to get over small bumps in the error
    function
  • Often finds a minimum in less steps
  • w(t) -ndy aw(t-1)
  • w is the change in weight
  • n is the learning rate
  • d is the error
  • y is different depending on which layer we are
    calculating
  • a is the momentum parameter

22
Enhancements To Gradient Descent
  • Adaptive Backpropagation Algorithm
  • It assigns each weight a learning rate
  • That learning rate is determined by the sign of
    the gradient of the error function from the last
    iteration
  • If the signs are equal it is more likely to be a
    shallow slope so the learning rate is increased
  • The signs are more likely to differ on a steep
    slope so the learning rate is decreased
  • This will speed up the advancement when on
    gradual slopes

23
Enhancements To Gradient Descent
  • Adaptive Backpropagation
  • Possible Problems
  • Since we minimize the error for each weight
    separately the overall error may increase
  • Solution
  • Calculate the total output error after each
    adaptation and if it is greater than the previous
    error reject that adaptation and calculate new
    learning rates

24
Enhancements To Gradient Descent
  • SuperSAB(Super Self-Adapting Backpropagation)
  • Combines the momentum and adaptive methods.
  • Uses adaptive method and momentum so long as the
    sign of the gradient does not change
  • This is an additive effect of both methods
    resulting in a faster traversal of gradual slopes
  • When the sign of the gradient does change the
    momentum will cancel the drastic drop in learning
    rate
  • This allows for the function to roll up the other
    side of the minimum possibly escaping local minima

25
Enhancements To Gradient Descent
  • SuperSAB
  • Experiments show that the SuperSAB converges
    faster than gradient descent
  • Overall this algorithm is less sensitive (and so
    is less likely to get caught in local minima)

26
Other Ways To Minimize Error
  • Varying training data
  • Cycle through input classes
  • Randomly select from input classes
  • Add noise to training data
  • Randomly change value of input node (with low
    probability)
  • Retrain with expected inputs after initial
    training
  • E.g. Speech recognition

27
Other Ways To Minimize Error
  • Adding and removing neurons from layers
  • Adding neurons speeds up learning but may cause
    loss in generalization
  • Removing neurons has the opposite effect

28
Resources
  • Artifical Neural Networks, Backpropagation, J.
    Henseler
  • Artificial Intelligence A Modern Approach, S.
    Russell P. Norvig
  • 501 notes, J.R. Parker
  • www.dontveter.com/bpr/bpr.html
  • www.dse.doc.ic.ac.uk/nd/surprise_96/journal/vl4/c
    s11/report.html
