CS 260 Lecture 1: Introduction to Network Processors

1

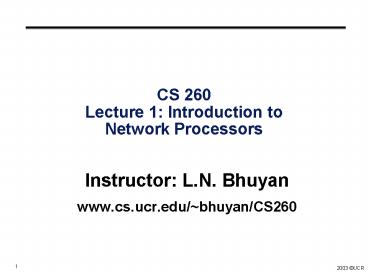

CS 260Lecture 1 Introduction toNetwork
Processors

• Instructor L.N. Bhuyan
• www.cs.ucr.edu/bhuyan/CS260

2
Outline

• Introduction to NP Systems
• Relevant Applications
• Design Issues and Challenges
• Relevant Software and Benchmarks
• A case study Intel IXP network processors

3
What are Network Processors

• Any device that executes programs to handle
  packets in a data network
• Examples
• Processors on router line cards
• Processors in network access equipment

4
Why Network Processors

• Current Situation
• Data rates are increasing
• Protocols are becoming more dynamic and
  sophisticated
• Protocols are being introduced more rapidly
• Processing Elements
• GP(General-purpose Processor)
• Programmable, Not optimized for networking
  applications
• ASIC(Application Specific Integrated Circuit)
• high processing capacity, long time to develop,
  Lack the flexibility
• NP(Network Processor)
• achieve high processing performance
• programming flexibility
• Cheaper than GP

5
Typical NP Architecture
6
TCP/IP Model

• ISO OSI (Open Systems Interconnection) not fully
  implemented
• Presentation and Session layers not present in
  TCP/IP

7
Processing Tasks
Source Network Processor Tutorial in Micro 34 -
Mangione-Smith Memik
8
Application Categorization

• Control-Plane tasks
• Less time-critical
• Control and management of device operation
• Table maintenance, port states, etc.
• Data-Plane tasks
• Operations occurring real-time on packet path
• Core device operations
• Receive, process and transmit packets

9
Data Plane Tasks

• Media Access Control
• Low-level protocol implementation
• Ethernet, SONET framing, ATM cell processing,
  etc.
• Data Parsing
• Parsing cell or packet headers for address or
  protocol information
• Classification
• Identify packet against a criteria (filtering /
  forwarding decision, QoS, accounting, etc.)
• Data Transformation
• Transformation of packet data between protocols
• Traffic Management
• Queuing, scheduling and policing packet data

10
Applications IPv4 Routing
P
P
P
B
A
C
Router

• Routers determine next hop and forward packets

11
URL-based switching My NSF Project
www.yahoo.com
Internet
Image Server
APP. DATA
TCP
IP
Application Server
Switch
GET /cgi-bin/form HTTP/1.1 Host www.yahoo.com
HTML Server

• Increase efficiency
• Tasks
• Traverse the packet data (request) for each
  arriving packet and classify it
• Contains .jpg -gt to image server
• Contains cgi-bin/ -gt to application server

12
Organizing Processor Resources

• Design decisions
• High-level organization
• ISA and micro architecture
• Memory and I/O integration
• Todays commercial NPs
• Chip multiprocessors
• Most are multithreaded
• Exploit little ILP (Cisco does)
• No cache
• Micro-programmed

13
Architectural Comparisons

• High-level organizations
• Aggressive superscalar (SS)
• Fine-grained multithreaded (FGMT)
• Chip multiprocessor (CMP)
• Simultaneous multithreaded (SMT)

14
Multithreading

• Basic idea
• multiple register sets in the processor
• fast context switch
• switch thread on a cache access (How is this
  different than non-blocking cache?)
• tolerating local latency vs remote in CC-NUMA
  multiprocessors
• hybrids
• switch on notice
• simultaneous multithreading

15
Architectural Comparisons (cont.)
Simultaneous Multithreading
Multiprocessing
Superscalar
Fine-Grained
Coarse-Grained
Time (processor cycle)
Thread 1
Thread 3
Thread 5
Thread 2
Thread 4
Idle slot
16
Tasks and Services
Three Benchmarks used in the experiment
17
Some Challenges

• Intelligent Design
• Given a selection of programs, a target network
  link speed, the best design for the processor
• Least area
• Least power
• Most performance
• Write efficient multithreaded programs
• NPs have
• Heterogeneous computer resources
• Non-uniform memory
• Multiple interacting threads of execution
• Real-time constraints
• Make use of resources
• How to use special instructions and hardware
  assists
• Compilers
• Hand-coded
• Multithreaded programs
• Manage access to shared state
• Synchronization between threads

18
Benchmarks for Network Processors

• NetBench
• 10 applications
• http//cares.icsl.ucla.edu/NetBench
• CommBench
• 8 networking and communications applications
• http//ccrc.wustl.edu/wolf/cb/
• EEMBC
• http//www.eembc.org/benchmark
• MediaBench
• Transcoders
• Some communications applications

19
IXP1200 Block Diagram

• StrongARM processing core
• Microengines introduce new ISA
• I/O
• PCI
• SDRAM
• SRAM
• IX PCI-like packet bus
• On chip FIFOs
• 16 entry 64B each

20
IXP1200 Microengine

• 4 hardware contexts
• Single issue processor
• Explicit optional context switch on SRAM access
• Registers
• All are single ported
• Separate GPR
• 2566 1536 registers total
• 32-bit ALU
• Can access GPR or XFER registers
• Shared hash unit
• 1/2/3 values 48b/64b
• For IP routing hashing
• Standard 5 stage pipeline
• 4KB SRAM instruction store not a cache!
• Barrel shifter

21
IXP 2400 Block Diagram

• XScale core replaces StrongARM
• Microengines
• Faster
• More 2 clusters of 4 microengines each
• Local memory
• Next neighbor routes added between microengines
• Hardware to accelerate CRC operations and Random
  number generation
• 16 entry CAM

22
Different Types of Memory
Type Width (byte) Size (bytes) Approx unloaded latency (cycles) Notes
Local 4 2560 1 Indexed addressing post incr/decr
On-chip Scratch 4 16K 60 Atomic ops
SRAM 4 256M 150 Atomic ops
DRAM 8 2G 300 Direct path to/fro MSF
23
IXA Software Framework
External Processors
Control Plane Protocol Stack
Control Plane PDK
XScale Core
C/C Language
Core Components
Core Component Library
Resource Manager Library
Microengine Pipeline
Microblock Library
Microengine C Language
Micro block
Micro block
Micro block
Protocol Library
Utility Library
Hardware Abstraction Library
24
Example Toaster System Cisco 10000

• Almost all data plane operations execute on the
  programmable XMC
• Pipeline stages are assigned tasks e.g.
  classification, routing, firewall, MPLS
• Classic SW load balancing problem
• External SDRAM shared by common pipe stages

25
IBM PowerNP

• 16 pico-procesors and 1 powerPC
• Each pico-processor
• Support 2 hardware threads
• 3 stage pipeline fetch/decode/execute
• Dyadic Processing Unit
• Two pico-processors
• 2KB Shared memory
• Tree search engine
• Focus is layers 2-4
• PowerPC 405 for control plane operations
• 16K I and D caches
• Target is OC-48

26
Motorola C-Port C-5 Chip Architecture
27
References

• NPT W. H. Mangione-Smith, G. Memik Network
  Processor Technologies
• NPRD Patrick Crowley, Raj Yavatkar An
  Introduction to Network Processor Research
  Design, HPCA-9 Tutorial
